Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302

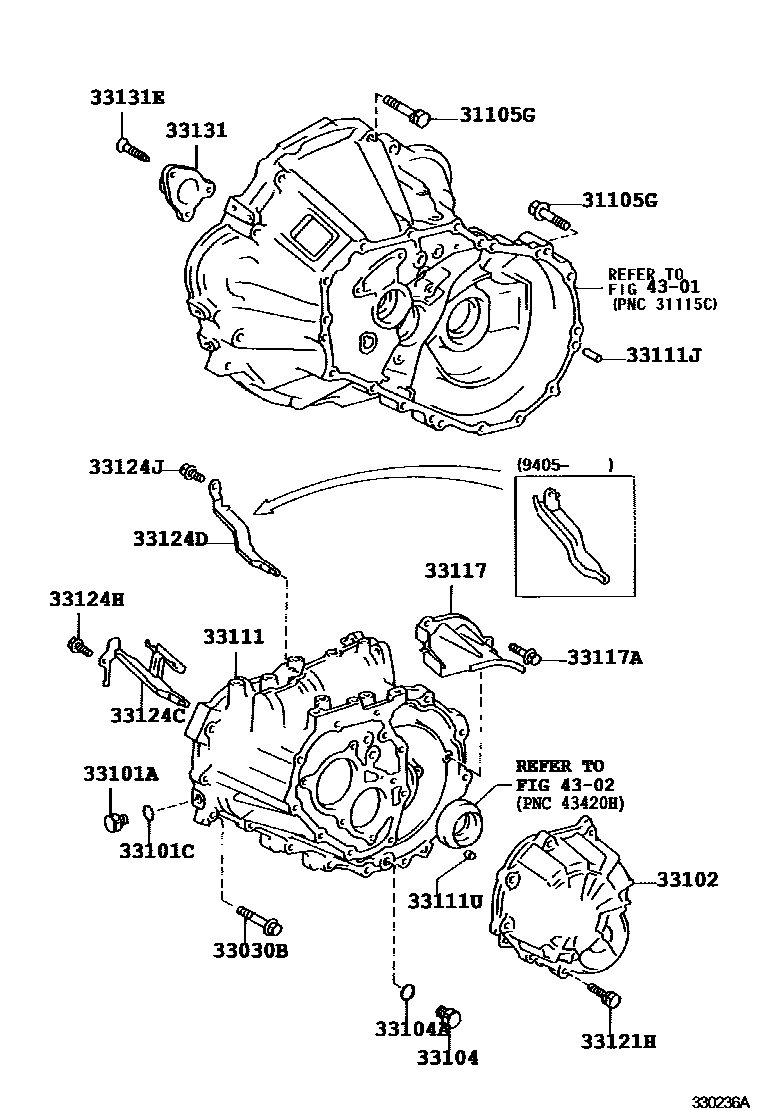

Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-10077 · 90119-12042 · 90119-12168 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08064 · 90105-08086 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33102 | Manual transmission cover sub-assembly | 33102-12021 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33111-16040 · 33111-16060 · 33111-16061 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33111U | Ring pin (for manual transmission) | 90253-11001 |
| 33117 | manual transmission protector | 33117-16010 |
| 33117A | Bolts (for manual transmission guard) | 90105-08040 |
| 33121H | Bolt with washer (for gearbox cover) | 91611-60835 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-12010 · 33124-12012 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-12020 · 33124-12021 |
| 33124H | Bolt (for oil collection pipe) | 91611-60820 |
| 33124J | Bolts with washers | 91611-60820 |
| 33131 | Front bearing retainer (MTM) | 33131-12071 |
| 33131E | Screw (for front bearing retainer) | 90149-60028 |
