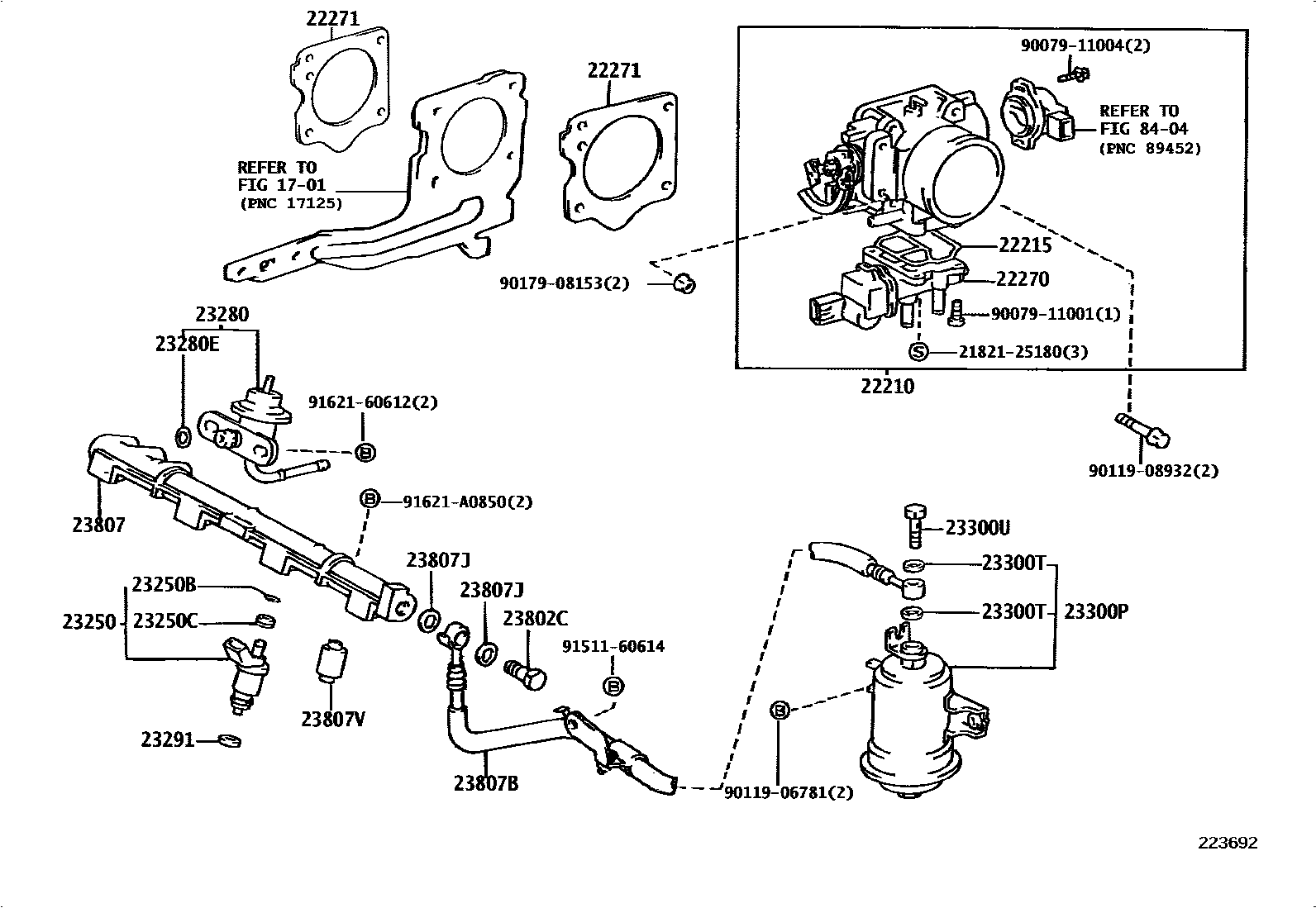

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-16710 |
| 22215 | Throttle body cover gasket | 22215-74400 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-15010 |
| 22271 | Throttle body gasket | 22271-15020 |
| 23091 | Fuel pump pipe sub-assembly | 23091-16060 · 77209-12080 |
| 23204 | Fuel pump return pipe sub-assembly | 23204-16510 · 77204-12020 |
| 23206A | fuel pump bracket | 23206-16560 · 77203-12240 |
| 23206B | fuel pump bracket gasket | 77169-12030 |
| 23217A | fuel pump filter | 23217-74020 · 23217-74021 |
| 23220P | fuel pump assembly | 23220-74020 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23239 | hose | 23239-11010 · 23239-63010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-16160 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23280 | Fuel pressure regulator assembly | 23280-15020 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23300P | Fuel filter (for EFI) | 23300-19295 · 23300-19515 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12097 |
| 23807 | Oil pipe sub-assembly | 23814-15050 |
| 23807B | Fuel line hose | 23271-16200 |
| 23807J | Oil pipe inlet gasket | 90430-12026 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08020 |
