Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 17 PNC and OE references.

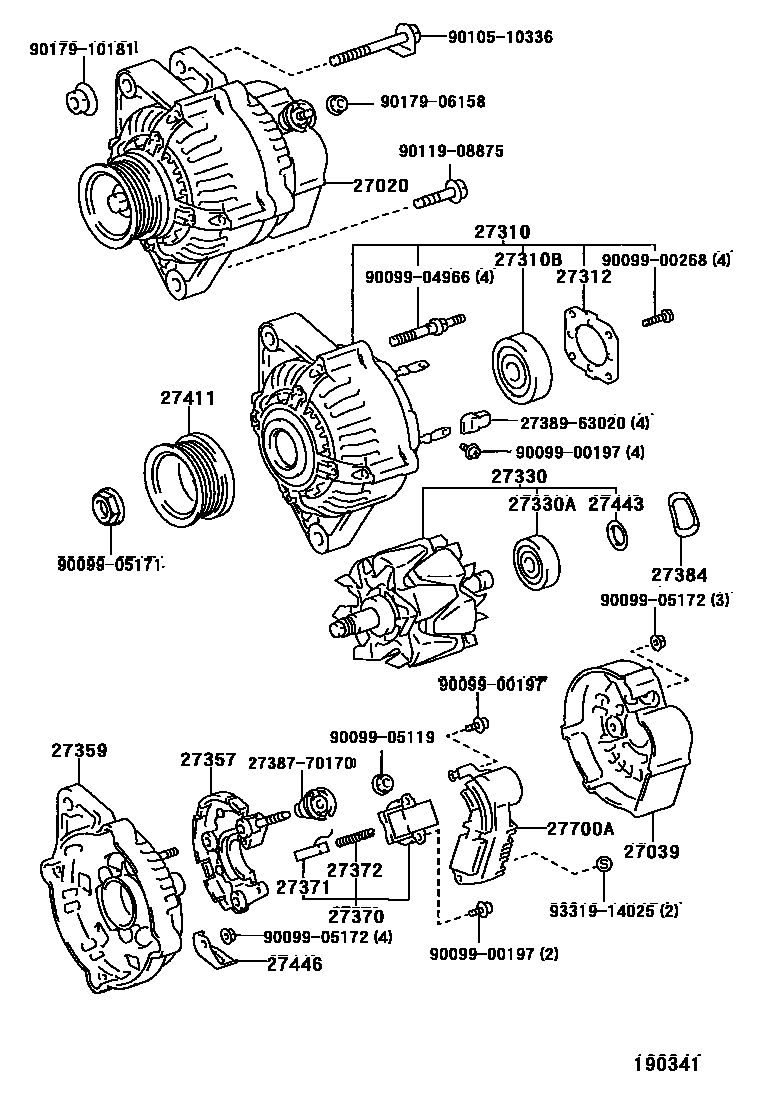

Toyota COROLLA Alternator EPC diagram — 190341
Alternator — 190341 (199402 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-15080 · 27060-15130
27039Alternator Rear End Cover27039-73020
27310Alternator Drive End Frame Assembly27310-15170
27310BBearing (for Alternator Drive End Frame)90099-10178
27312Retainer Plate27312-70200
27330Alternator Rotor Assembly27330-72101
27330ABearings (for generator rotor)90099-10140
27357Generator rectifier frame27357-63020
27359Generator rectifier end frame27359-15170 · 27359-15171
27370Alternator Brush Holder Assembly27370-35060
27371Generator brushes27371-70300
27372Generator brush spring27372-63020
27384Washer27384-16380
27411Alternator Pulley27411-16180
27443Generator bearing cap27443-63020
27446Generator clamp27446-15170
27700AGenerator voltage regulator assembly27700-74030 · 27700-74040
