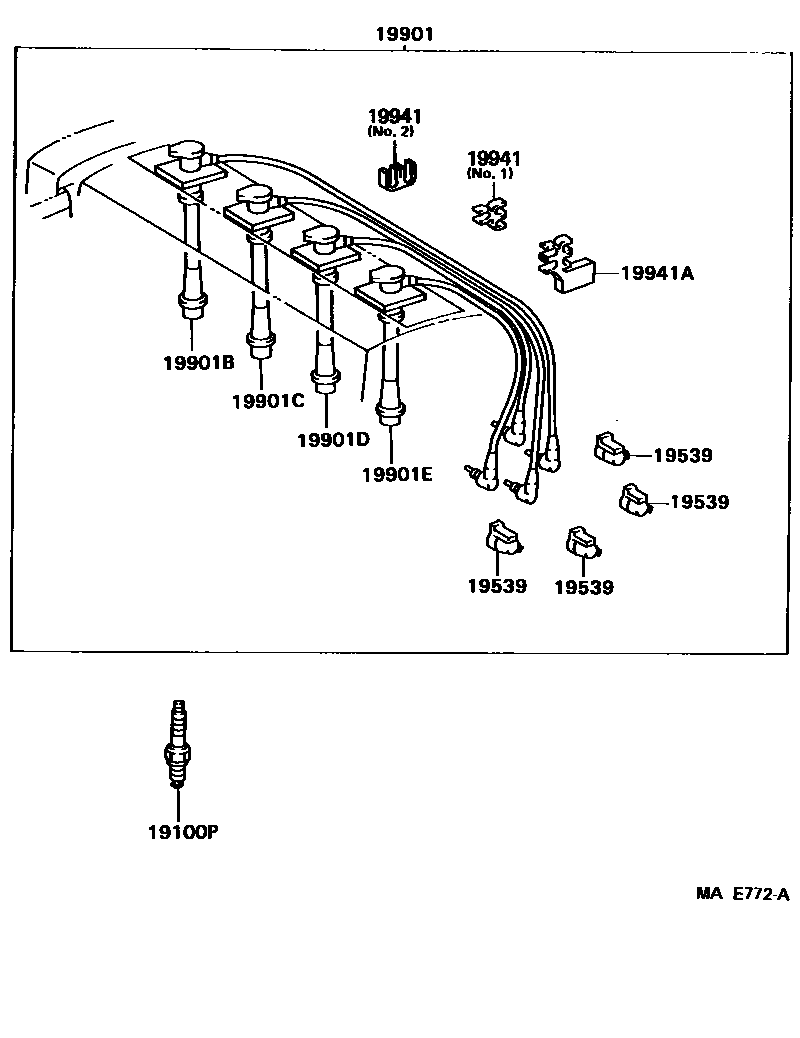

Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01176 |
| 19539 | No. 4 damping wire fixing piece | 19532-50010 · 19539-11010 · 19539-46010 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-22327 |
| 19901B | No. 1 spark plug damper wire | 90919-15211 |
| 19901C | No. 2 spark plug damper wire | 90919-15210 |
| 19901D | No. 3 spark plug damper wire | 90919-15209 |
| 19901E | No. 4 spark plug damper wire | 90919-15208 |
| 19941 | No. 1 damping wire clip | 90464-00561 · 90464-00655 |
| 19941A | Clamp (for damping wire) | 90929-01273 |
