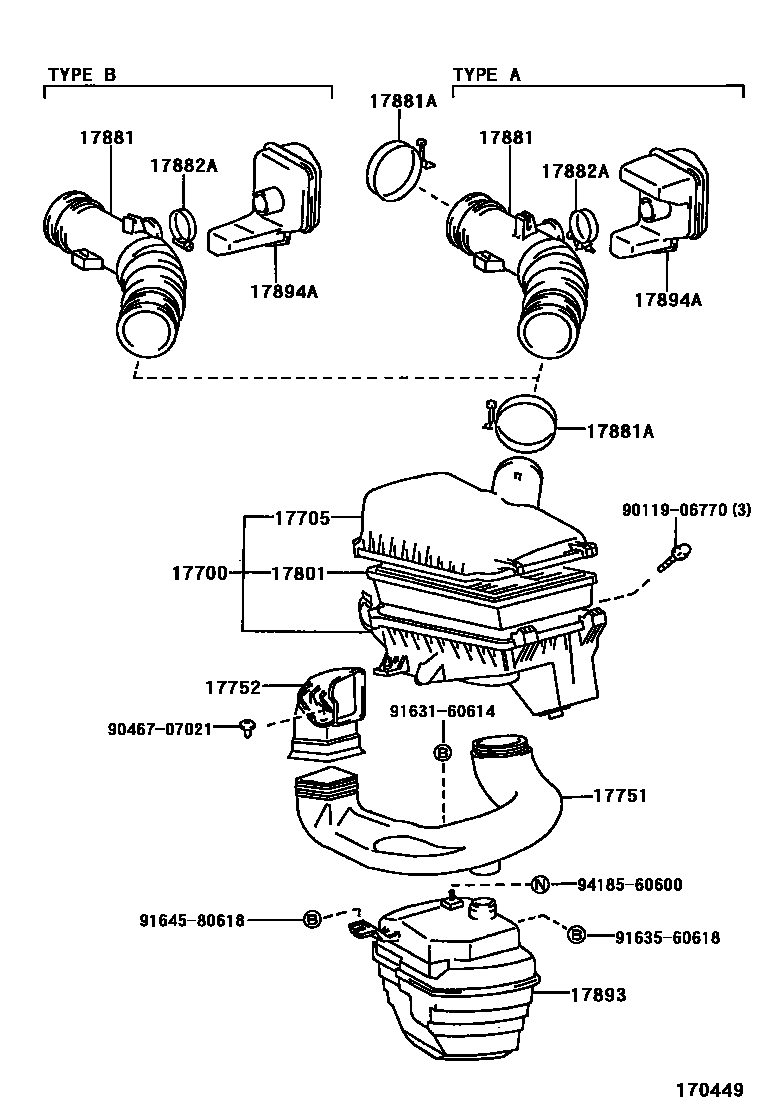

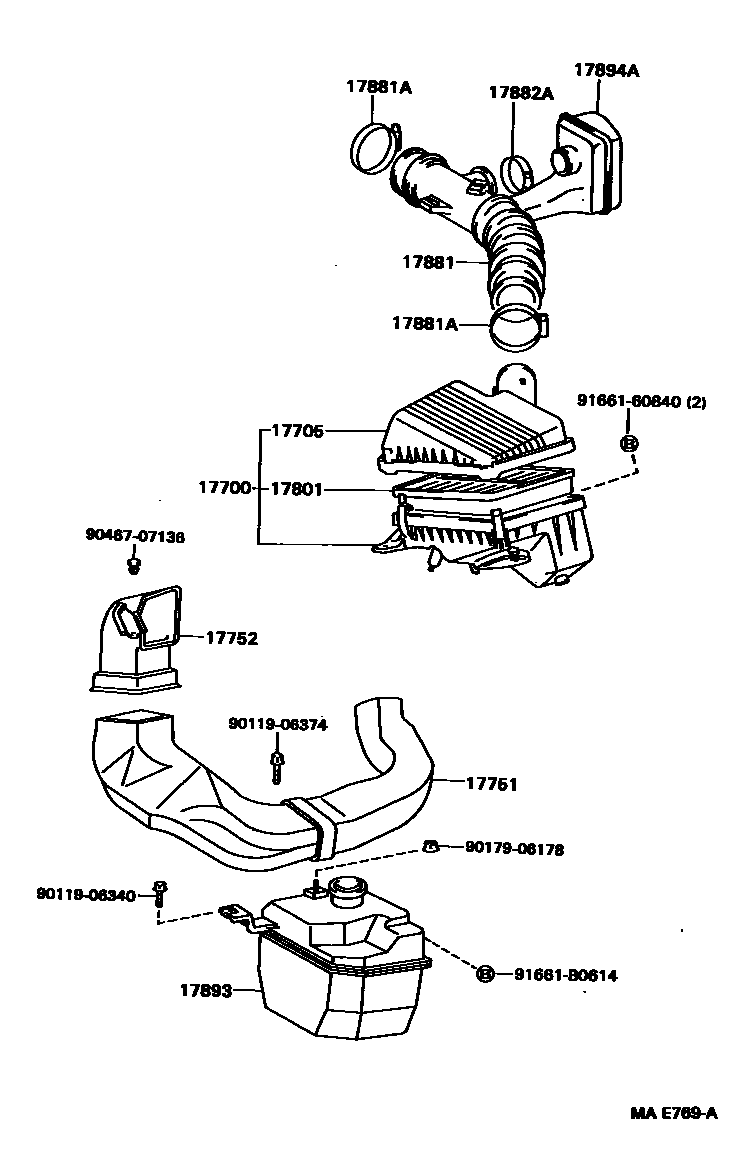

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-02040 · 17700-15270 · 17700-15340 |
| 17705 | Air filter cover sub-assembly | 17705-02040 · 17705-15160 · 17705-15180 |
| 17751 | No. 1 air filter air inlet | 17750-02010 · 17750-15010 · 17751-15050 |
| 17752 | No. 2 air filter air inlet | 17752-15040 · 17753-02010 · 17753-15010 |
| 17801 | Air filter element sub-assembly | 17801-02030 · 17801-15070 |
| 17881 | No. 1 air cleaner hose | 17881-02030 · 17881-02040 · 17881-15170 · 17881-15180 · 17881-15190 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73001 · 96111-10730 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90080-46097 · 90080-46146 · 90460-42002 · 90460-55012 · 96111-10380 |
| 17893 | Intake resonator | 17893-02010 · 17893-15040 · 17893-15050 |
| 17894A | No. 2 intake resonator | 17894-02010 · 17894-02020 · 17894-15020 · 17894-15030 · 17894-15040 |
