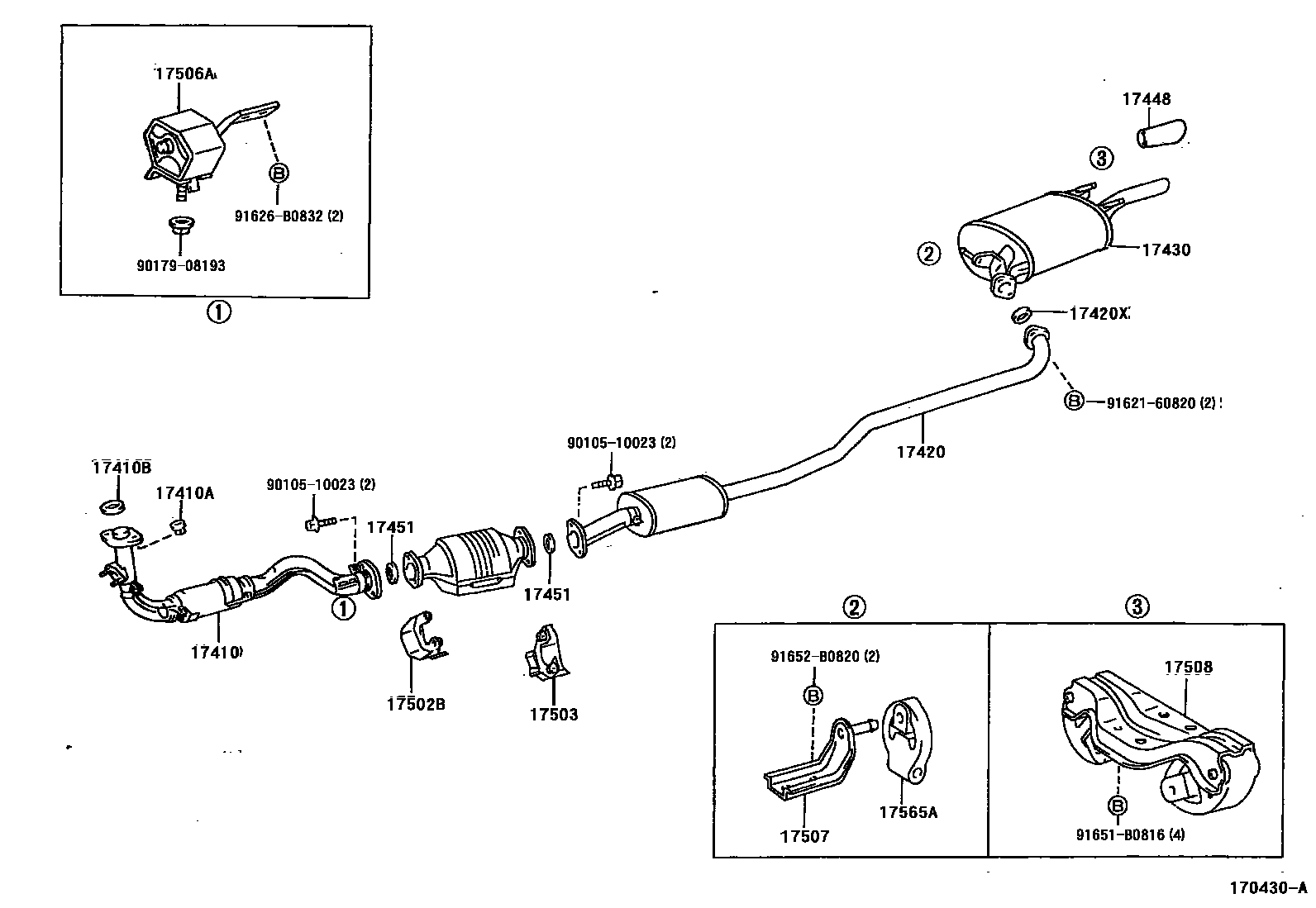

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-1A150 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06065 |
| 17420 | Central exhaust pipe assembly | 17420-02100 |
| 17420X | Center exhaust pipe liner | 90917-06039 |
| 17430 | Exhaust tailpipe assembly | 17430-1A430 |
| 17448 | Exhaust pipe tail throat | 17448-70020 |
| 17451 | Exhaust pipe gasket | 90917-06045 |
| 17502B | Three-way catalytic converter front bracket sub-assembly | 17502-16020 |
| 17503 | Three-way catalytic converter rear bracket sub-assembly | 17503-02030 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15070 · 17506-16120 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-15040 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-15050 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-16230 |
