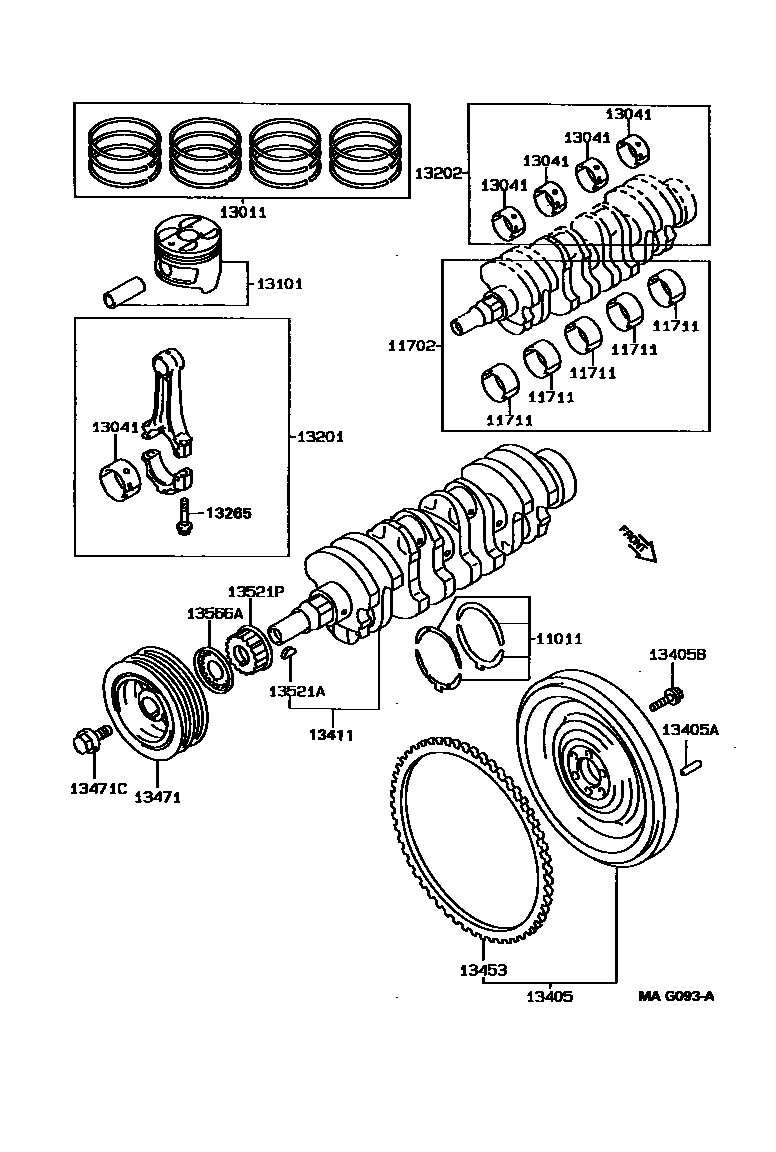

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-15010 · 11011-15020 |
| 11702 | crankshaft bearing assembly | 11704-16010 · 11704-16030 |
| 13011 | Piston ring assembly | 13011-16300 · 13013-16300 |
| 13101 | Piston sub-assembly with pin | 13103-16150 · 13103-16190 |
| 13201 | Connecting rod sub-assembly | 13201-19145 |
| 13202 | Connecting rod bearing assembly | 13204-16090 |
| 13265 | Connecting rod bolts | 13265-16050 |
| 13405 | Flywheel sub-assembly | 13405-15090 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10042 |
| 13411 | crankshaft | 13411-02900 · 13411-16903 |
| 13453 | flywheel ring gear | 13453-10010 |
| 13471 | crankshaft pulley | 13470-16080 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12230 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 |
| 13521P | crankshaft timing pulley | 13521-15020 |
| 13566A | timing belt guide | 13566-15020 |
