Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

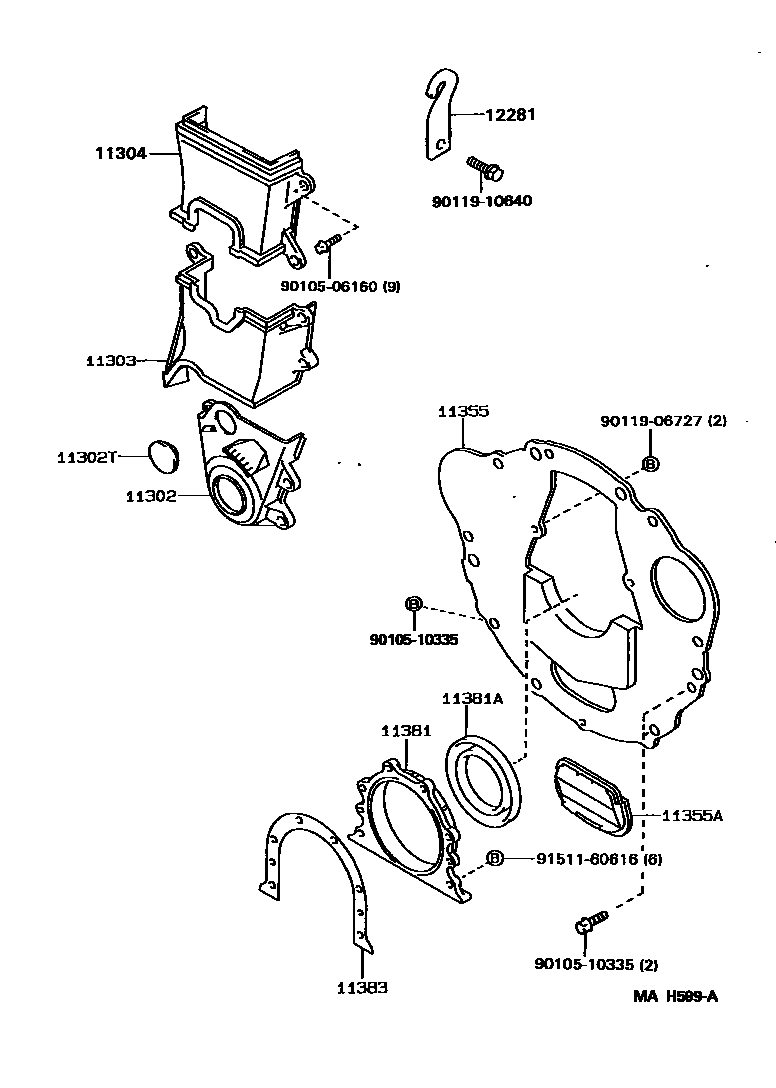

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 10 PNC and OE references.

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MAH599A
Timing Gear Cover & Rear End Plate — MAH599A (199402 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-15050
11302Thole plug90950-01783
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-16050
11304No. 2 timing chain or timing belt cover11304-16060
11355rear end plate11355-15070 · 11355-15080
11355AHole plug (for rear end plate)90950-01264
11381RETAINER, ENGINE REAR OIL SEAL11381-15010
11381ASEAL, ENGINE REAR OIL90311-70007
11383Engine rear oil seal seat gasket11383-16010
12281Engine No. 1 hanger12281-15050
