Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

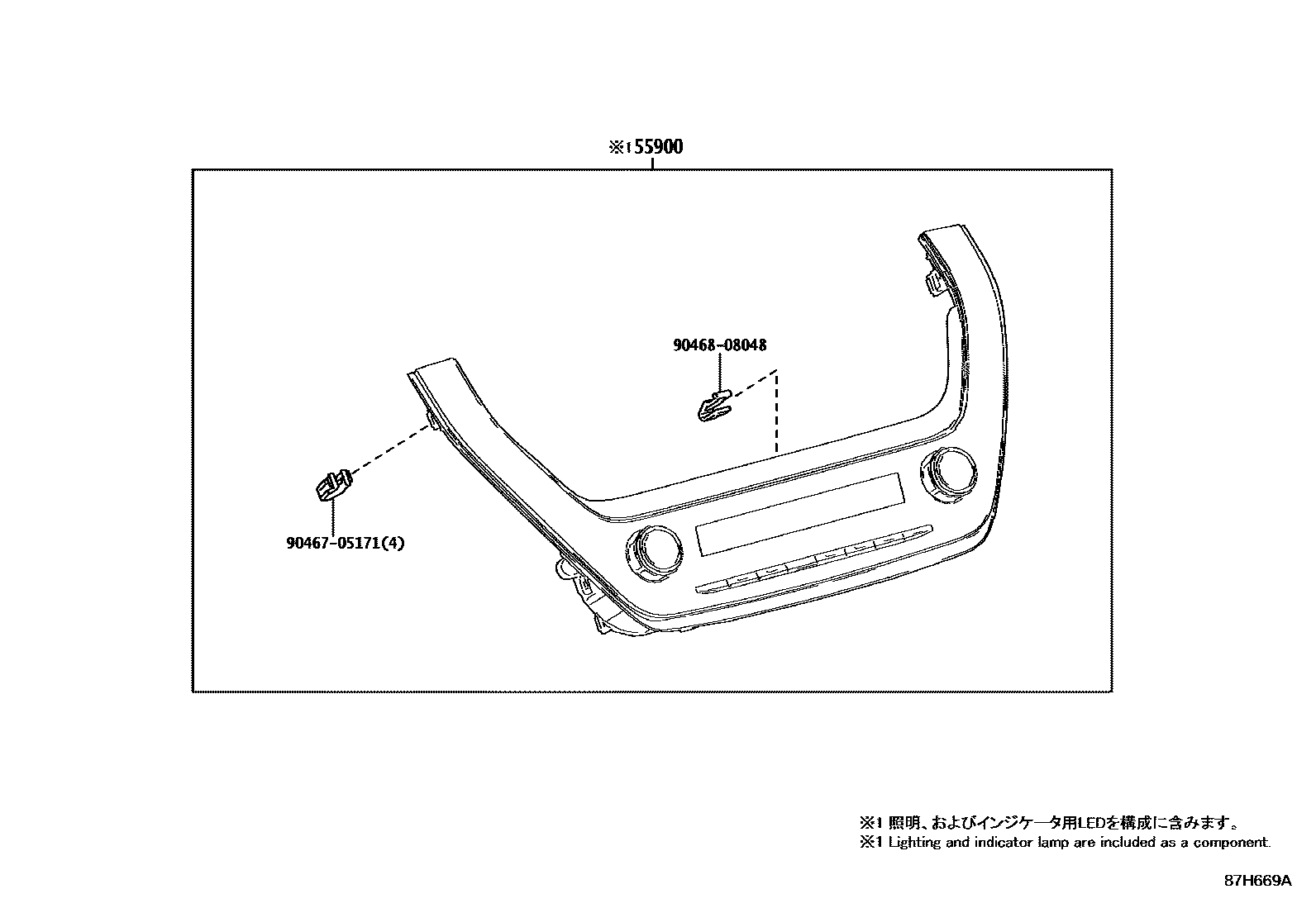

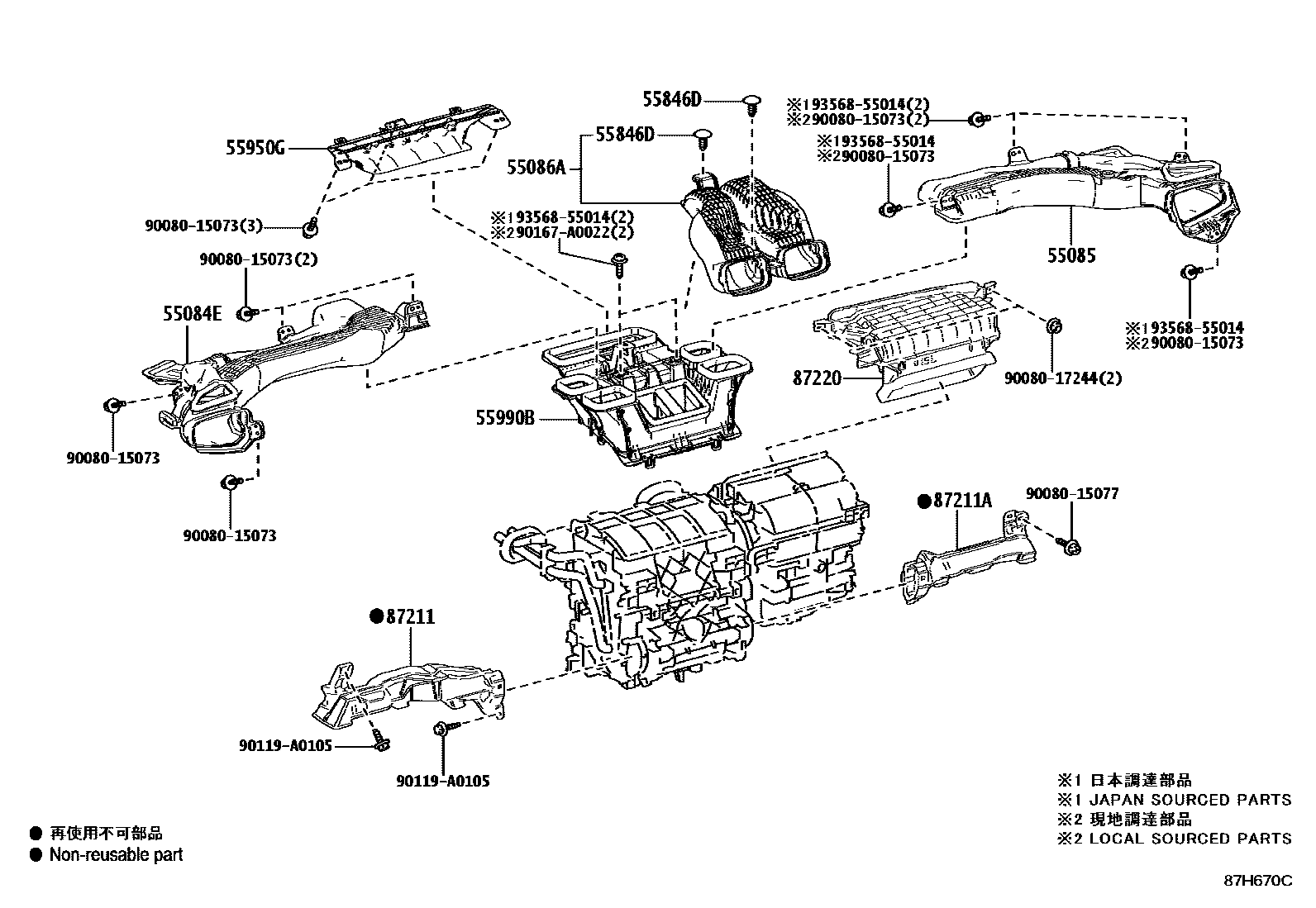

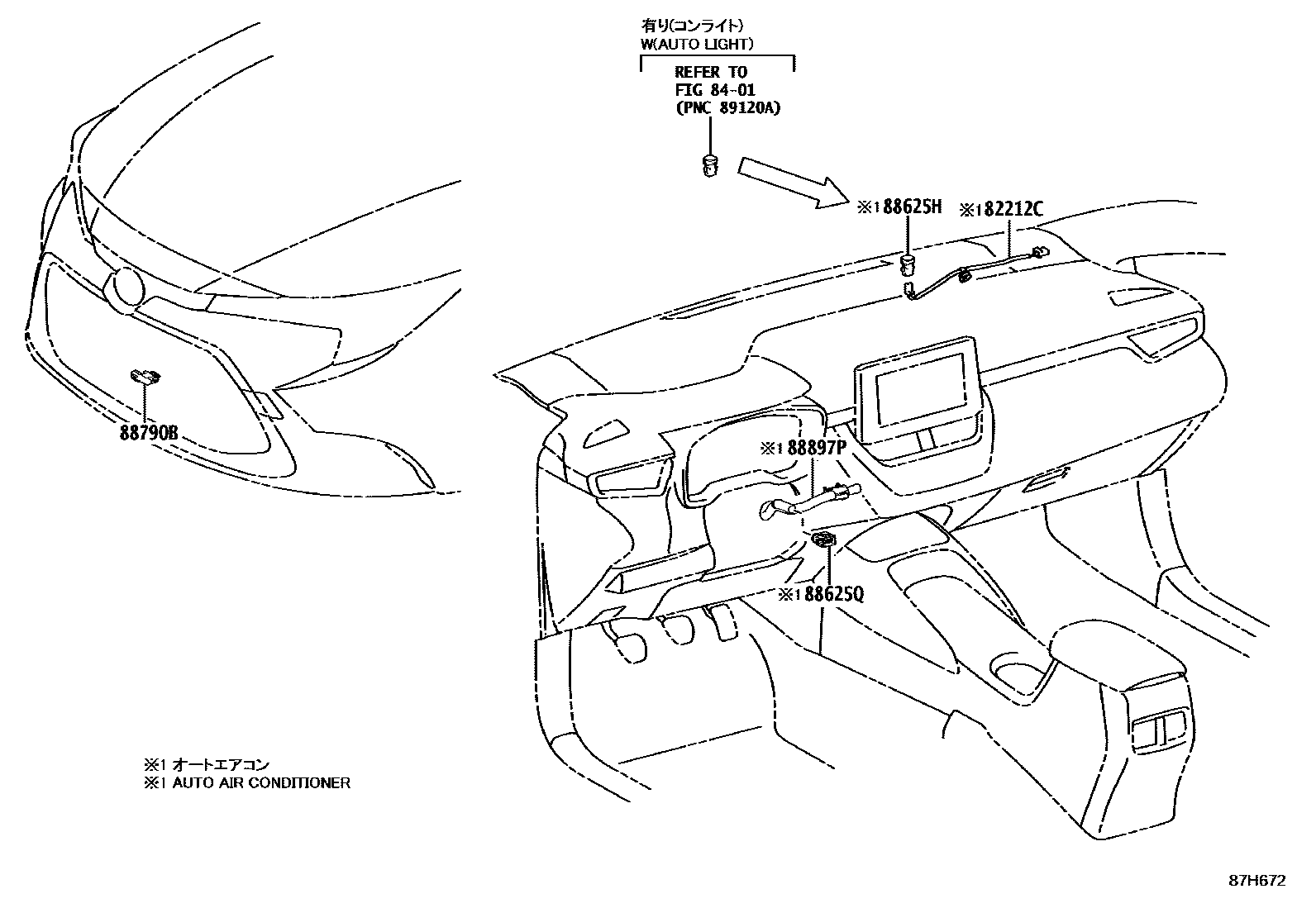

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02600 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-02050 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-02570 |
| 55950G | Defroster nozzle assembly | 55950-02400 |
| 55990B | Lower defroster nozzle assembly | 55990-02270 |
| 82212C | Air conditioner No. 1 wiring harness | 82212-02630 |
| 87211 | No. 1 air duct | 87211-02570 |
| 87211A | Duct No. 2 | 87211-02580 |
| 87220 | Air duct assembly | 87220-02190 · 87220-02191 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-52130 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06040 |
| 88790B | Thermistor assembly | 88790-06020 |
| 88897P | aspirator | 88505-02210 |
