Toyota COROLLA antenna — Figure 8604

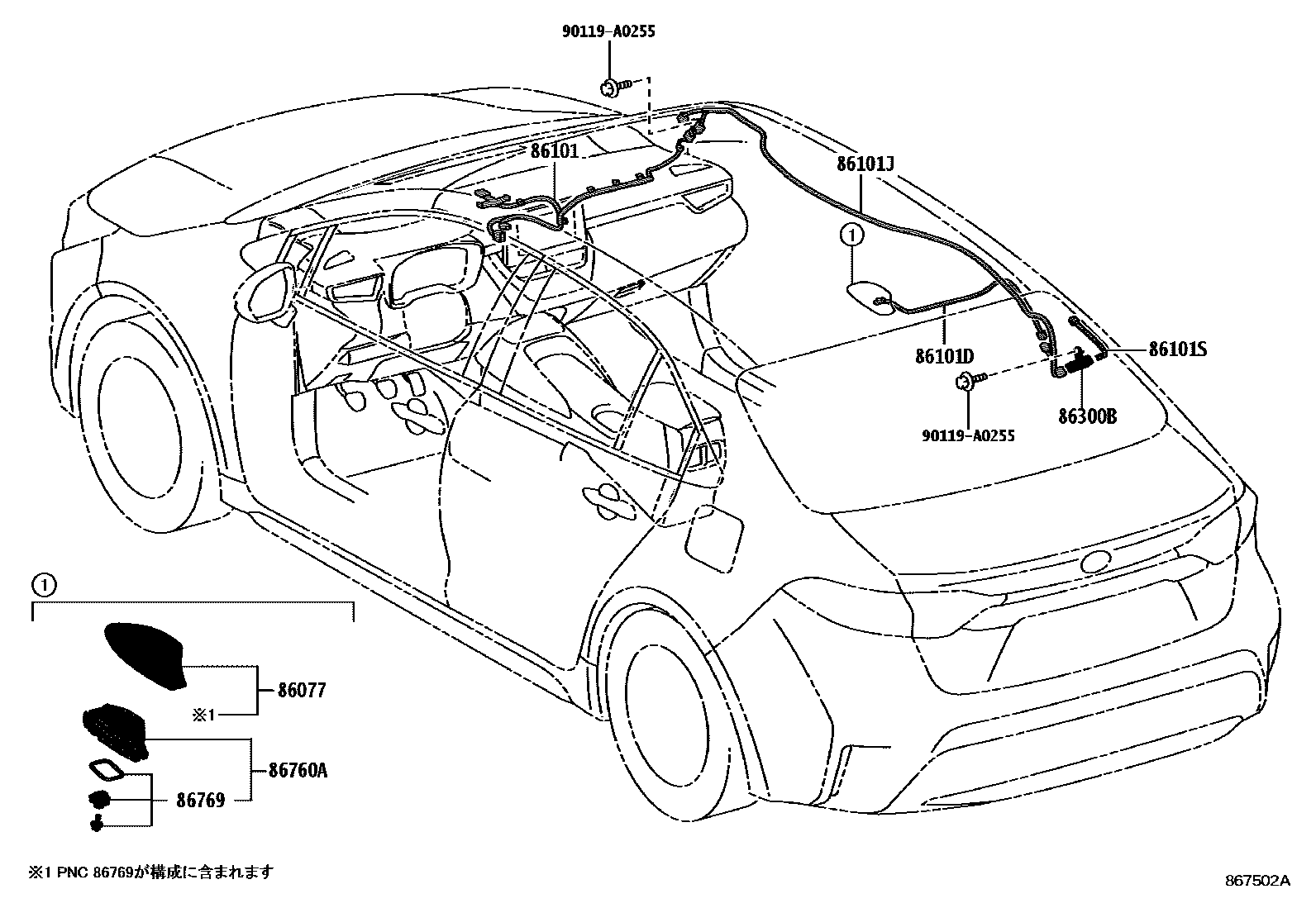

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02870 · 86101-02K40 · 86101-02K50 · 86101-02Q20 · 86101-02Q30 · 86101-02Q40 · 86101-02W00 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-02840 · 86101-02M30 · 86101-02V40 · 86101-02V70 |
| 86101S | Antenna wire sub-assembly | 86101-02810 |
| 86300B | No. 1 amplifier antenna assembly | 86300-02570 |
