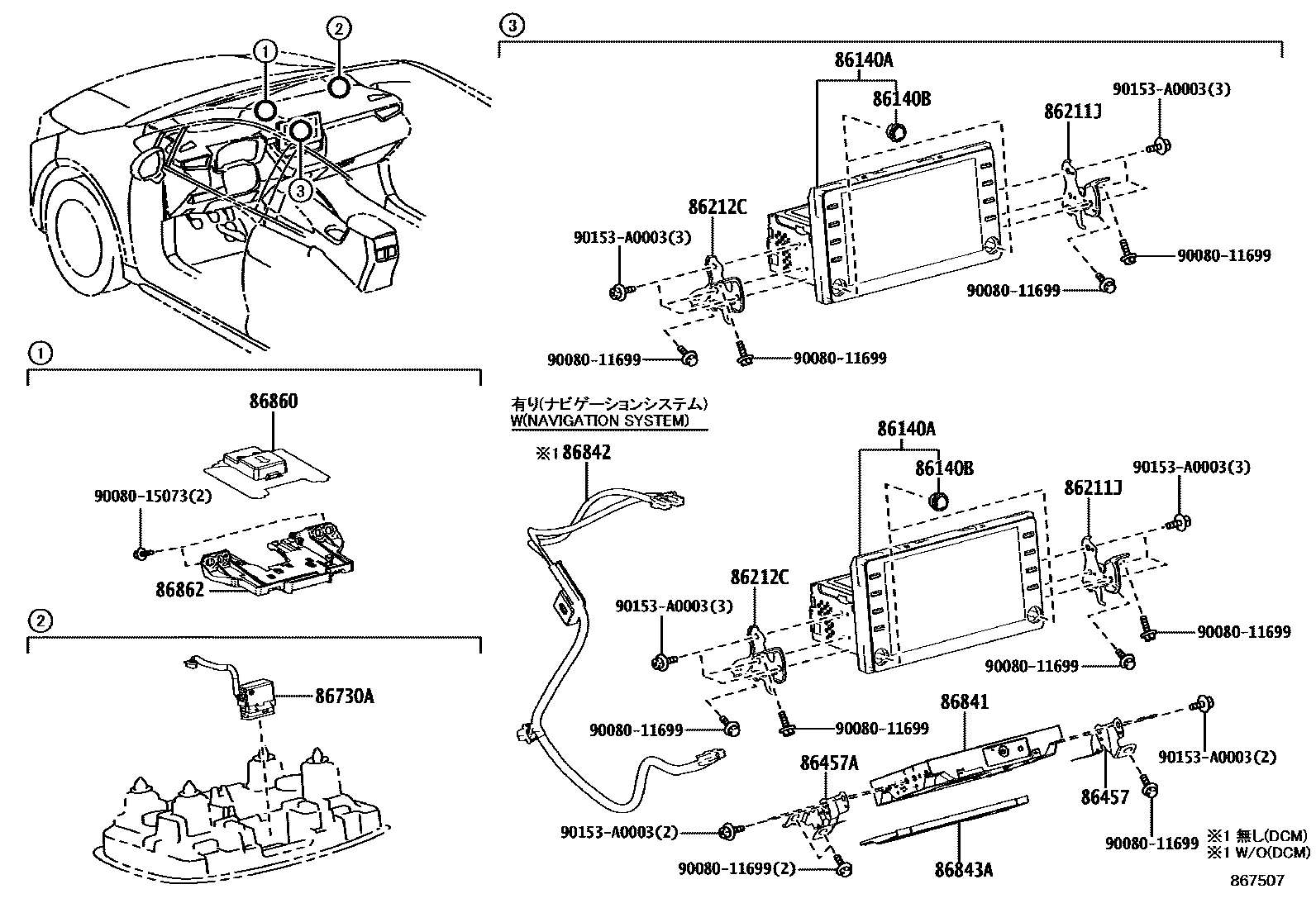

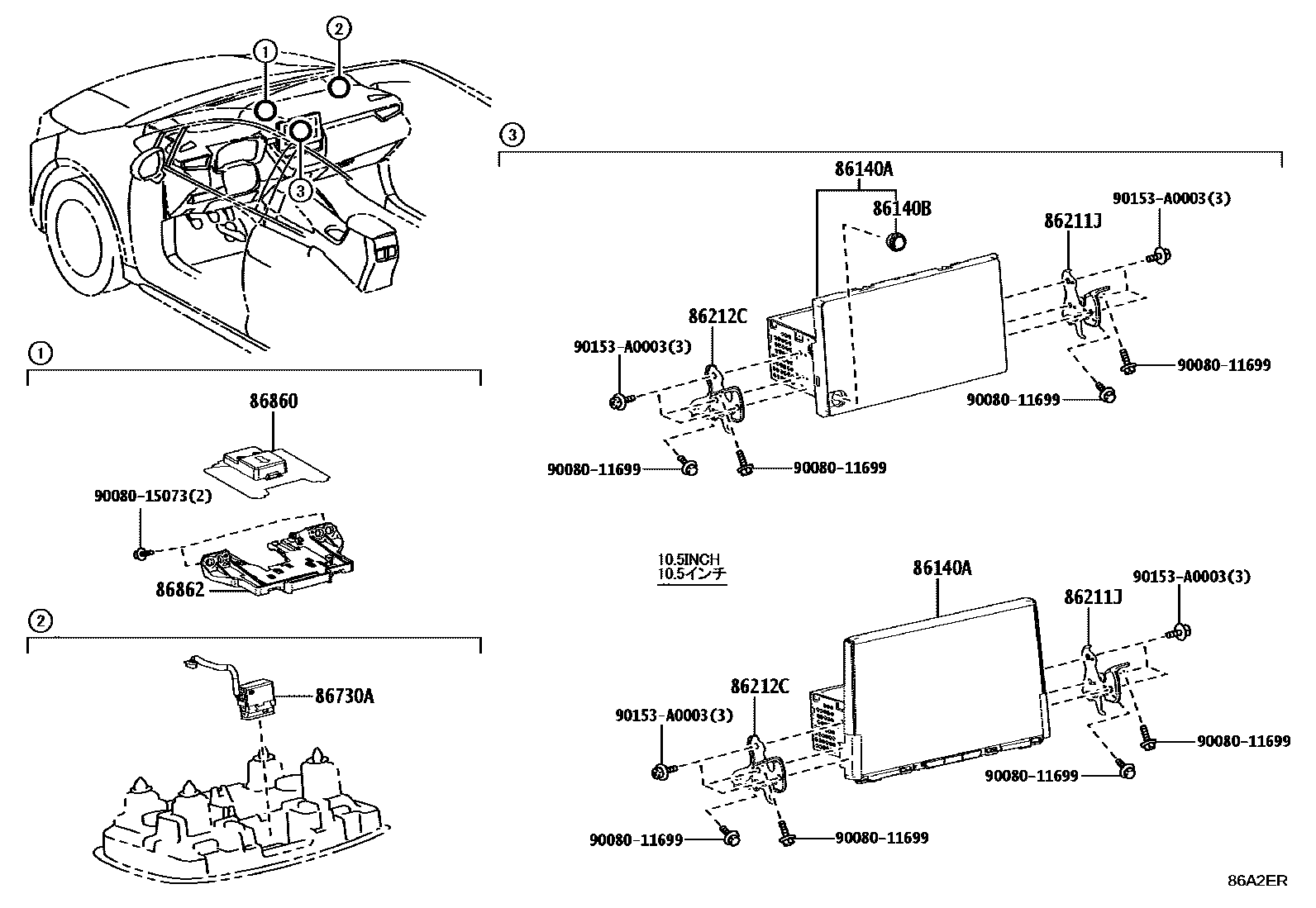

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-02640 · 86140-02770 · 86140-02B60 · 86140-02B90 · 86140-02D90 · 86140-02E10 · 86140-02E90 · 86140-02E91 · 86140-02R10 |
| 86140B | Radio and display receiver switch button | 90010-22128 · 90010-22129 · 90010-22138 · 90011-23051 |
| 86211J | No. 1 radio bracket | 86211-02540 |
| 86212C | No. 2 radio bracket | 86212-02540 |
| 86457 | Multimedia module bracket No. 1 | 86457-02030 |
| 86457A | Multimedia module bracket No. 2 | 86457-02040 |
| 86730A | Telephone amplifier assembly | 86730-0C020 · 86730-12081 |
| 86841 | Navigation ECU | 86840-0E081 · 86840-0E082 · 86840-0E083 · 86840-0E084 · 86840-0E085 · 86840-0E086 · 86840-0R011 · 86840-0R012 |
| 86842 | Navigation harness No. 1 | 86842-02010 |
| 86843A | Navigation ECU cover | 86843-02020 |
| 86860 | Navigation antenna assembly | 86860-06100 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-58020 |
