Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

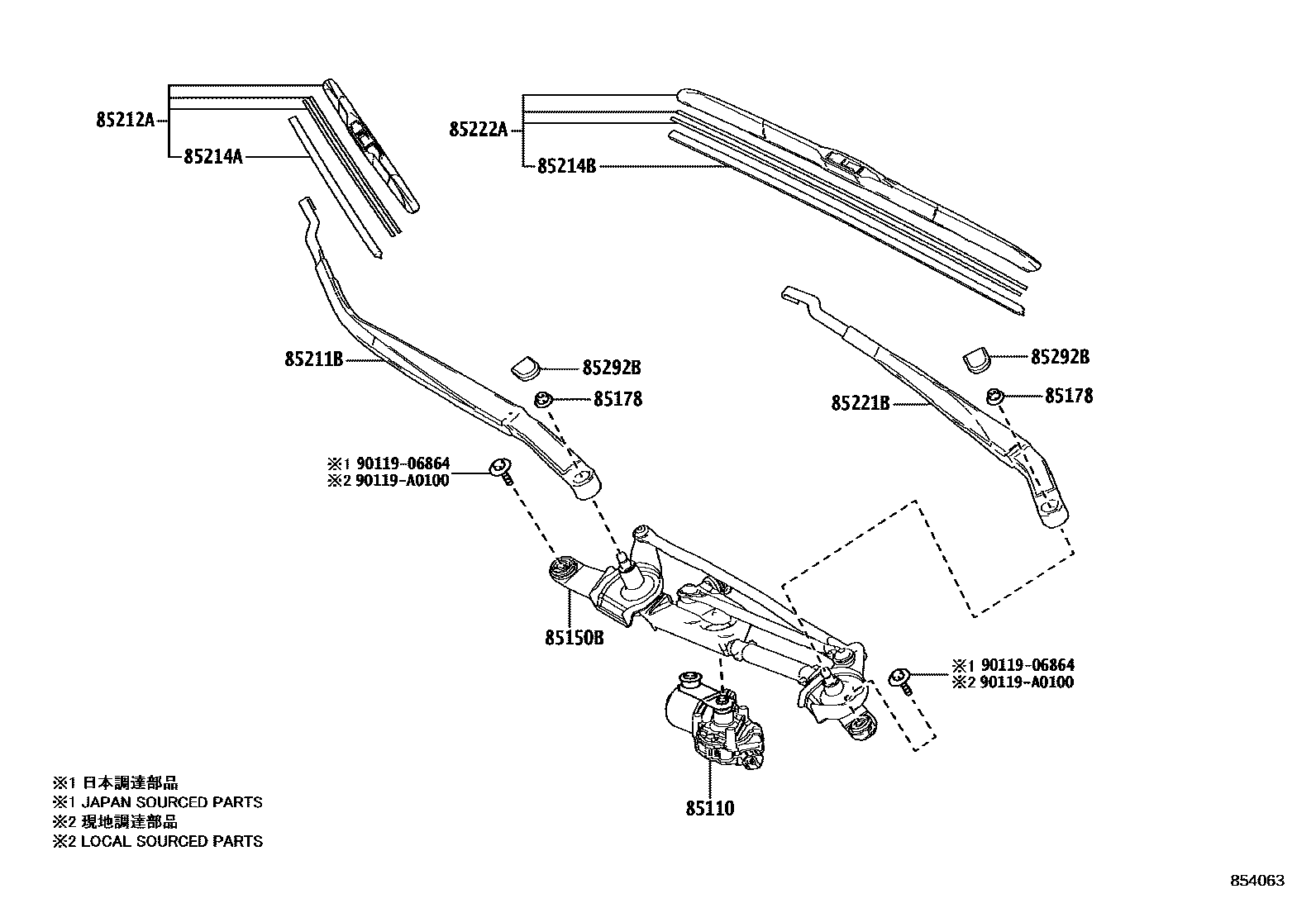

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-02440 |
| 85150B | Wiper connecting rod assembly | 85150-02420 · 85150-02421 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 · 90182-A0017 |
| 85211B | Right front wiper arm | 85211-02390 |
| 85212A | Right front wiper blade | 85212-52220 |
| 85214A | Right wiper rubber strip | 85214-68030 |
| 85214B | Left wiper rubber strip | 85214-28080 |
| 85221B | Left front wiper arm | 85221-02540 · 85221-02541 |
| 85222A | Left front wiper blade | 85222-12A90 |
| 85292B | Front wiper arm cap | 85292-AA010 |
