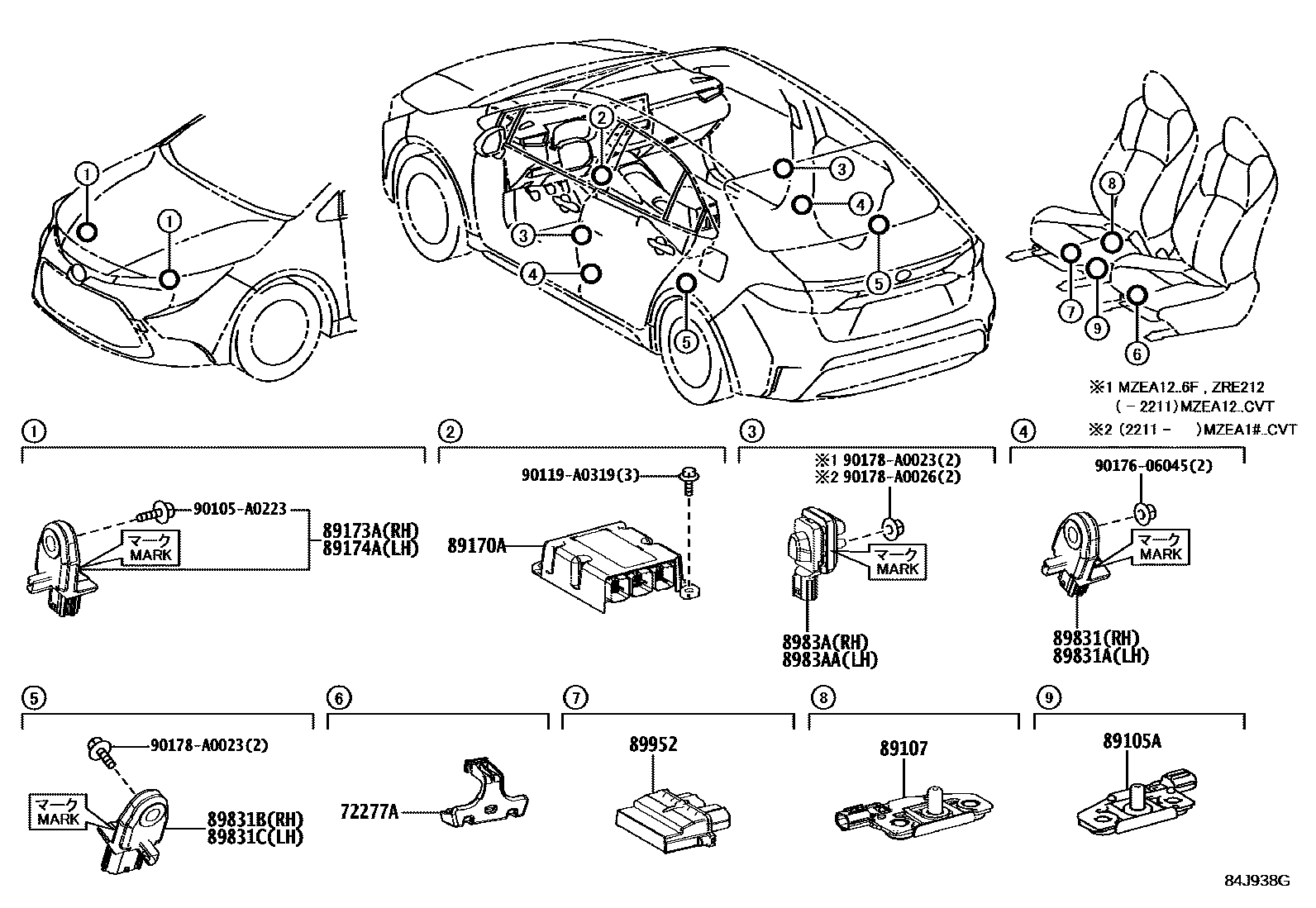

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-47050 |
| 89105A | Front inner weight detection sensor | 89105-0E040 |
| 89107 | Rear inner weight detection sensor | 89107-0E040 |
| 89170A | Air bag ECU assembly | 89170-02N60 · 89170-02W70 · 89170-02W71 · 89170-02X90 |
| 89173A | Right front air bag sensor | 89173-09882 · 89173-09893 · 89173-09D60 · 89173-49495 |
| 89174A | Left front air bag sensor | 89173-09882 · 89173-09893 · 89173-09D60 · 89173-49495 |
| 89831 | Right side air bag sensor No. 1 | 89831-02290 · 89831-06110 · 89831-08110 · 89831-47050 |
| 89831A | Left No. 1 side airbag sensor | 89831-02290 · 89831-06110 · 89831-08110 · 89831-47050 |
| 89831B | Right side air bag sensor No. 2 | 89831-02280 · 89831-0E130 · 89831-28040 |
| 89831C | Left No. 2 side airbag sensor | 89831-02280 · 89831-0E130 · 89831-28040 |
| 8983A | Side airbag right pressure sensor | 8983A-02010 · 8983A-02011 · 8983A-02050 · 8983A-33010 · 8983A-33011 |
| 8983AA | Side airbag left pressure sensor | 8983A-02010 · 8983A-02011 · 8983A-02050 · 8983A-33010 · 8983A-33011 |
| 89952 | Occupant detection ECU | 89952-02040 · 89952-07020 |
