Toyota COROLLA 电子燃油喷射系统 — Figure 8404

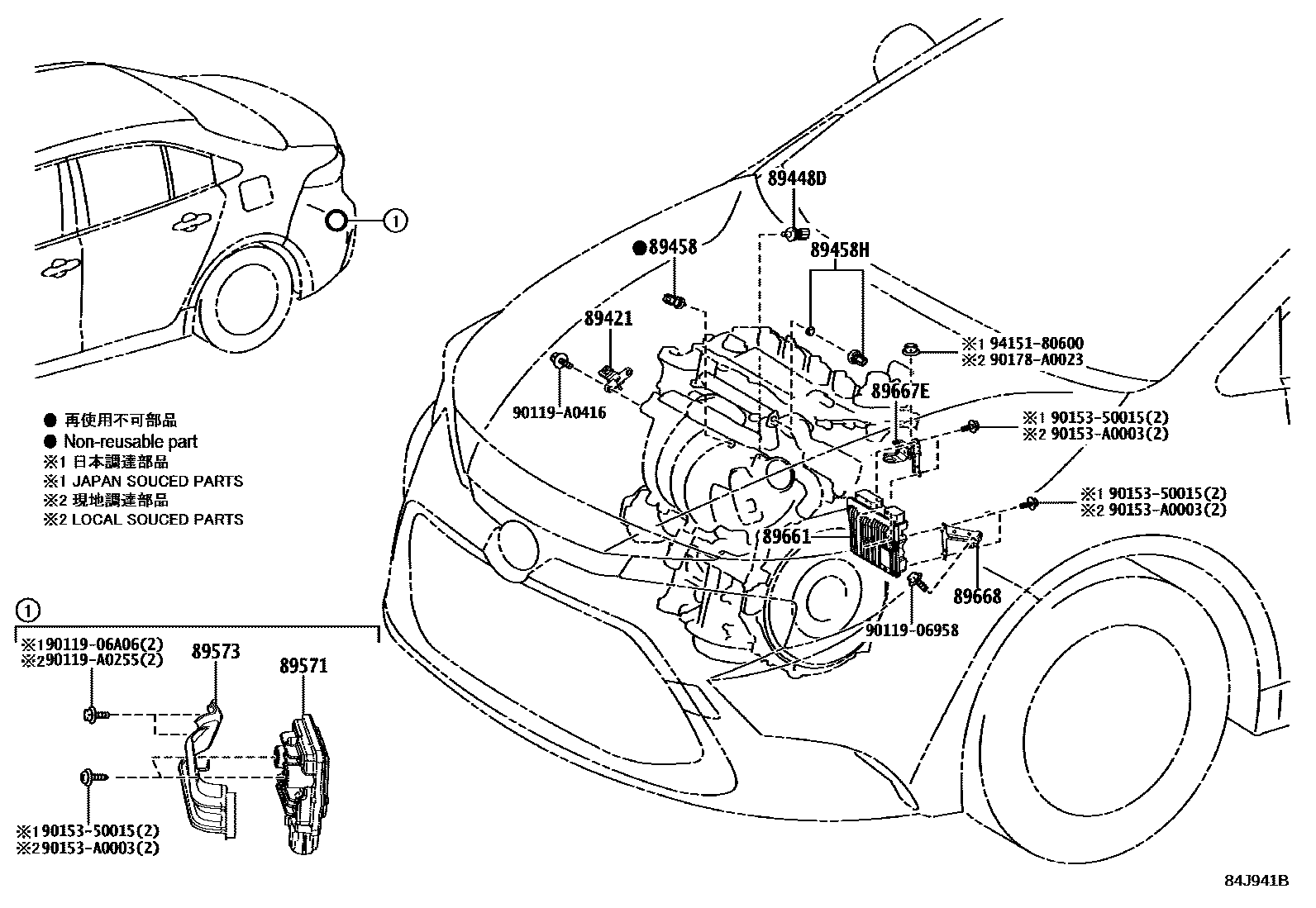

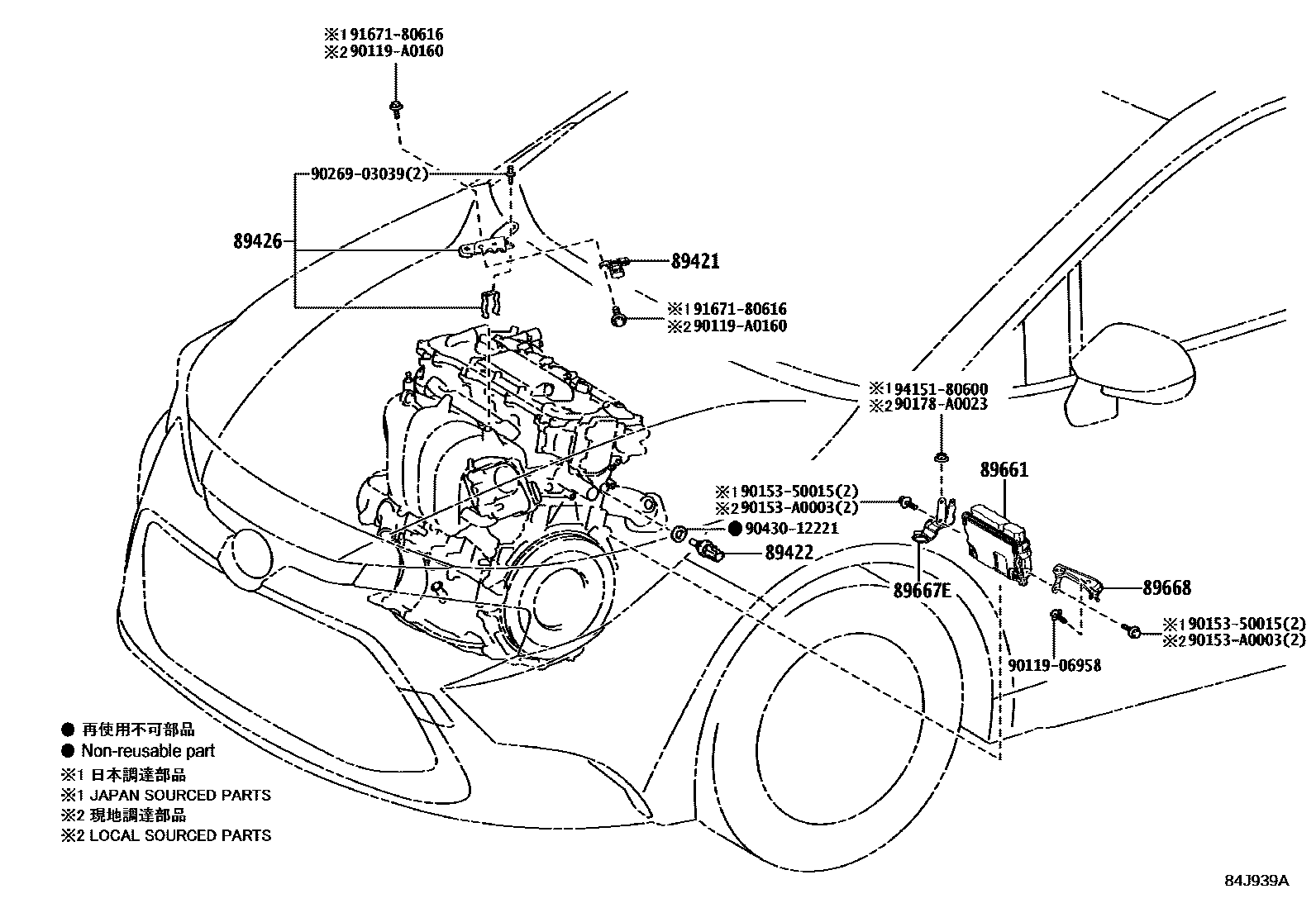

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-06020 · 89421-26030 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89426 | Vacuum sensor holder | 89426-13020 |
| 89448D | Oil pressure and sensors | 89448-06010 |
| 89458 | fuel pressure sensor | 89458-06010 |
| 89458H | No. 2 fuel pressure sensor | 89458-06021 · 89458-06022 |
| 89571 | Fuel pump control ECU | 89571-06010 · 89571-0R010 · 89571-33030 · 89571-42010 · 89571-48010 |
| 89573 | Fuel pump control ECU bracket | 89573-02010 |
| 89661 | Engine control ECU | 89661-0ZV60 · 89661-0ZV70 · 89661-0ZW10 · 89661-0ZW20 · 89666-02790 · 89666-02B50 · 89666-02B60 · 89666-02B90 · 89666-02C00 · 89666-02D00 · 89666-02E20 · 89666-02J20 |
| 89667E | No. 1 engine control ECU bracket | 89667-02420 · 89667-02480 |
| 89668 | No. 2 engine control ECU bracket | 89668-02400 · 89668-02480 |
