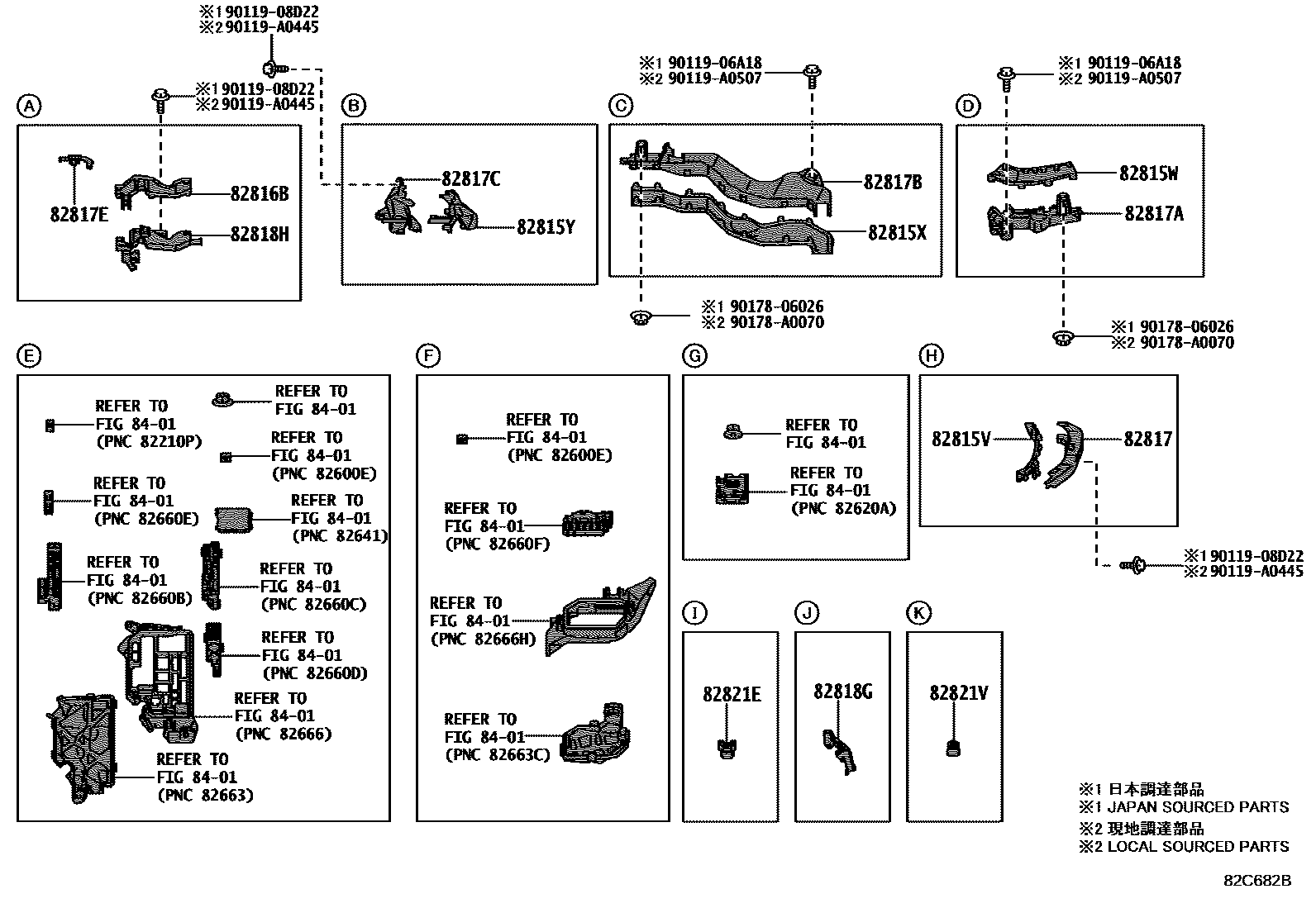

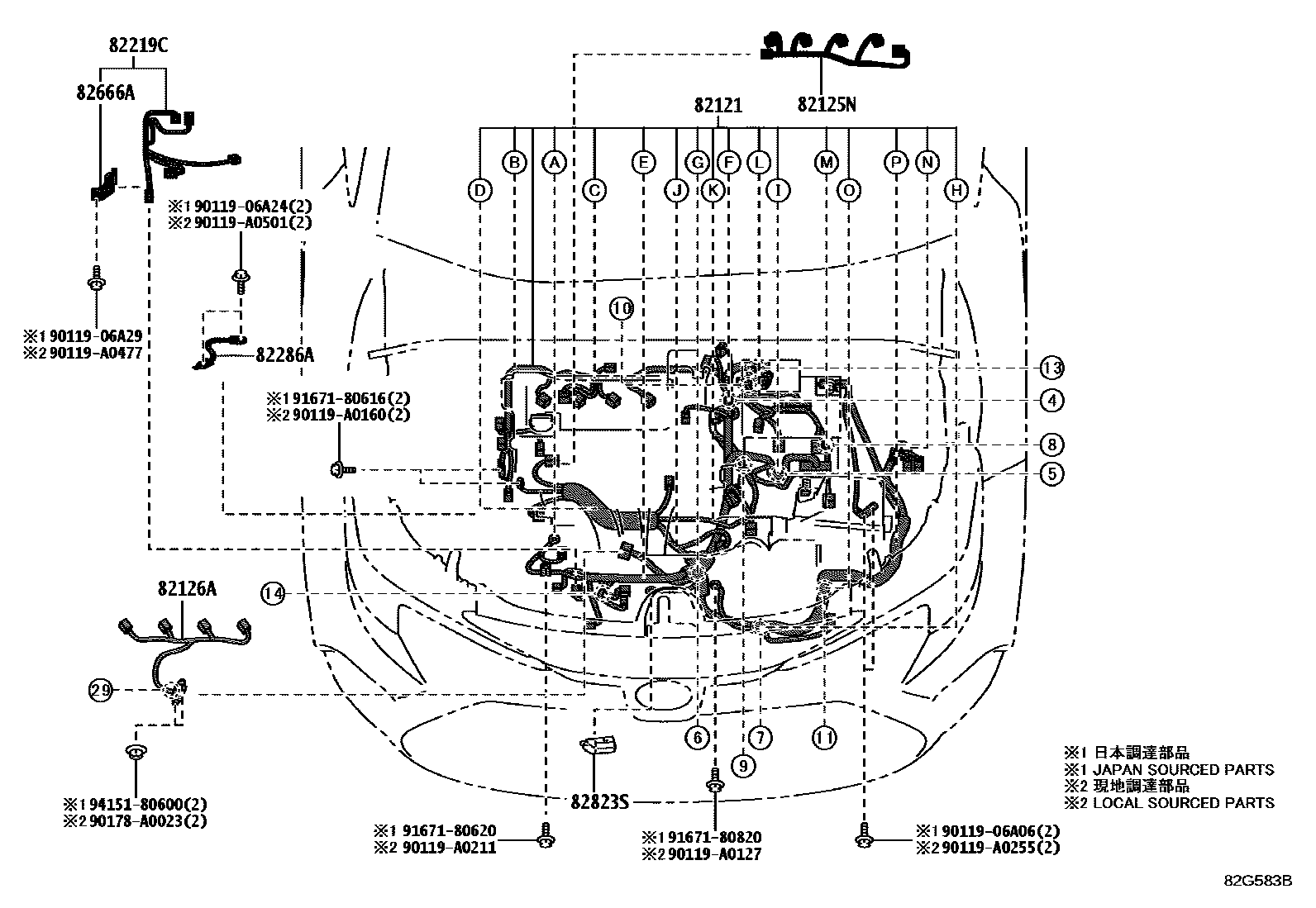

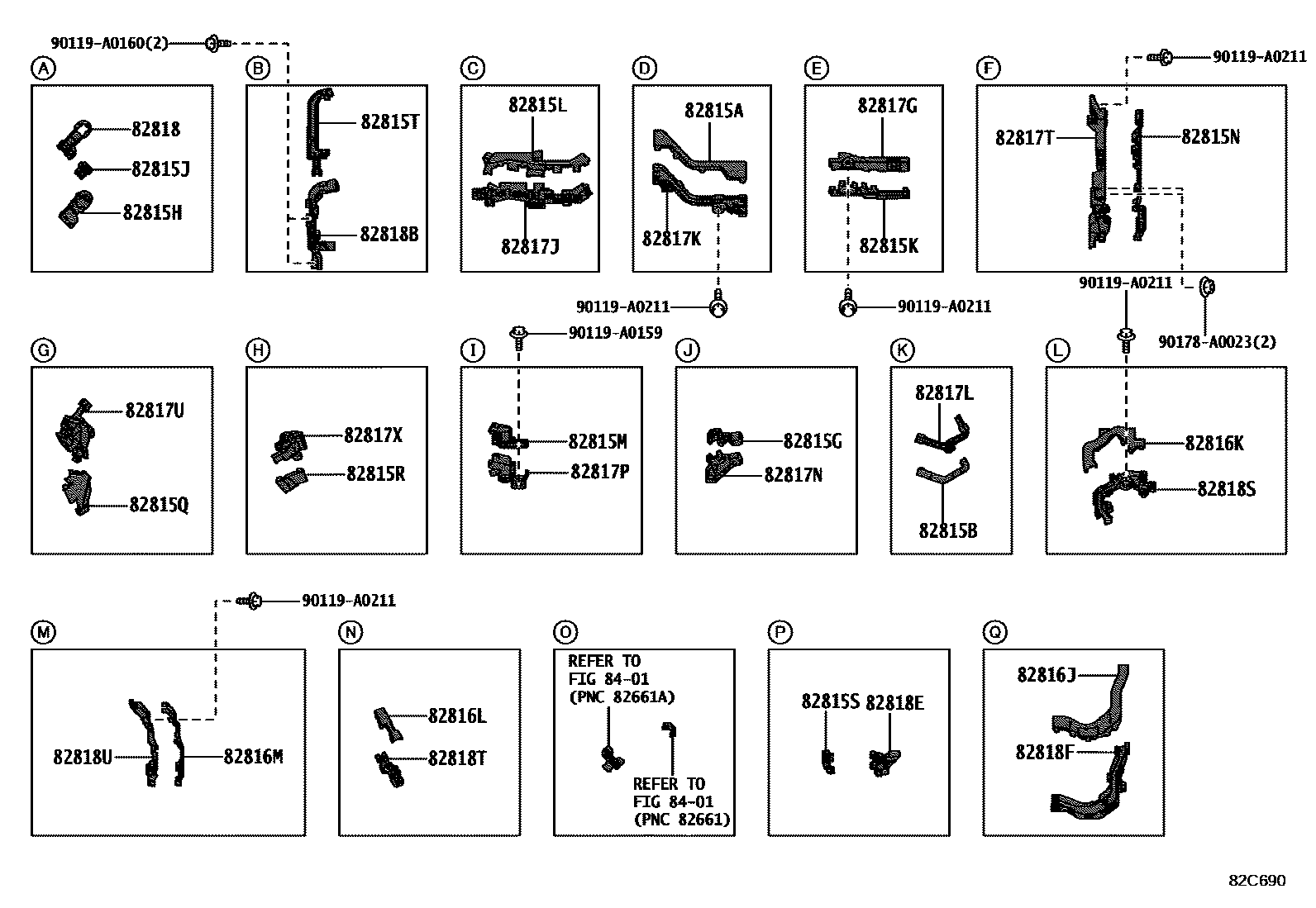

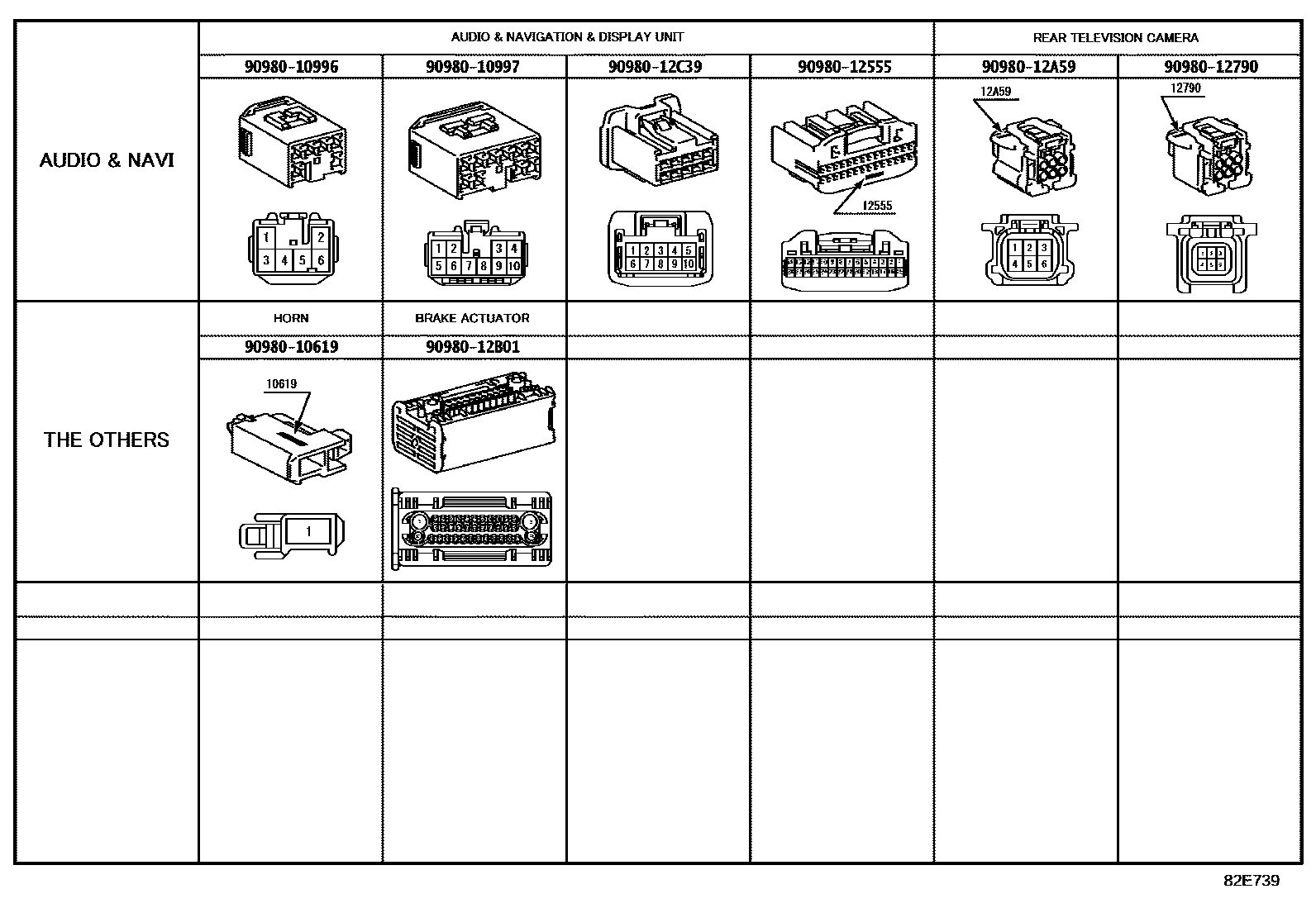

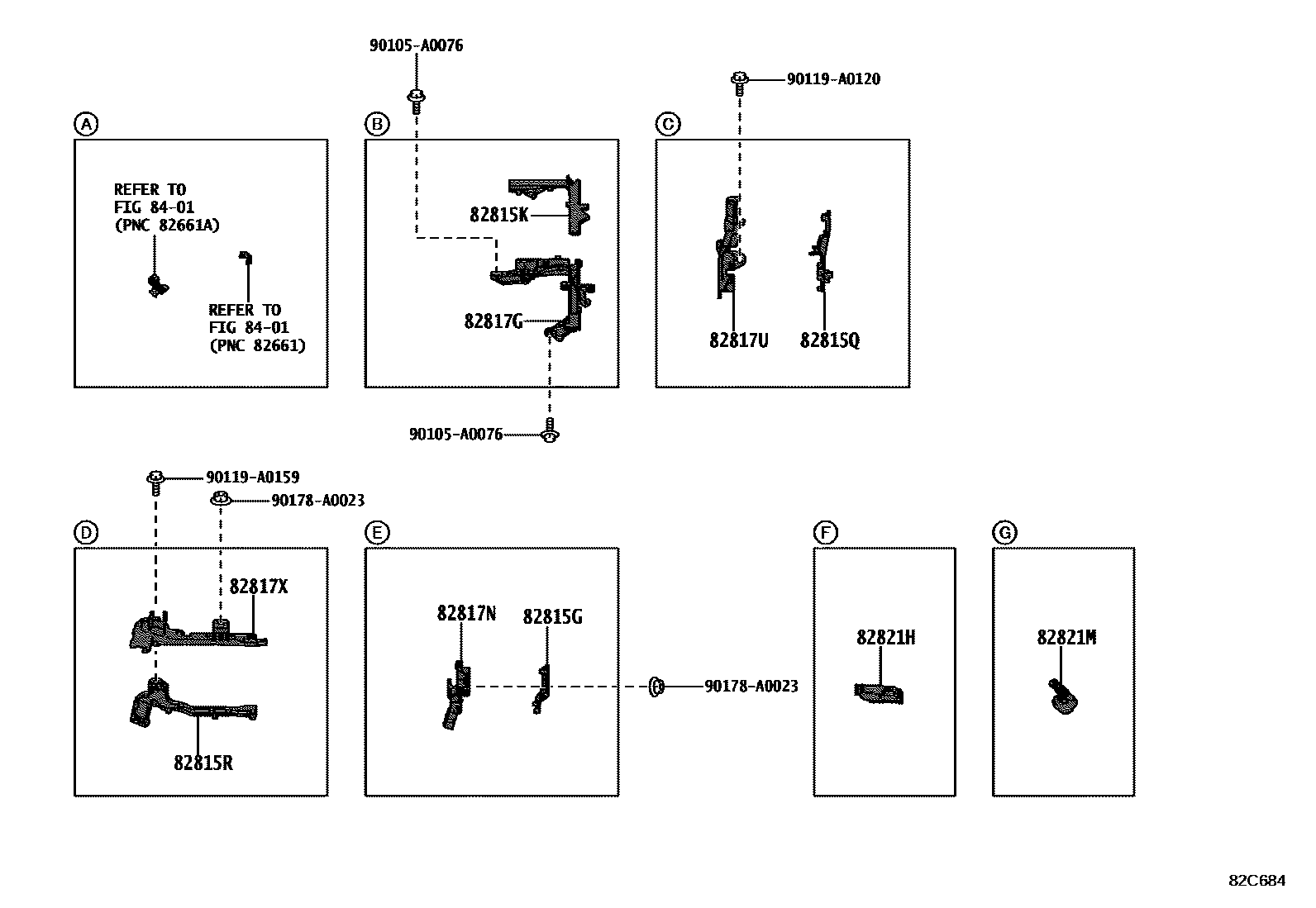

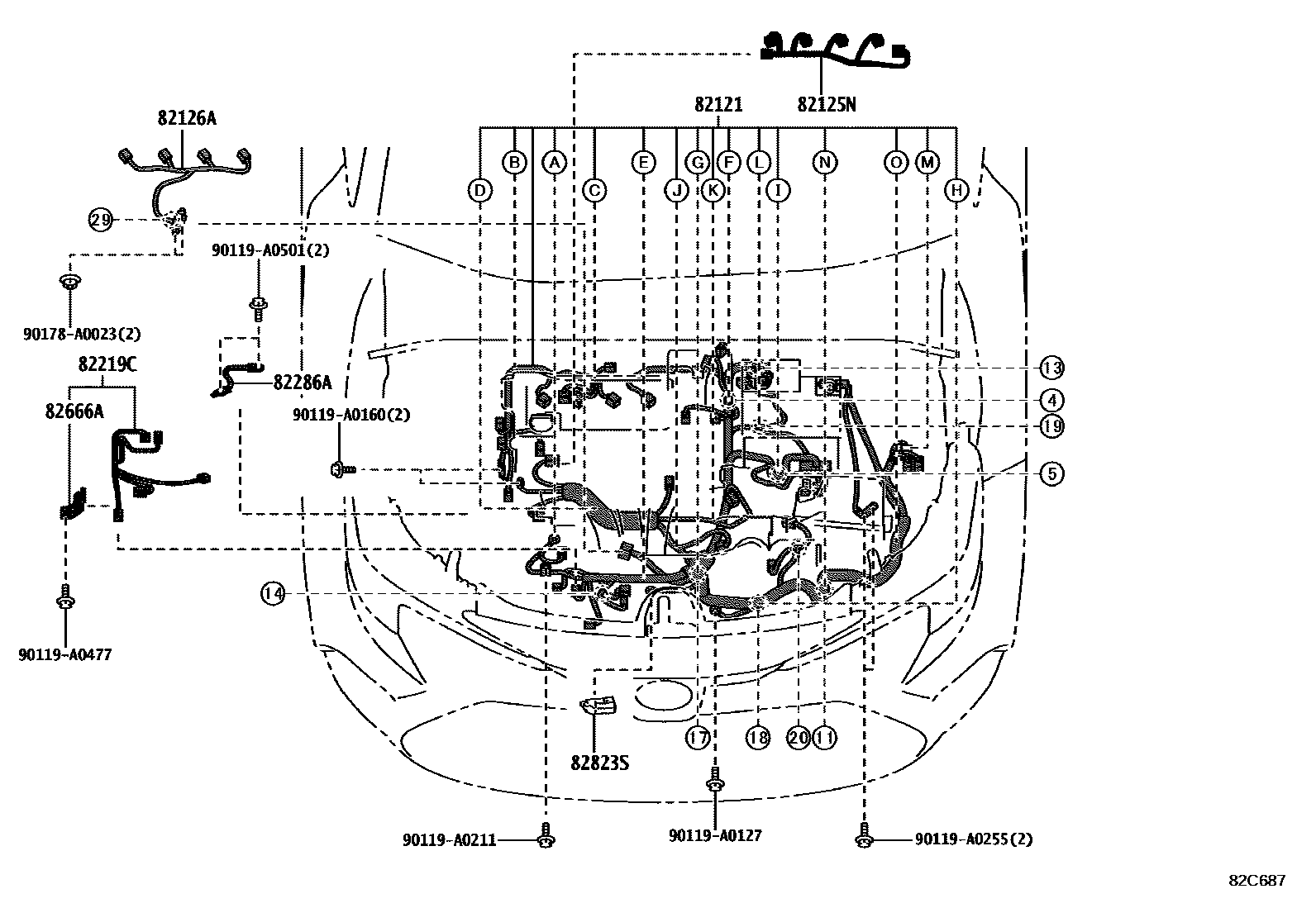

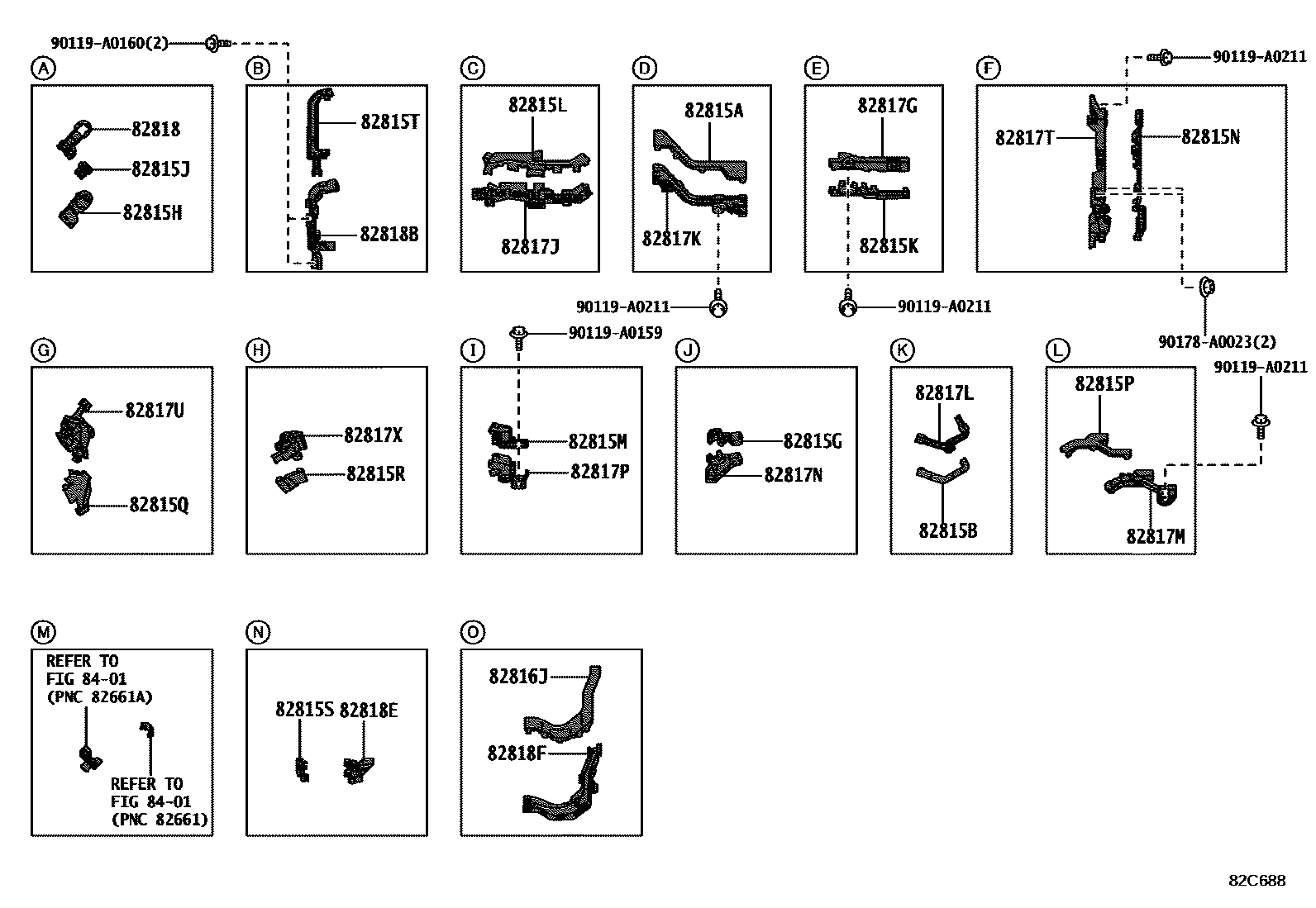

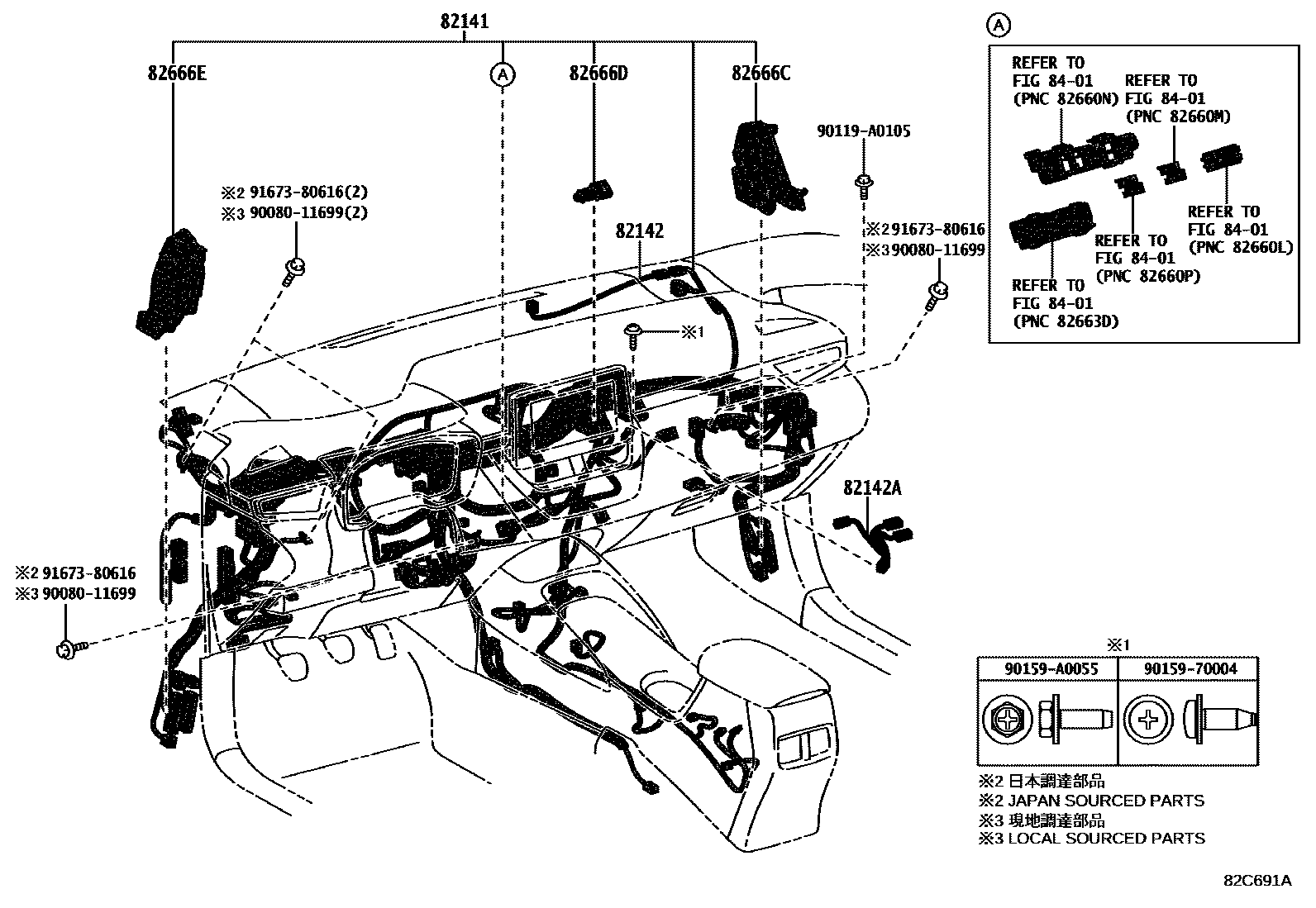

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 26 images and 108 PNC and OE references.

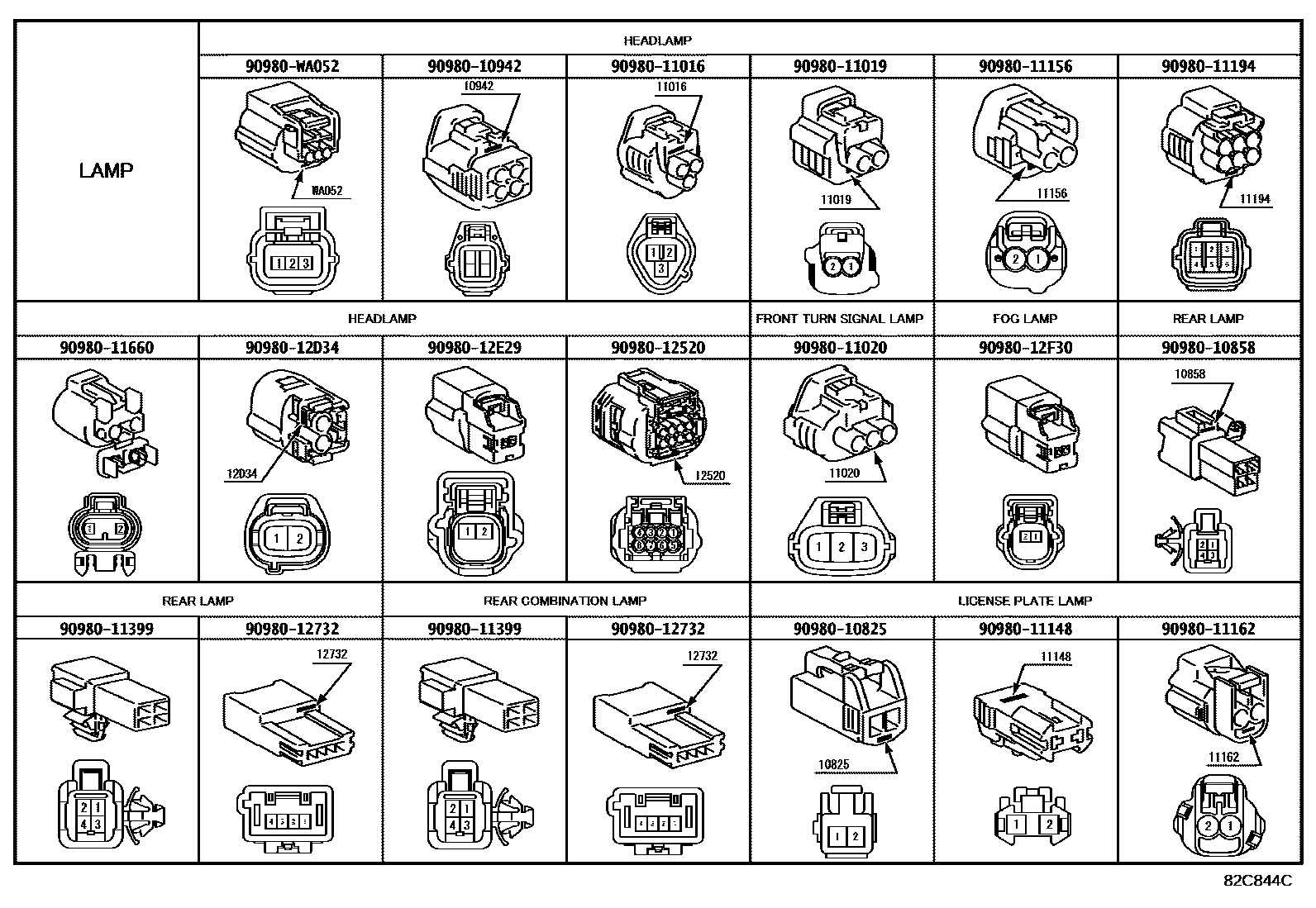

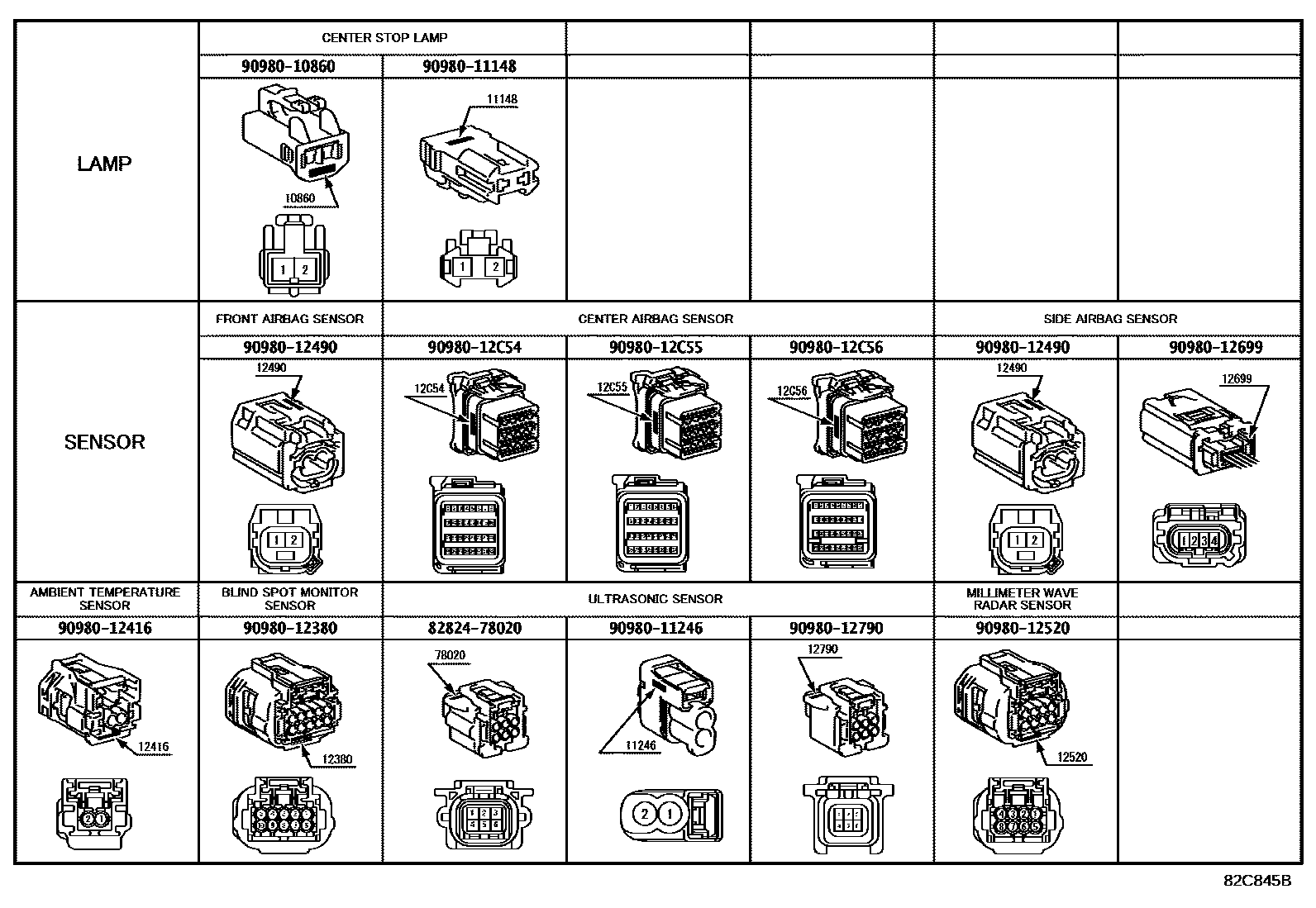

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

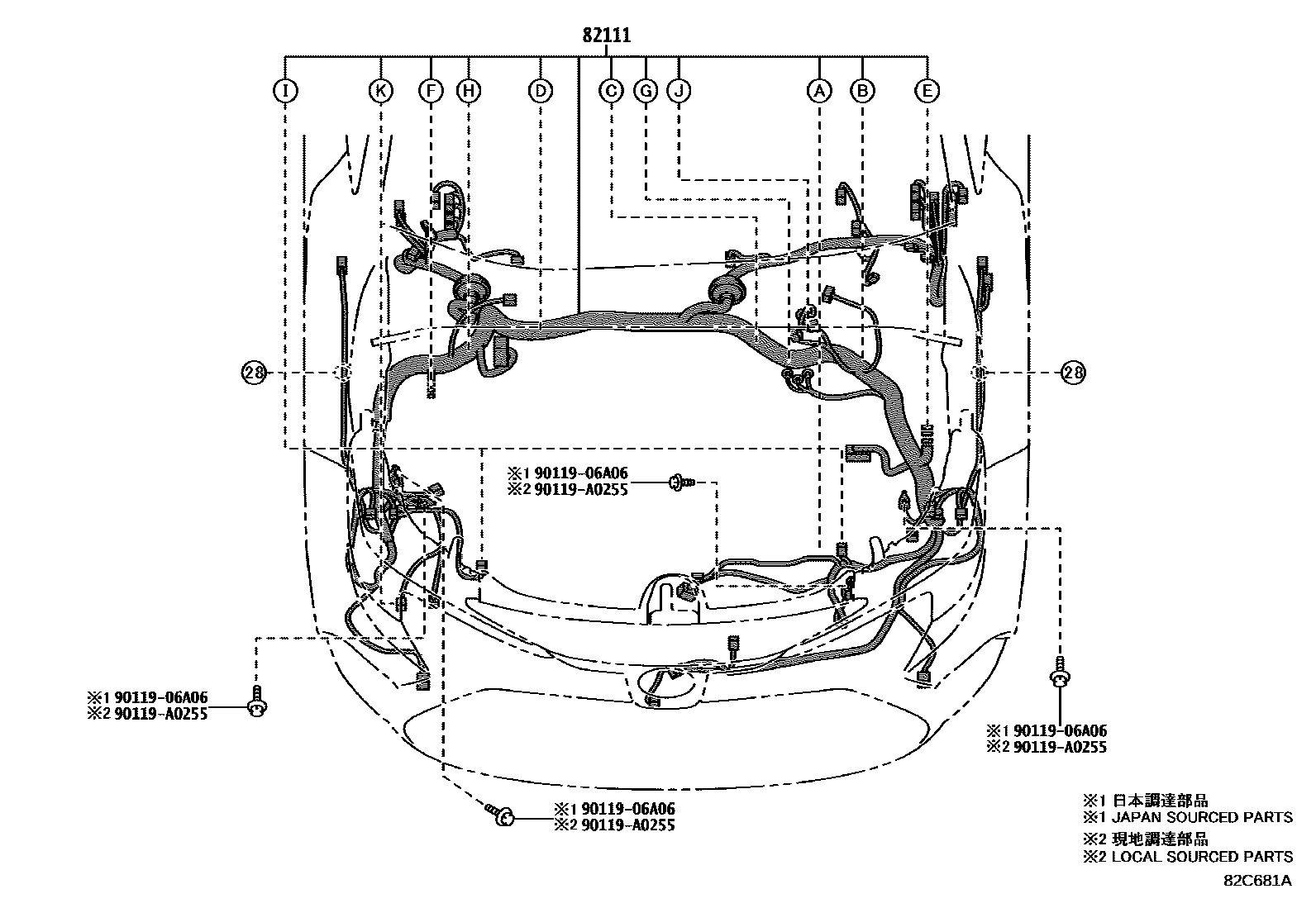

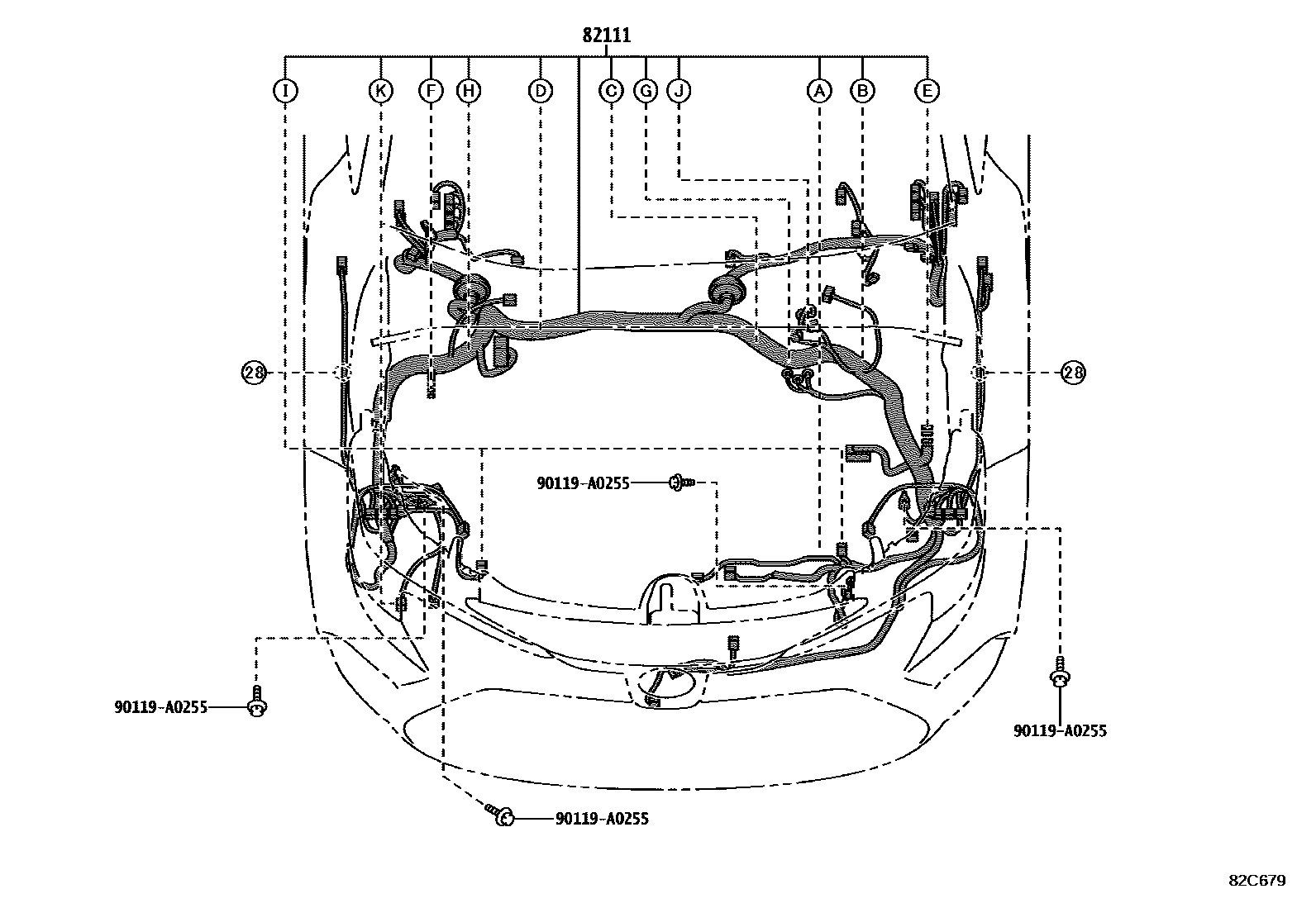

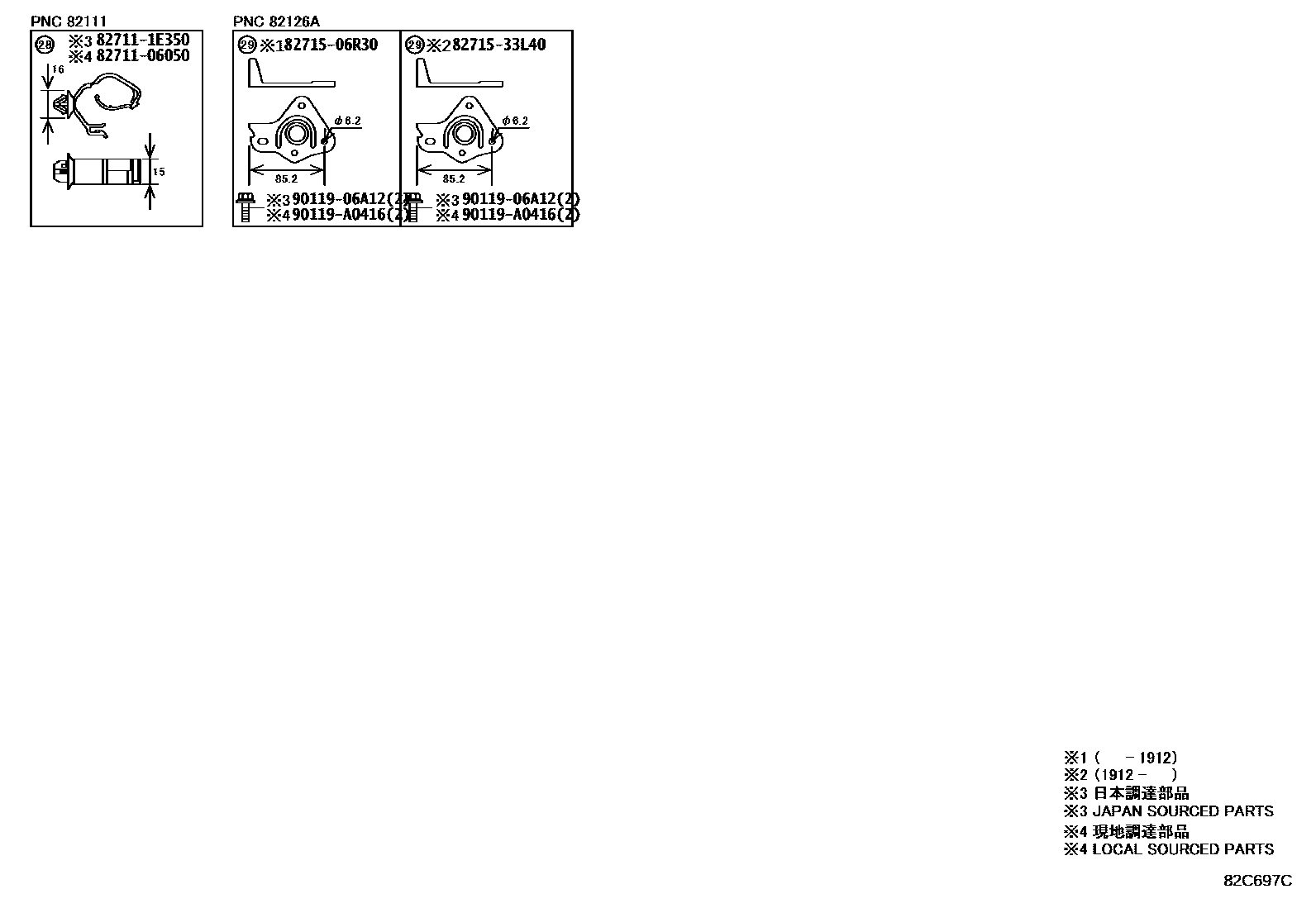

| 82111 | Engine room main wiring harness | 82111-F2B80 · 82111-F2B81 · 82111-F2C50 · 82111-F2C51 · 82111-F2D30 · 82111-F2D31 · 82111-F2D60 · 82111-F2D61 · 82111-FEB40 · 82111-FEQ21 · 82115-F2A80 · 82115-F2F80 · 82115-F2Q60 · 82115-F2Q61 · 82115-F2W70 · 82115-F2W80 · 82115-F2X20 · 82116-0ZT90 · 82116-0ZU00 · 82116-0ZY40 |

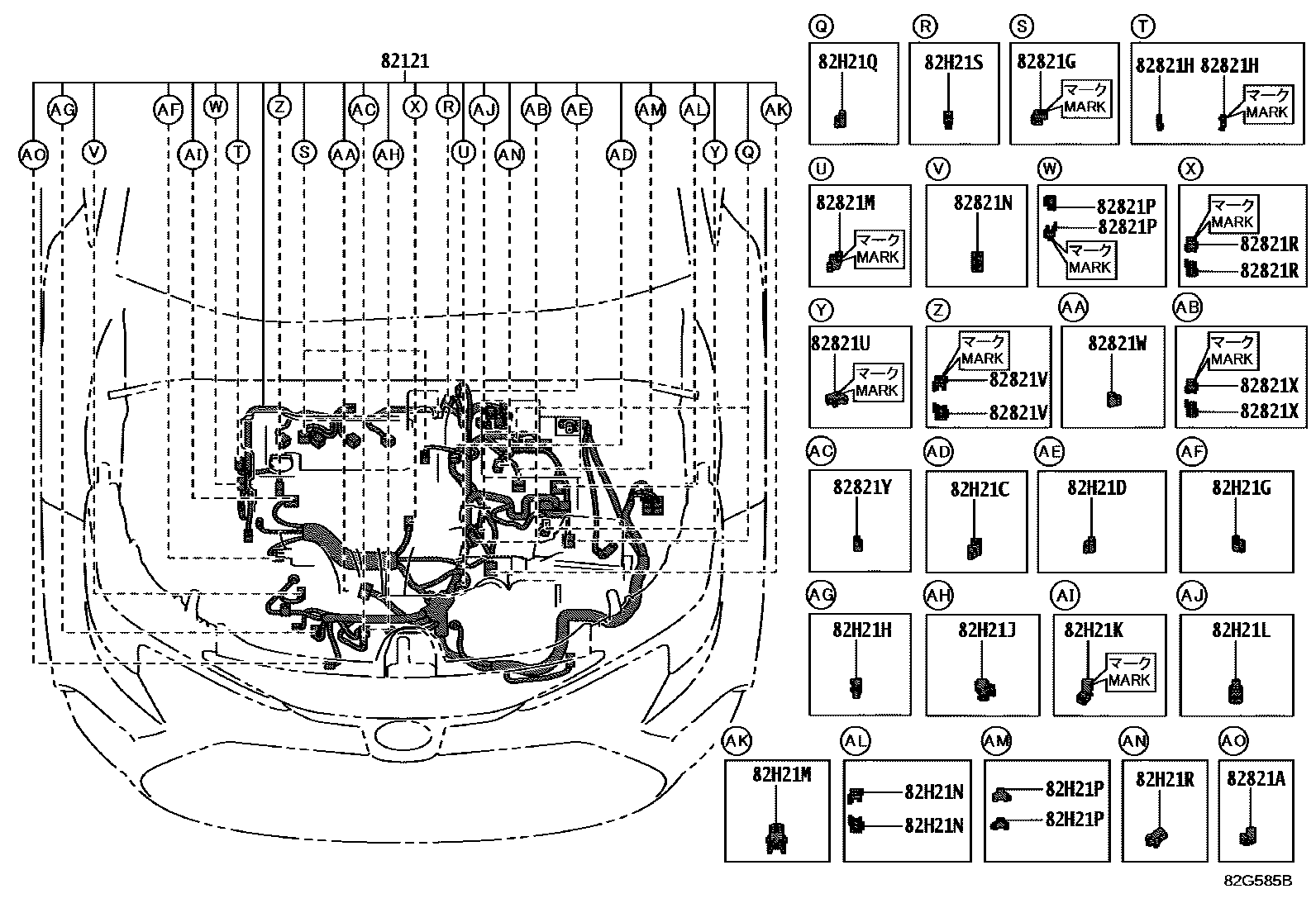

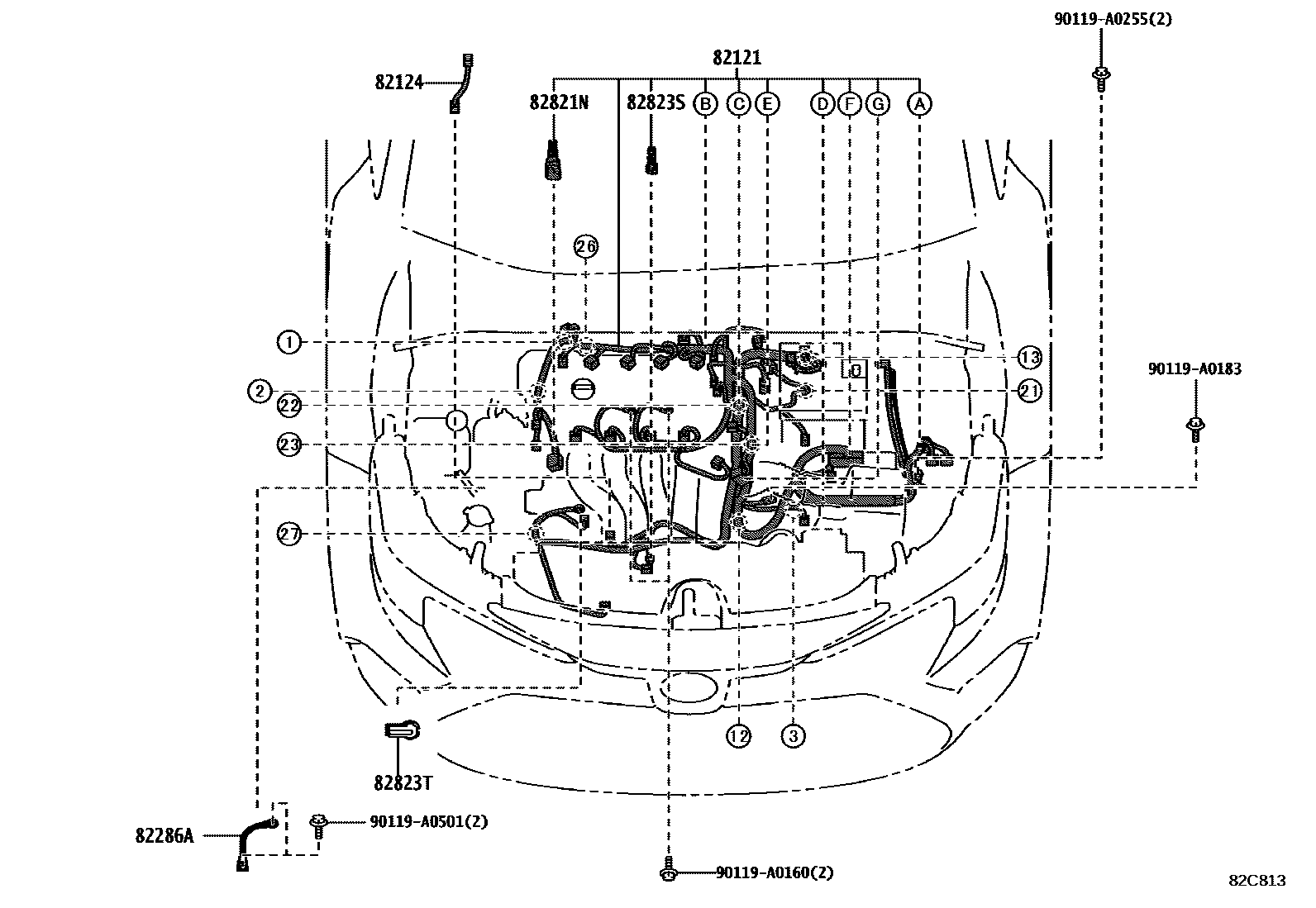

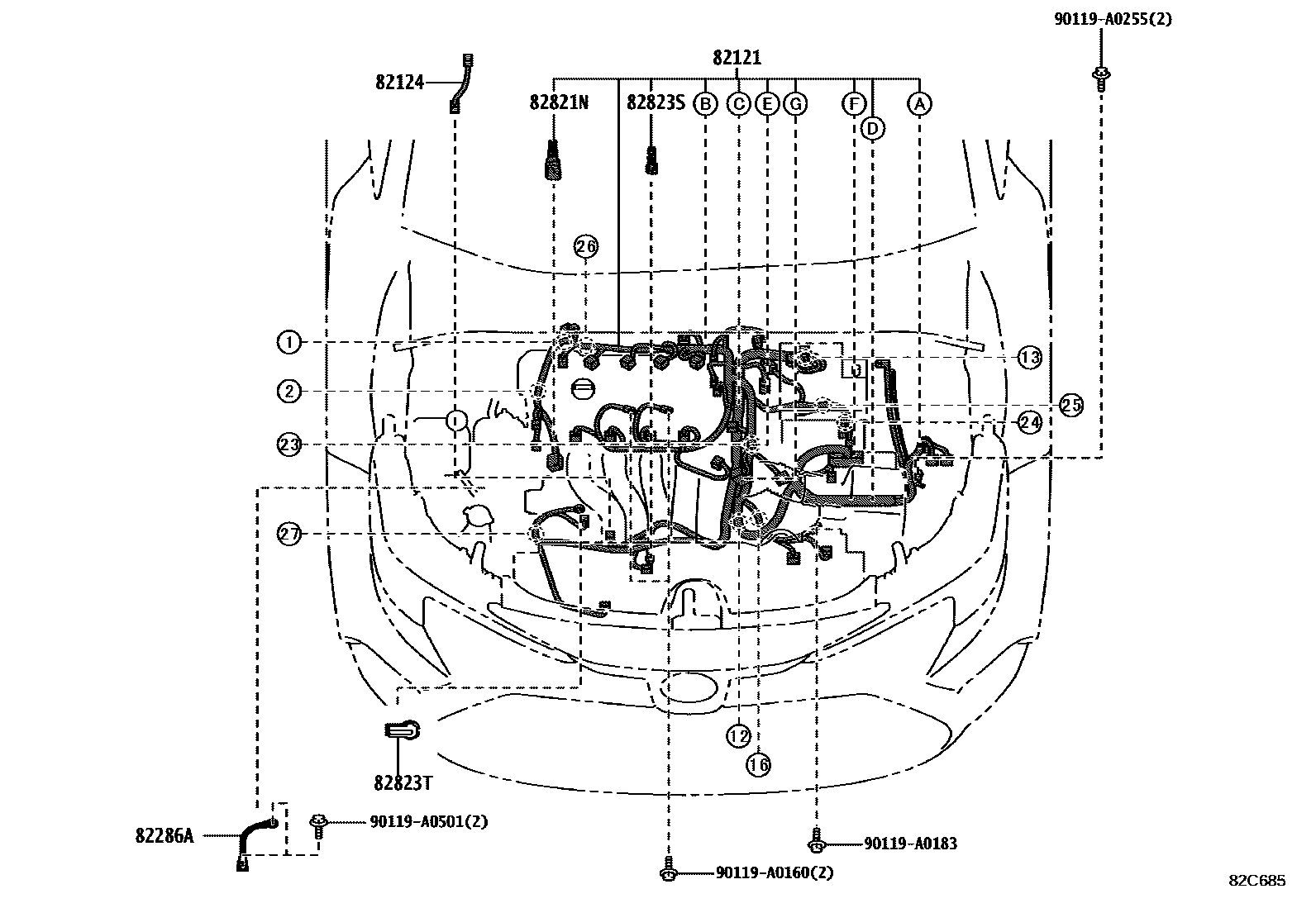

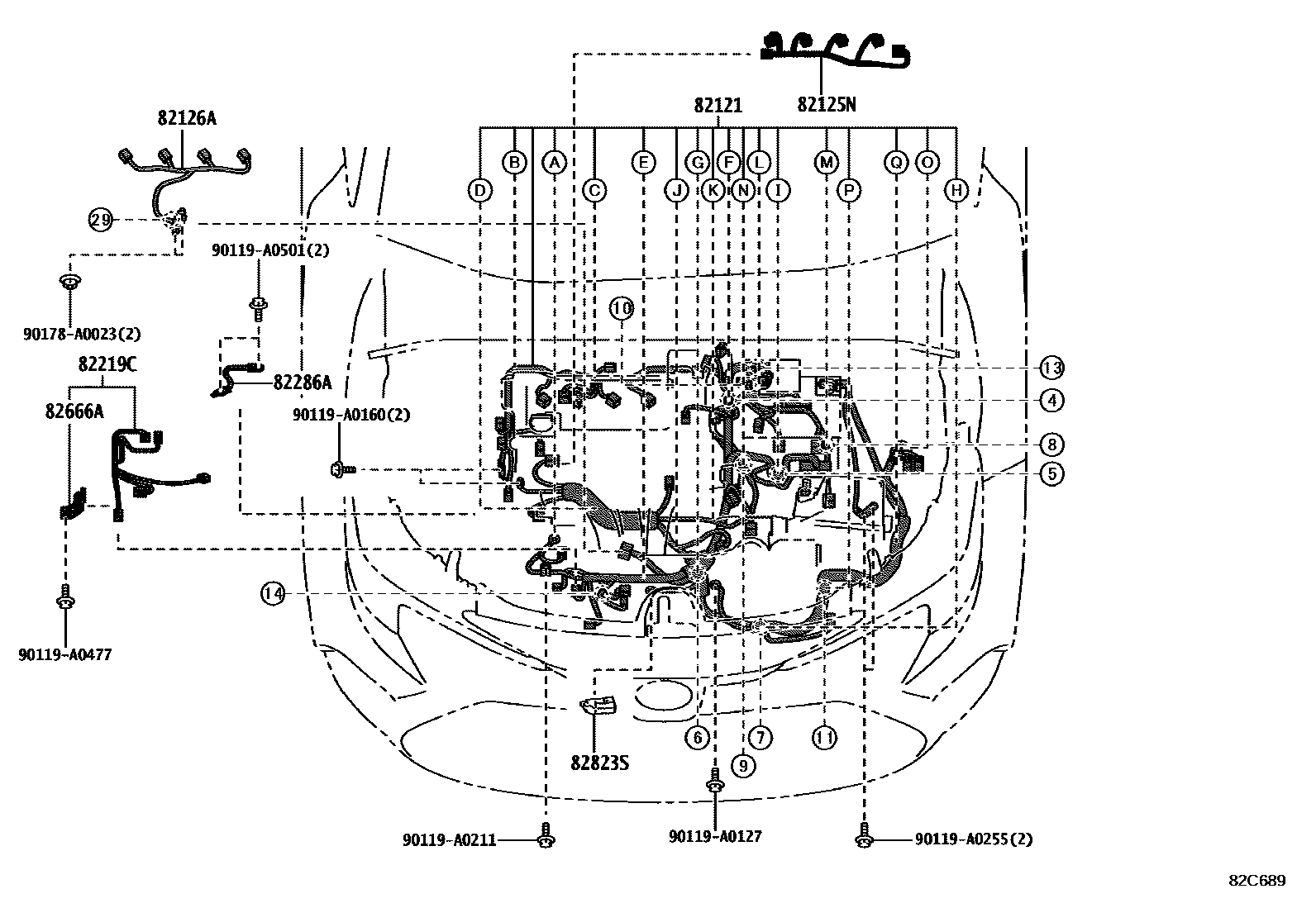

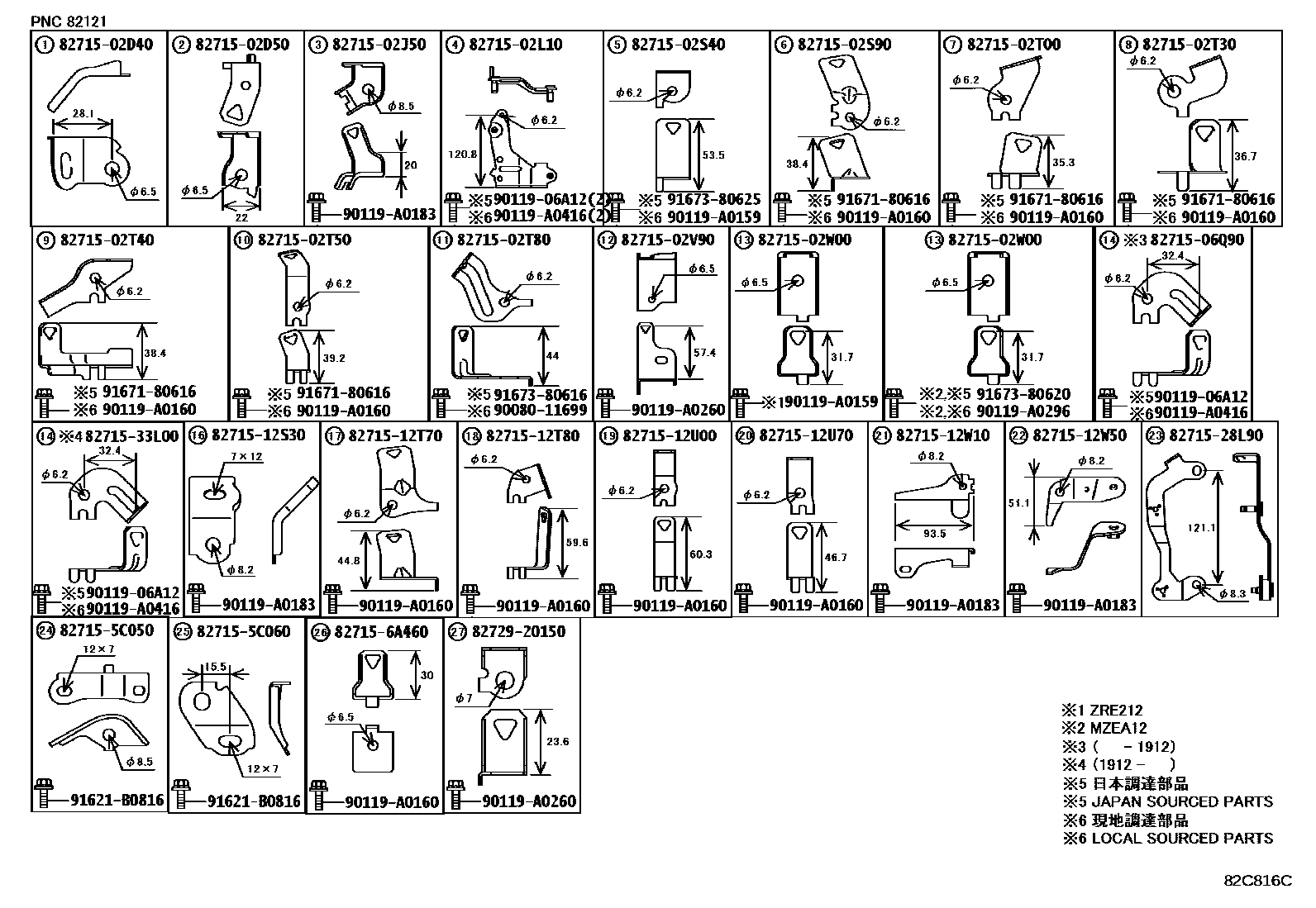

| 82121 | Engine wiring harness | 82121-0ZE80 · 82121-0ZK40 · 82121-0ZL10 · 82121-0ZL20 · 82121-0ZL21 · 82121-0ZU90 · 82121-0ZY30 · 82121-0ZZ01 · 82121-0ZZ11 |
| 82124 | Engine No. 4 wiring harness | 82124-02070 |
| 82125N | Engine No. 5 wiring harness | 82125-02590 |
| 82126A | No. 6 engine wiring harness | 82126-02180 |
| 82141 | Dashboard wiring harness | 82117-0ZR40 · 82141-F2480 · 82141-F2481 · 82141-F2482 · 82141-F2560 · 82141-F2561 · 82141-F2562 · 82141-F2572 · 82141-F2650 · 82141-F2651 · 82141-F2652 · 82141-F2662 · 82145-F2Y30 · 82145-F2Y31 · 82145-FE070 · 82145-FE071 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-02K40 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-02530 |

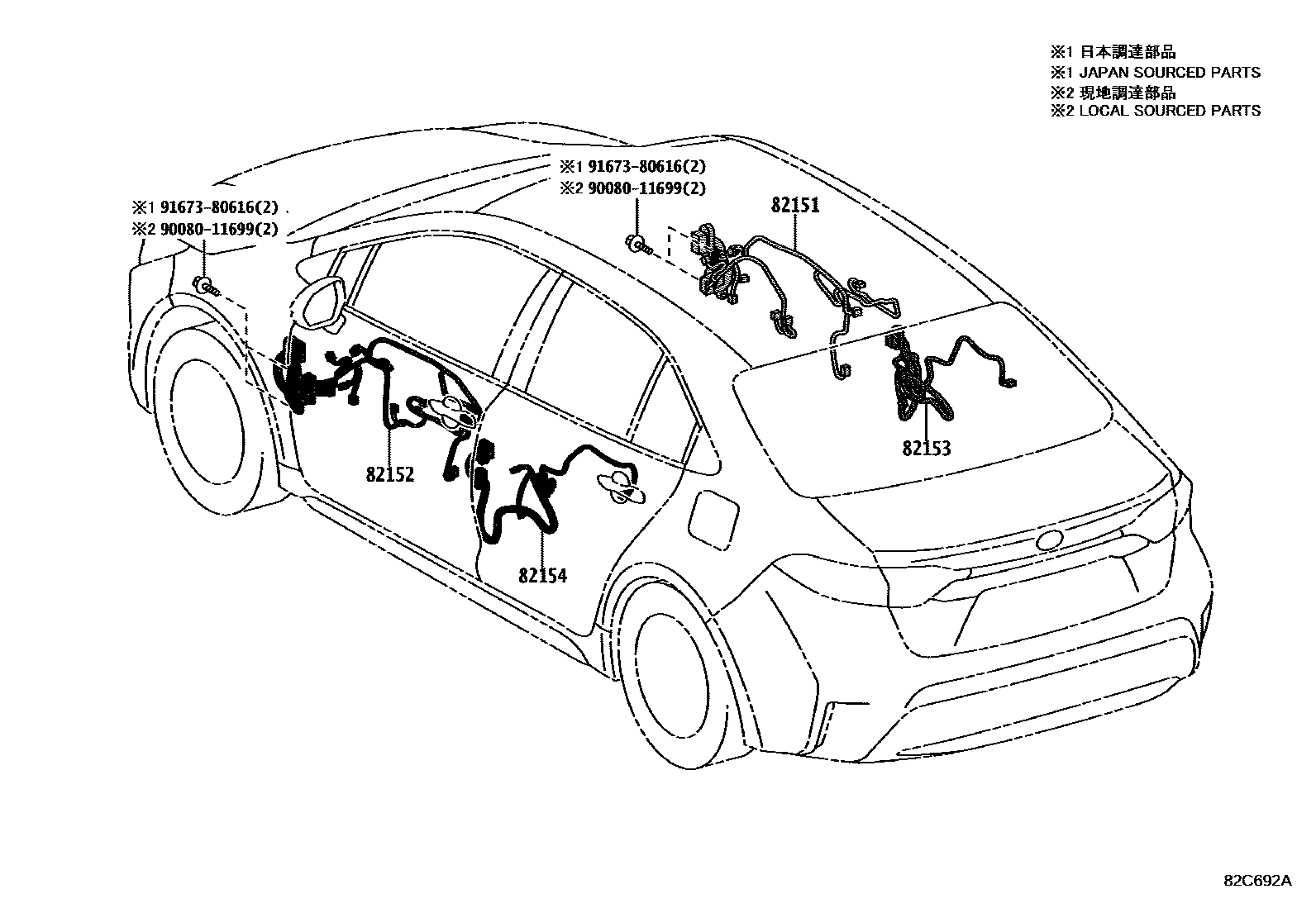

| 82151 | Right front door wiring harness | 82151-0ZL50 · 82151-0ZL51 · 82151-0ZW90 · 82151-0ZW91 · 82197-02C00 |
| 82152 | Left front door wiring harness | 82152-0ZK00 · 82152-0ZK01 · 82152-0ZV70 · 82152-0ZV71 · 82198-02790 |
| 82153 | Rear door wiring harness No. 1 | 82153-02E80 · 82153-02E81 · 82153-02G30 |
| 82154 | Rear door wiring harness No. 2 | 82154-02D00 · 82154-02D01 · 82154-02G50 |

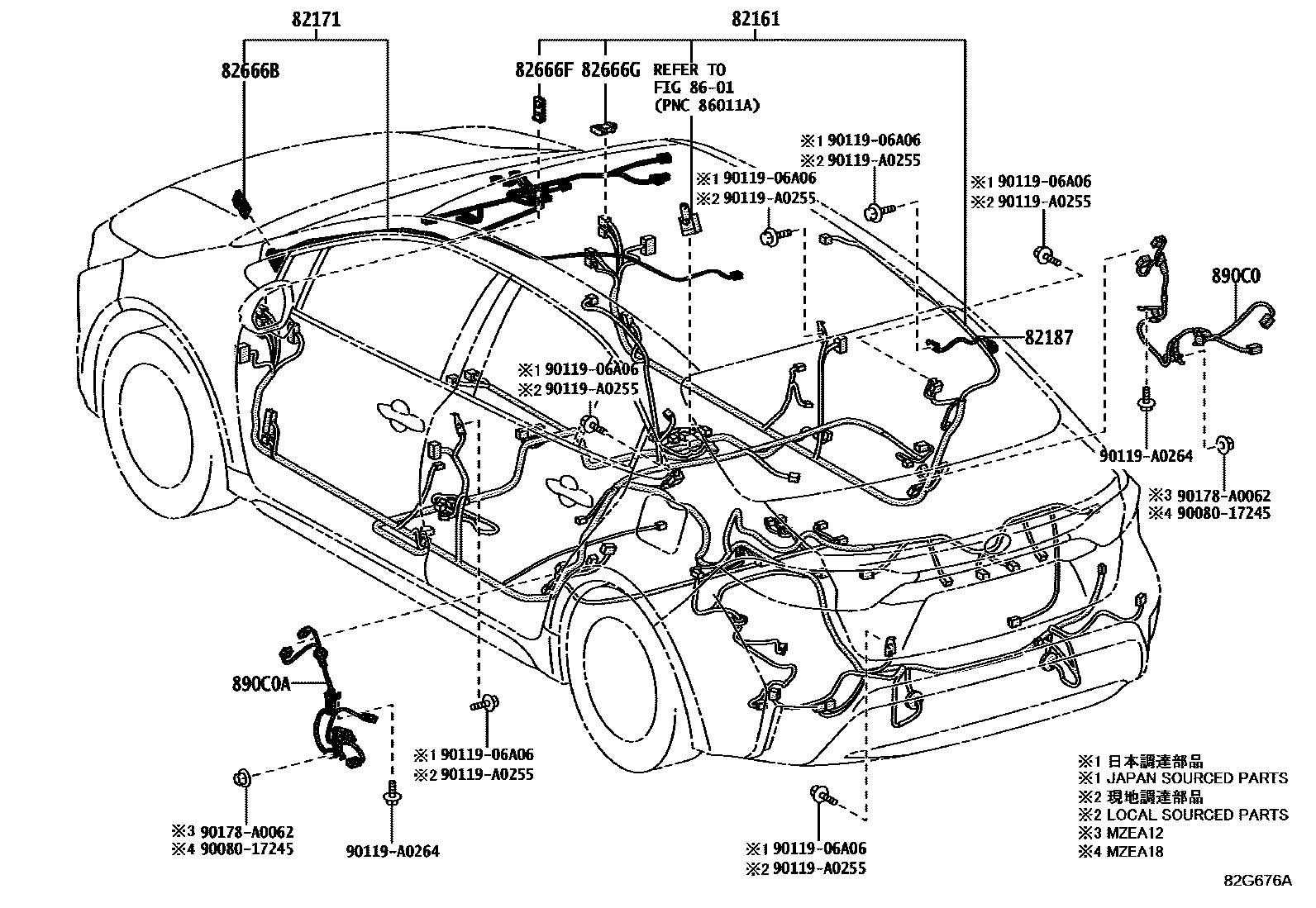

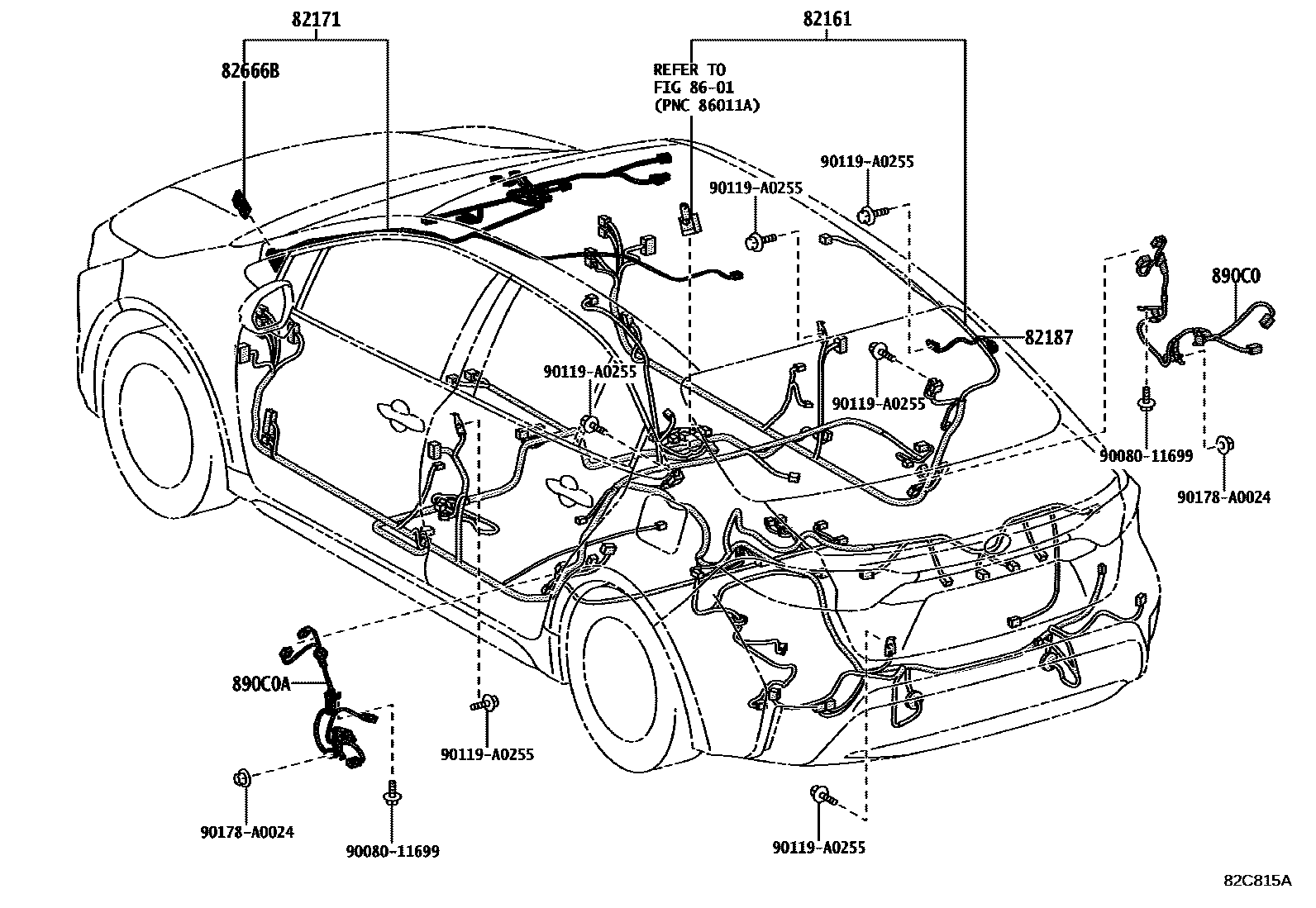

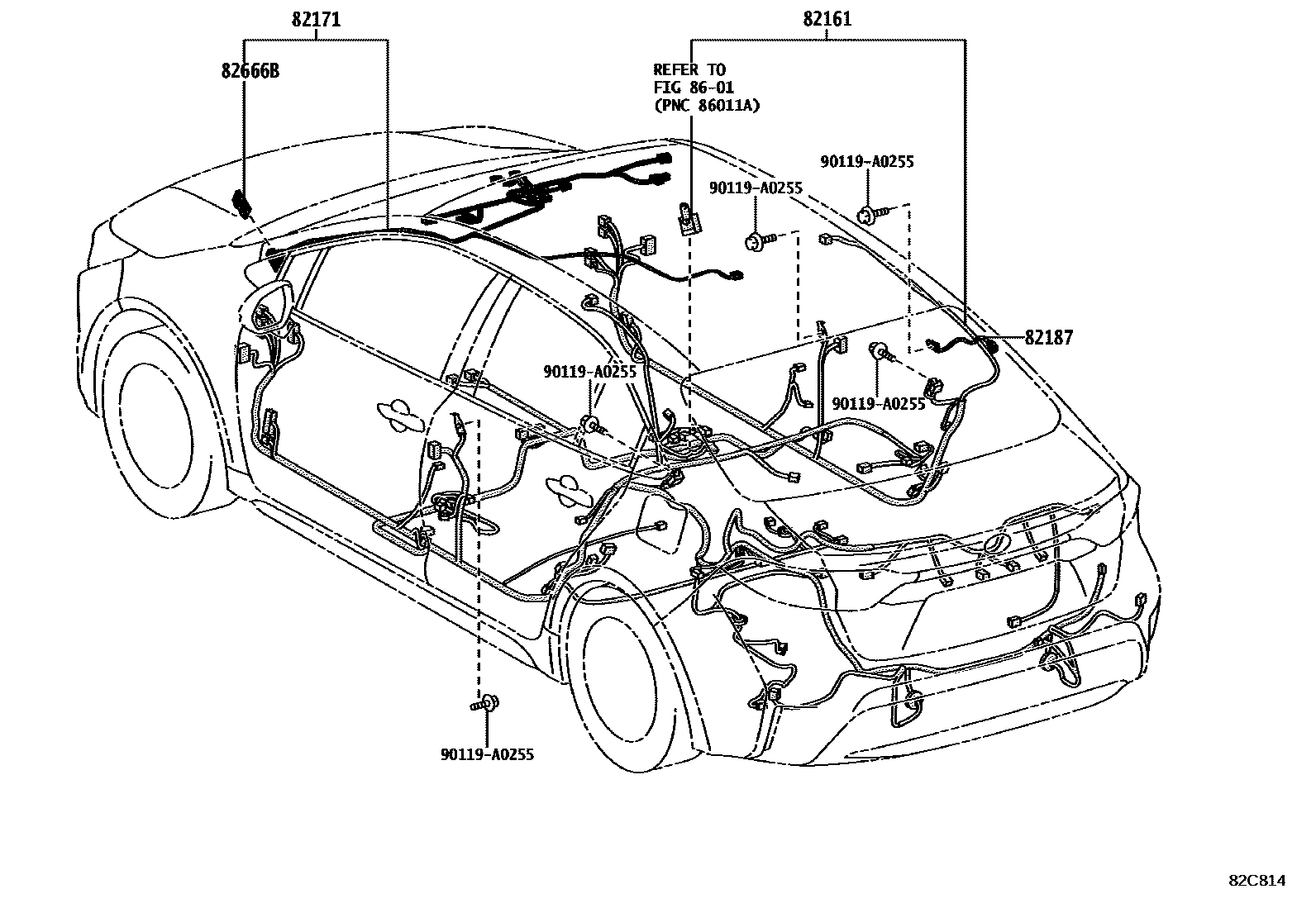

| 82161 | floor wiring harness | 82161-F2650 · 82161-F2651 · 82161-F2652 · 82161-F2750 · 82161-F2770 · 82161-F2830 · 82161-F2850 · 82161-F2Y70 · 82161-FES40 · 82161-FES41 · 82161-FEY60 · 82199-02R60 · 82199-02R70 · 82199-02R80 · 82199-02X70 · 82199-02X71 · 82199-02X80 · 82199-02X81 · 82199-02X90 · 82199-02X91 · 82199-0Z520 · 82199-0Z521 · 82199-0Z561 · 82199-0Z570 · 82199-0Z571 · 82199-0Z572 · 82199-0Z601 · 82199-0Z602 · 82199-0Z670 · 82199-0Z671 · 82199-0Z672 · 82199-0Z780 · 82199-0Z781 · 82199-0Z782 · 82199-0ZA60 · 82199-0ZV80 · 82199-0ZV81 · 82199-0ZV82 |
| 82171 | Roof No. 1 wiring harness | 82171-0ZG40 · 82171-0ZG41 · 82171-0ZG50 · 82171-0ZG51 · 82171-0ZQ70 · 82171-0ZQ71 · 82171-0ZQ80 · 82171-0ZQ81 · 82171-F2D00 · 82171-F2D10 · 82171-F2D20 · 82171-F2D30 · 82171-F2D40 · 82171-F2D60 · 82171-F2D70 · 82171-F2D80 |
| 82187 | Rear window wiring harness No. 2 | 82187-02330 |

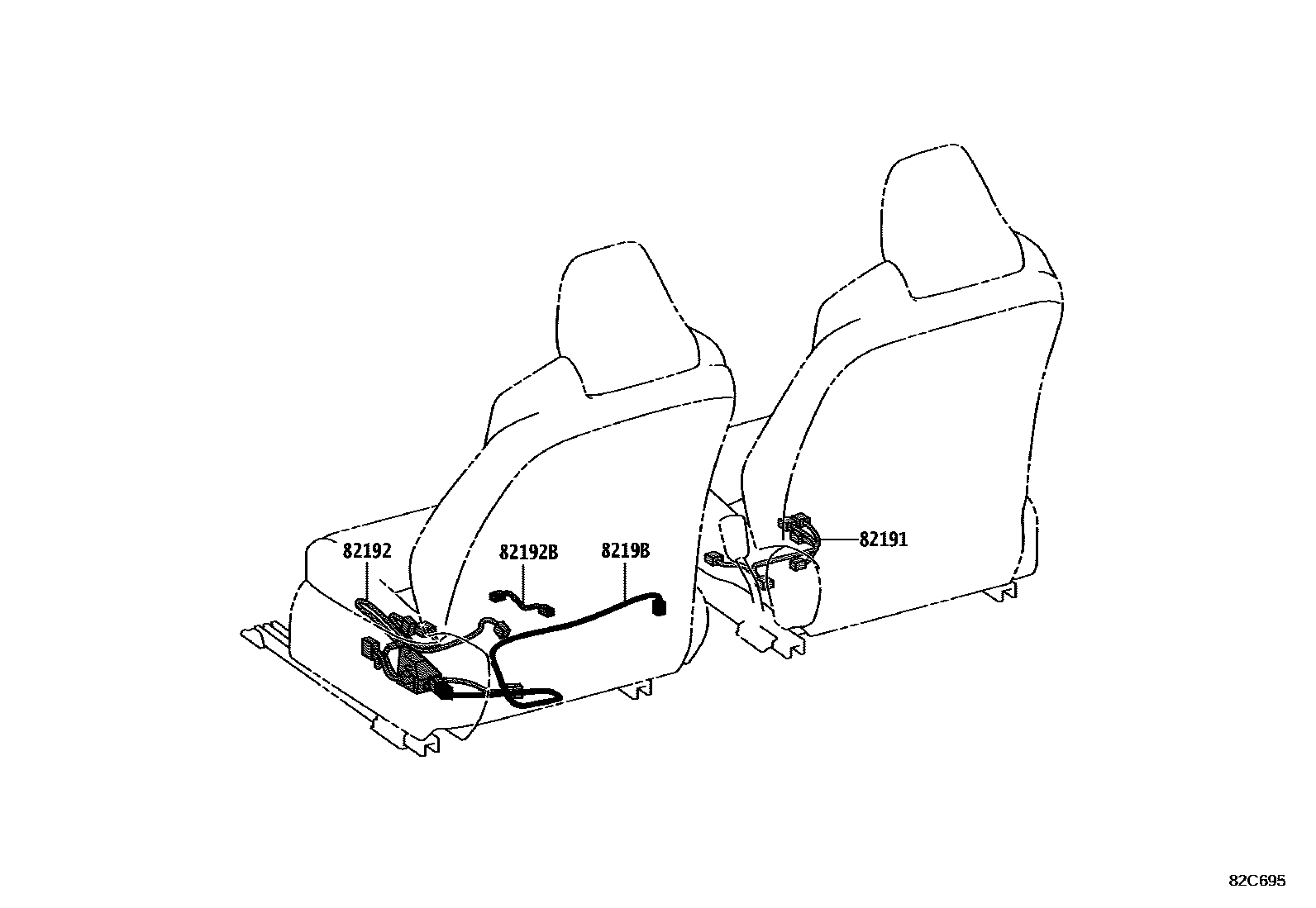

| 82191 | Front right seat wiring harness | 82191-02190 · 82191-02350 |
| 82192 | Front left seat wiring harness | 82192-02210 · 82192-02220 · 82192-02310 · 82192-02330 |
| 82192B | Wire harness No. 2, left side of front seat | 82192-0R130 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-02200 · 8219B-02210 · 8219B-02220 |
| 82219C | sensor harness | 82219-02040 · 82219-0A040 |
| 82286A | Line 2 | 82286-02070 · 82286-02080 |
| 82666A | Connector holder No. 2 | 82666-12490 |
| 82666B | No. 3 connector holder | 82666-60220 |
| 82666C | No. 4 connector holder | 82666-12680 |
| 82666D | No. 5 connector holder | 82666-26180 |
| 82666E | No. 6 connector holder | 82666-12670 |
| 82666F | No. 7 connector holder | 82666-22070 |
| 82666G | No. 8 connector holder | 82666-26180 |

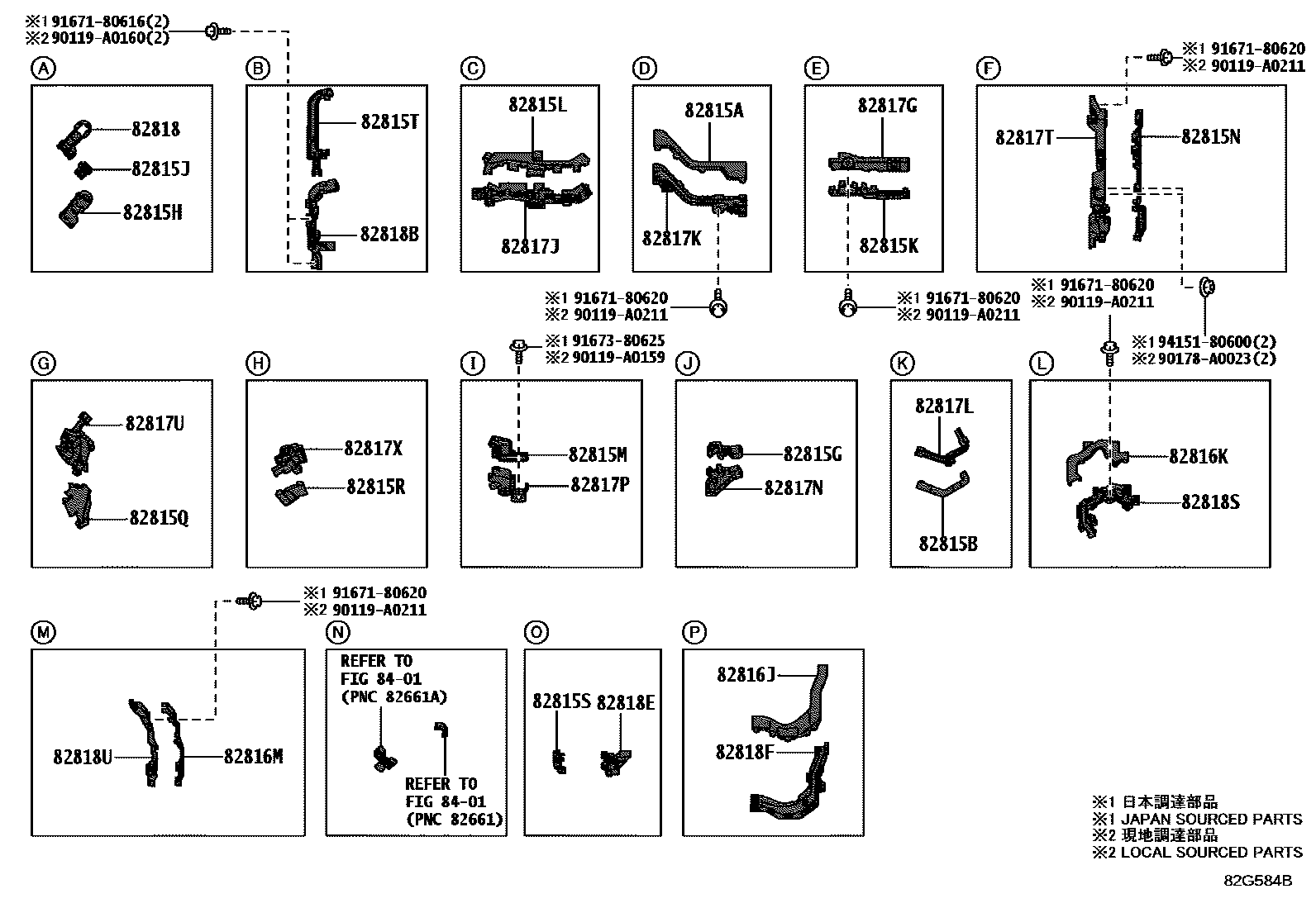

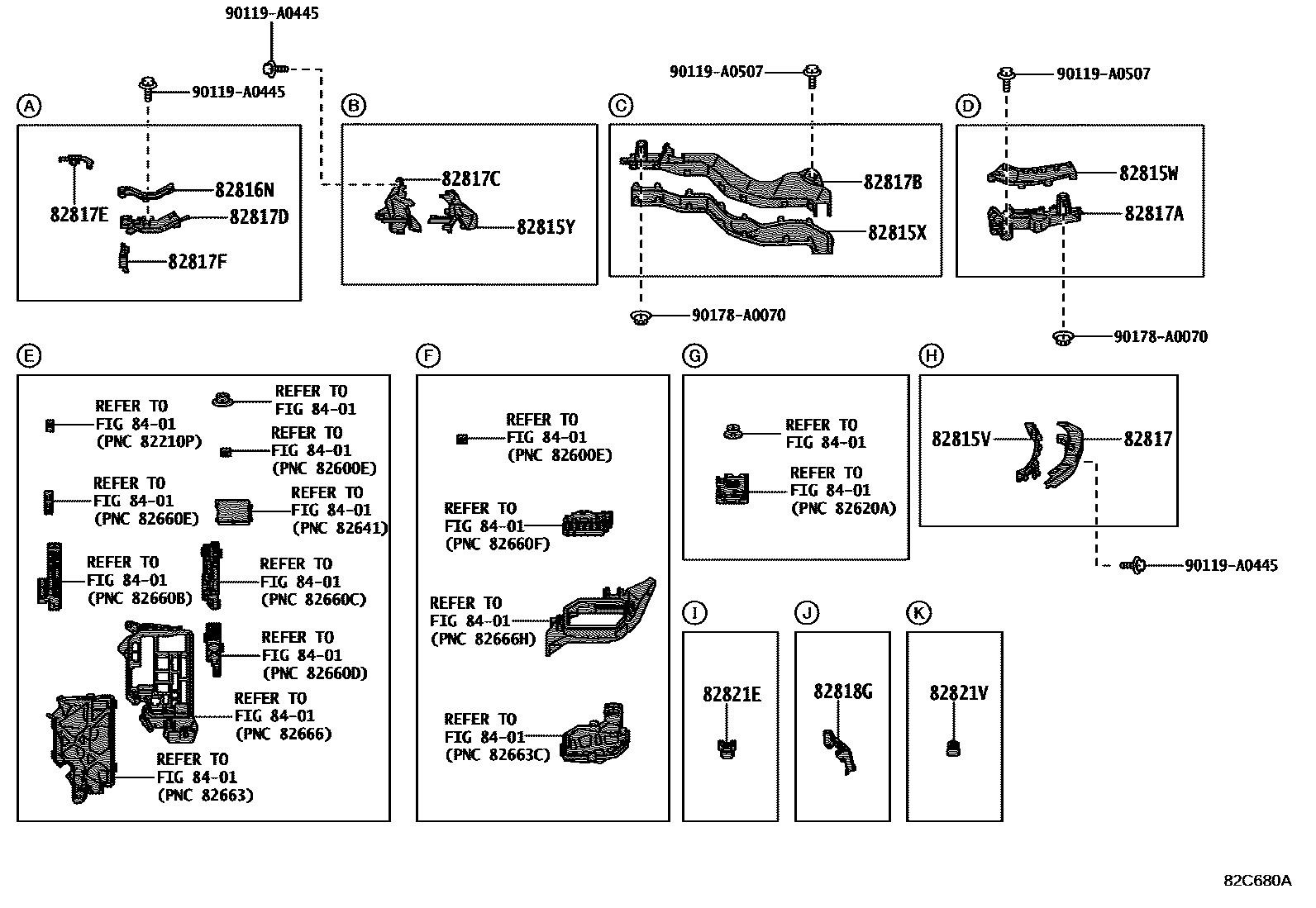

| 82815A | Wiring harness protector cover | 82815-12D80 |
| 82815B | Wiring harness protector cover | 82815-12E90 |
| 82815G | No. 5 wire harness protector cover | 82815-12E80 · 82815-12K70 |
| 82815H | No. 6 wire harness protector cover | 82815-33J10 |
| 82815J | No. 7 wire harness protector cover | 82815-33L00 |
| 82815K | No. 8 wire harness protector cover | 82815-12E00 · 82815-12K40 |
| 82815L | No. 9 wire harness protector cover | 82815-12D60 |
| 82815M | No. 10 wire harness protector cover | 82815-12800 · 82815-12E70 |
| 82815N | No. 11 wire harness protector cover | 82815-12790 · 82815-12E10 |
| 82815P | No. 12 wire harness protector cover | 82815-12F20 |
| 82815Q | No. 13 wire harness protector cover | 82815-12E20 · 82815-12K50 |
| 82815R | No. 14 wire harness protector cover | 82815-12E30 · 82815-12K60 |
| 82815S | No. 15 wire harness protector cover | 82815-12F60 |
| 82815T | No. 16 wire harness protector cover | 82815-12B00 |
| 82815V | No. 1 wire harness protector cover | 82815-12L00 |
| 82815W | No. 2 wire harness protector cover | 82815-12L10 |
| 82815X | No. 3 wire harness protector cover | 82815-12L20 |
| 82815Y | No. 4 wire harness protector cover | 82815-12L30 |
| 82816B | No. 1 wire harness protector cover | 82815-12D10 |
| 82816J | No. 7 wire harness protector cover | 82815-12F70 |
| 82816K | No. 8 wire harness protector cover | 82815-12E40 |
| 82816L | No. 9 wire harness protector cover | 82815-12E60 |
| 82816M | No. 10 wire harness protector cover | 82815-12E50 |
| 82816N | No. 11 wire harness protector cover | 82815-12L40 |
| 82817 | No. 1 wire harness protection device | 82817-12Y70 |
| 82817A | No. 2 wire harness protection device | 82817-12Y80 |
| 82817B | No. 3 wire harness protection device | 82817-12Y90 |
| 82817C | No. 4 wire harness protection device | 82817-12Z00 |
| 82817D | No. 5 wire harness protection device | 82817-12Z20 |
| 82817E | No. 6 wire harness protection device | 82817-12Z10 |
| 82817F | No. 7 wire harness protection device | 82817-12Z50 |
| 82817G | No. 8 wire harness protection device | 82817-12S00 · 82817-12V60 |
| 82817J | No. 9 wire harness protection device | 82817-12R60 |
| 82817K | No. 10 wire harness protection device | 82817-12R80 |
| 82817L | No. 11 wire harness protection device | 82817-12S90 |
| 82817M | No. 12 wire harness protection device | 82817-12T20 |
| 82817N | No. 13 wire harness protection device | 82817-12S80 · 82817-12V90 |
| 82817P | No. 14 wire harness protection device | 82817-12Q80 · 82817-12S70 |
| 82817T | No. 15 wire harness protection device | 82817-12Q70 · 82817-12S10 |
| 82817U | No. 16 wire harness protection device | 82817-12S20 · 82817-12V70 |
| 82817X | No. 17 wire harness protection device | 82817-12S30 · 82817-12V80 |
| 82818 | No. 2 wire harness protection device | 82817-33S70 |
| 82818B | No. 3 wire harness protection device | 82817-12V00 |
| 82818E | No. 6 wire harness protection device | 82817-12T60 |
| 82818F | No. 7 wire harness protection device | 82817-12T70 |
| 82818G | No. 8 wire harness protection device | 82817-12W30 |
| 82818H | No. 9 wire harness protection device | 82817-12V50 |
| 82818S | No. 15 wire harness protection device | 82817-12S40 |
| 82818T | No. 16 wire harness protection device | 82817-12S60 |
| 82818U | No. 17 wire harness protection device | 82817-12S50 |
| 82821A | Connector cover | 82821-12740 |
| 82821E | Connector cover | 82821-30650 |
| 82821G | Connector cover (for diagnostics) | 82821-33590 |
| 82821H | Connector cover | 82821-12C20 · 82821-33310 · 82821-33610 |
| 82821M | Connector cover | 82821-33620 · 82821-60100 |
| 82821N | Connector cover | 82821-12B60 · 82821-33630 |
| 82821P | Connector cover | 82821-33650 |
| 82821R | Connector cover | 82821-33660 |
| 82821U | Connector cover | 82821-33690 |
| 82821V | Connector cover | 82821-33700 · 82821-35050 |
| 82821W | Connector cover | 82821-33750 |
| 82821X | Connector cover | 82821-33780 |
| 82821Y | Connector cover | 82821-33790 |
| 82823S | starter terminal cover | 28192-F2090 · 82823-12120 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82H21C | Connector cover | 82821-33800 |
| 82H21D | Connector cover | 82821-33810 |
| 82H21G | Connector cover | 82821-33830 |
| 82H21H | Connector cover | 82821-33860 |
| 82H21J | Connector cover | 82821-33A00 |
| 82H21K | Connector cover | 82821-50510 |
| 82H21L | Connector cover | 82821-12750 |
| 82H21M | Connector cover | 82821-12B40 |
| 82H21N | Connector cover | 82821-30600 |
| 82H21P | Connector cover | 82821-33490 |
| 82H21Q | Connector cover | 82821-33810 |
| 82H21R | Connector cover | 82821-33890 |
| 82H21S | Connector cover | 82821-20510 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-02010 · 890C0-02150 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-02020 · 890C0-02160 |
