Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 30 PNC and OE references.

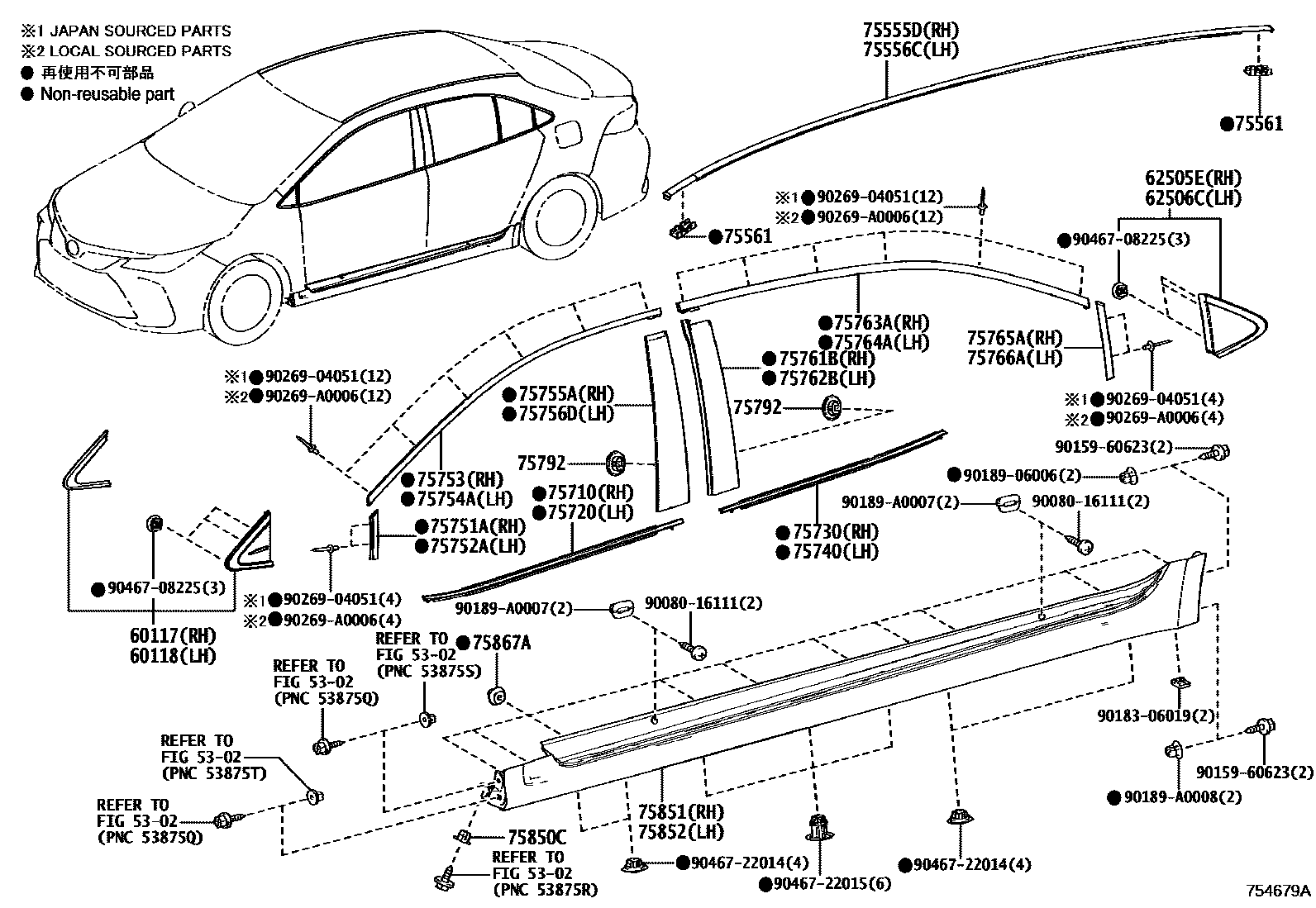

Toyota COROLLA 侧防护条 EPC diagram — 754679A
侧防护条 — 754679A (201903 – 999999)

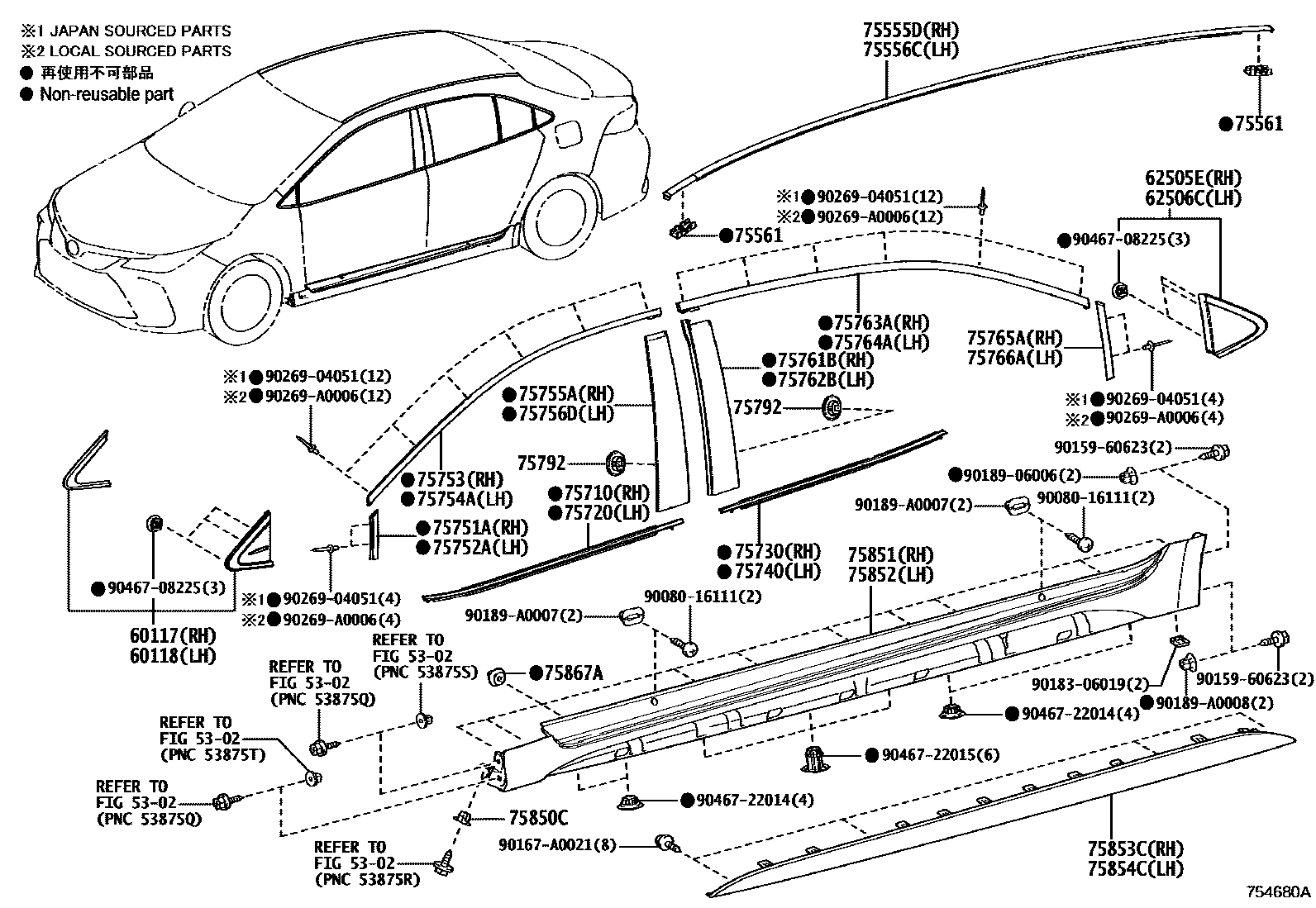

Toyota COROLLA 侧防护条 EPC diagram — 754680A
侧防护条 — 754680A (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-02210
60118Left front pillar upper cover sub-assembly60118-02210
62505ERight corner window pillar cover sub-assembly62505-02010
62506CLeft corner window pillar cover sub-assembly62506-02010
75555DDrainage channel side decorative strip in the middle section on the right side of the roof75555-02290
75556CDrainage channel side decorative strip in the middle section on the left side of the roof75556-02280
75561No. 1 roof drain channel side decorative strip clip75561-33030
75710Right front door waistline protection strip assembly75710-02470
75720Left front door waistline protection strip assembly75720-02470
75730Right rear door waistline protection strip assembly75730-02450
75740Left rear door waistline protection strip assembly75740-02450
75751AFront door window frame protection strip (right front pillar)75751-02010
75752AFront door window frame protection strip (left front pillar)75752-02010
75753Protective strip on right front door window frame75753-02010
75754AProtective strip on left front door window frame75754-02010
75755AFront door window frame protection strip (right center pillar)75755-02110
75756DFront door window frame protection strip (left center pillar)75756-02110
75761BRear door window frame protection strip (right center pillar)75761-02120
75762BRear door window frame protection strip (left center pillar)75762-02120
75763AProtective strip on right rear door window frame75763-02010
75764AProtective strip on left rear door window frame75764-02010
75765ARight rear door window frame rear protective strip75765-02010
75766ALeft rear door window frame rear protective strip75766-02010
75792Car door window frame protective strip clip75792-0R010 · 75792-47010
75850CGasket No. 190189-06193
75851Right side door sill panel protective strip75851-02905 · 75851-02906 · 75851-02915
75852Left side door sill panel protective strip75852-02904 · 75852-02905 · 75852-02915
75853CRight side door sill panel lower protective strip75853-02030 · 75853-02050
75854CLeft side door sill panel lower protective strip75854-02020 · 75854-02040
75867ADoor sill panel protective strip clip75867-52020
