Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

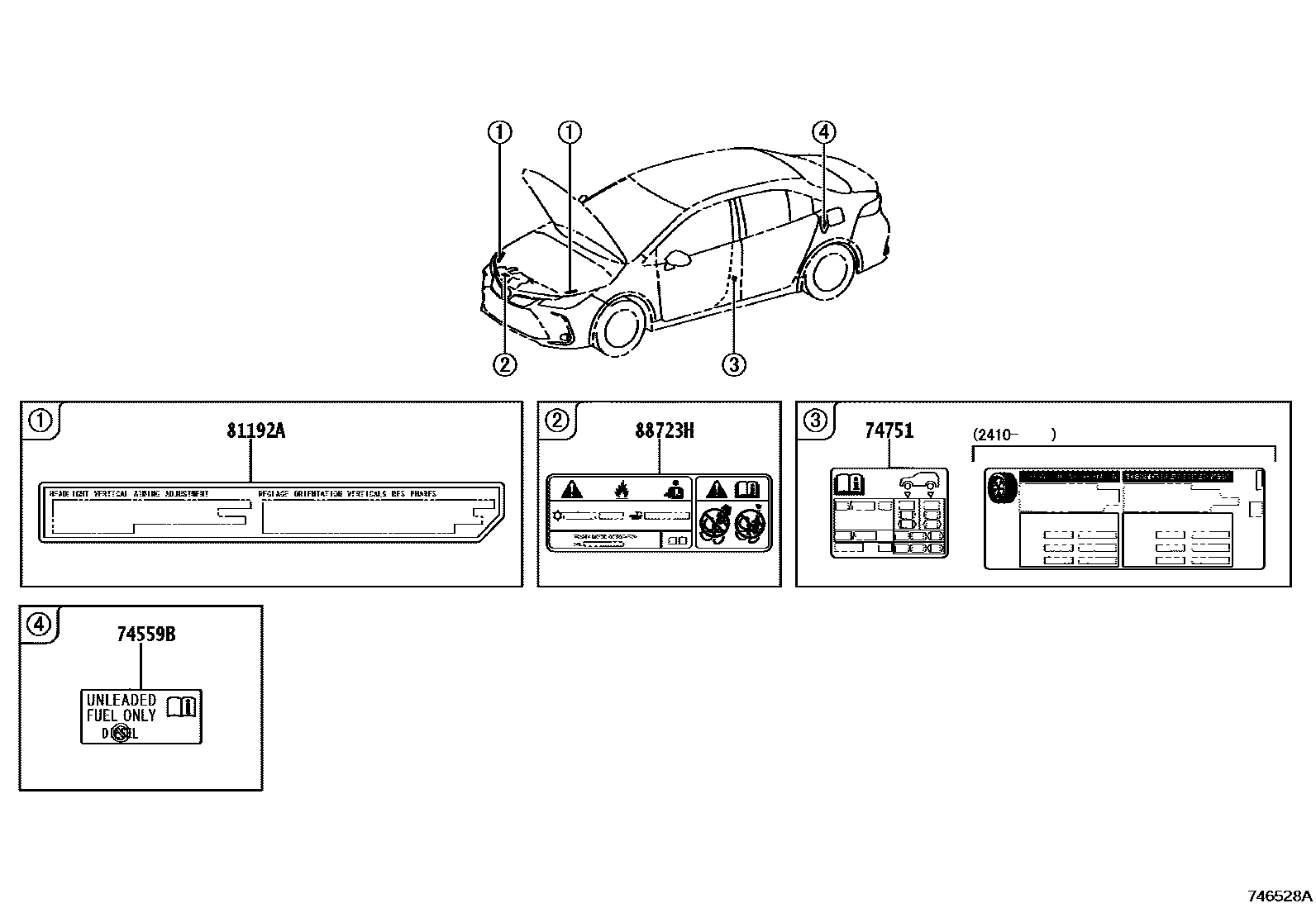

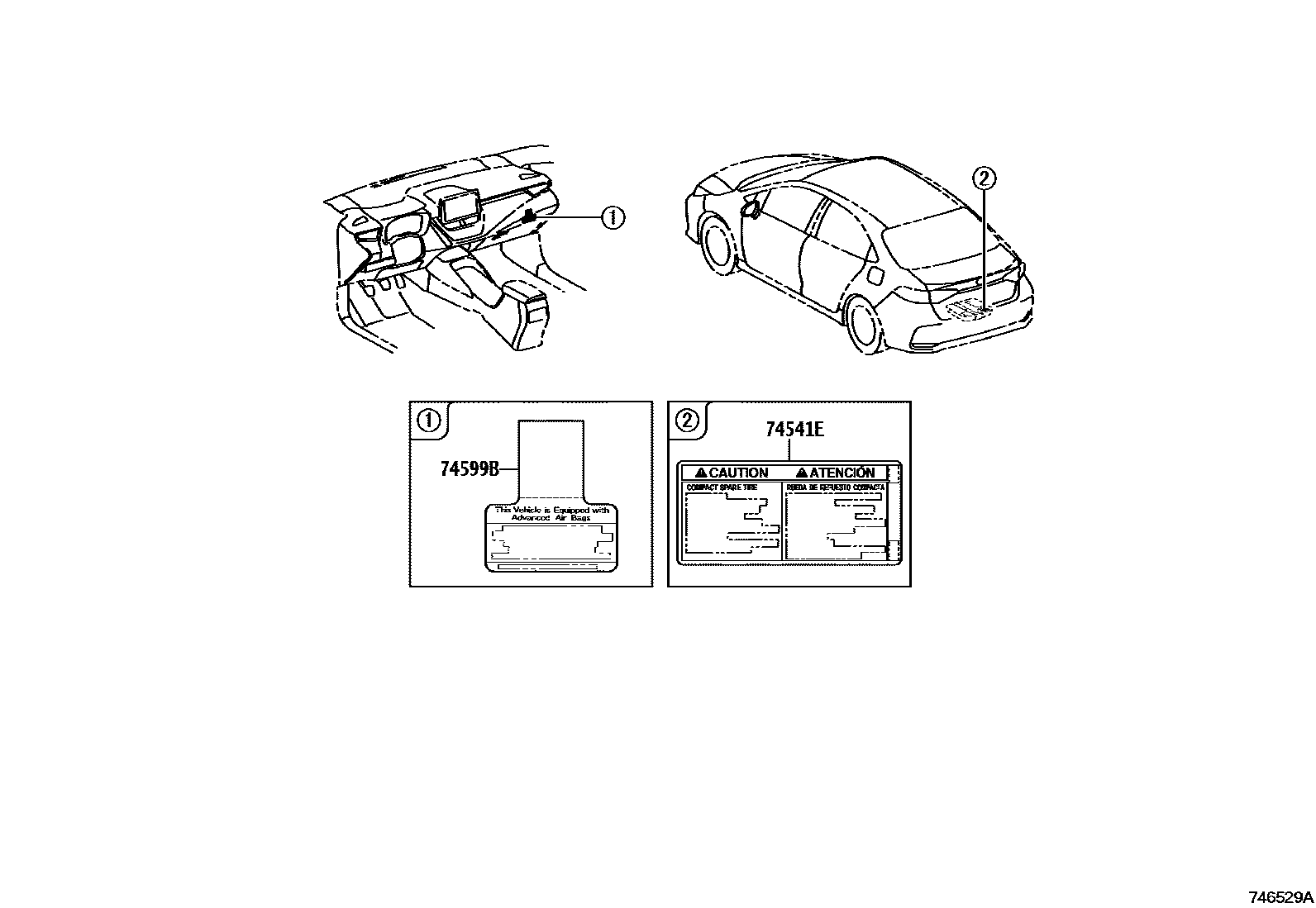

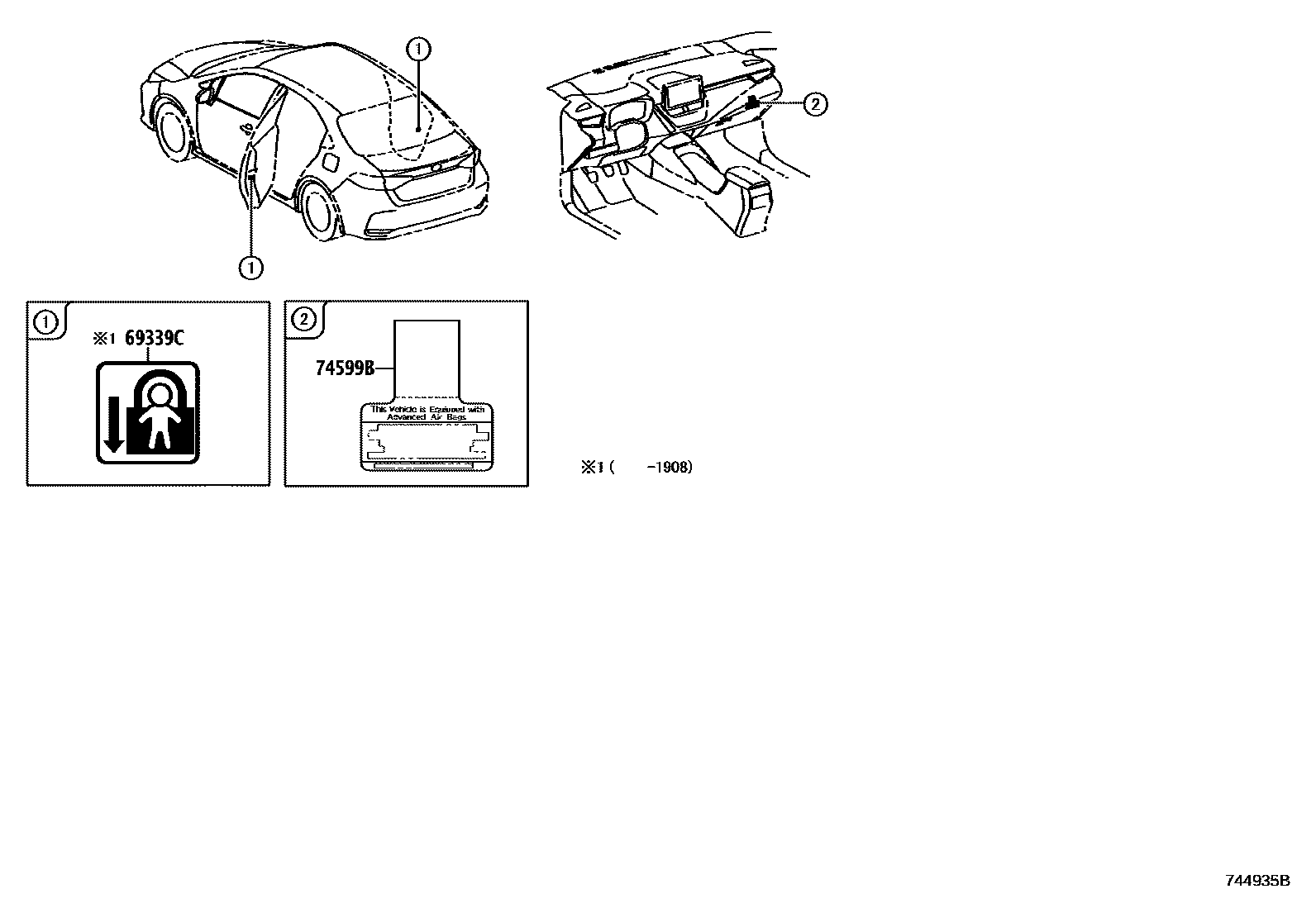

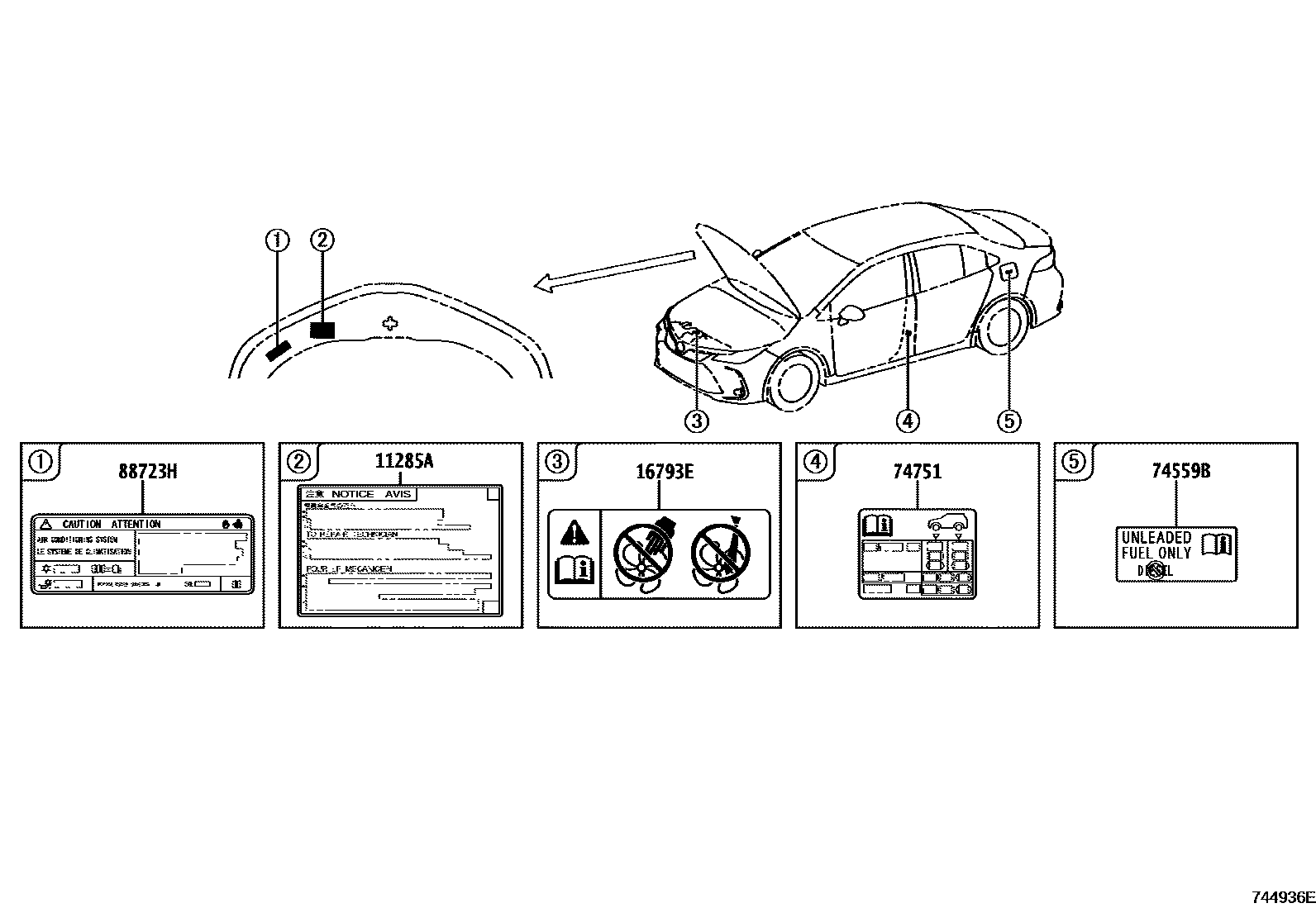

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0T030 · 11285-F2010 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 69339C | Child Restraint Information Label | 69339-06040 |
| 74541E | Small spare tire warning plate | 42668-02150 |
| 74559B | fuel information label | 74559-20140 |
| 74599B | Driver and passenger air bag information labels | 74599-0E020 |
| 74751 | tire pressure information label | 42661-02Q40 · 42661-02Q41 · 42661-02Q50 · 42661-02Q51 |
| 81192A | headlight seal | 81192-50010 |
| 88723H | Cooler maintenance warning label | 88723-02250 · 88723-02540 · 88723-02590 · 88723-0A120 · 88723-12350 |
