Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 15 PNC and OE references.

Toyota COROLLA 后排座椅和座椅滑轨 EPC diagram — 71A615
后排座椅和座椅滑轨 — 71A615 (201903 – 999999)

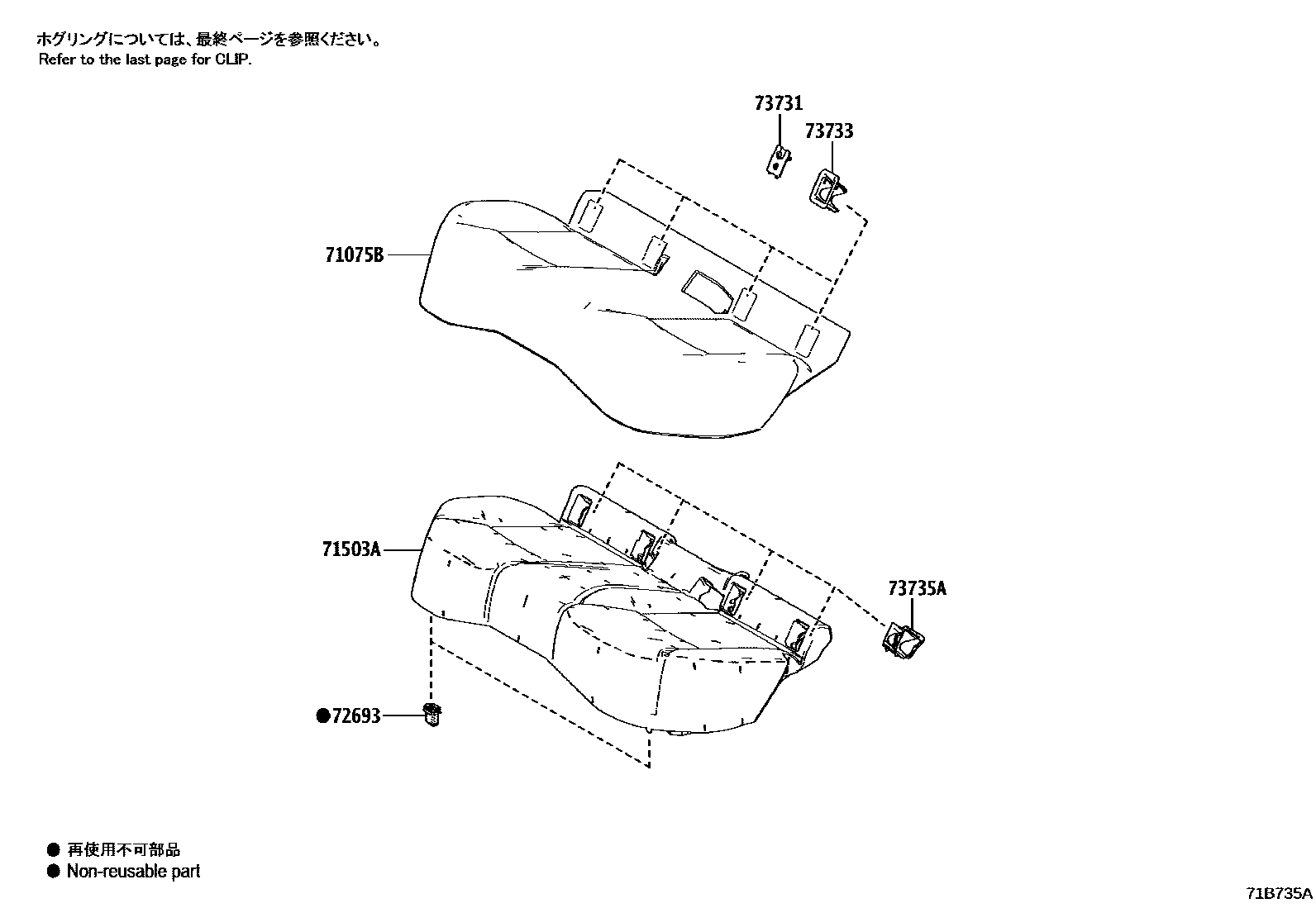

Toyota COROLLA 后排座椅和座椅滑轨 EPC diagram — 71B735A
后排座椅和座椅滑轨 — 71B735A (201903 – 999999)

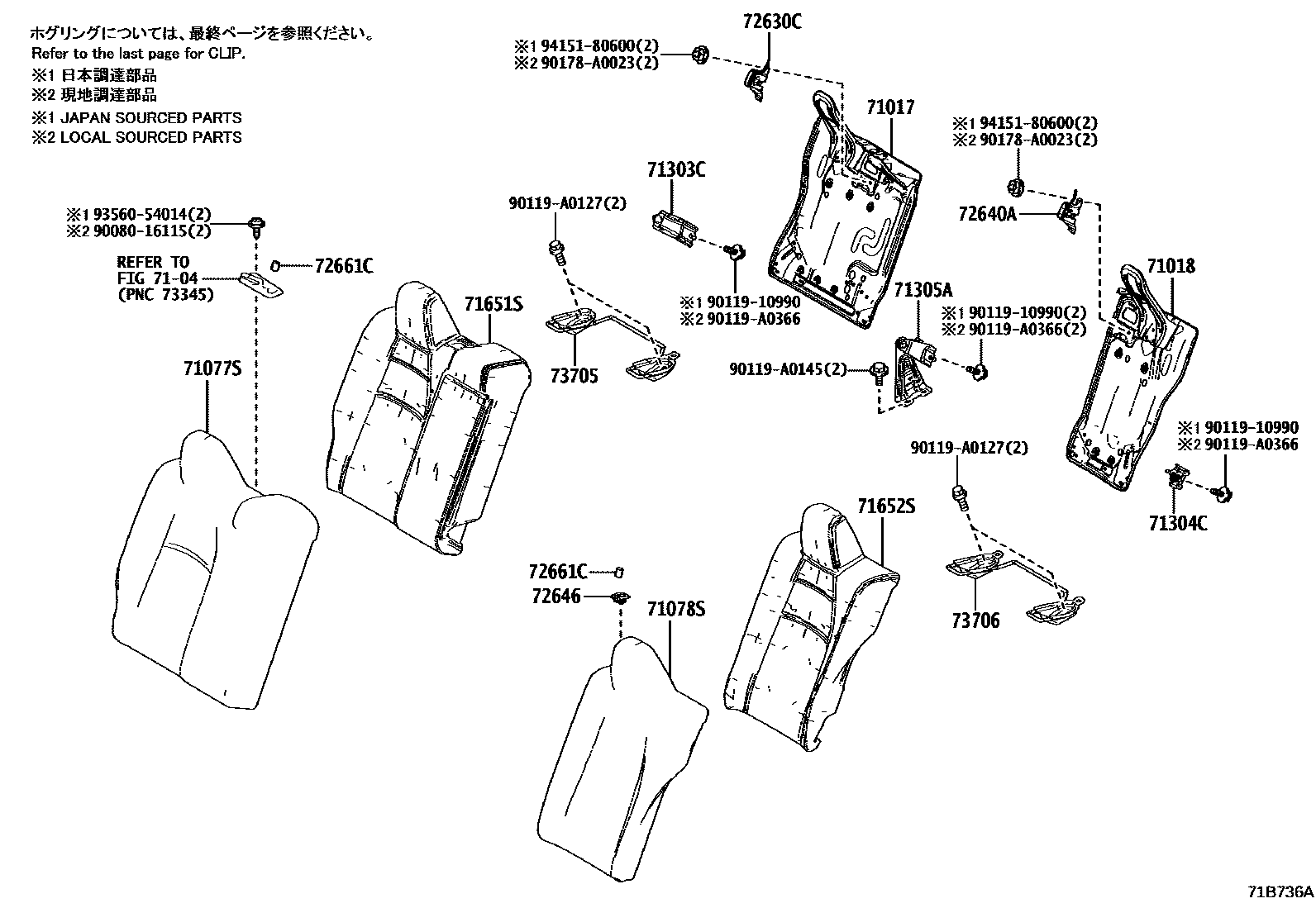

Toyota COROLLA 后排座椅和座椅滑轨 EPC diagram — 71B736A
后排座椅和座椅滑轨 — 71B736A (201903 – 999999)

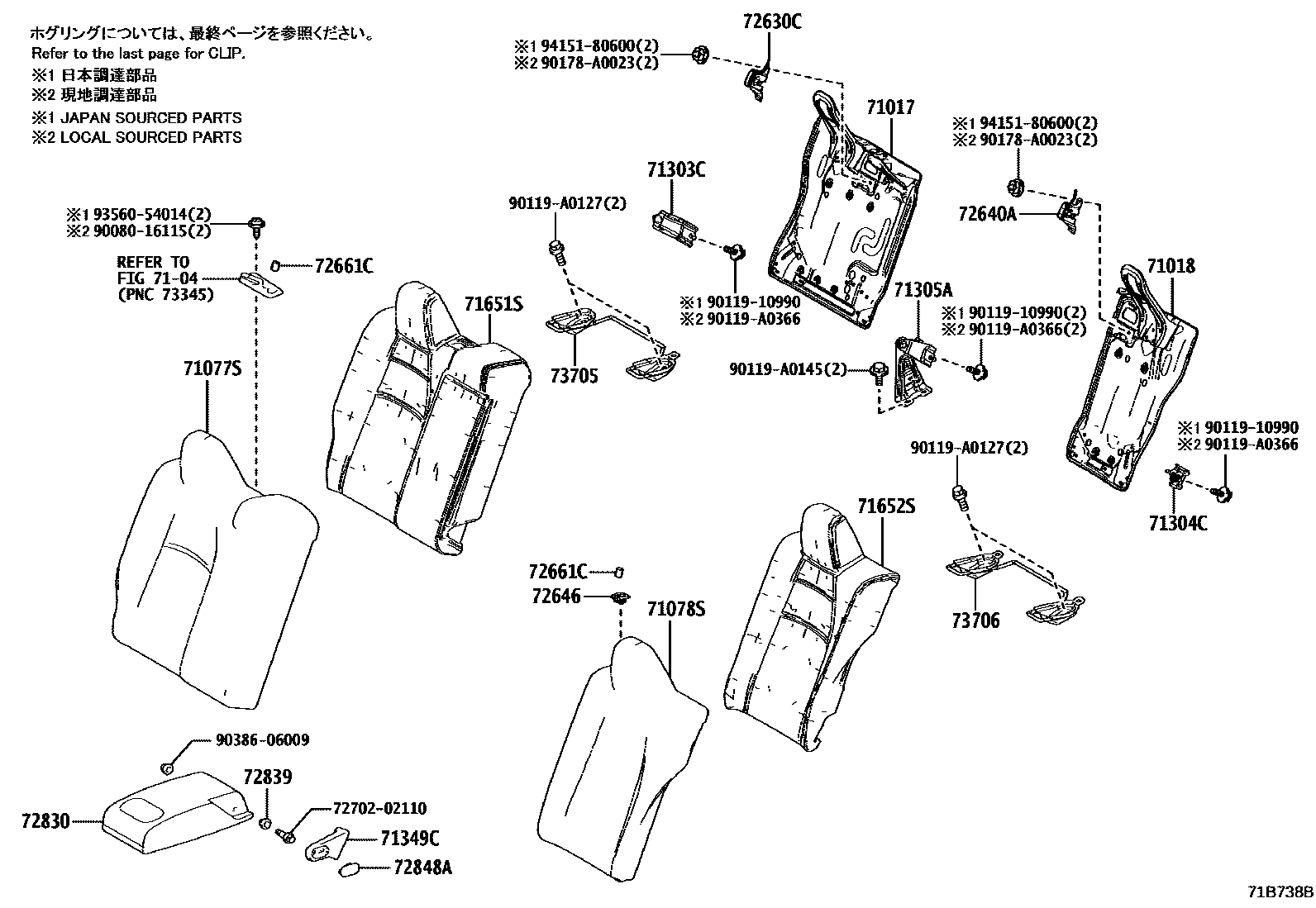

Toyota COROLLA 后排座椅和座椅滑轨 EPC diagram — 71B738B
后排座椅和座椅滑轨 — 71B738B (201903 – 999999)

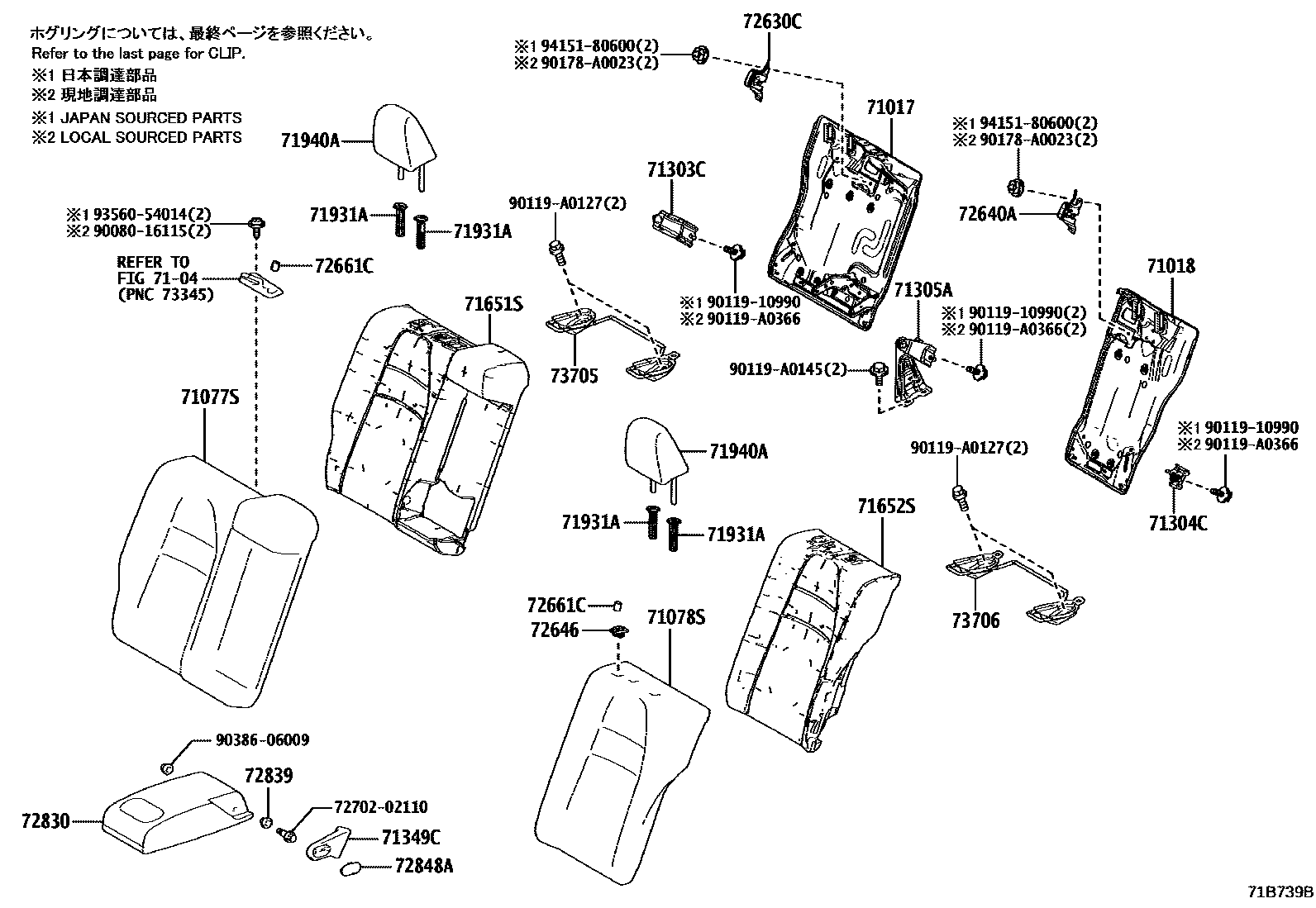

Toyota COROLLA 后排座椅和座椅滑轨 EPC diagram — 71B739B
后排座椅和座椅滑轨 — 71B739B (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
71017Right rear seat back frame sub-assembly71017-02A80 · 71017-02A90 · 71017-02B00
71018Rear left seat back frame sub-assembly71018-02520 · 71018-02560
71303CRear right seat backrest hinge sub-assembly71303-02300
71304CRear left seat back hinge sub-assembly71304-02040
71305ARear center seat backrest hinge sub-assembly71305-02220
71503ARear seat cushion sub-assembly71503-02630 · 71503-02730 · 71503-02A40 · 71503-02B80
71651SRear right seat back cushion (for split seats)71651-02860 · 71651-02870 · 71651-02880
71652SRear left seat back cushion (for split seats)71652-02610 · 71652-02640
72630CRear right seat back lock assembly72630-02210
72640ARear left seat back lock assembly72640-02220
72693Rear seat cushion hook72693-12080
72839Rear seat armrest hinge gasket72839-02020
73705Child restraint seat anchor right side bracket sub-assembly73705-02260
73706Child restraint seat anchor left bracket sub-assembly73706-02150
73735AChild restraint seat belt guide cover73735-02010 · 73735-02030 · 73735-02100
