Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

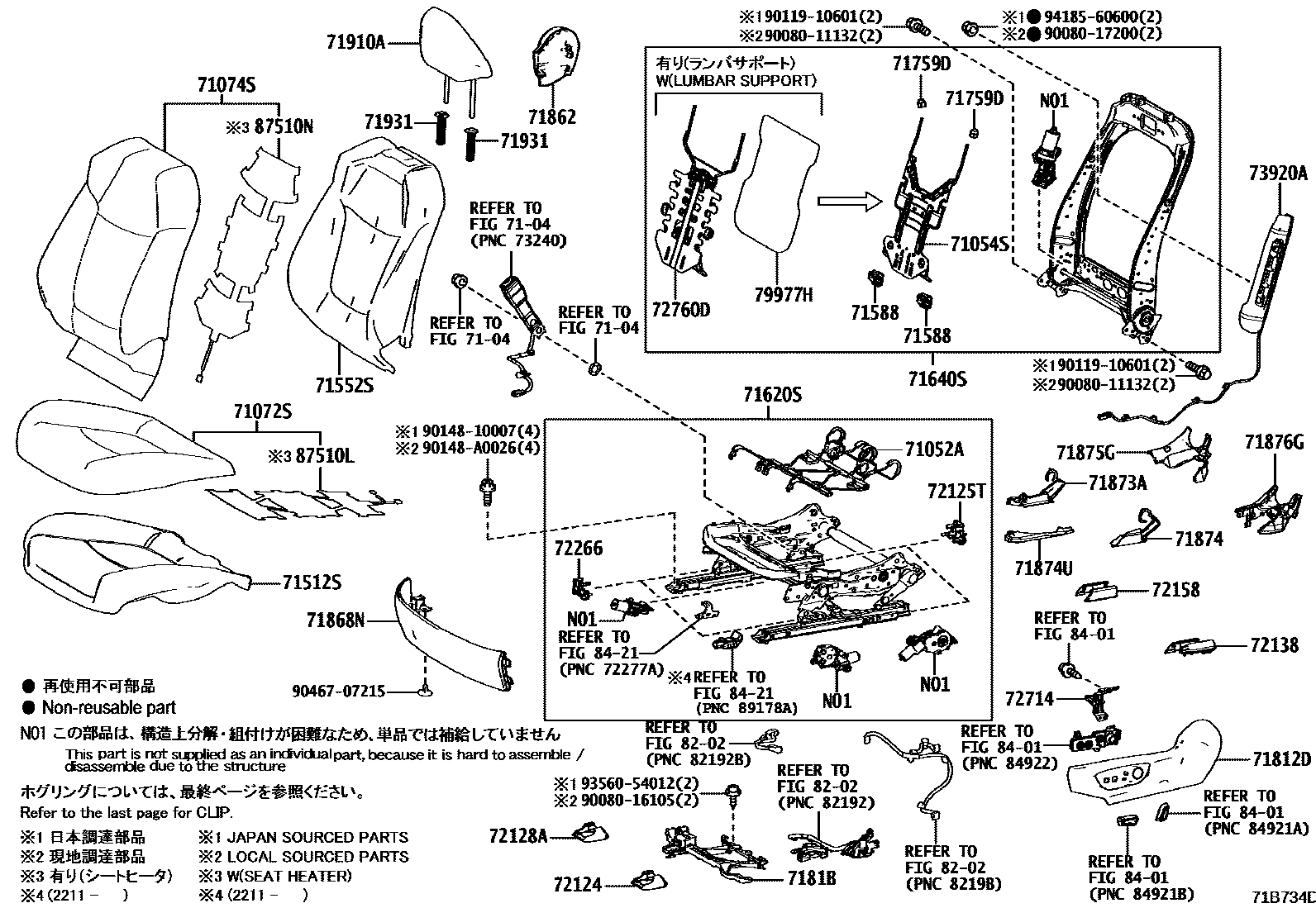

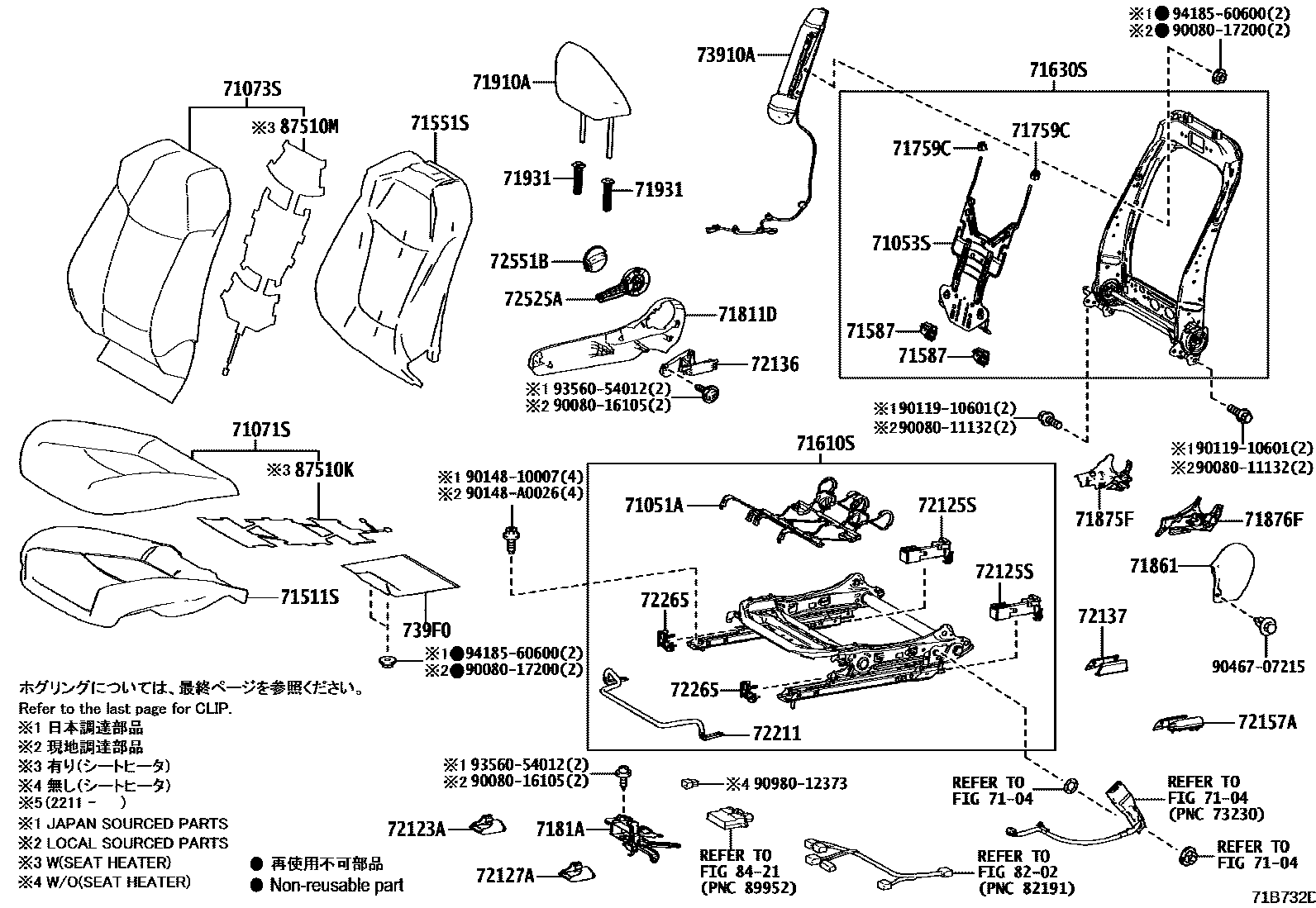

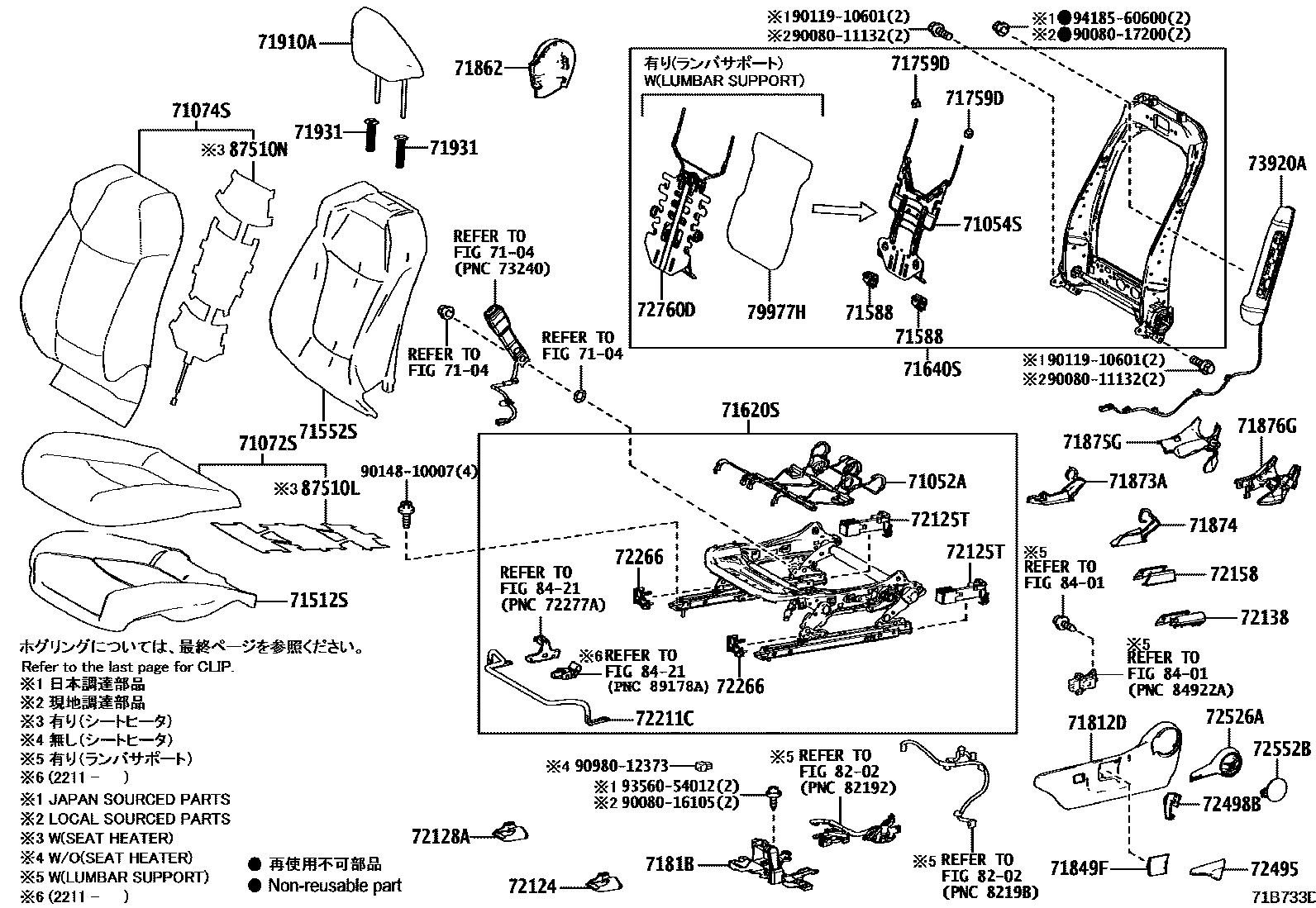

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-02360 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02360 |
| 71053S | Front right seat back spring sub-assembly | 71053-0R020 |
| 71054S | Front left seat back spring sub-assembly | 71053-0R020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-02C70 · 71511-02C80 · 71511-02E80 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02870 · 71512-02880 · 71512-02890 · 71512-02A80 · 71512-02B00 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02C80 · 71551-02C90 · 71551-02D10 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02D40 · 71552-02D50 · 71552-02D70 |
| 71587 | Front seat back edge protective cover | 71587-0R010 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-0R010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-02470 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02550 · 71620-02560 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0R070 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02B10 · 71640-02B20 · 71640-0R180 · 71640-0R200 |
| 71759C | Front seat back hook No. 1 | 71759-0R020 |
| 71759D | Front seat back hook 2 | 71759-0R020 |
| 7181A | Front right seat cushion harness holder | 7181A-02050 |
| 7181B | Front left seat cushion harness holder | 7181B-02010 · 7181B-0R020 |
| 71873A | Front seat cushion lower guard | 71874-02270 |
| 71874 | Front left seat cushion lower guard | 71874-02260 |
| 71874U | Front left seat cushion lower guard | 71874-02280 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02110 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-02110 |
| 72125S | Front right seat slide rail rear upper cover | 72125-0R010 |
| 72125T | Front left seat slide rail rear upper cover | 72125-0R010 · 72125-0R020 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-02110 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-02110 |
| 72136 | No. 1 seat slide rail lower rail | 72136-02130 |
| 72137 | Right seat outer slide rail cover | 72137-02370 |
| 72138 | Left seat outer slide rail cover | 72137-02370 |
| 72157A | Right seat inner slide rail bracket cover | 72157-02350 |
| 72158 | Left seat inner slide rail bracket cover | 72158-02230 |
| 72211 | Seat slide adjustment handle | 72211-02260 |
| 72211C | Seat slide adjustment handle | 72211-02250 · 72211-02260 |
| 72265 | Right seat rail upper rail cover | 72265-0R010 |
| 72266 | Left seat rail upper rail cover | 72265-0R010 · 72265-0R020 |
| 72498B | Height adjuster bracket outer cover | 72498-02010 |
| 72714 | Left seat adjuster protective clip bracket | 72714-02010 · 72714-12010 |
| 72760D | Left lumbar support adjuster assembly | 72760-0R040 |
| 73910A | Front right seat airbag assembly | 73910-02380 |
| 73920A | Front left seat airbag assembly | 73920-02350 |
| 739F0 | Front right seat cushion air bag assembly | 739F0-02030 |
| 79977H | Felt pad, left side of front seat backrest | 79977-02140 |
| 87510K | Front right seat cushion heater assembly | 87510-0R250 · 87510-0R260 |
| 87510L | Front left seat cushion heater assembly | 87510-02540 · 87510-0R190 · 87510-0R200 · 87510-0R240 |
| 87510M | Front right seat back heater assembly | 87530-0R110 · 87530-0R120 |
| 87510N | Front left seat back heater assembly | 87530-0R110 · 87530-0R120 |
