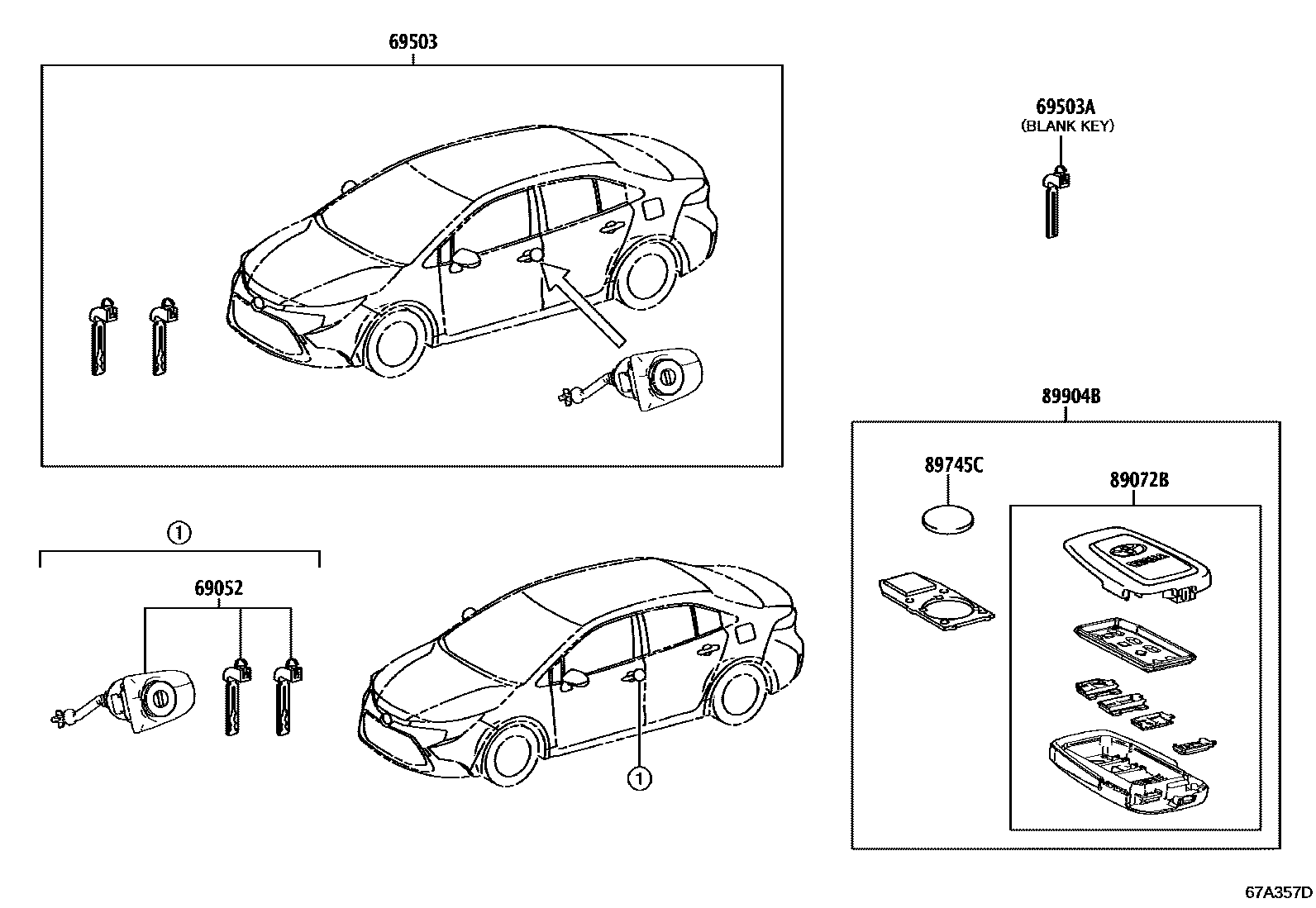

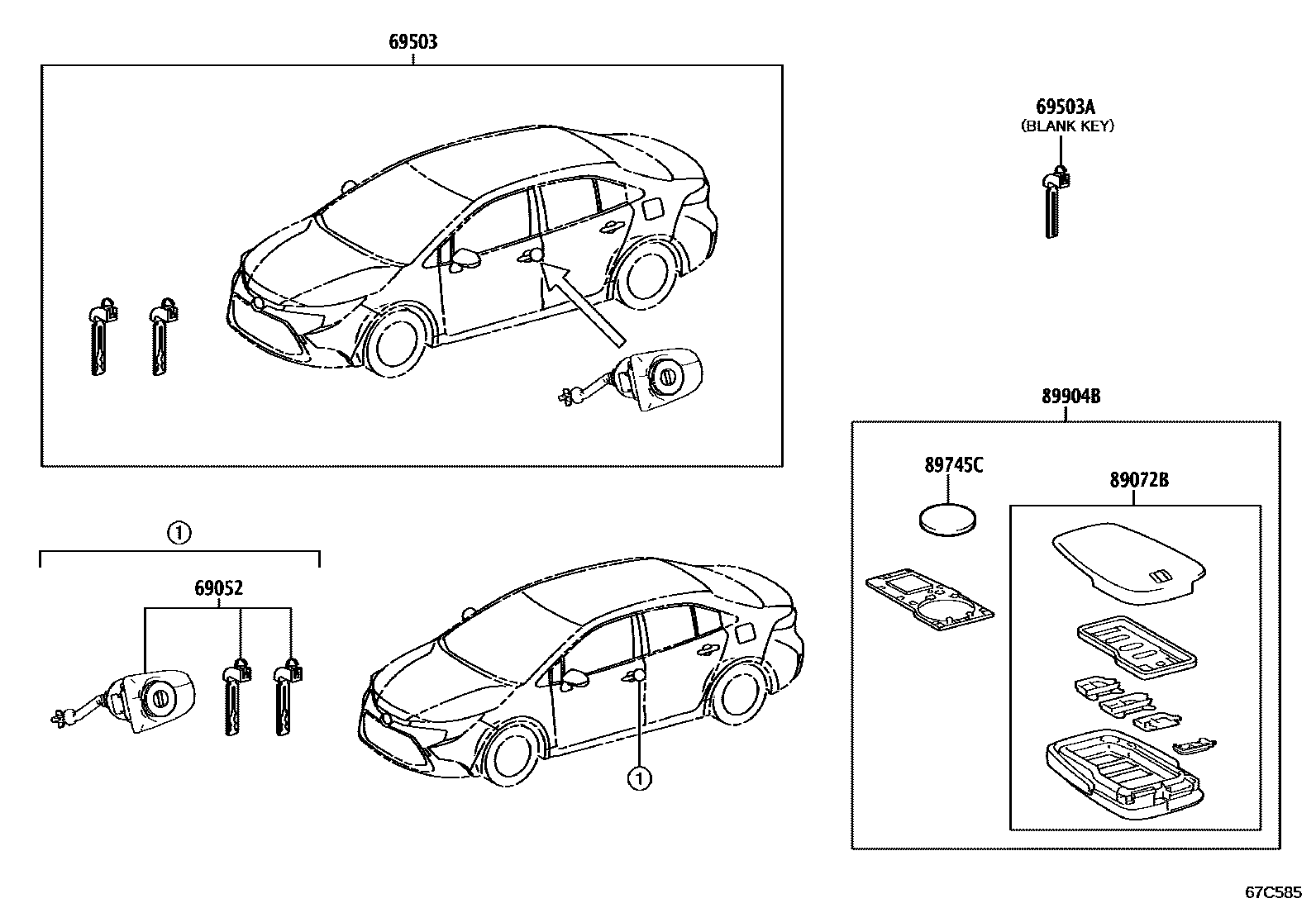

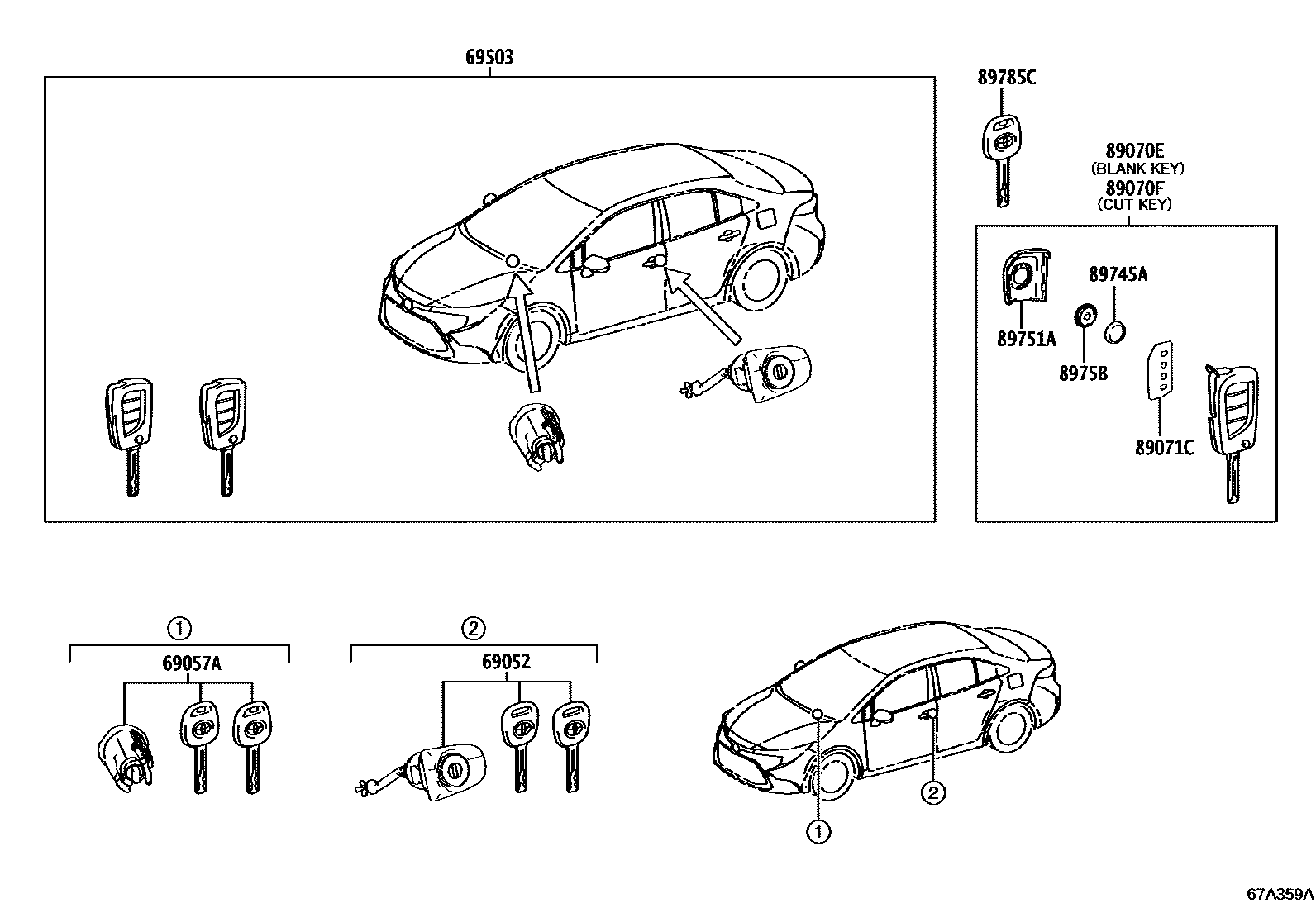

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-02480 · 69052-02490 · 69052-02491 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02C20 |
| 69503 | Door lock cylinder components | 69005-02J40 · 69005-02J41 · 89704-02C20 |
| 69503A | external tooth key | 69515-06050 · 69515-16110 · 69515-K0020 |
| 89070E | Remote key assembly | 89070-06791 |
| 89070F | Remote key assembly (internal tooth key) | 89070-06801 |
| 89071C | Remote key sub-assembly | 89071-06090 |
| 89072B | Remote key shell assembly (for smart key) | 89072-02760 · 89072-02B50 · 89072-02C40 |
| 89745A | Transmitter battery | 89745-0D010 |
| 89745C | Transmitter battery | 89745-08010 · 89745-12020 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-06110 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785C | transceiver key master transmitter | 89785-K0050 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-02030 · 8990H-02470 · 8990H-02471 · 8990H-02490 |
