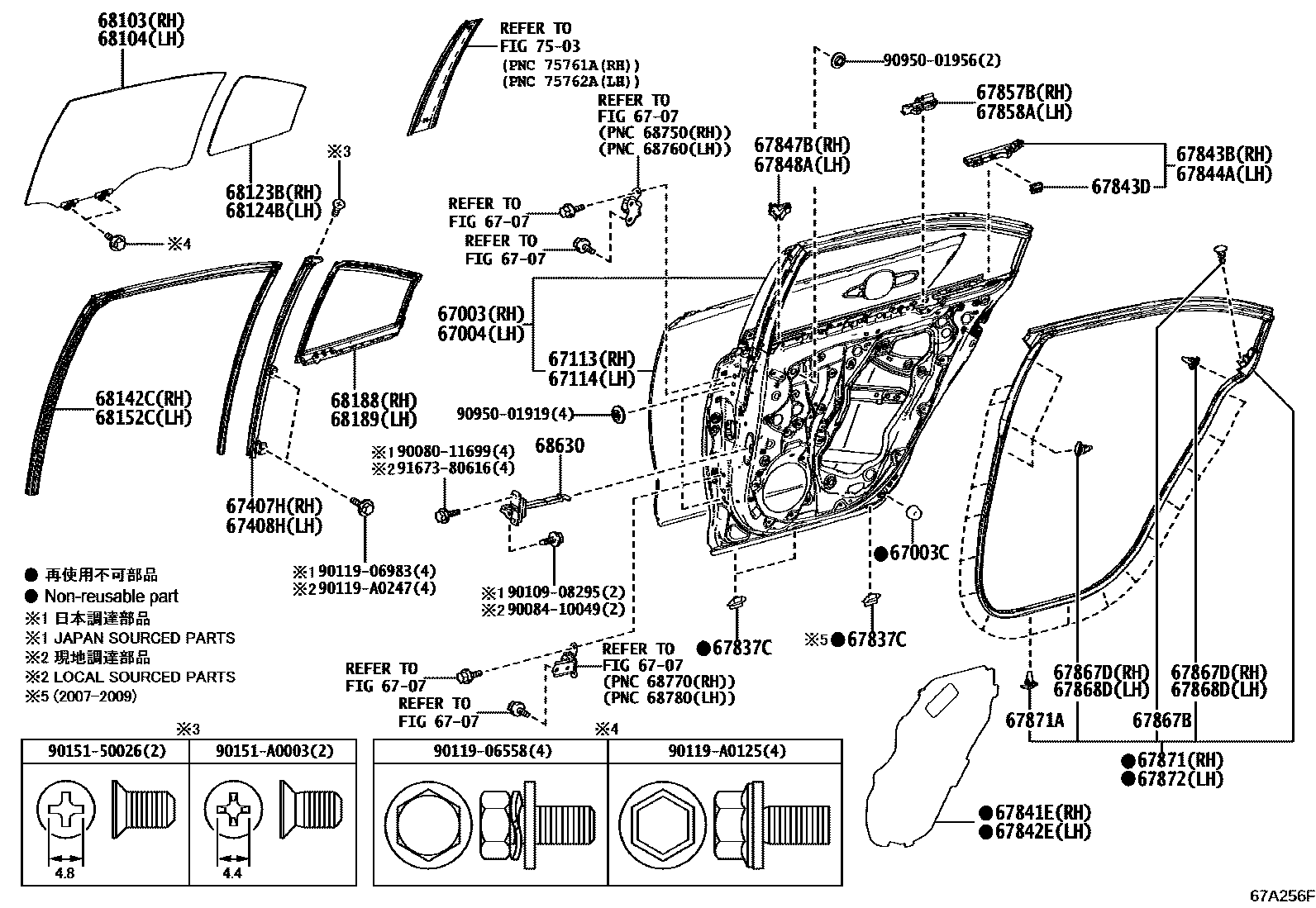

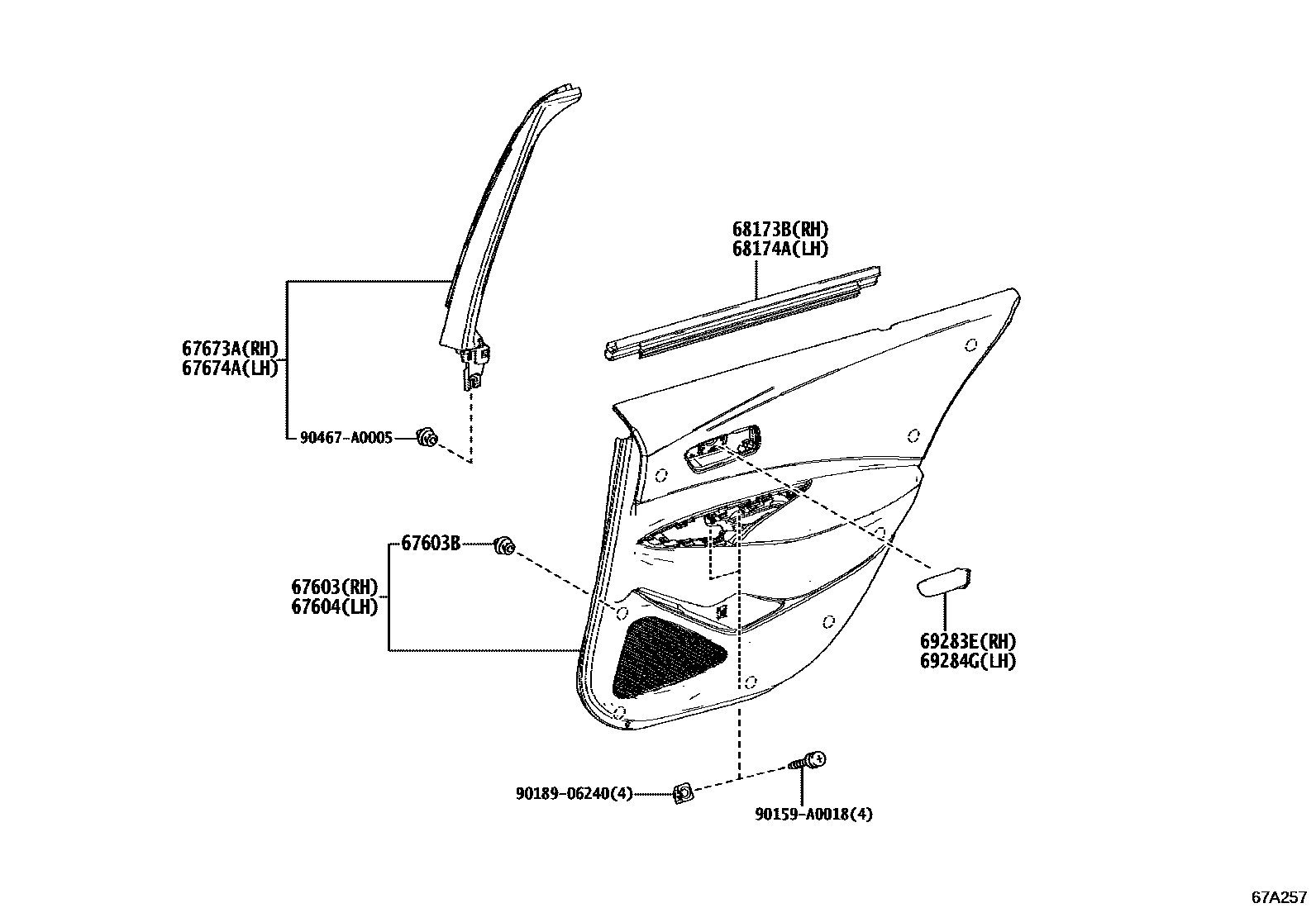

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02530 · 67003-02531 · 67003-02670 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-02530 · 67004-02531 · 67004-02670 |
| 67113 | Right rear door outer panel | 67113-02280 |
| 67114 | Left rear door outer panel | 67114-02280 |
| 67407H | Right sliding door window divider sub-assembly | 67407-02190 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-02190 |
| 67603B | Catch (for rear door trim panel) | 90467-A0005 · 90467-A0048 |
| 67673A | Right rear door frame decorative strip | 67673-02010 |
| 67674A | Left rear door frame decorative strip | 67674-02010 |
| 67837C | Rear door dust seal retainer | 67837-47060 |
| 67841E | Right rear door access hole cover | 67841-02320 · 67841-02321 |
| 67842E | Left rear door access hole cover | 67842-02300 |
| 67843B | Right rear door No. 2 access hole cover | 67843-02010 |
| 67843D | Rear door access hole clip | 67923-06300 |
| 67844A | Left rear door No. 2 access hole cover | 67844-02010 |
| 67847B | No. 1 right rear door ventilation device seal | 67847-02070 |
| 67848A | No. 1 left rear door ventilator seal | 67848-02030 |
| 67857B | Right rear door panel protector | 67857-02100 |
| 67858A | Left rear door panel protector | 67858-02100 |
| 67867B | Door seal strip clip (for rear door) | 67868-30030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-02310 |
| 67871A | Fixings (for rear door sealing strip) | 67867-12150 |
| 67872 | Left rear door sealing strip | 67872-02310 |
| 68103 | Right rear door glass sub-assembly | 68103-02510 |
| 68104 | Left rear door glass sub-assembly | 68104-02470 |
| 68123B | Right rear door corner window glass | 68123-02430 |
| 68124B | Left rear door corner window glass | 68124-02430 |
| 68142C | Right rear door glass lift slot | 68142-02340 · 68142-02341 |
| 68152C | Left rear door glass lift slot | 68152-02340 · 68152-02341 |
| 68173B | Right rear door glass inner sealing strip | 68173-02380 |
| 68174A | Left rear door glass inner sealing strip | 68174-02320 |
| 68188 | Right rear door corner window seal | 68188-02230 |
| 68189 | Left rear door corner window seal | 68189-02230 |
| 68630 | Rear door opening limiter assembly | 68630-02330 |
