Toyota COROLLA 侧梁 — Figure 6101

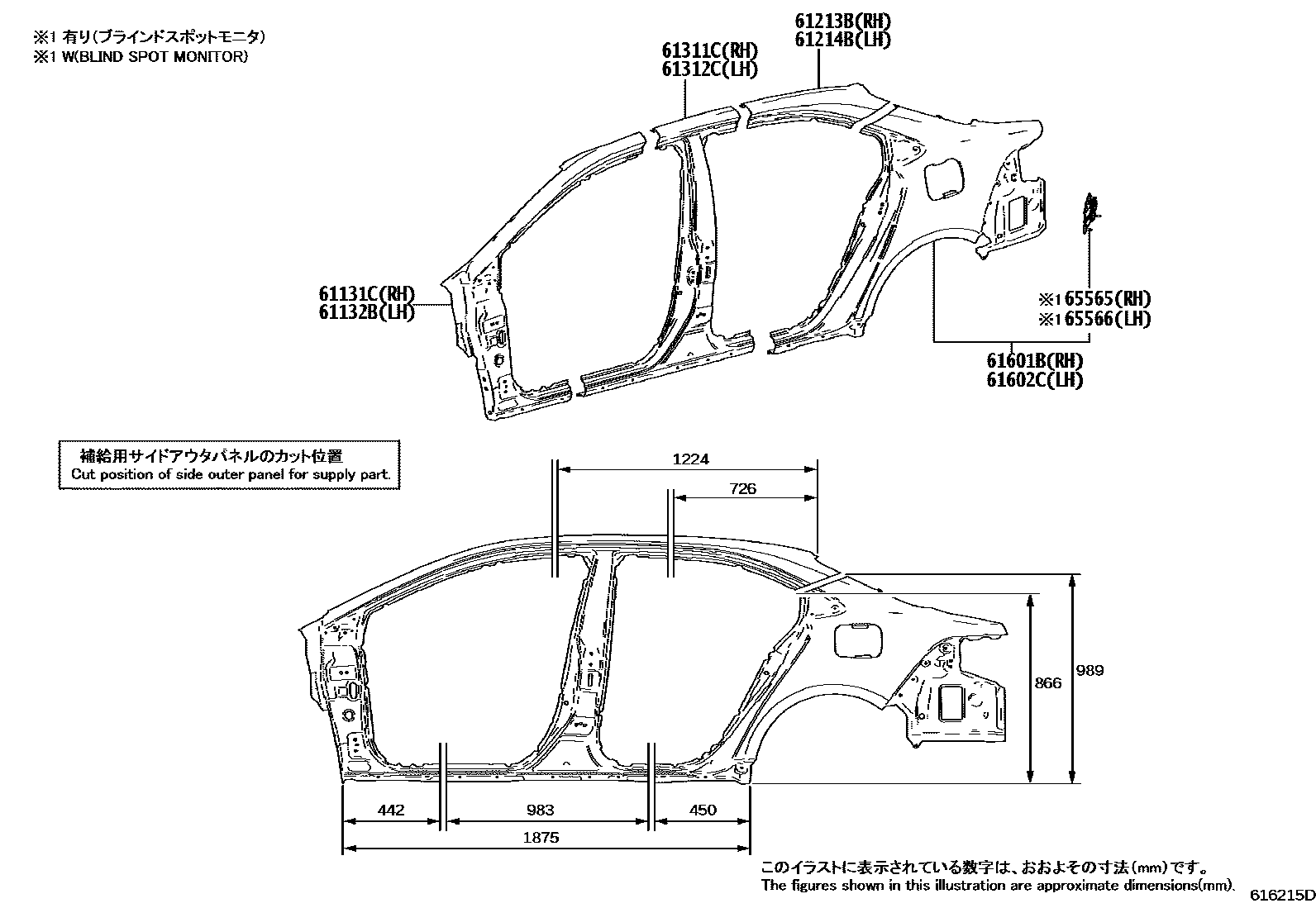

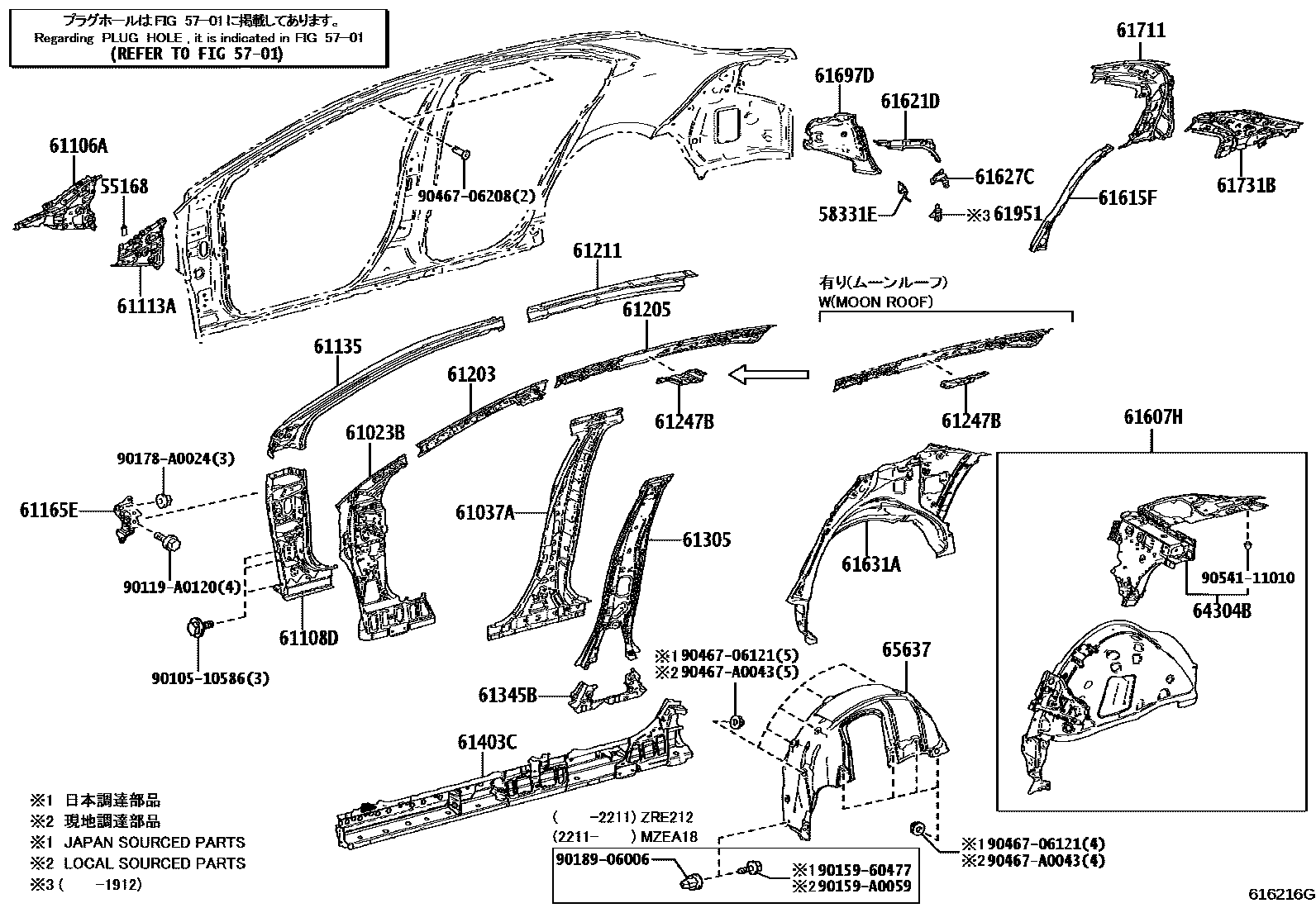

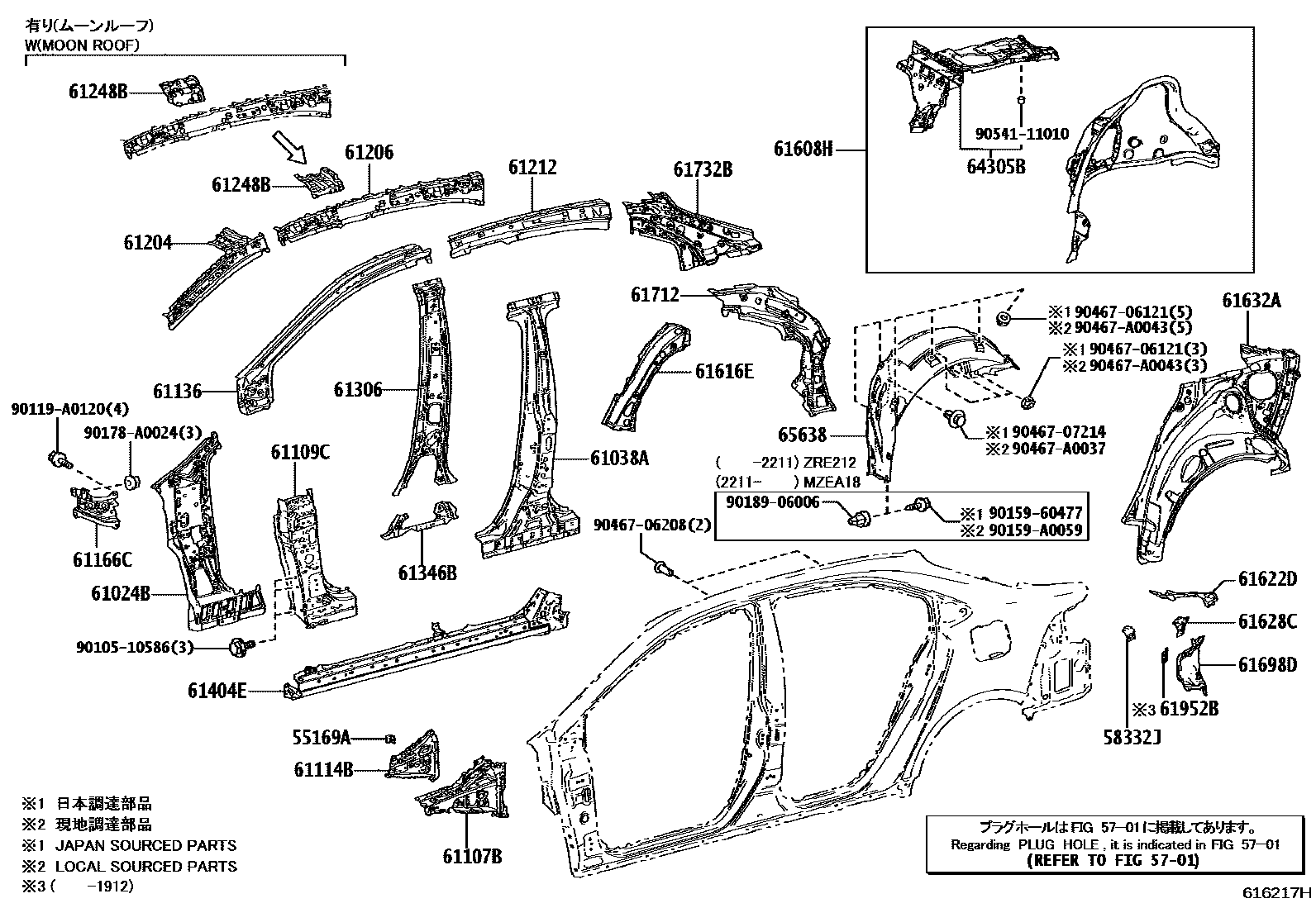

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55168 | Right front fender mounting bracket | 53879-02100 |
| 55169A | Left front fender mounting bracket | 53879-02100 |
| 58331E | No. 1 suitcase decorative panel bracket | 58331-02130 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-02150 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02350 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02330 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02320 · 61037-02321 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02320 · 61038-02321 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-02030 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-02040 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-02300 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-02320 |
| 61113A | No. 2 right outer panel | 61113-02010 |
| 61114B | No. 2 left outer panel | 61114-02010 |
| 61131C | Right body outer front pillar | 61101-02190 |
| 61132B | Left body outer front pillar | 61102-02180 |
| 61135 | Reinforcement member on the right front body pillar | 61135-02250 |
| 61136 | Reinforcement member on left front body pillar | 61136-02260 |
| 61165E | Dashboard to right front wall side bracket | 61165-02020 · 61165-02021 |
| 61166C | Dashboard to left front wall side bracket | 61166-02020 · 61166-02021 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-02180 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-02200 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-02010 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-02010 |
| 61211 | Roof right outer longitudinal beam | 61211-02200 |
| 61212 | Roof left outer longitudinal beam | 61212-02200 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-02300 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-02310 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-02110 · 61247-02130 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-02060 · 61248-02070 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02190 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02190 |
| 61311C | Right rear body front outer panel | 61311-02410 |
| 61312C | Left rear body front outer panel | 61312-02410 |
| 61345B | Right body inner middle and lower pillar | 61345-02040 |
| 61346B | Left side inner middle and lower pillar | 61346-02050 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02905 · 61403-02916 · 61403-02920 · 61403-02921 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02907 · 61404-02918 · 61404-02922 · 61404-02923 |
| 61601B | Right side enclosure sub-assembly | 61601-02610 · 61601-02611 · 61601-02620 · 61601-02621 |
| 61602C | Left side enclosure sub-assembly | 61602-02640 · 61602-02641 · 61602-02650 · 61602-02651 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-02780 · 61607-02781 · 61607-02830 · 61607-02A90 · 61607-02B00 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-02700 · 61608-02701 · 61608-02740 · 61608-02A10 · 61608-02A20 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-02150 · 61701-02080 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-02160 · 61702-02080 |
| 61621D | Back door right opening slot | 61621-02260 |
| 61622D | Rear door left opening slot | 61622-02260 |
| 61627C | Right side enclosure inner panel reinforcement | 61627-02150 |
| 61628C | Left side enclosure inner panel reinforcement | 61628-02130 |
| 61631A | Right wheel cover outer panel | 61605-02180 · 61605-02181 |
| 61632A | Left side wheel cover outer panel | 61606-02210 · 61606-02211 |
| 61697D | Right side enclosure end cover | 61697-02160 |
| 61698D | Left side enclosure end cover | 61698-02160 |
| 61711 | Roof right side outer panel | 61711-02150 |
| 61712 | Roof left outer panel | 61712-02150 |
| 61731B | Roof right inner panel | 61731-02330 |
| 61732B | Roof left inner panel | 61732-02330 |
| 61951 | Right trim part bracket | 61951-02120 |
| 61952B | Left trim part bracket | 61952-02080 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02280 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02280 |
| 65565 | Right side panel rear end lining | 65565-06080 |
| 65566 | Left side panel rear end lining | 65565-06080 |
| 65637 | Right rear wheel house lining | 65637-02130 · 65637-02240 |
| 65638 | Left rear wheel house lining | 65638-02130 · 65638-02240 |
