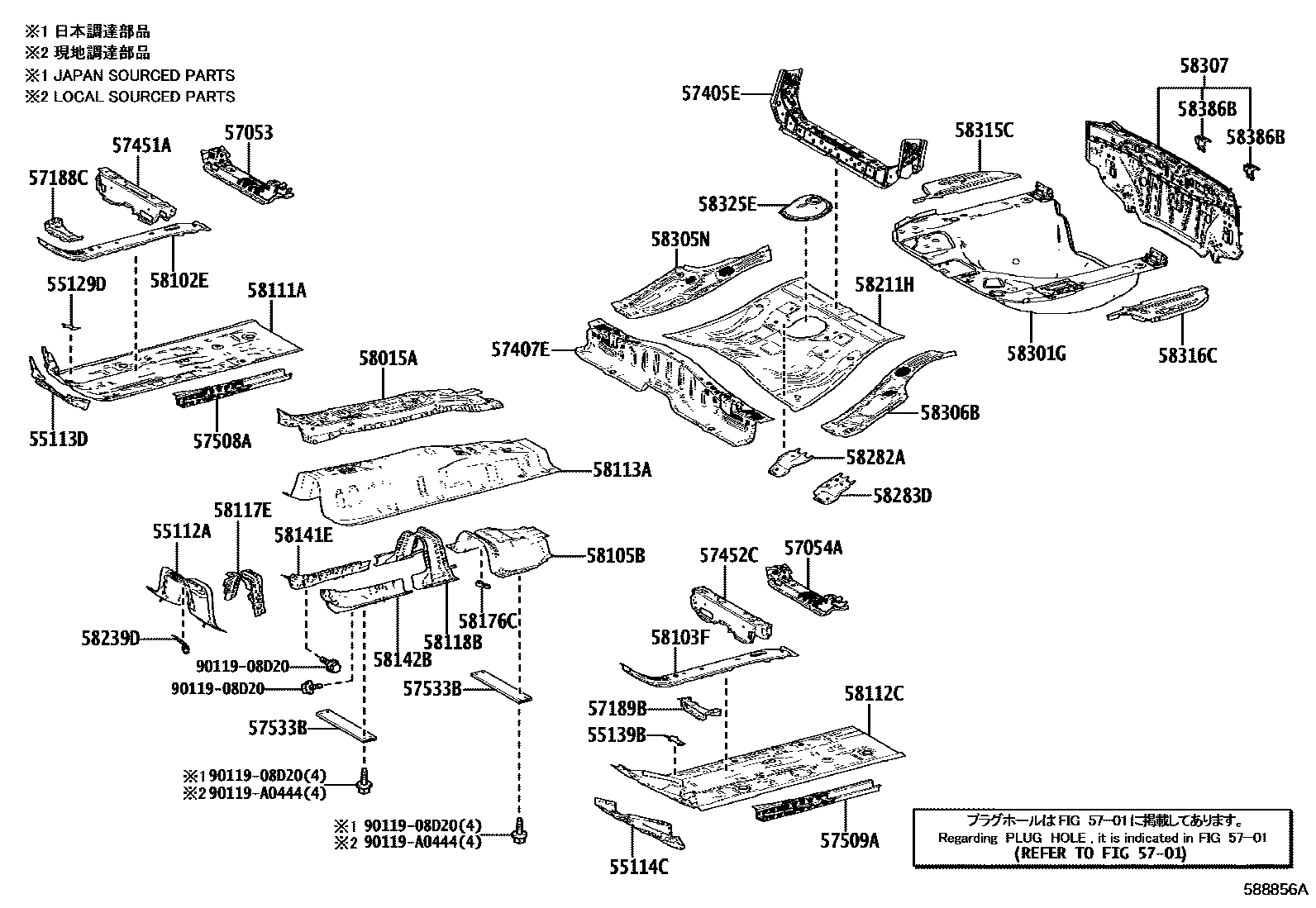

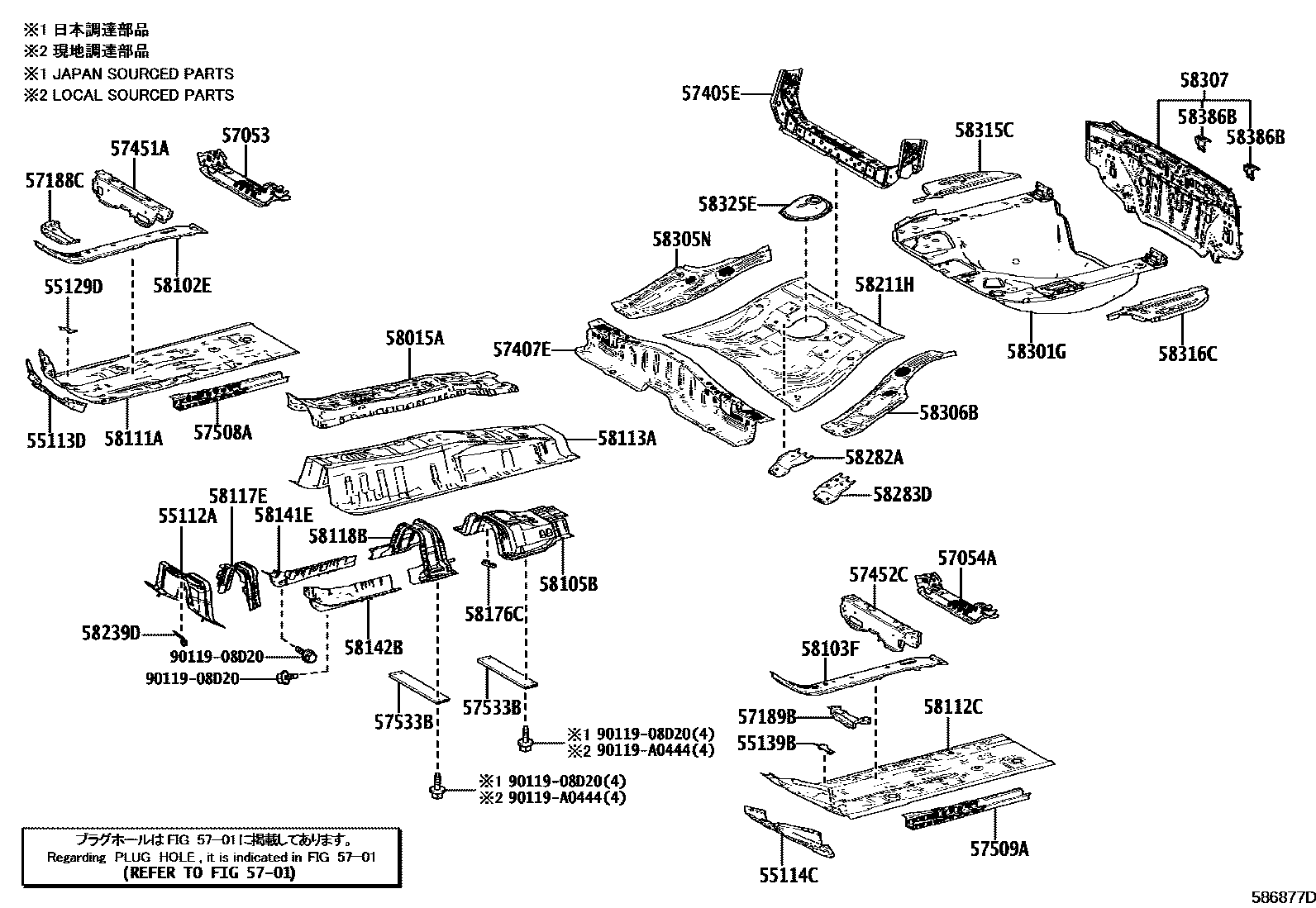

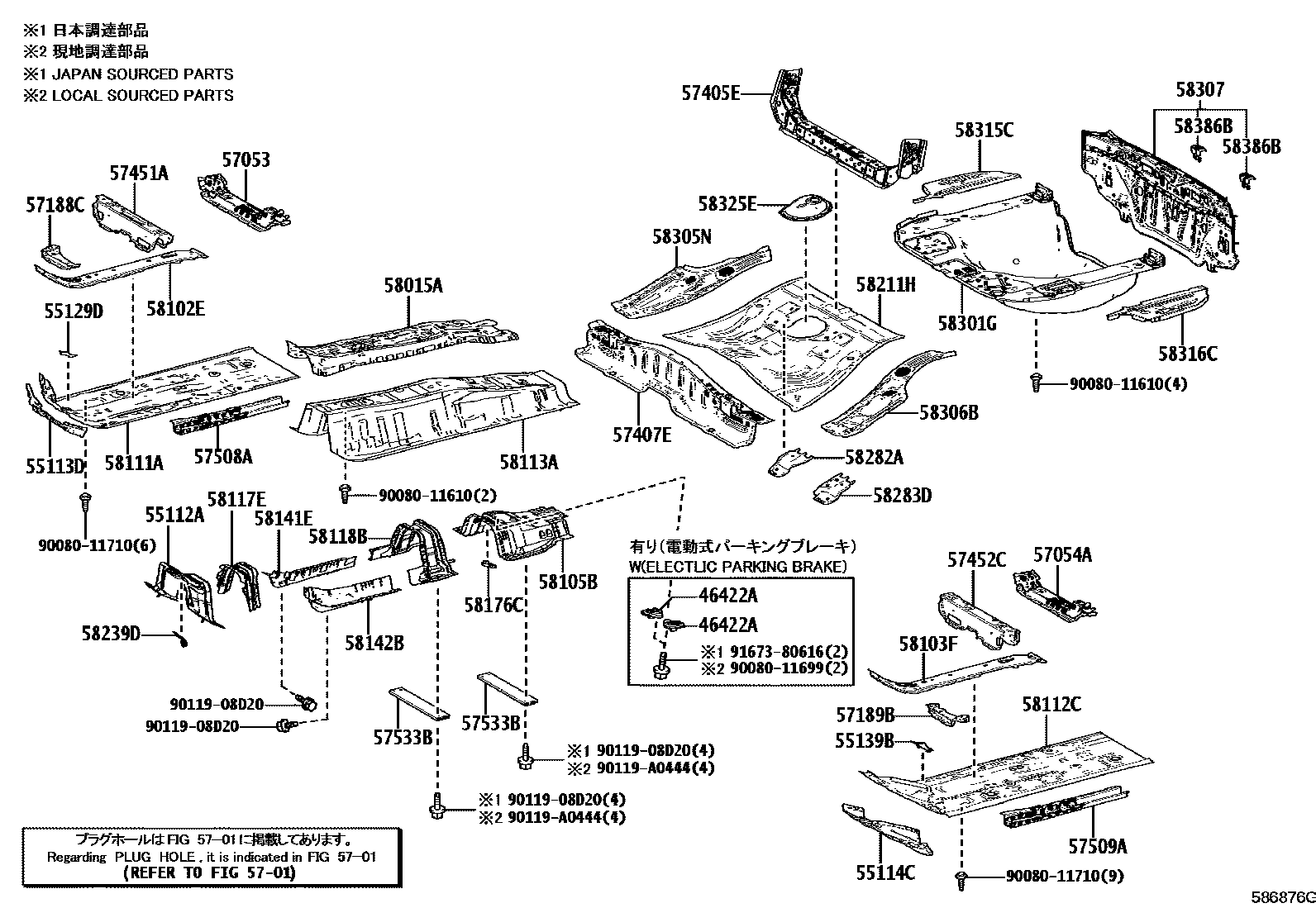

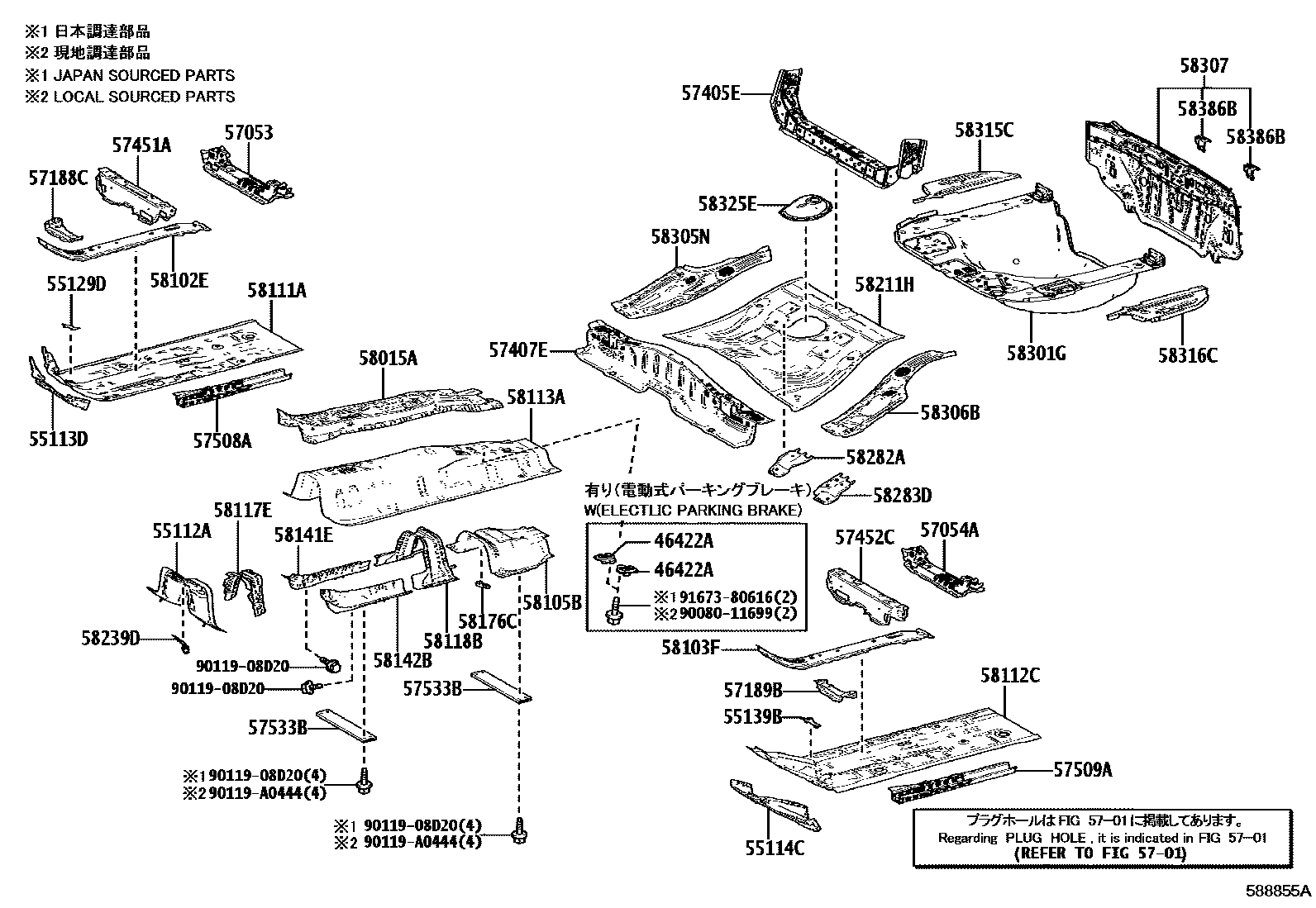

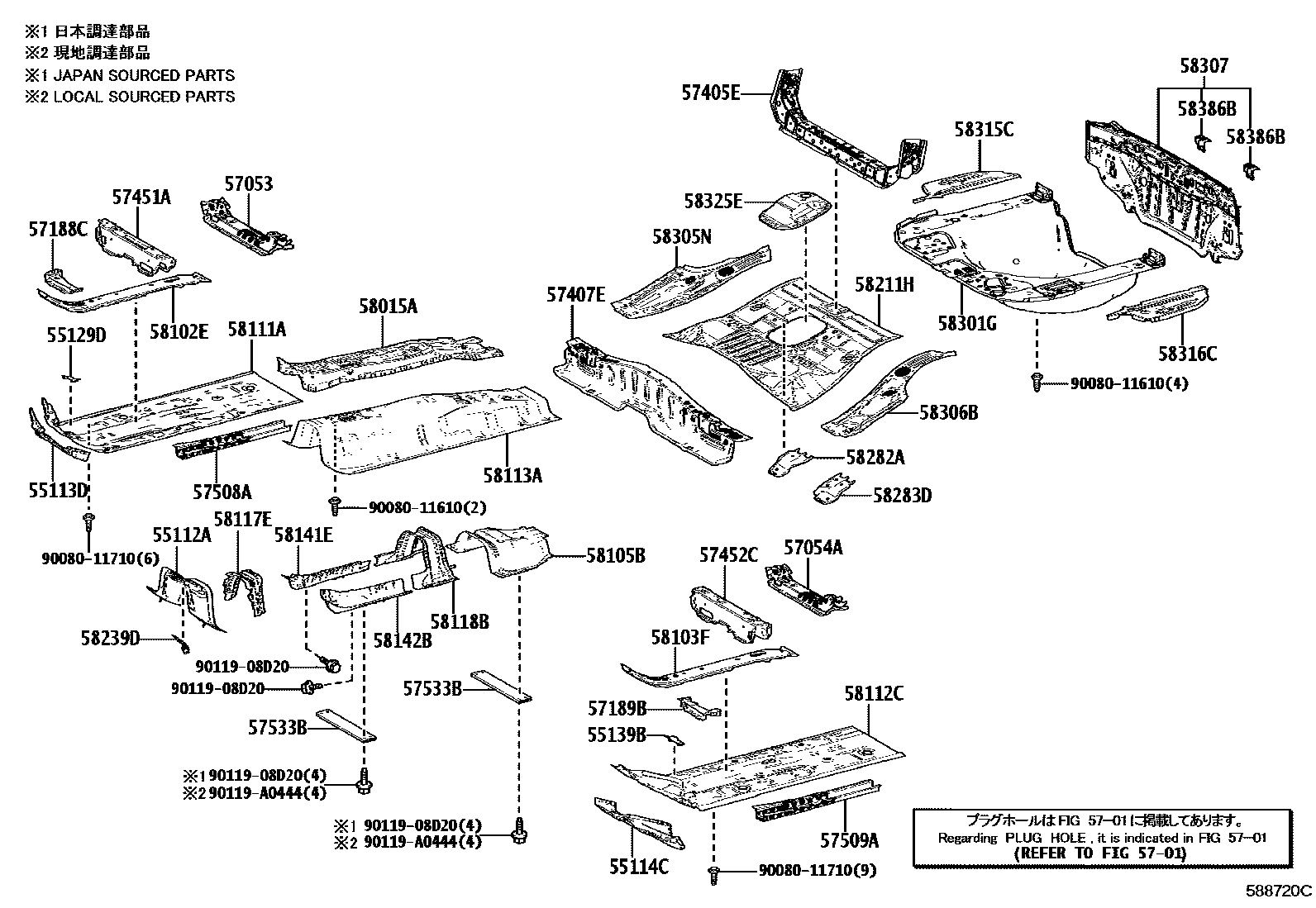

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 5 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46422A | Parking brake cable cover | 46422-02010 |
| 55112A | No. 2 front panel | 55112-02010 · 55112-47040 |
| 55113D | lower right cowl | 55113-02020 |
| 55114C | Lower left cowl | 55114-02060 |
| 55129D | Right front panel hole cover | 55129-02080 |
| 55139B | Left front panel hole cover | 55139-02070 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02080 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02070 |
| 57188C | Right front longitudinal beam extension reinforcement | 57188-02060 |
| 57189B | Left front longitudinal beam extension reinforcement | 57189-02040 |
| 57405E | Center floor No. 2 beam sub-assembly | 57405-02020 |
| 57407E | Center floor beam sub-assembly | 57407-02220 · 57407-02221 |
| 57451A | Front floor right cross member | 57451-02100 |
| 57452C | Front floor left cross member | 57452-02140 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-02010 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-02010 |
| 57533B | Front floor center bracket | 57533-02170 · 57533-0A030 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02230 · 58015-02330 · 58015-47050 |
| 58102E | Front floor right reinforcement sub-assembly | 58102-02160 |
| 58103F | Front floor left reinforcement sub-assembly | 58102-02160 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-02060 · 58105-12020 |
| 58111A | Front floor right bottom panel | 58111-02220 · 58111-02221 |
| 58112C | Front floor left bottom panel | 58112-02100 · 58112-02102 |
| 58113A | front floor center panel | 58113-02140 · 58113-02280 · 58113-12070 |
| 58117E | Front floor sub-cover | 58117-02040 · 58117-47040 |
| 58118B | Front floor reinforcement No. 2 | 58118-02080 · 58118-47030 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-02060 · 58141-02061 · 58141-47011 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-02070 · 58142-02071 · 58142-47012 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-02060 · 58176-12020 |
| 58211H | central floor base | 58211-02520 · 58211-02640 |
| 58239D | Cable clip bracket | 58239-02020 · 58239-12030 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-02230 · 58282-0A030 |
| 58283D | Left No. 3 seat belt anchor to floor base | 58283-02180 · 58283-0A090 |
| 58301G | Rear floor sub-assembly | 58301-02907 · 58301-02908 · 58301-02909 |
| 58305N | Rear floor to right side wall extension sub-assembly | 58305-02080 |
| 58306B | Rear floor to left side wall extension sub-assembly | 58306-02090 |
| 58307 | Body lower back panel sub-assembly | 58307-02460 |
| 58315C | Rear floor right side panel extension | 58315-02070 |
| 58316C | Rear floor left side panel extension | 58316-02030 |
| 58325E | Rear floor access hole cover | 58325-02210 · 58325-10031 · 58325-12180 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02100 |
