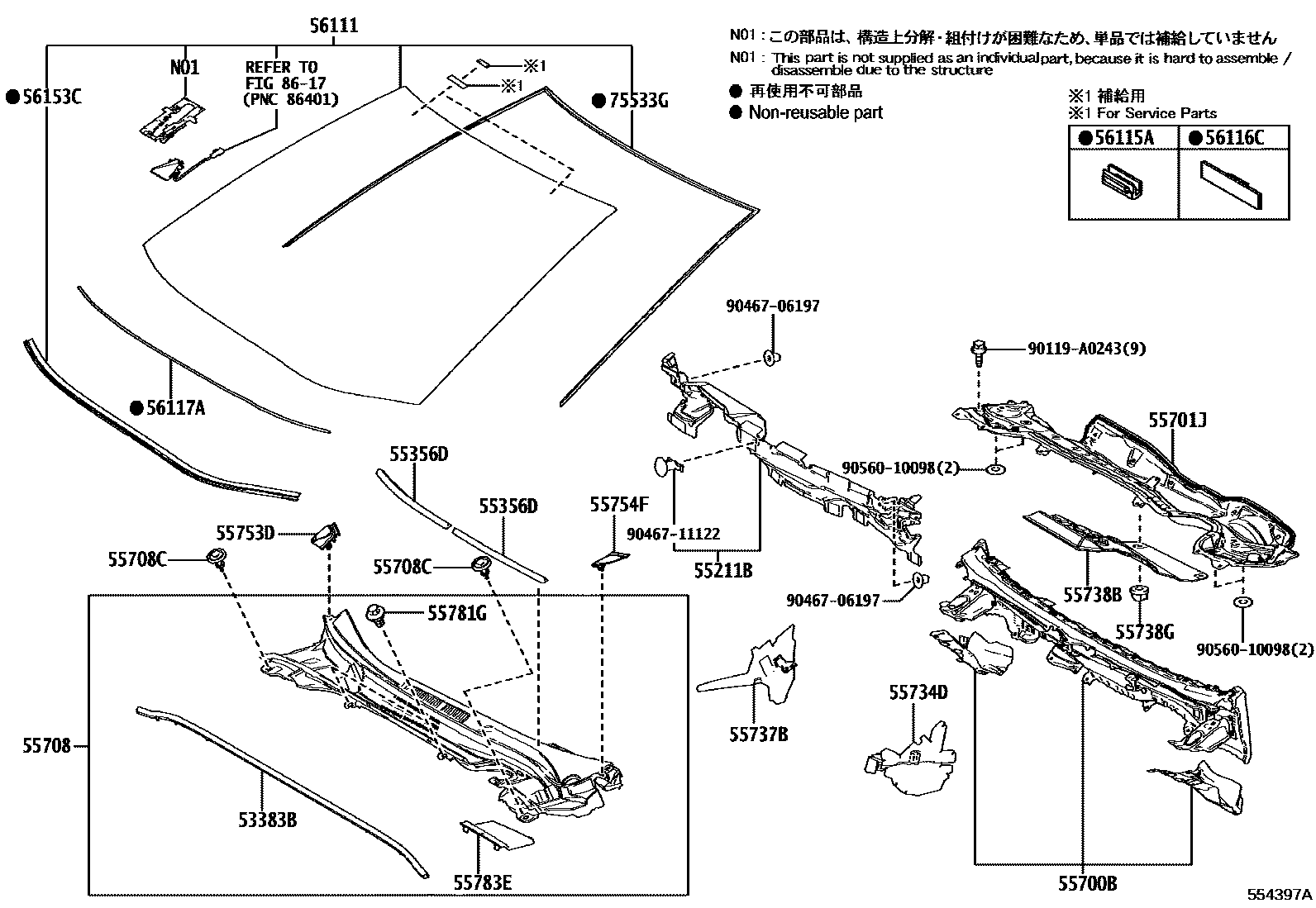

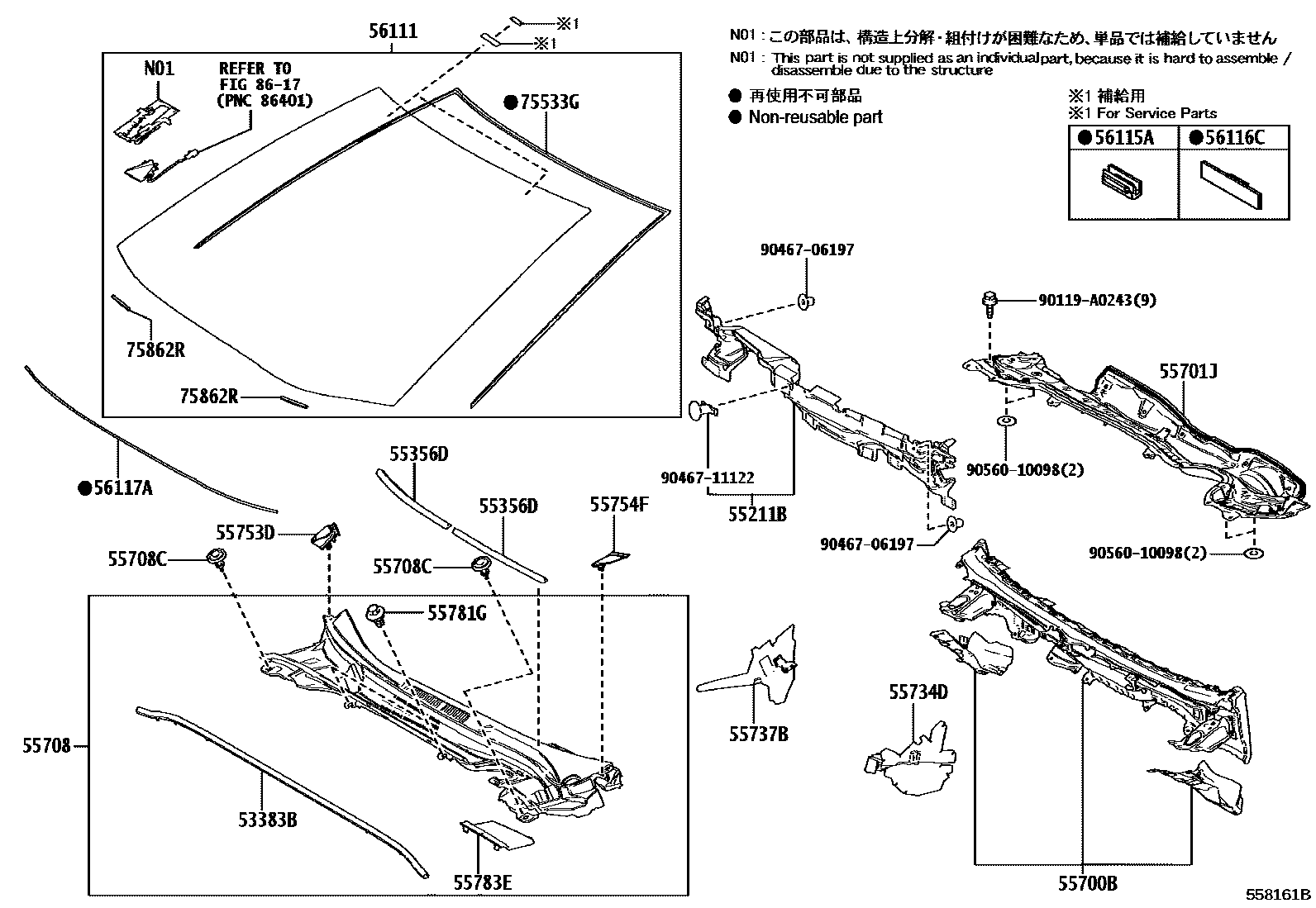

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02210 |
| 55211B | Front panel silencer | 55211-02200 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-02510 |
| 55700B | Front apron assembly | 55700-02620 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02520 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-02730 · 55708-02C10 |
| 55708C | Ventilation grille clips on front apron | 90467-09242 |
| 55734D | Waterproof cover panel | 55734-02170 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02220 |
| 55738B | Front panel cover No. 1 protective piece | 55738-02060 |
| 55738G | Front panel protective cover clip | 90467-A0043 |
| 55753D | Right front water pumping device guard | 55753-02140 · 55753-02270 |
| 55754F | Left front water pumping device guard | 55754-02150 · 55754-02280 |
| 55781G | Ventilation grille clips on front apron | 90467-07224 |
| 55783E | Ventilation grille on center cowl | 55783-02280 |
| 56111 | windshield | 56101-02N00 · 56101-0ZA60 · 56101-0ZA70 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-06190 |
| 56153C | Front center window inner protective strip | 56153-02010 |
| 75533G | Windshield outer protective strip | 75533-02210 |
| 75862R | No. 2 door sill panel protective cover | 75862-24030 |
