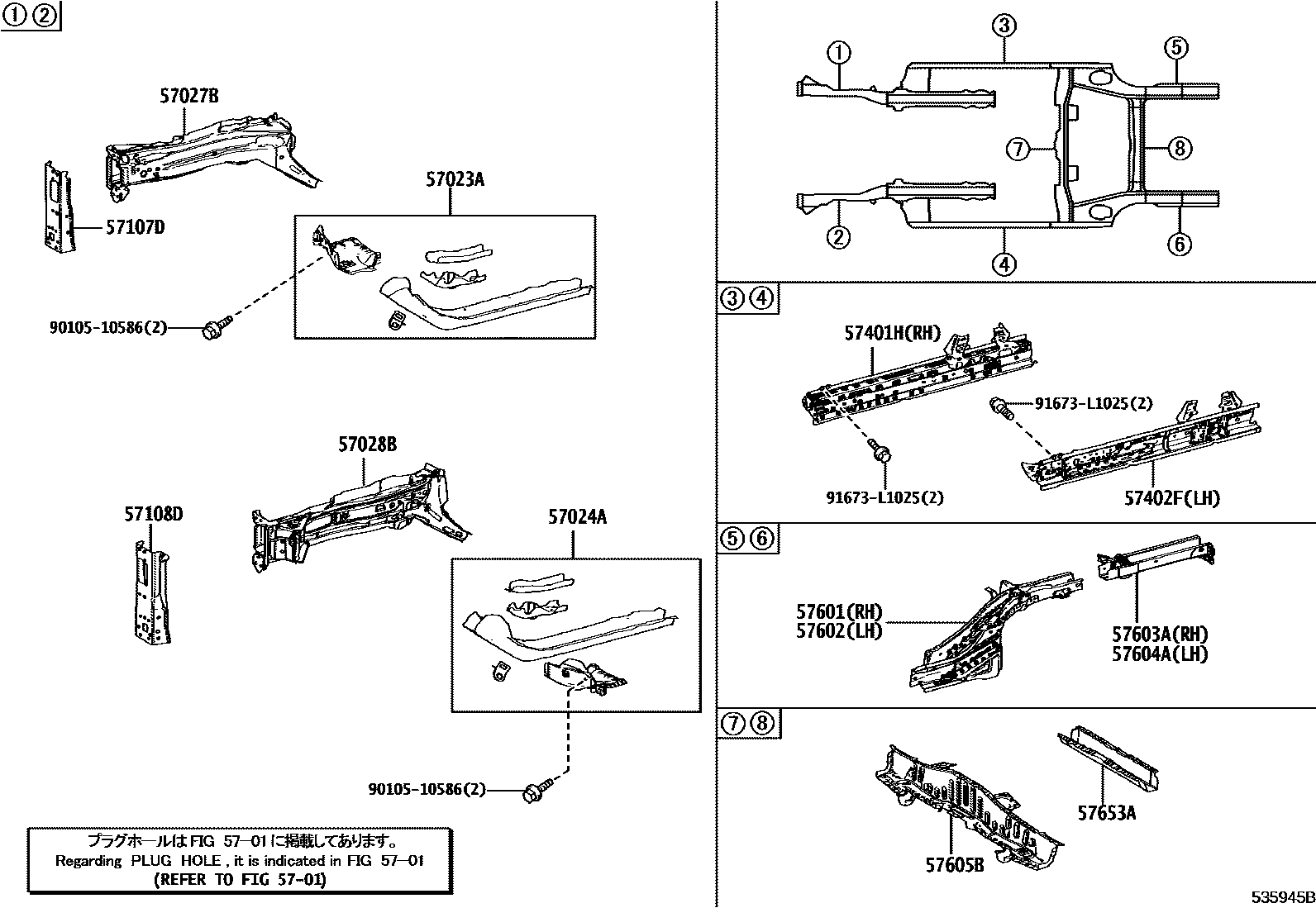

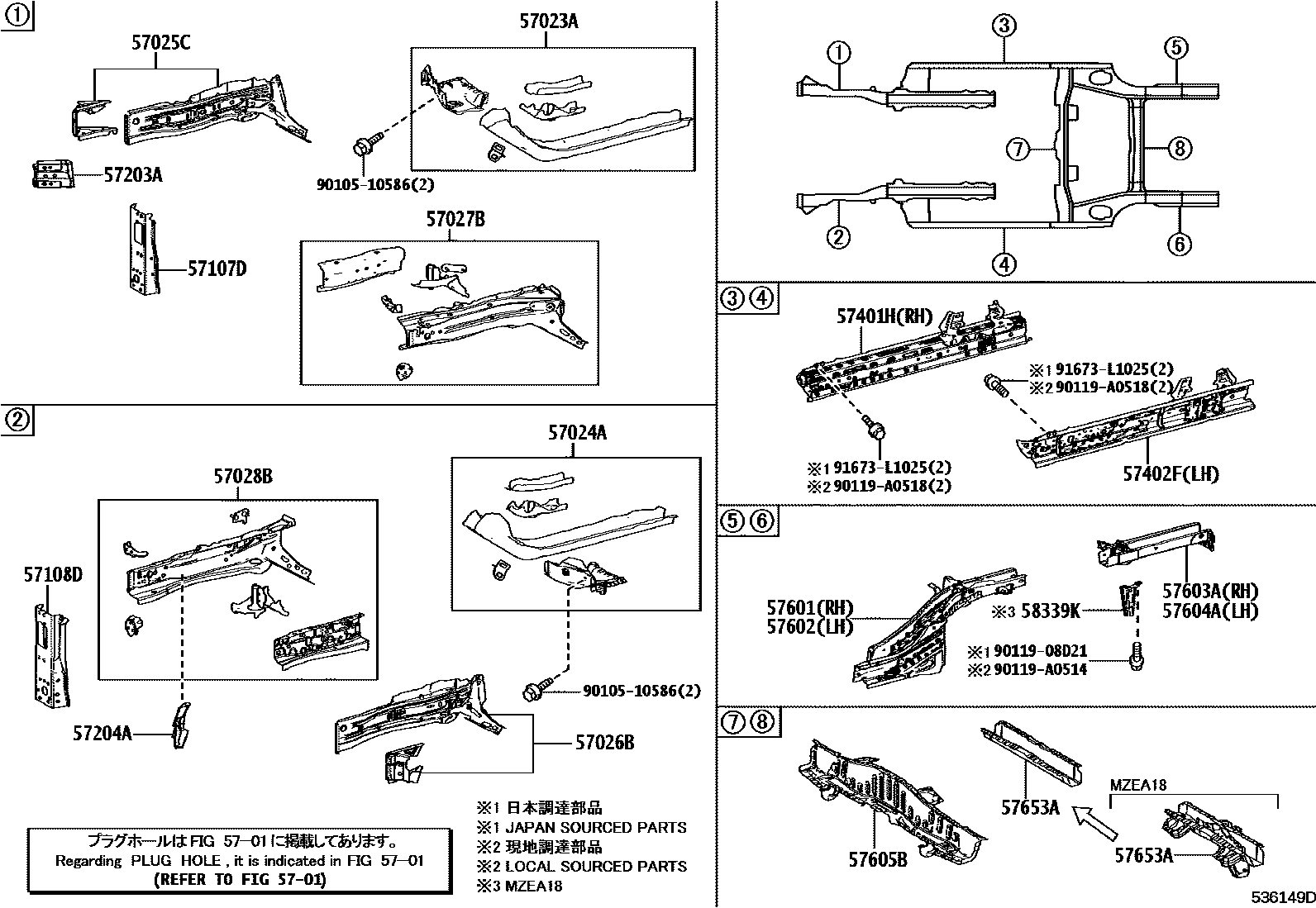

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57023A | Right rear longitudinal beam sub-assembly | 57023-02070 · 57023-02071 |
| 57024A | Left rear longitudinal beam sub-assembly | 57024-02080 · 57024-02081 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-02050 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-02070 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-02030 · 57027-02900 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-02050 · 57028-02900 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-02080 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-02080 |
| 57203A | No. 2 right front longitudinal beam extension sub-assembly | 57203-02010 |
| 57204A | No. 2 left front longitudinal beam extension sub-assembly | 57204-02010 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-02320 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-02340 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02490 · 57601-02570 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02460 · 57602-02670 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-02180 · 57603-02290 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-02080 · 57604-02190 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02290 · 57605-02291 · 57605-02411 |
| 57653A | No. 2 rear floor cross member | 57606-02360 · 57653-02170 |
| 58339K | Lift the bracket | 58339-02040 |
