Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 4 images and 9 PNC and OE references.

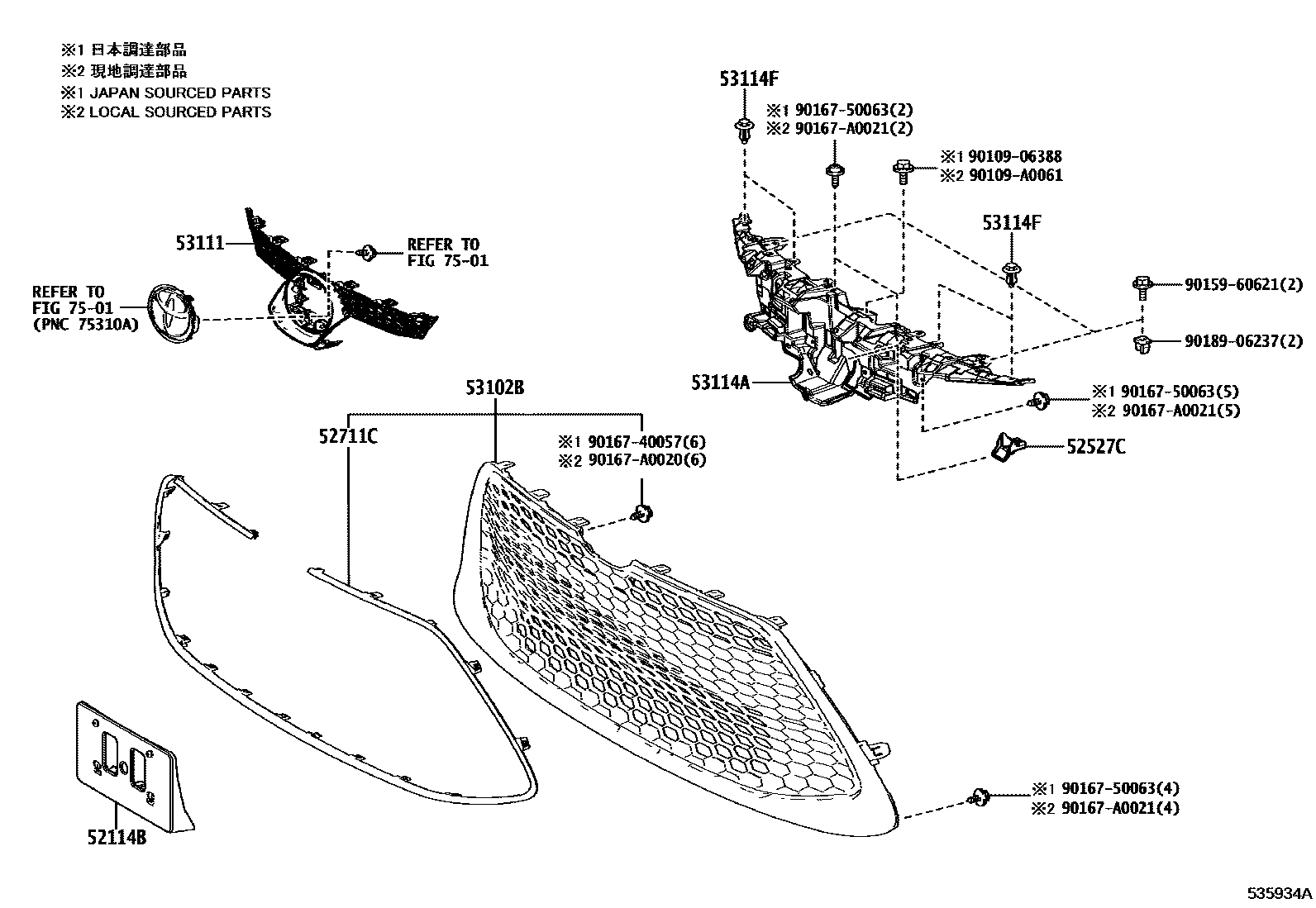

Toyota COROLLA radiator grille EPC diagram — 535934A
radiator grille — 535934A (201903 – 202211)

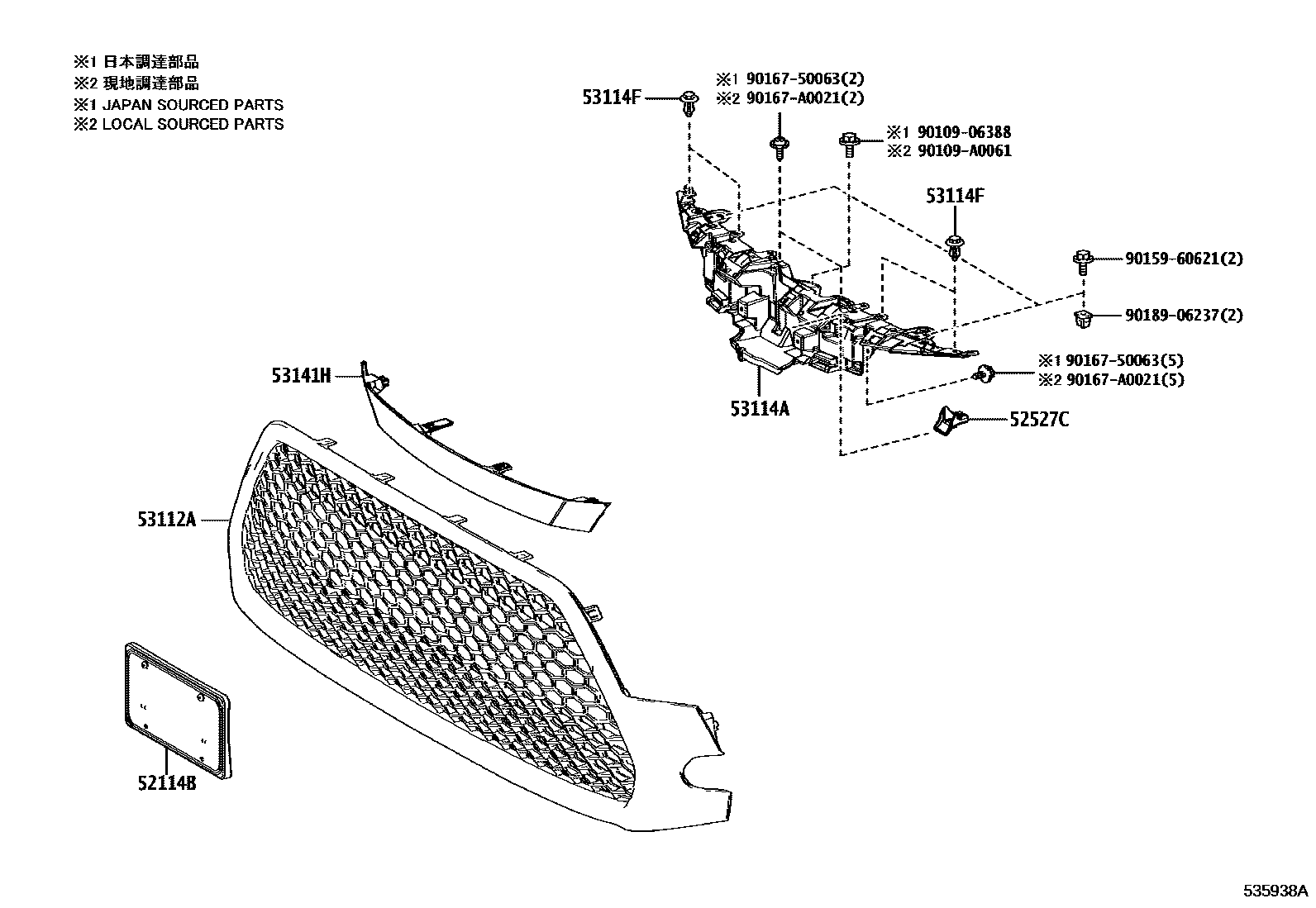

Toyota COROLLA radiator grille EPC diagram — 535938A
radiator grille — 535938A (201903 – 202211)

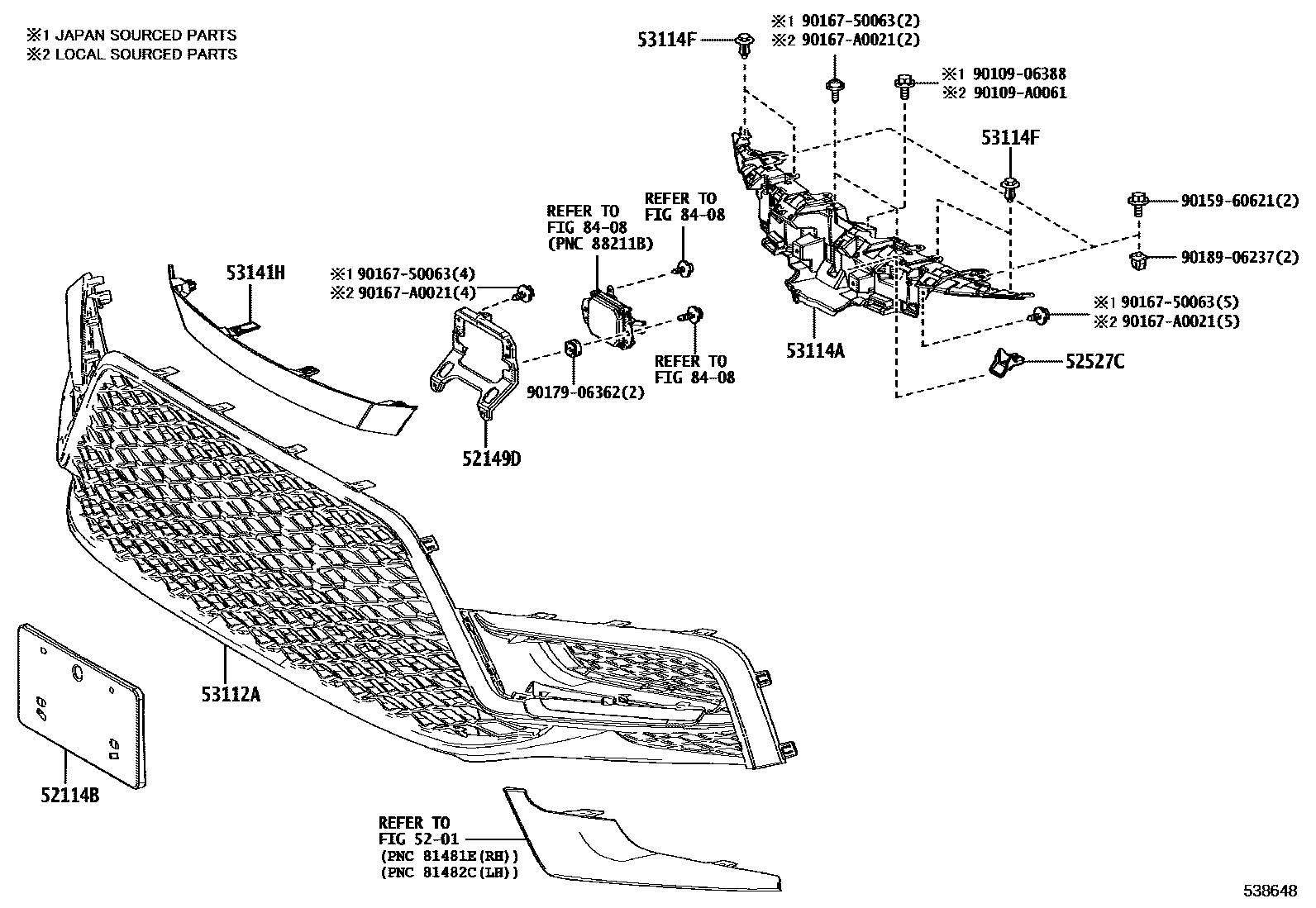

Toyota COROLLA radiator grille EPC diagram — 538648
radiator grille — 538648 (202211 – 999999)

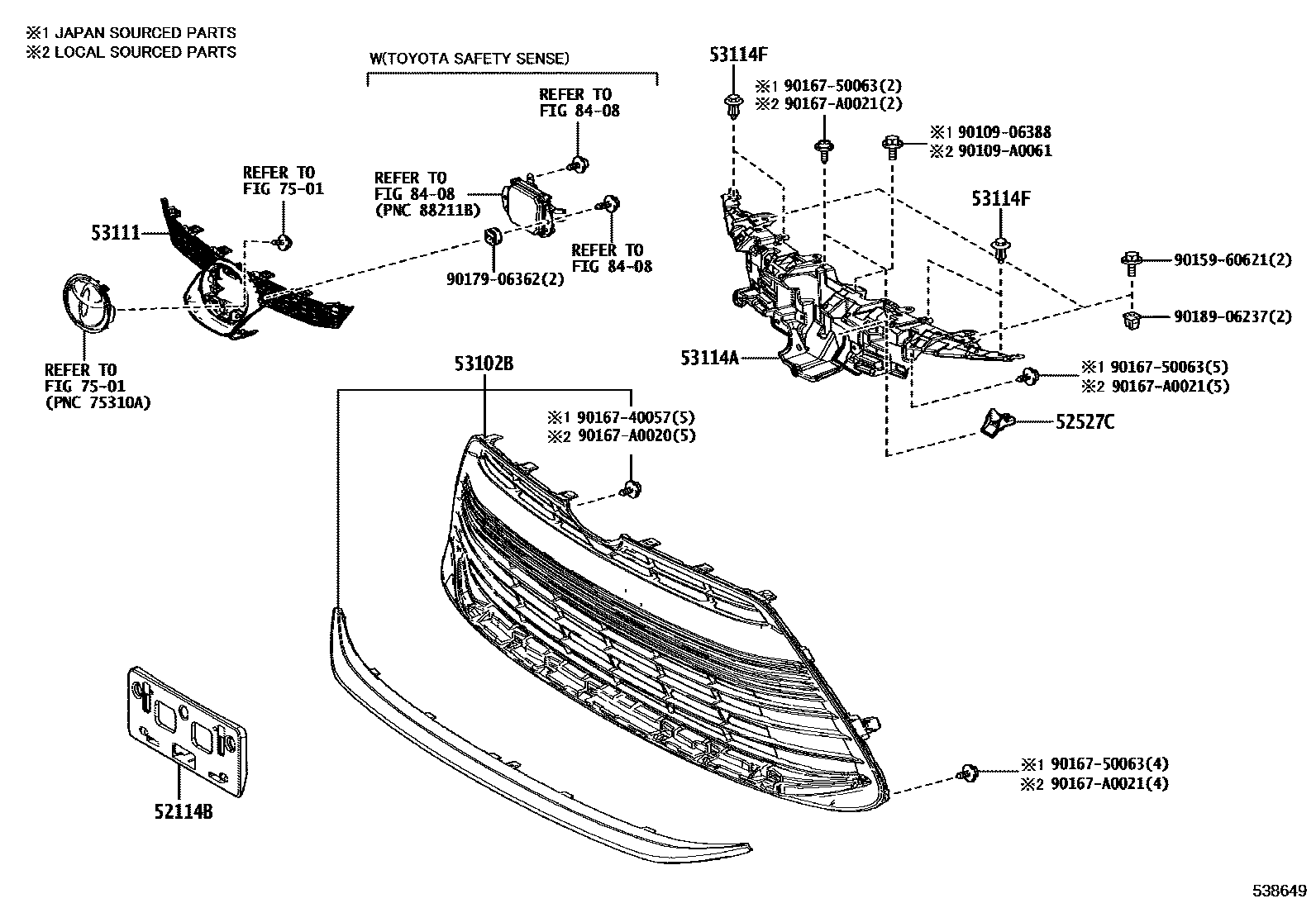

Toyota COROLLA radiator grille EPC diagram — 538649
radiator grille — 538649 (202211 – 999999)

PNC and OE references

PNCPart nameOE numbers
52114BFront bumper extension mounting bracket52114-02200 · 52114-02210 · 52114-02290 · 52114-02300
52149DFront bumper inner bracket52149-02060
52527CFront bumper No. 2 lower fixing bracket52527-02110
52711CFront bumper protection strip52711-02300
53102BRadiator lower grille sub-assembly53102-02280 · 53102-02640
53111radiator grille53111-02850
53112ALower radiator grille53112-02A50 · 53112-02E10
53114Ainner radiator grille53114-02510 · 53114-02560 · 53114-02561
53141HRadiator grille trim53141-02180
