Toyota COROLLA 后保险杠及附件 — Figure 5202

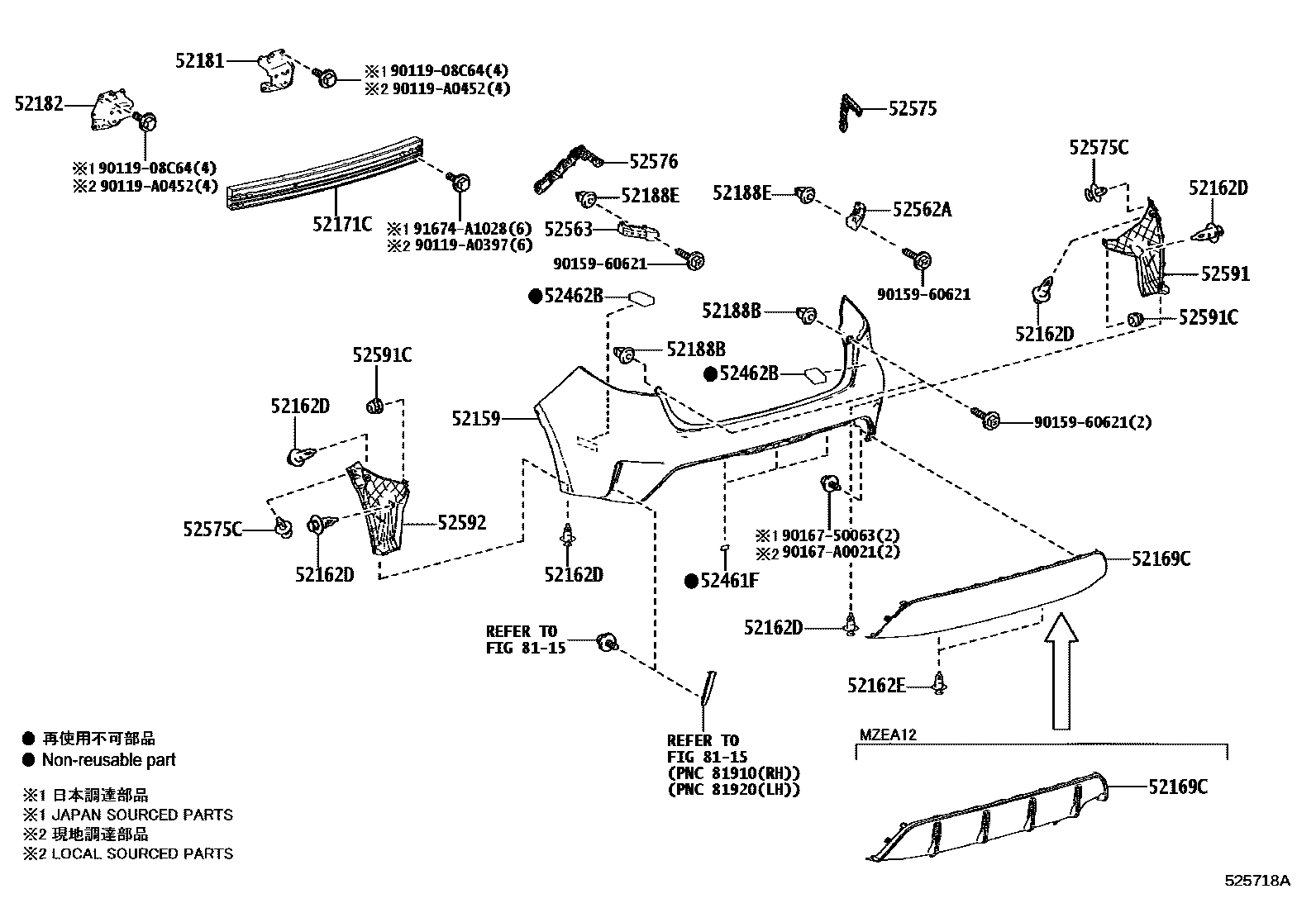

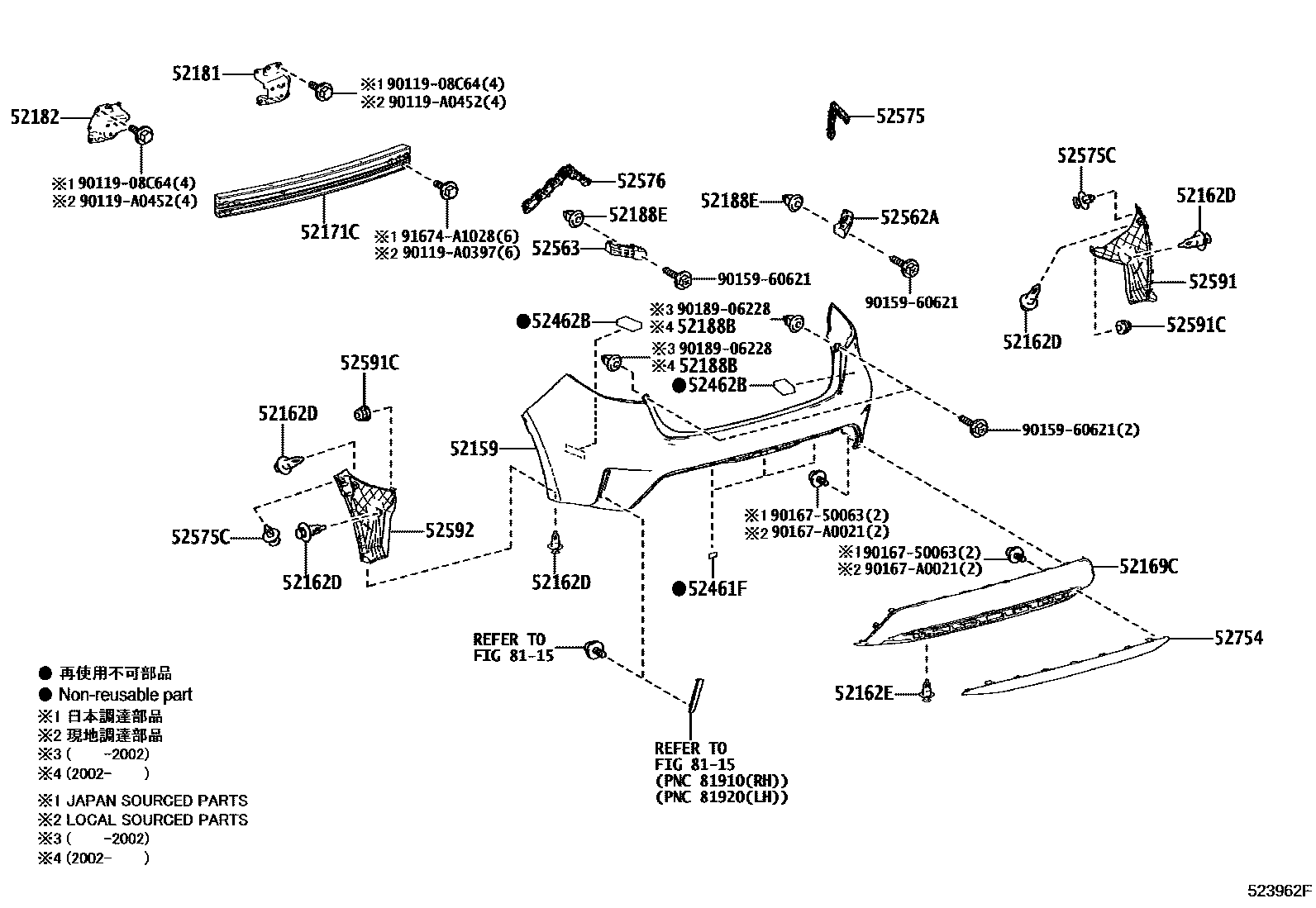

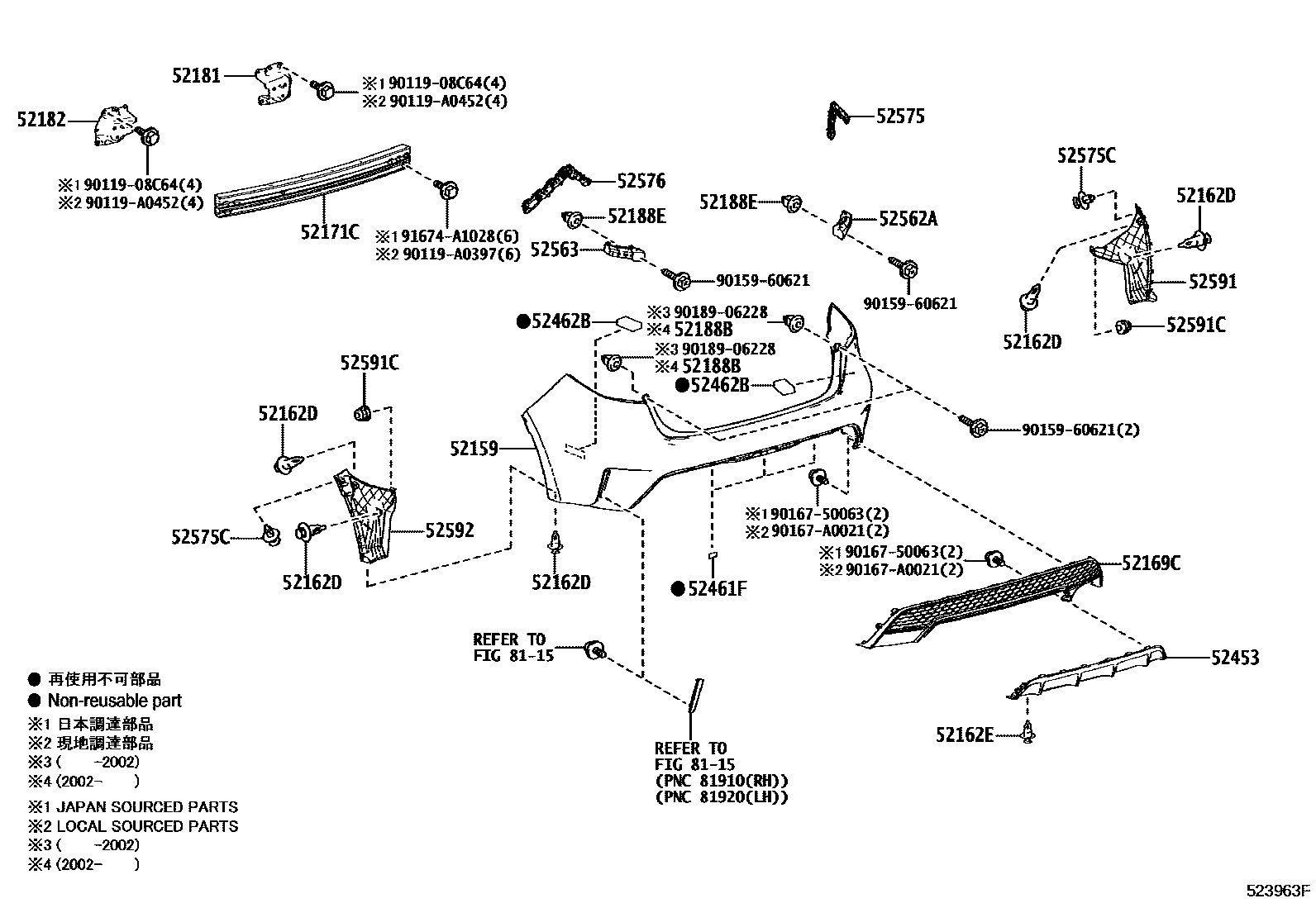

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0X927 |
| 52162D | Rear bumper insert | 52161-02020 |
| 52162E | Rear bumper insert | 52161-02020 |
| 52169C | Rear bumper lower cover | 52169-02060 · 52169-02070 · 52169-02071 · 52169-02190 · 52169-02200 |
| 52171C | Rear bumper reinforcement | 52171-02260 · 52171-02370 |
| 52181 | Rear bumper right arm | 52181-02260 |
| 52182 | Rear bumper left arm | 52182-02120 |
| 52188B | Rear bumper installation spacer | 52188-33040 |
| 52188E | Rear bumper installation spacer | 52188-33040 |
| 52453 | Rear bumper center anti-collision bar | 52453-02900 |
| 52461F | rear bumper lining | 52461-02070 |
| 52462B | rear bumper lining | 52462-02260 |
| 52562A | Rear bumper arc filler No. 2 fixing piece | 52562-02300 |
| 52563 | Rear bumper arc filler No. 3 fixing piece | 52563-02170 |
| 52575 | Rear bumper right side fixing bracket | 52575-02180 |
| 52575C | Rear bumper side fixing clip | 90467-05170 |
| 52576 | Rear bumper left side fixing bracket | 52576-02180 |
| 52591 | Rear bumper right seal | 52591-02370 |
| 52591C | Rear bumper side seal clip | 90467-A0043 |
| 52592 | Rear bumper left seal | 52592-02340 |
| 52754 | Rear bumper No. 2 protective strip | 52754-02903 |
