Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-02070 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-02070 |

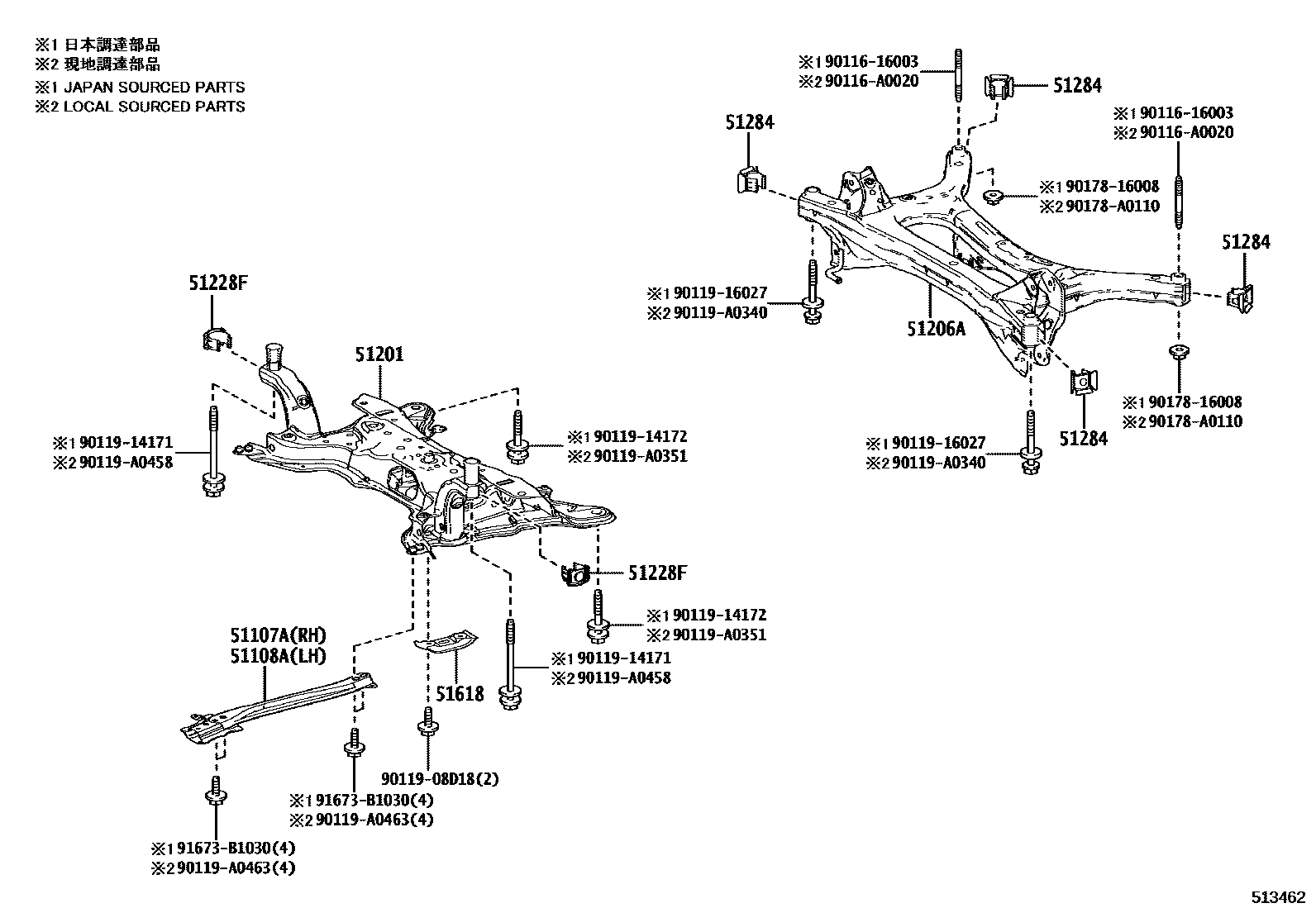

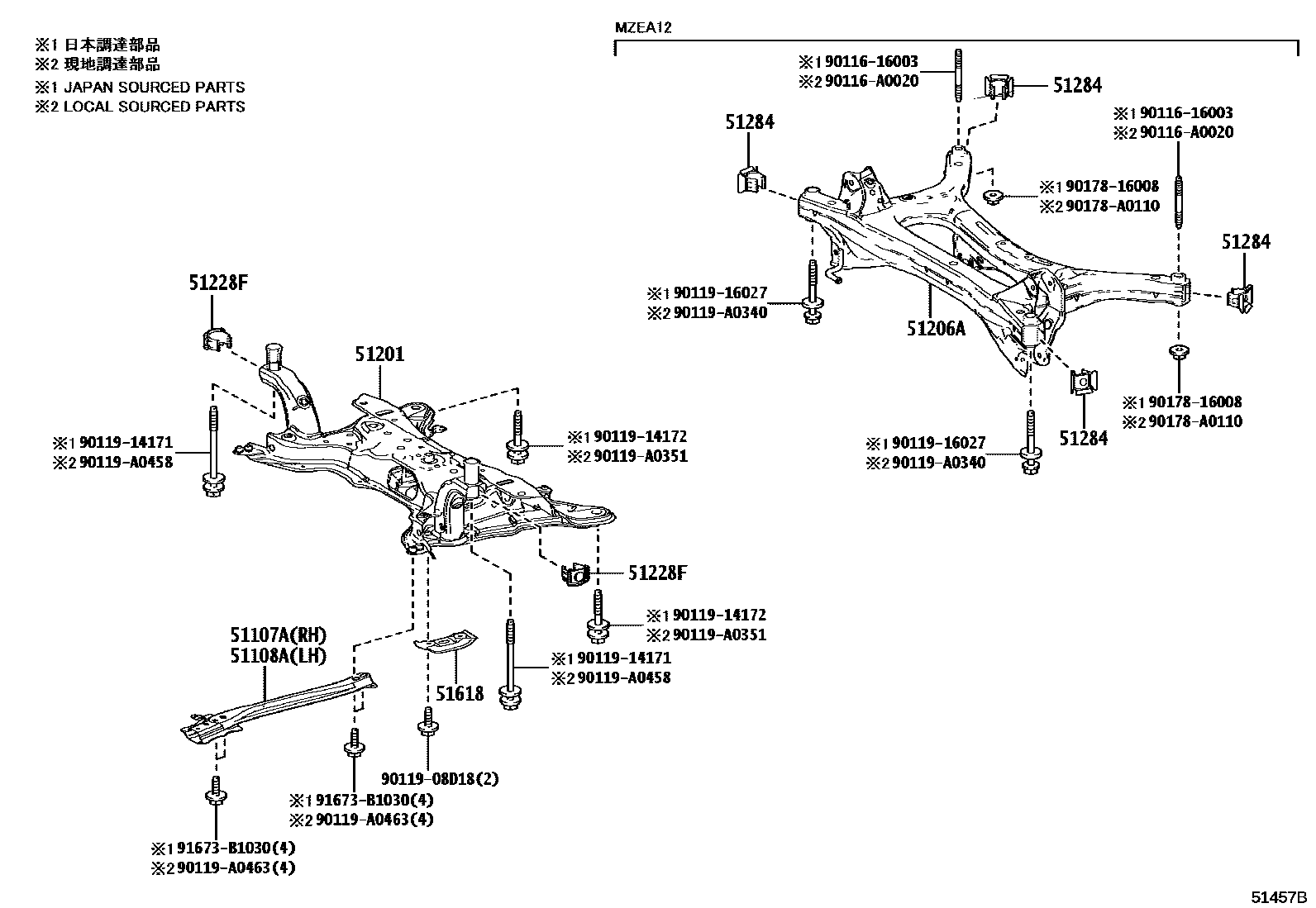

| 51201 | Front suspension cross member sub-assembly | 51201-02221 |
| 51206A | Rear suspension cross member sub-assembly | 51206-02060 |
| 51228F | Front suspension cross member damper plate | 51228-02050 |
| 51284 | Rear suspension cross member hole cover | 51284-02020 |

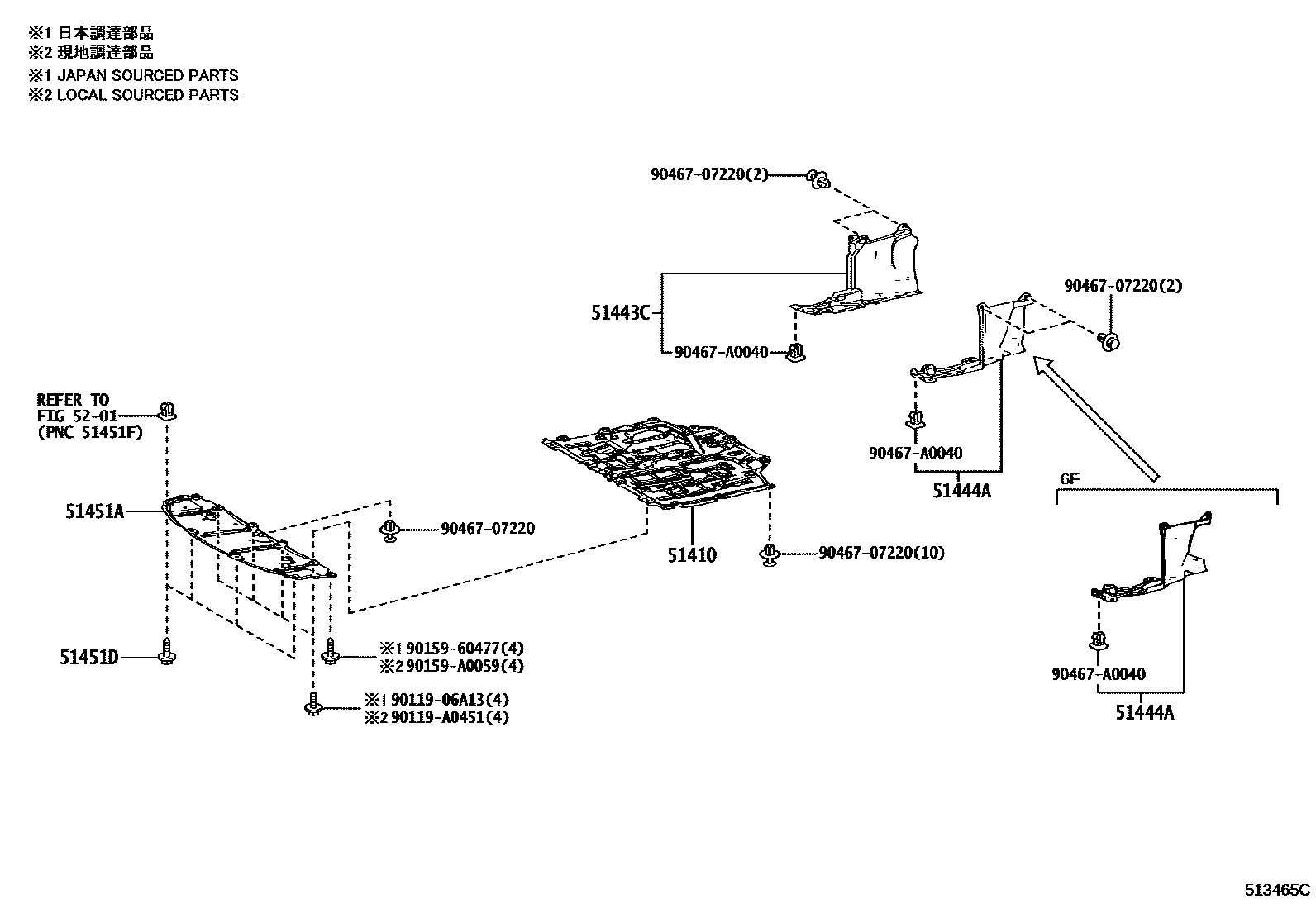

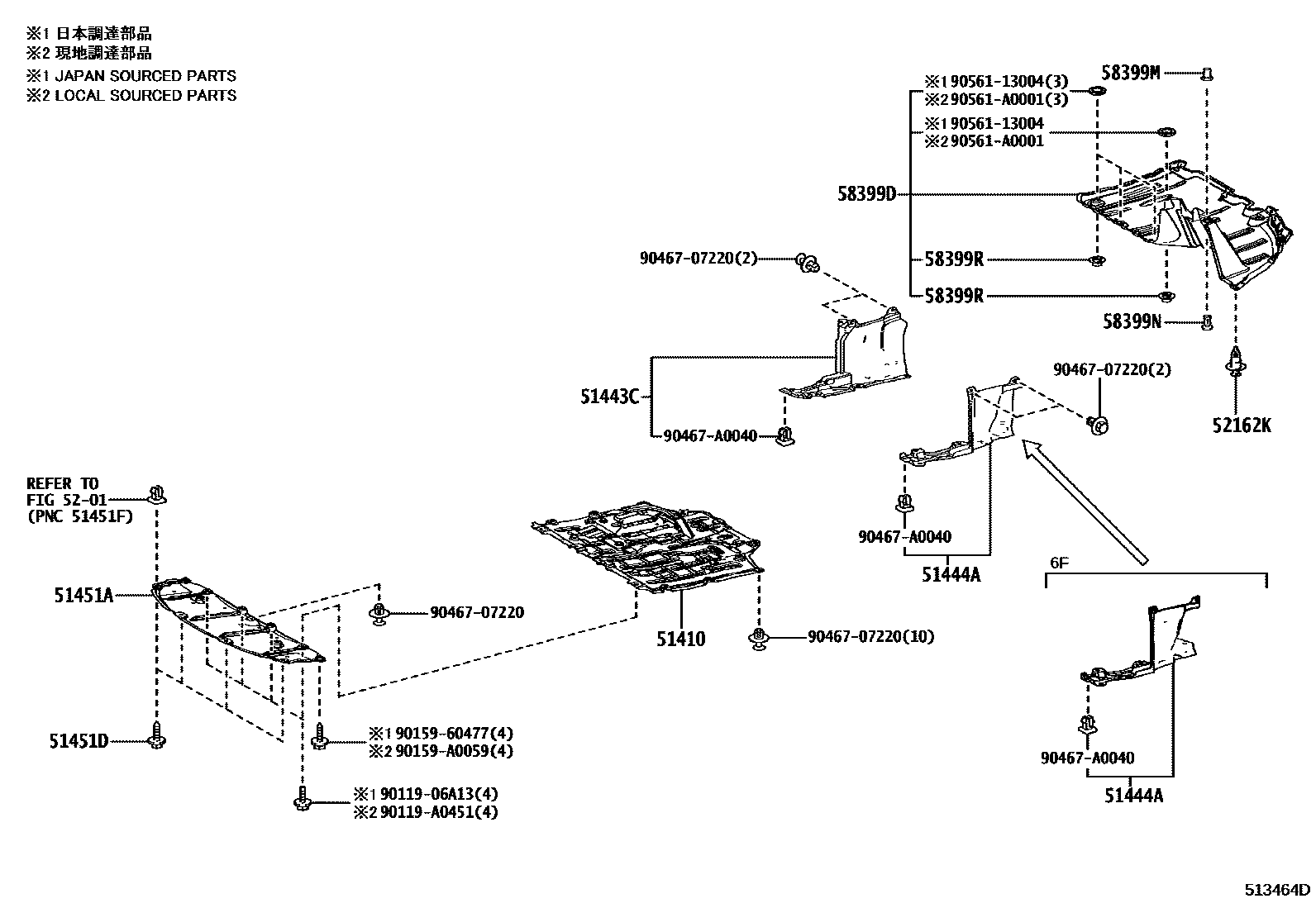

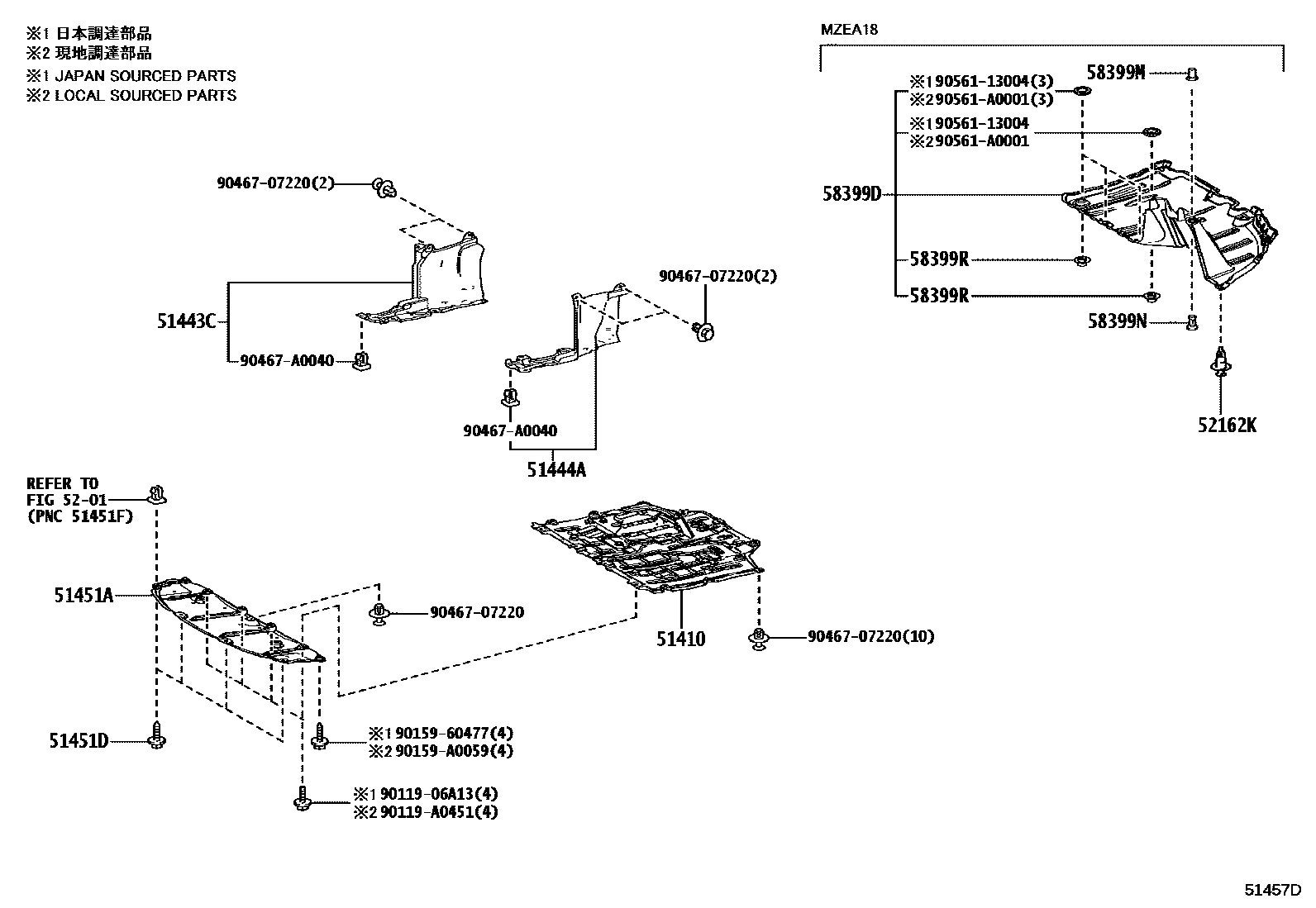

| 51410 | Engine No. 1 bottom cover assembly | 51410-02290 |
| 51443C | Engine right rear bottom cover | 51443-02130 |
| 51444A | Engine left rear bottom cover | 51444-02100 · 51444-02310 |
| 51451A | Engine center cover | 51451-02160 |
| 51451D | Screw No. 1 | 90159-60477 · 90159-A0059 |
| 51618 | Left front differential bracket guard | 51618-47010 |
| 52162K | Rear bumper insert | 52161-02020 · 52161-16010 |
| 58399D | Floor No. 2 lower cover | 58399-02100 |
| 58399R | Lower floor cover clip No. 3 | 90467-14053 · 90467-A0038 |
