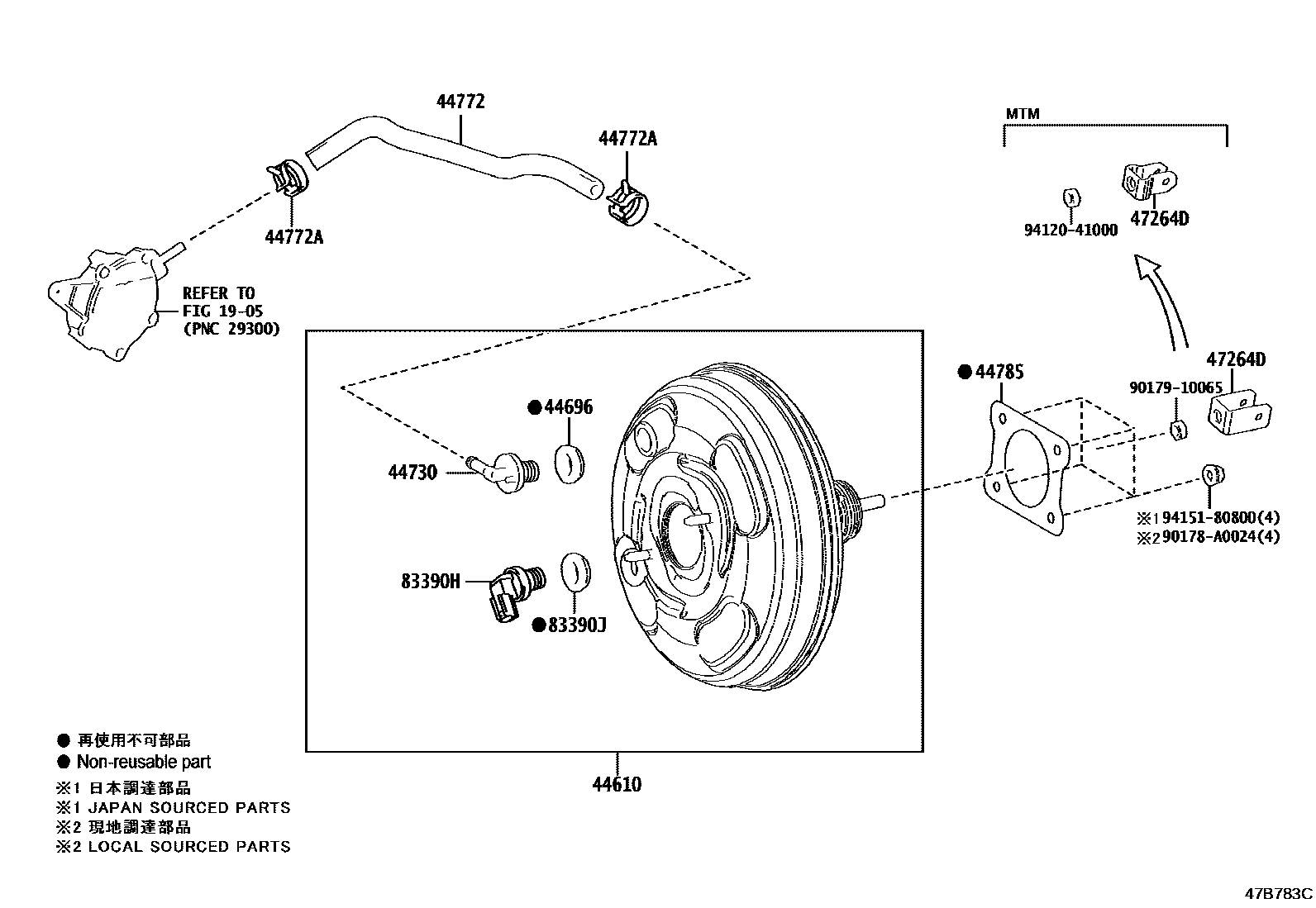

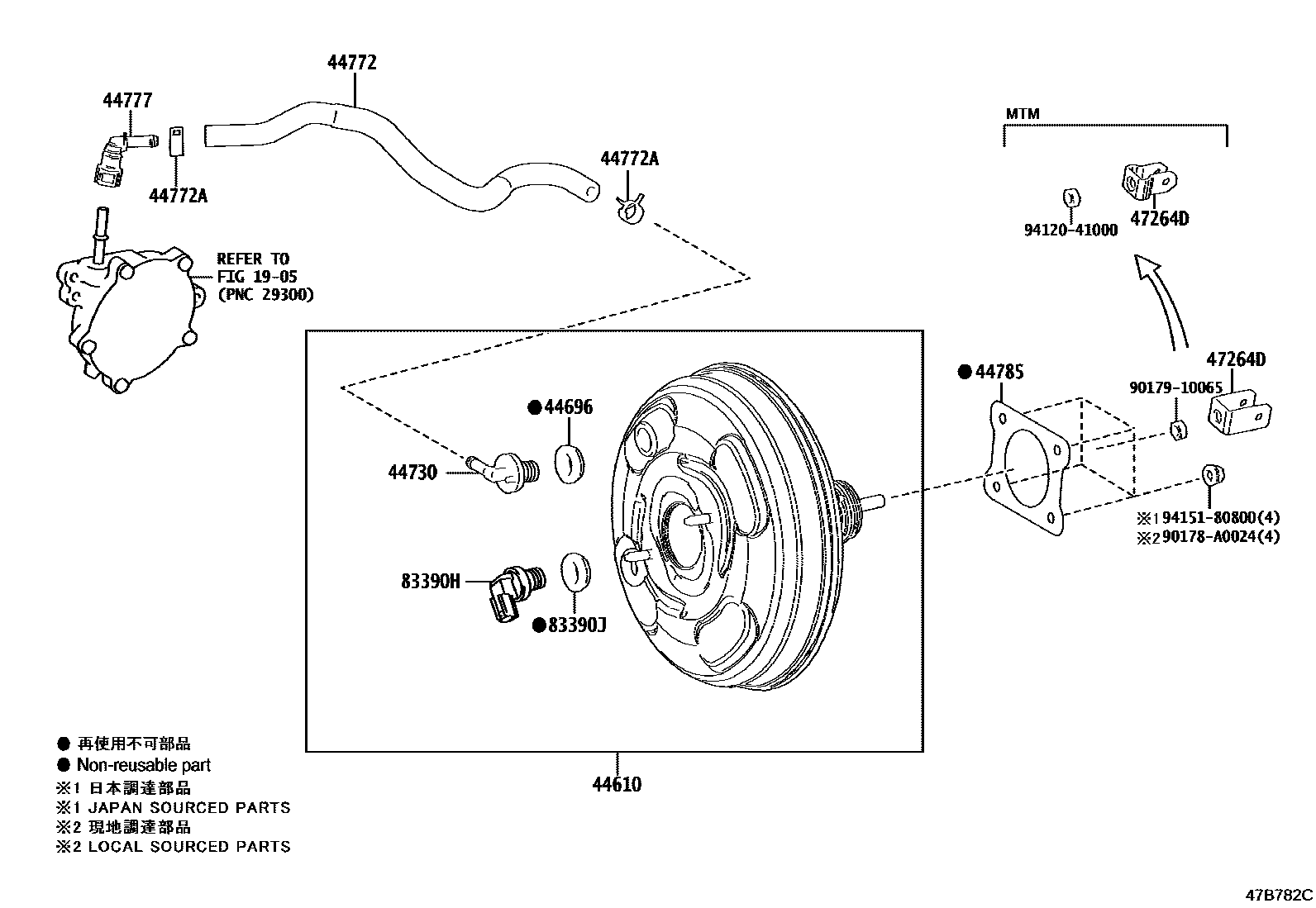

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02E50 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-52010 |
| 44772 | Hoses (check valve to connector tube) | 44772-02160 · 44772-02170 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-12010 |
| 44785 | brake booster pad | 44785-02060 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-02100 · 47264-02170 · 47264-52060 · 47264-63020 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | Vacuum warning switch seal | 90080-48071 |
