Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

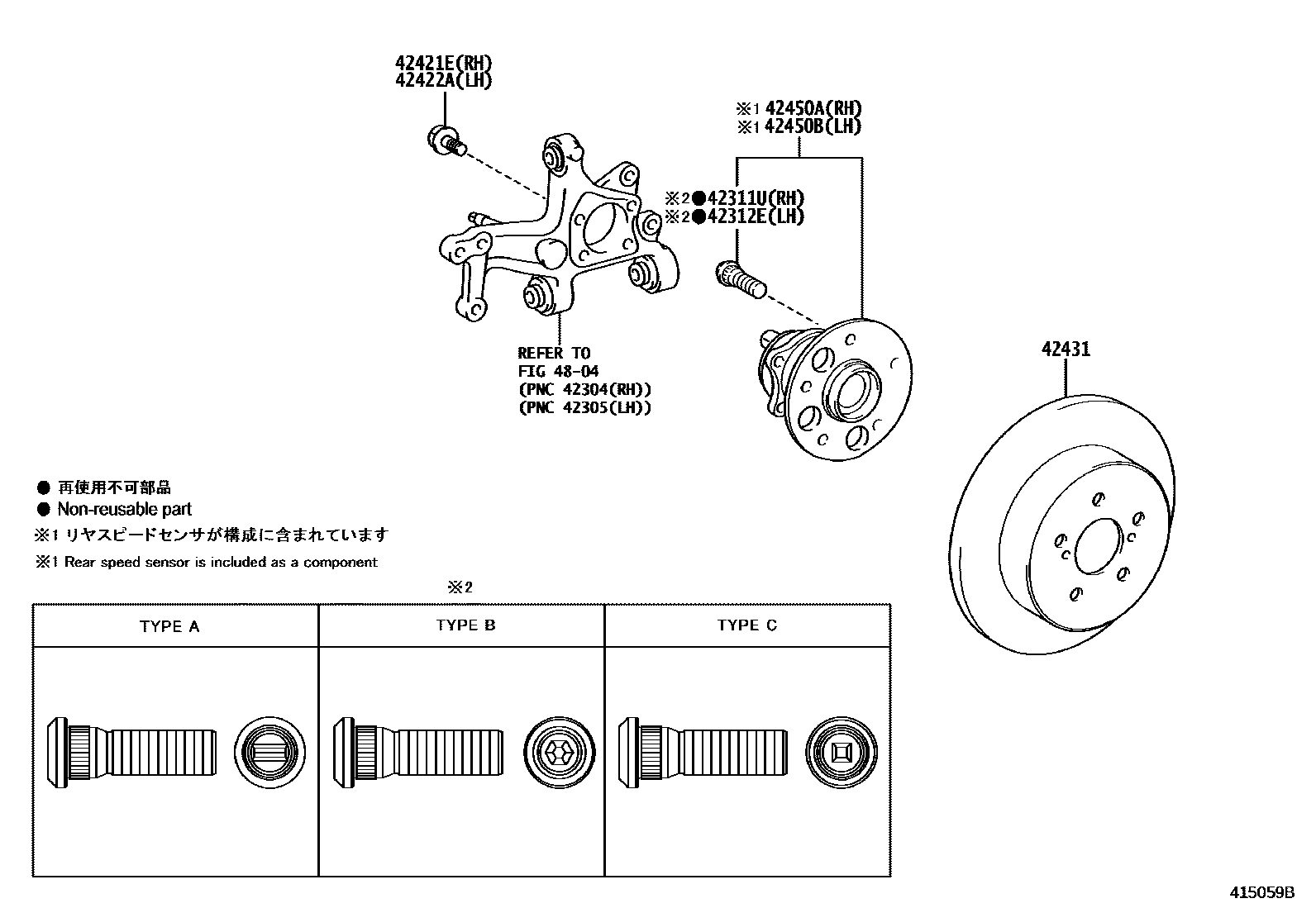

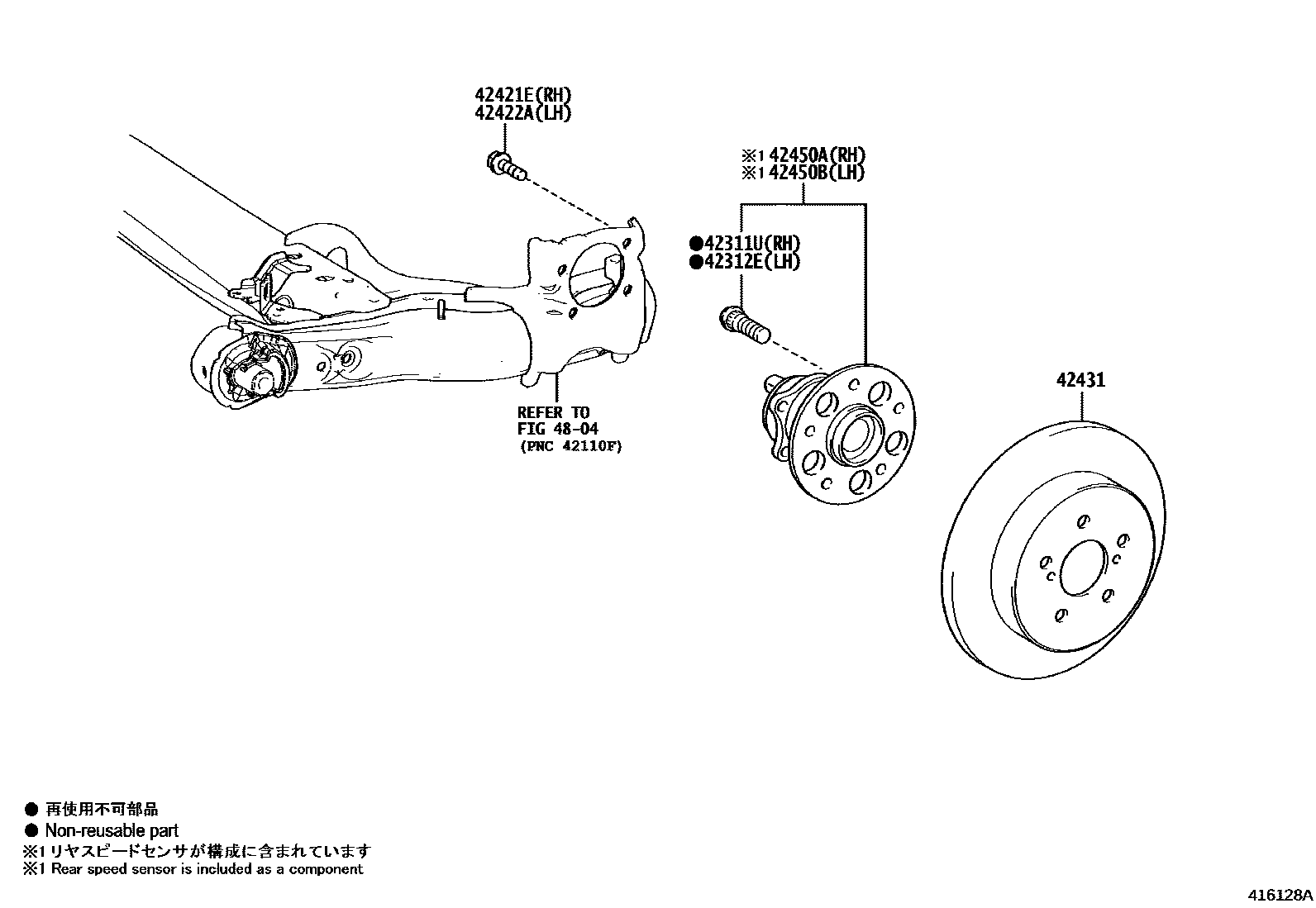

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90942-02049 · 90942-02081 · 90942-02082 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 · 90942-02081 · 90942-02082 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-12406 · 90105-12408 · 90105-A0389 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-12406 · 90105-12408 · 90105-A0389 |
| 42431 | rear brake disc | 42431-02310 · 42431-12310 |
| 42450A | Rear axle right hub and bearing assembly | 42450-02290 · 42450-02370 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-02290 · 42450-02370 |
