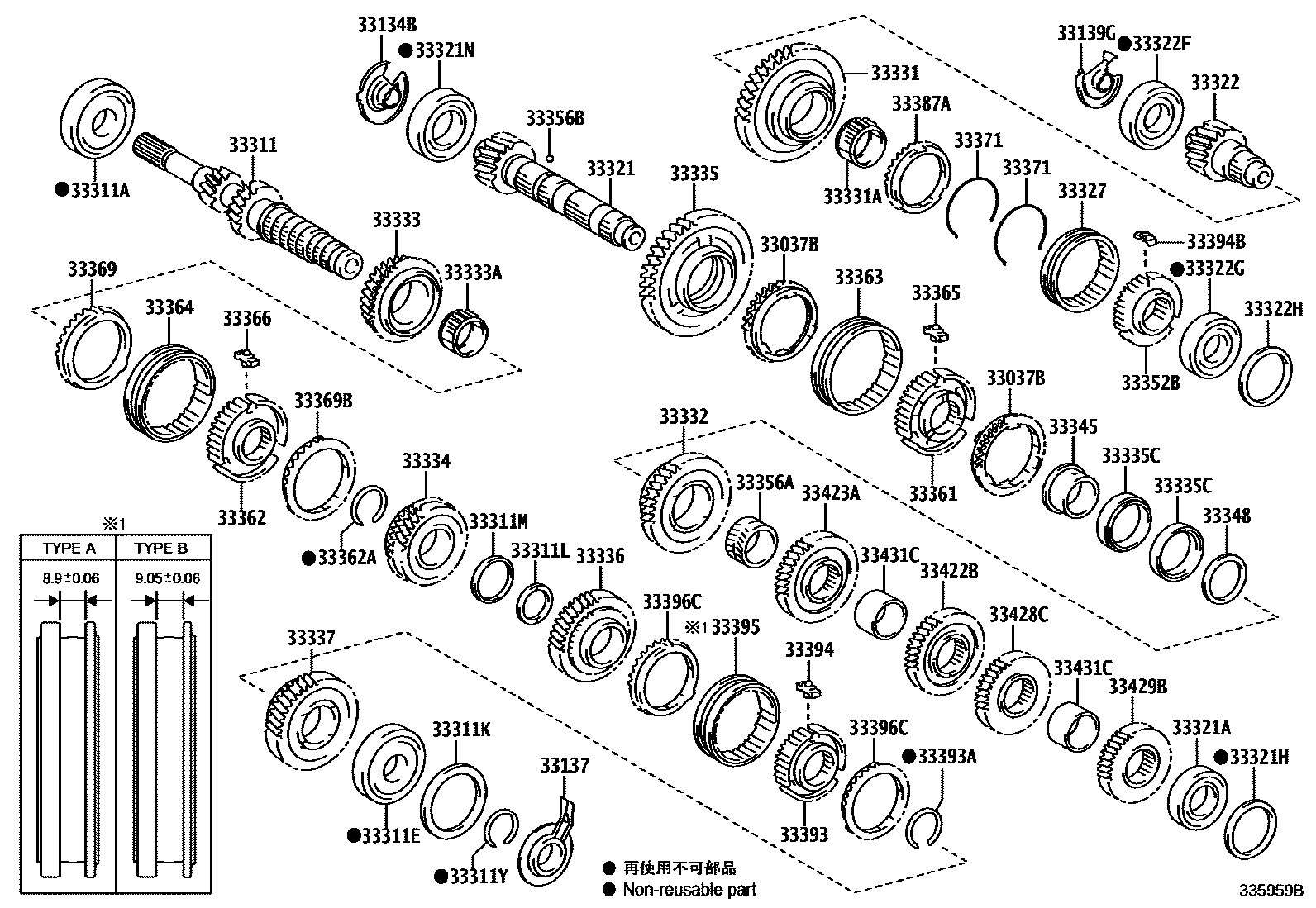

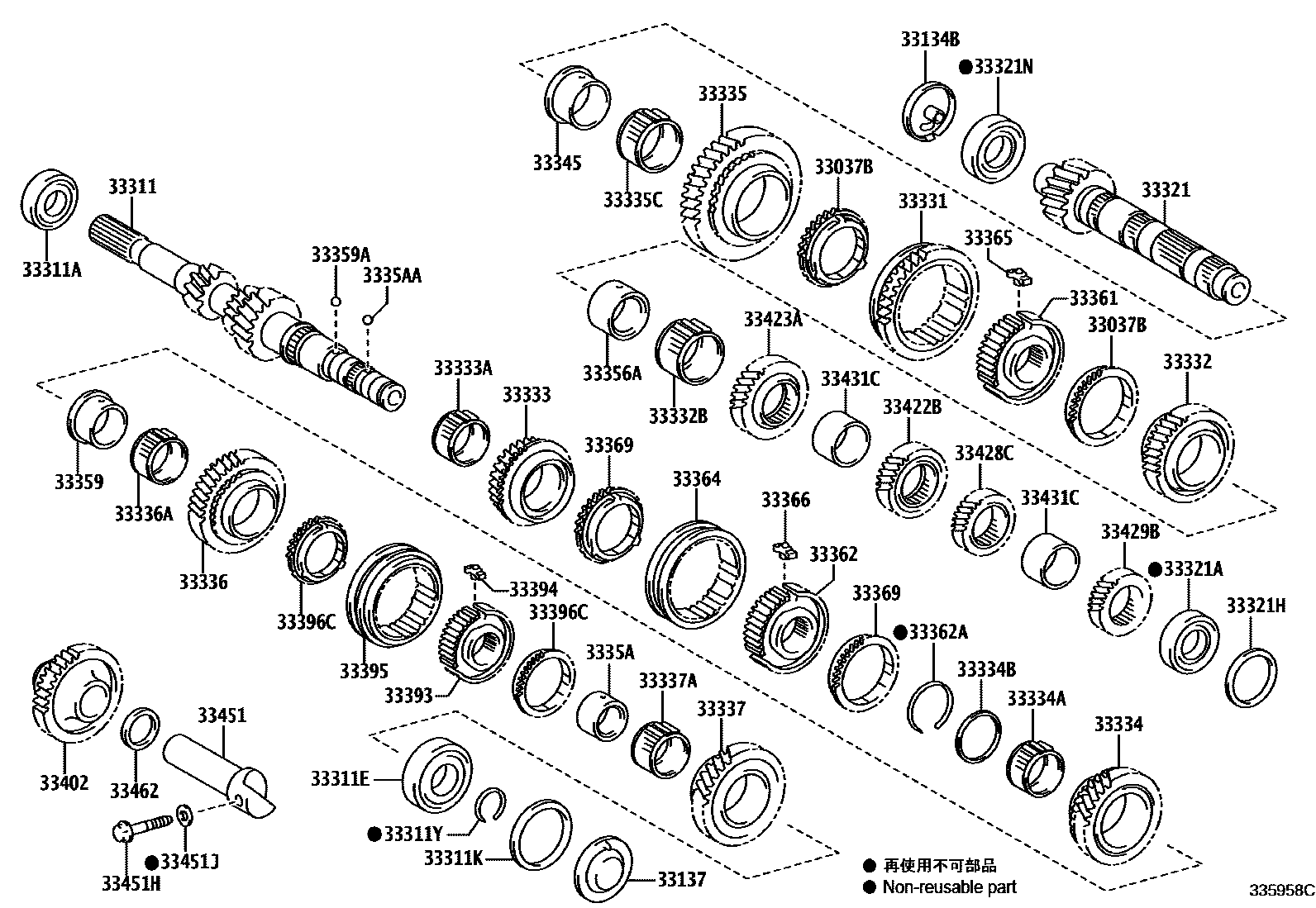

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 2 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-12070 · 33037-12100 |
| 33134B | Output shaft cover (MTM) | 33134-12040 · 33134-20040 |
| 33137 | Input shaft cover (MTM) | 33137-12030 · 33137-20020 |
| 33139G | Reverse gear shaft cover | 33139-12020 |
| 33311 | input shaft | 33311-12281 · 33311-12310 |
| 33311A | Bearing (for front input shaft) | 90363-25081 · 90363-25094 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-28020 · 90363-33014 · 90363-33015 |
| 33311K | Spacer (for input shaft rear bearing) | 90564-54103 · 90564-54104 · 90564-54105 · 90564-54106 · 90564-54107 · 90564-54108 · 90564-54109 · 90564-54110 · 90564-54111 · 90564-54112 · 90564-54113 · 90564-54114 · 90564-61114 · 90564-61115 · 90564-61116 · 90564-61117 · 90564-61118 · 90564-61119 · 90564-61120 · 90564-61121 · 90564-61122 · 90564-61123 · 90564-61124 · 90564-61125 · 90564-61126 · 90564-61162 |
| 33311L | Spacer (for inner input shaft) | 35469-12030 |
| 33311M | Spacer (for outer input shaft) | 35469-12040 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-25059 · 90520-25062 · 90520-25063 · 90520-25064 · 90520-25065 · 90520-25066 · 90520-25067 · 90520-25068 · 90520-25069 · 90520-25070 · 90520-25071 · 90520-25072 · 90520-25074 · 90520-25075 · 90520-31064 · 90520-31065 · 90520-31066 · 90520-31067 · 90520-31068 · 90520-31069 · 90520-31070 · 90520-31071 |
| 33321 | output shaft | 33321-12340 · 33321-12390 |
| 33321A | Bearings (for rear output shaft) | 90366-30096 · 90366-32037 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-45153 · 90564-45154 · 90564-45155 · 90564-45156 · 90564-45157 · 90564-45158 · 90564-45159 · 90564-45160 · 90564-45161 · 90564-45162 · 90564-45163 · 90564-45164 · 90564-45165 · 90564-45166 · 90564-45167 · 90564-45168 · 90564-45169 · 90564-45170 · 90564-45171 · 90564-45172 · 90564-45173 · 90564-45174 · 90564-45175 · 90564-45176 · 90564-45177 · 90564-45178 · 90564-45179 · 90564-45180 · 90564-45181 · 90564-45182 · 90564-45183 · 90564-45184 · 90564-45185 · 90564-45186 · 90564-45187 · 90564-45188 · 90564-45189 · 90564-45190 · 90564-45191 · 90564-45192 · 90564-45193 · 90564-45194 · 90564-45195 · 90564-50294 · 90564-50295 · 90564-50296 · 90564-50297 · 90564-50298 · 90564-50299 · 90564-50300 · 90564-50301 · 90564-50302 · 90564-50303 · 90564-50304 · 90564-50305 · 90564-50306 · 90564-50307 · 90564-50308 · 90564-50309 · 90564-50310 · 90564-50311 · 90564-50312 · 90564-50313 · 90564-50314 · 90564-50315 · 90564-50316 · 90564-50317 · 90564-50318 · 90564-50319 · 90564-50320 · 90564-50321 · 90564-50322 · 90564-50323 · 90564-50324 · 90564-50325 · 90564-50326 · 90564-50327 · 90564-50328 · 90564-50329 · 90564-50330 |
| 33321N | Bearing (for front output shaft) | 90366-28019 · 90366-36016 |
| 33322 | No. 2 output shaft | 33322-12040 |
| 33322F | Bearing (for reverse gear front axle) | 90363-28018 |
| 33322G | Bearing (for reverse gear rear axle) | 90363-26002 |
| 33322H | Spacer (for reverse gear rear axle bearing) | 90564-52078 · 90564-52079 · 90564-52080 · 90564-52081 · 90564-52082 · 90564-52083 · 90564-52084 · 90564-52085 · 90564-52086 · 90564-52087 · 90564-52088 · 90564-52089 · 90564-52090 |
| 33327 | No. 4 transmission hub sleeve | 33327-12020 |
| 33331 | reverse gear | 33331-12100 · 33331-20090 |
| 33331A | Bearing (for reverse gear) | 90364-33018 |
| 33332 | Second gear | 33332-12130 · 33332-12210 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-47011 |
| 33333 | Third gear | 33034-12220 · 33034-12250 |
| 33333A | Needle roller bearing (for third gear) | 90364-37015 · 90364-41004 |
| 33334 | fourth gear | 33035-12160 · 33035-12240 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-37015 |
| 33334B | Spacer (for fourth gear bearing) | 90560-37004 |
| 33335 | first gear | 33335-12170 · 33335-12260 |
| 33335C | Needle roller bearing (for first gear) | 90364-47010 · 90365-48002 |
| 33336 | fifth gear | 33036-12220 · 33336-12240 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-37015 |
| 33337 | Sixth speed gear sub-assembly | 33037-12060 · 33337-12090 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-35011 |
| 33345 | First gear bushing | 33345-12050 · 33345-20030 |
| 33348 | First gear thrust washer | 33348-12020 |
| 33352B | No. 4 transmission clutch hub | 33352-12020 |
| 33356A | Second gear gear bearing inner race | 33356-12020 · 33356-20050 |
| 33356B | Second gear gear bearing inner race locking steel ball | 90360-06004 |
| 33359 | Fifth gear gear bearing inner race | 33359-20010 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 3335A | Sixth gear bearing inner race (MTM) | 3335A-20010 |
| 3335AA | Six-speed gear bearing inner race locking steel ball (MTM) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-12120 · 33361-20070 |
| 33362 | No. 2 transmission clutch hub | 33362-12090 · 33362-20041 |
| 33362A | Shaft snap ring (used to secure the No. 2 clutch hub) | 90520-35034 · 90520-35035 · 90520-35036 · 90520-35037 · 90520-35038 · 90520-35039 · 90520-35040 · 90520-35041 · 90520-38023 · 90520-38024 · 90520-38025 · 90520-38026 · 90520-38027 · 90520-38028 |
| 33363 | No. 1 transmission hub sleeve | 33363-12030 |
| 33364 | No. 2 transmission hub sleeve | 33364-12060 · 33364-12070 |
| 33365 | No. 1 synchromesh shift key | 33365-20080 |
| 33366 | No. 2 synchromesh shift key | 33365-20080 |
| 33369 | No. 3 synchronizer lock ring | 33369-12060 · 33369-20050 |
| 33369B | No. 4 synchronizer lock ring | 33381-12020 |
| 33371 | No. 1 synchromesh shift key spring | 33371-52010 |
| 33387A | Reverse synchronizer lock ring | 33387-12010 |
| 33393 | No. 3 transmission clutch hub | 33393-12100 · 33393-20041 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-34045 · 90520-34046 · 90520-34047 · 90520-34048 · 90520-34049 · 90520-34050 |
| 33394 | No. 3 synchromesh shift key | 33365-20080 |
| 33394B | No. 3 synchromesh shift key | 33394-52010 |
| 33395 | No. 3 transmission hub sleeve | 33395-12040 · 33395-12060 · 33395-12061 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33396-12040 · 33396-20010 |
| 33402 | Reverse idler gear sub-assembly | 33402-20080 |
| 33422B | Fourth gear driven gear | 33422-12110 · 33422-12160 |
| 33423A | Third gear driven gear | 33423-12070 · 33423-12120 |
| 33428C | fifth speed driven gear | 33428-12160 · 33428-12220 |
| 33429B | Sixth speed driven gear | 33429-12040 · 33429-12080 |
| 33431C | Output gear spacer | 33431-12060 · 33431-20090 |
| 33451 | Reverse gear idler shaft | 33451-20060 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08150 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-20090 |
