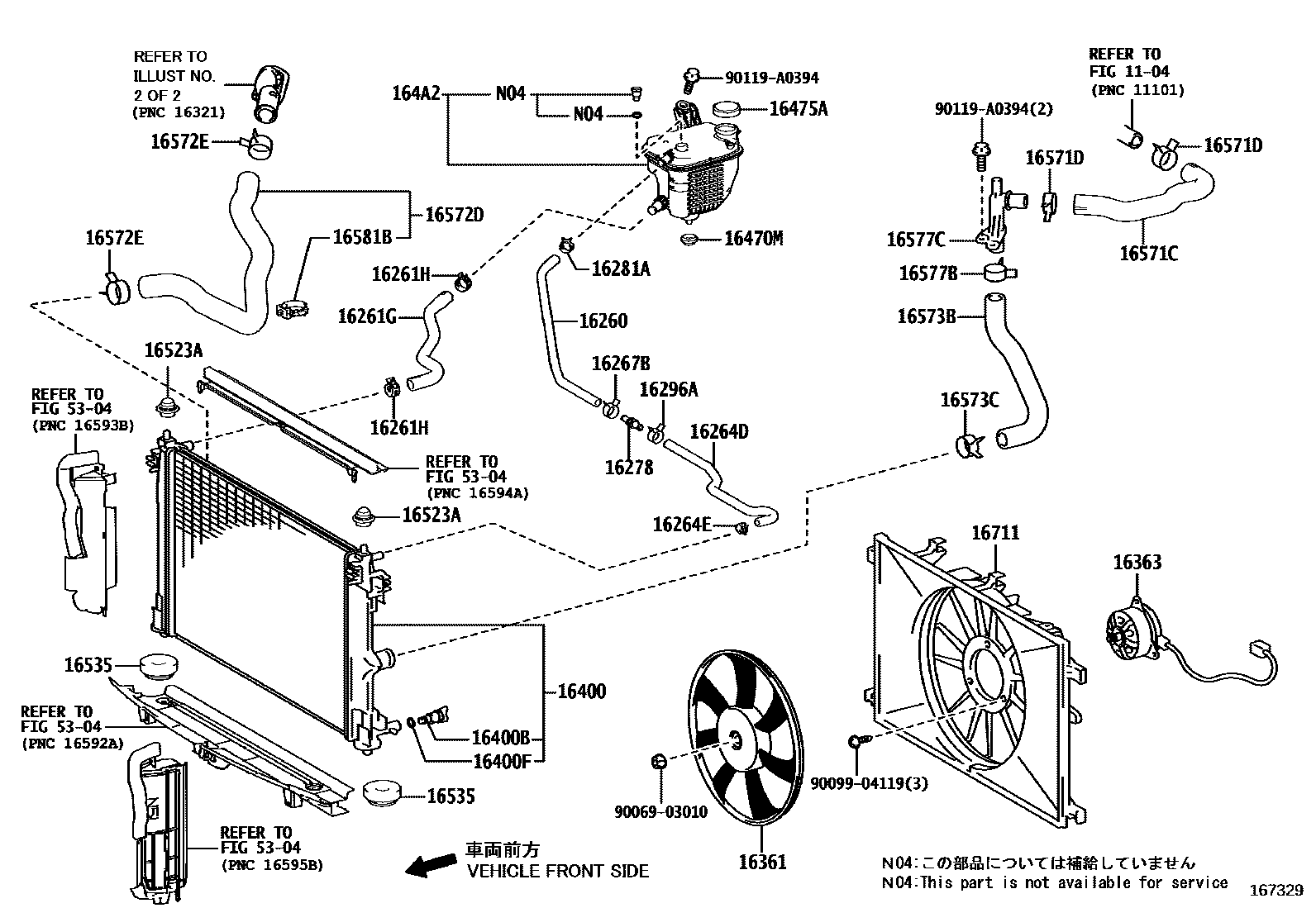

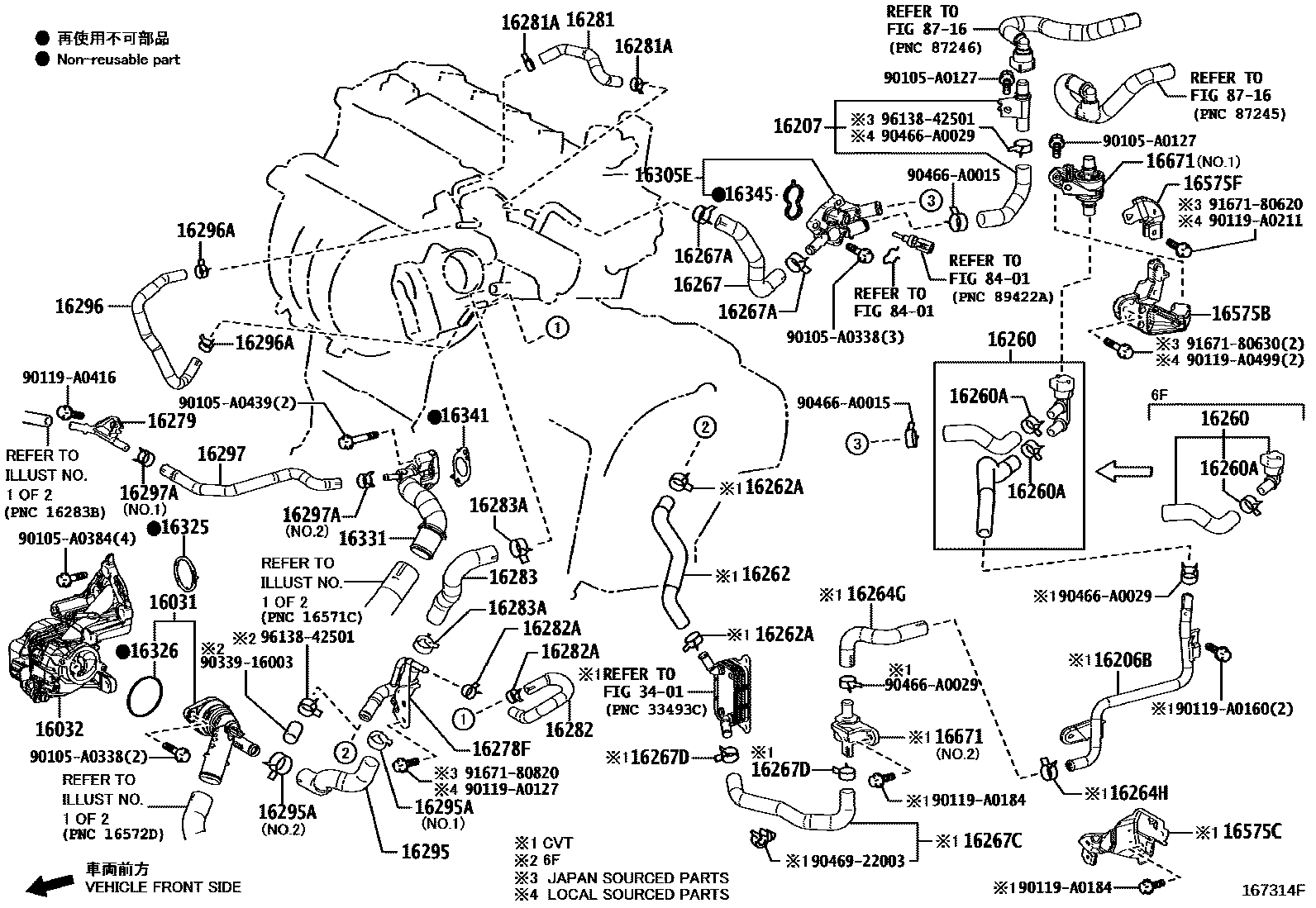

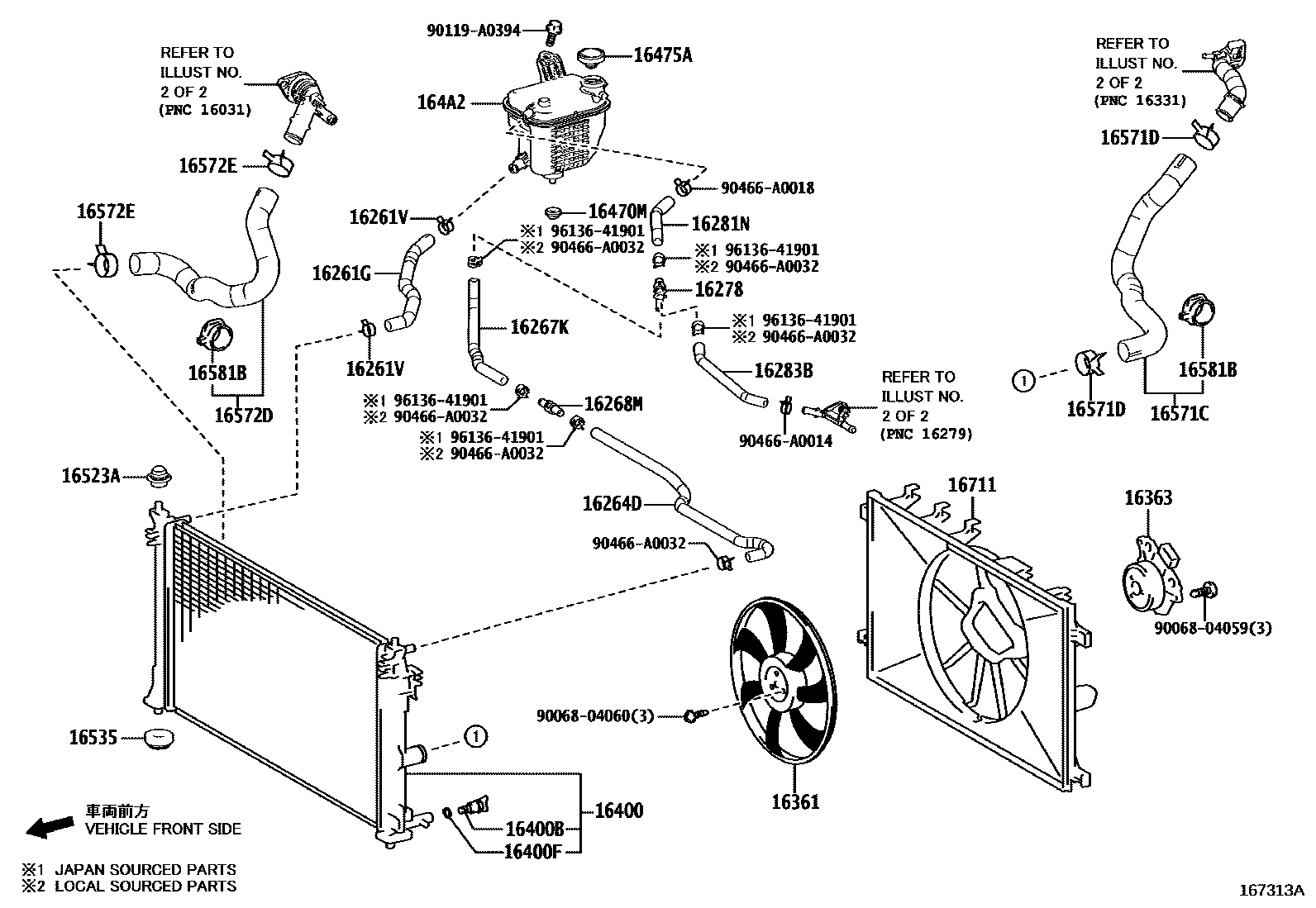

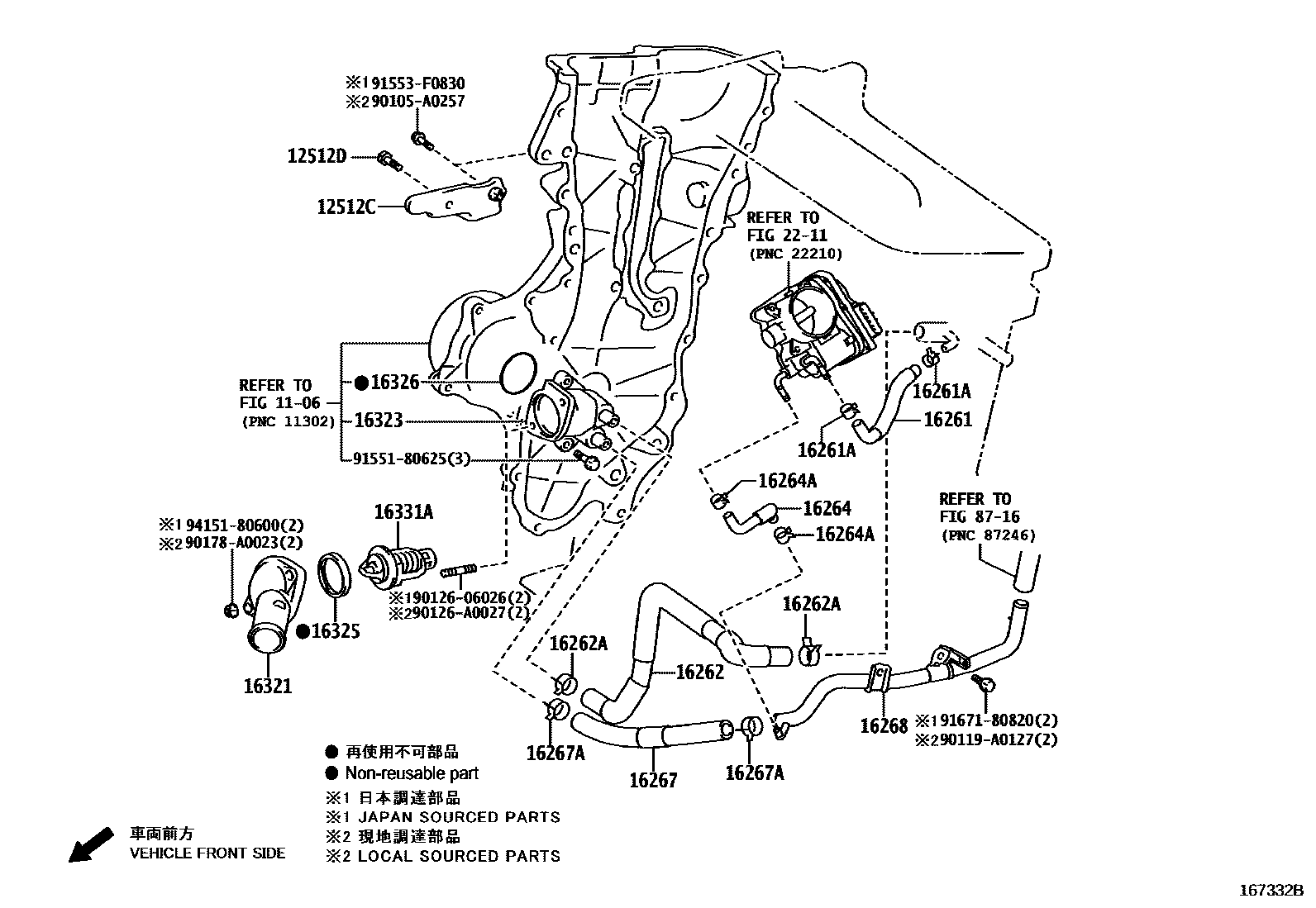

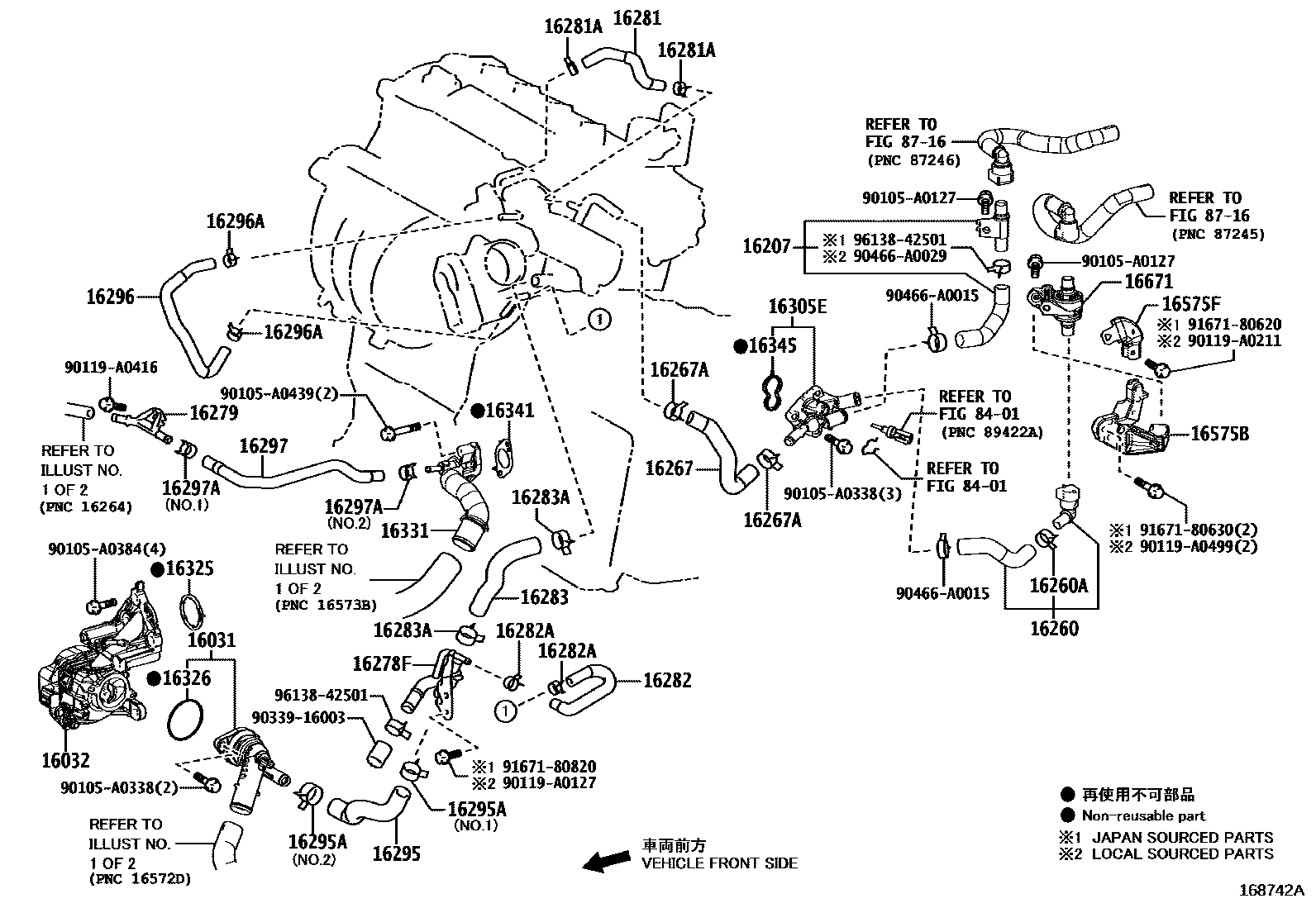

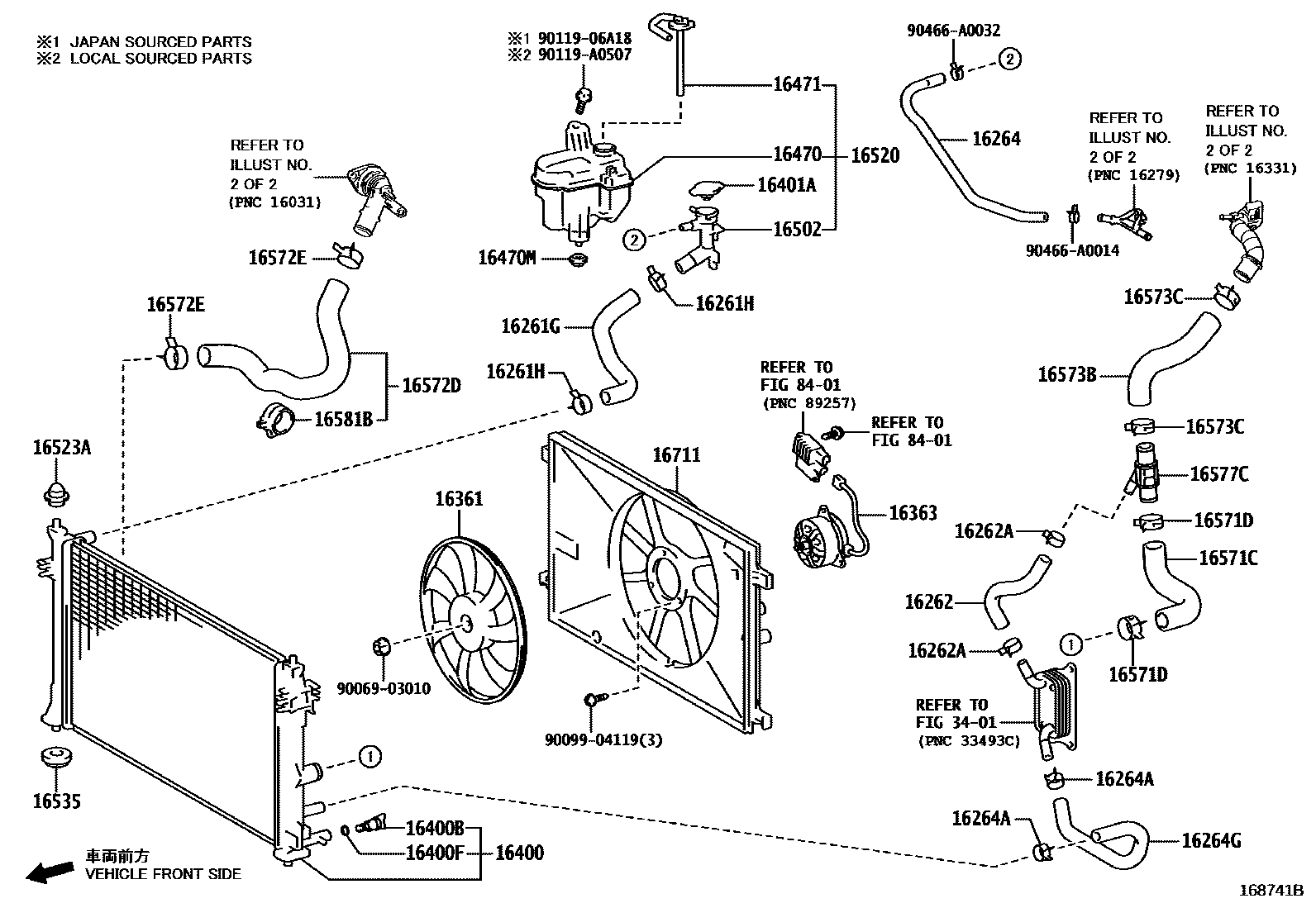

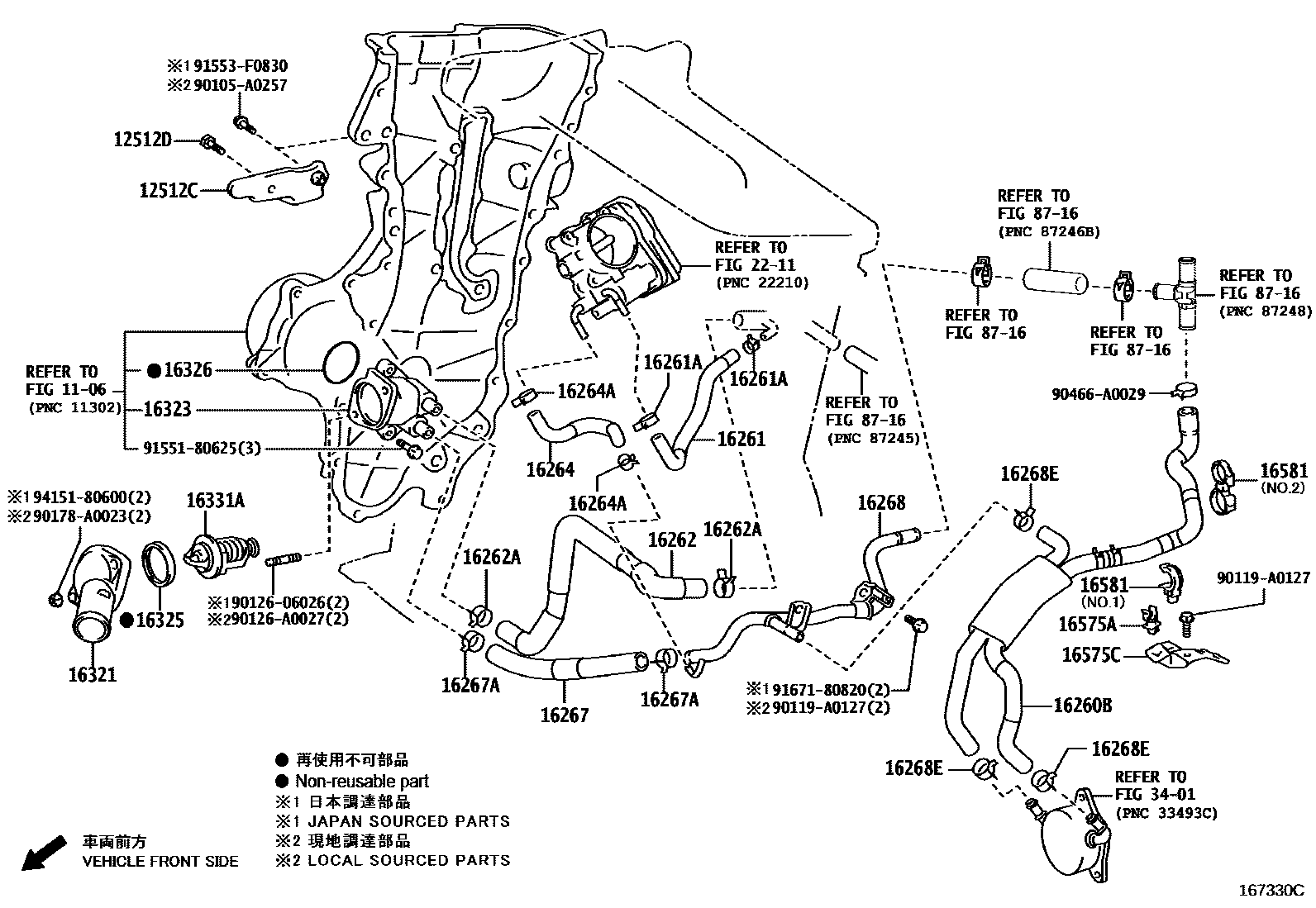

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 7 images and 88 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12512C | No. 2 generator bracket | 12512-0T010 · 12512-37010 |
| 12512D | Bolts (for generator bracket No. 2) | 90119-08A53 · 90119-08C56 · 90119-A0288 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-24010 · 16031-24011 · 16031-24040 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-24020 · 16032-F2010 · 16032-F2090 |
| 16206B | No. 3 water bypass pipe sub-assembly | 16207-F2010 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-F2040 |
| 16260 | Water bypass hose assembly | 16260-F2210 · 16260-F2220 · 16267-0T100 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-A0029 · 96138-42501 |
| 16260B | Water bypass pipe assembly | 16260-0T110 |
| 16261 | HOSE, WATER BY-PASS | 16261-37031 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0017 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0T190 · 16261-F2010 · 16261-F2220 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-28001 · 90466-A0029 |
| 16261V | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0029 |
| 16262 | water inlet hose | 16262-0T060 · 16262-37010 · 16262-F2010 · 16262-F2060 |
| 16262A | Clamp (for water inlet hose) | 90466-A0023 · 90466-A0029 · 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-37031 · 16264-F2170 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 90466-A0029 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0T150 · 16264-F2010 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0032 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16264-F2020 · 16264-F2180 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90466-A0029 · 96138-42501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T210 · 16267-24040 · 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-A0023 · 96136-42501 · 96138-42101 |
| 16267B | Clip (for water bypass hose) | 90466-A0032 · 96136-41901 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-F2020 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90466-A0029 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-F2010 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T350 · 16268-0T360 · 16268-37060 · 16268-37070 |
| 16268E | Hose clamp (for water bypass pipe) | 96136-52201 |
| 16268M | No. 3 water bypass pipe | 16268-F2020 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16268-F2010 · 16268-F2020 |
| 16278F | HOSE, WATER BY-PASS, NO.2 | 16278-24010 |
| 16279 | No. 3 water bypass pipe | 16279-24010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-24030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-A0018 · 96138-41501 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-F2010 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-24020 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-24010 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-42501 |
| 16283B | HOSE, WATER BY-PASS | 16296-F2010 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-24010 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96138-42501 · 96138-42701 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-24020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-A0032 · 96136-41901 · 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-24010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90467-15022 · 96138-41501 |
| 16305E | Water bypass outlet sub-assembly | 16305-24010 · 16305-F2040 |
| 16321 | water inlet | 16321-0T030 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-37040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0T030 · 16325-25010 · 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37030 · 16326-47020 |
| 16331 | Water outlet | 16331-F2010 |
| 16331A | thermostat | 90916-03148 · 90916-A3004 |
| 16341 | GASKET, WATER OUTLET | 16341-F2010 |
| 16345 | Outlet pipe gasket | 16345-24010 |
| 16361 | Fan | 16361-0T230 · 16361-F2010 · 16361-F2180 |
| 16363 | cooling fan motor | 16363-24120 · 16363-37130 · 16363-47060 |
| 16400 | Radiator assembly | 16400-0T390 · 16400-F2010 · 16400-F2081 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401A | Radiator reservoir cap sub-assembly | 16401-36030 |
| 16470 | Radiator reservoir assembly | 16470-F2010 |
| 16470M | gasket | 90480-18010 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-F2020 |
| 16475A | Reservoir tank cover | 16475-28140 |
| 164A2 | Closed reservoir water tank without lid | 164A2-0T030 |
| 16502 | Water injection port sub-assembly | 16502-F2010 |
| 16520 | Water injection port assembly | 16520-F2010 |
| 16523A | Radiator bracket cushion | 16523-0T090 |
| 16535 | Radiator lower support | 90480-40021 |
| 16571C | Radiator hose No. 1 | 16571-0T310 · 16571-F2060 · 16571-F2110 |
| 16571D | No. 1 radiator hose clip | 90466-40001 · 90466-A0037 |
| 16572D | Radiator hose No. 2 | 16572-0T250 · 16572-F2010 |
| 16572E | No. 2 radiator hose clip | 90466-A0037 |
| 16573B | Radiator hose No. 3 | 16573-0T150 · 16573-F2070 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-A0037 |
| 16575A | No. 5 radiator hose clip | 90949-01C99 |
| 16575B | No. 2 water hose clamp bracket | 16575-F2020 |
| 16575C | No. 1 water hose clamp bracket | 16575-37030 · 16575-F2010 |
| 16575F | No. 3 water hose clamp bracket | 16575-F2100 |
| 16577B | Hose clamps or clips (for radiator pipes) | 90466-40001 |
| 16577C | radiator pipe | 16577-0T140 · 16577-F2090 |
| 16581 | Hose clamp (for water hose) | 16581-0T150 · 16581-0T160 |
| 16581B | Hose clamp (for radiator hose) | 16581-28070 · 16581-36030 · 90469-38003 |
| 16671 | water valve | 16671-24010 · 16671-24020 · 16671-F2010 · 16671-F2020 |
| 16711 | fan cover | 16711-0T200 · 16711-F2010 · 16711-F2140 |
