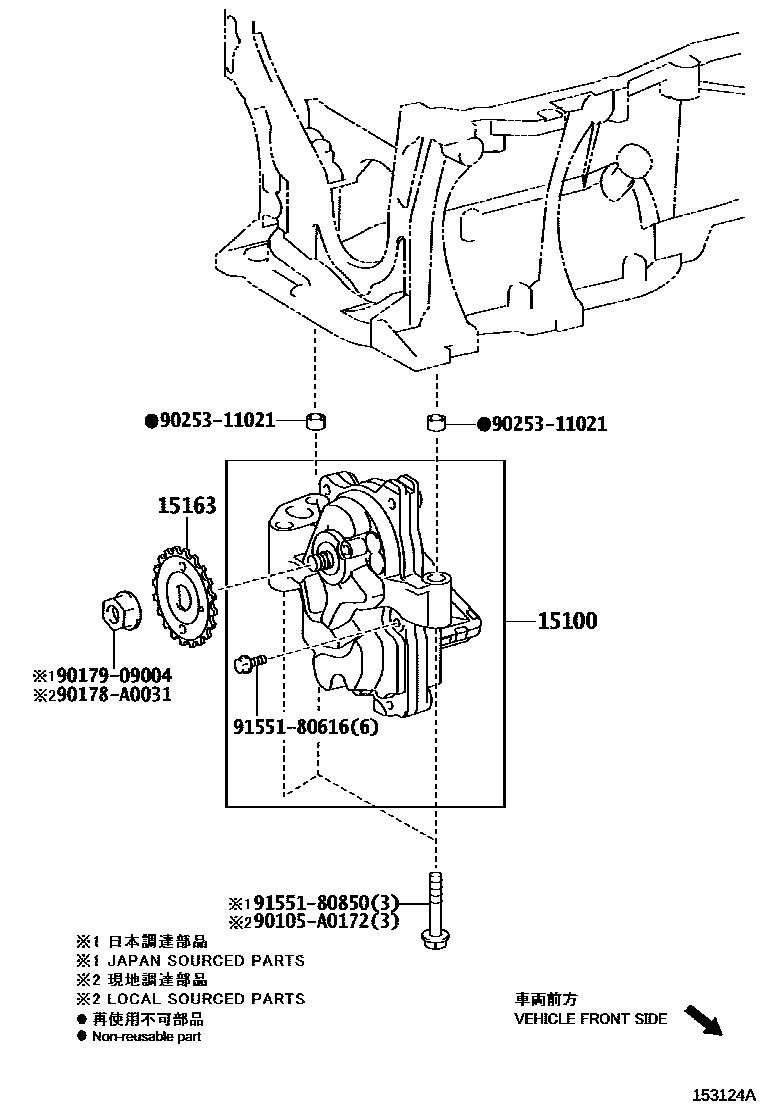

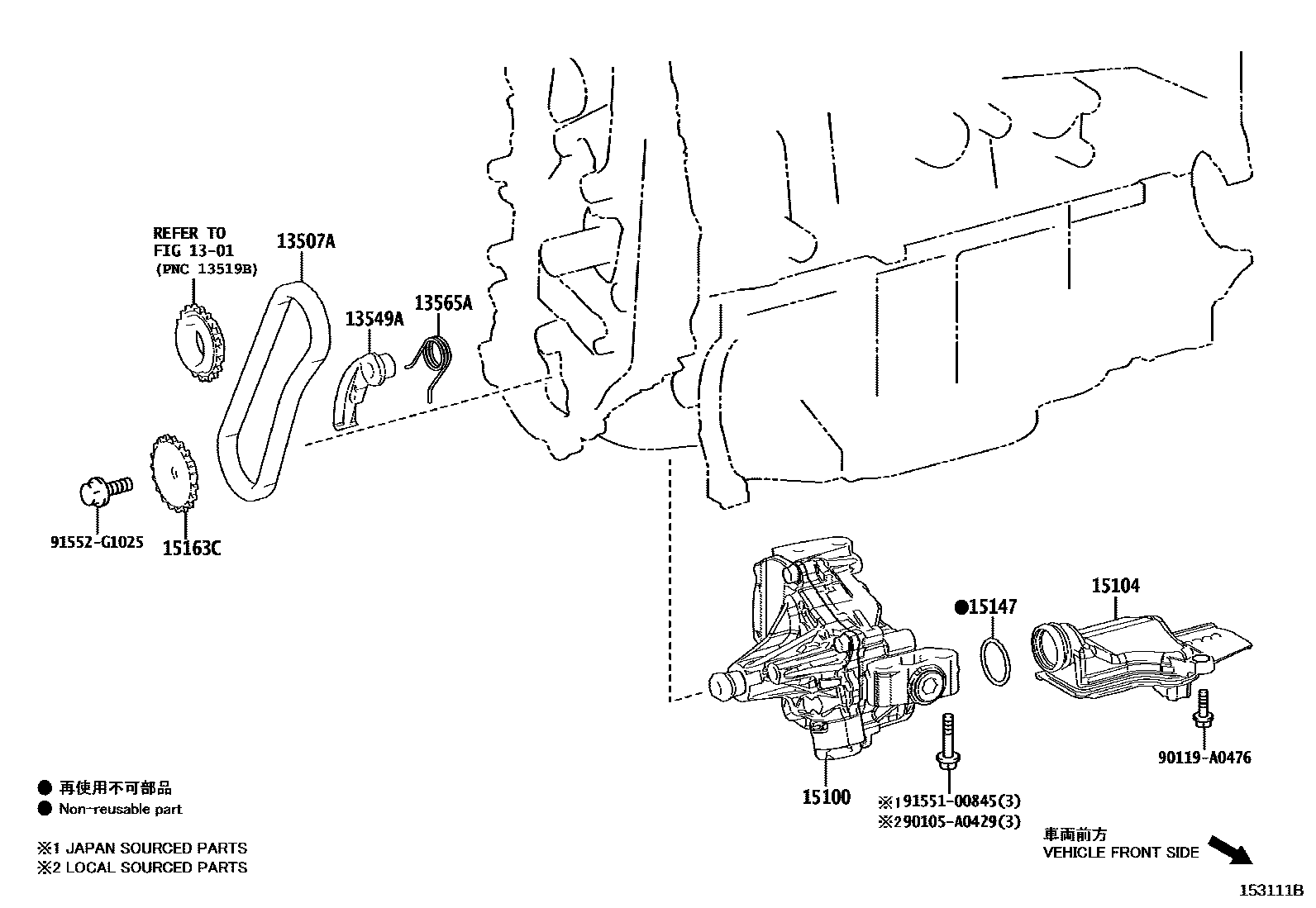

Toyota COROLLA Engine Oil Pump — Figure 1501
Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13507A | Oil pump drive chain sub-assembly | 13507-F2010 |
| 13549A | chain tensioner pressure plate | 13549-25020 · 13549-F0010 |
| 13565A | chain damper spring | 13565-25010 · 13565-F0010 |
| 15100 | Oil pump assembly | 15100-0T090 · 15100-37021 · 15100-F2010 |
| 15104 | Oil filter sub-assembly | 15104-24010 · 15104-F2010 |
| 15147 | Oil filter gasket | 15147-25010 |
| 15163 | Oil pump drive shaft gear | 15163-0H010 · 15163-28010 |
| 15163C | Oil pump drive shaft sprocket | 15163-25010 · 15163-F0010 |
