Toyota COROLLA 后视镜 — Figure 8701

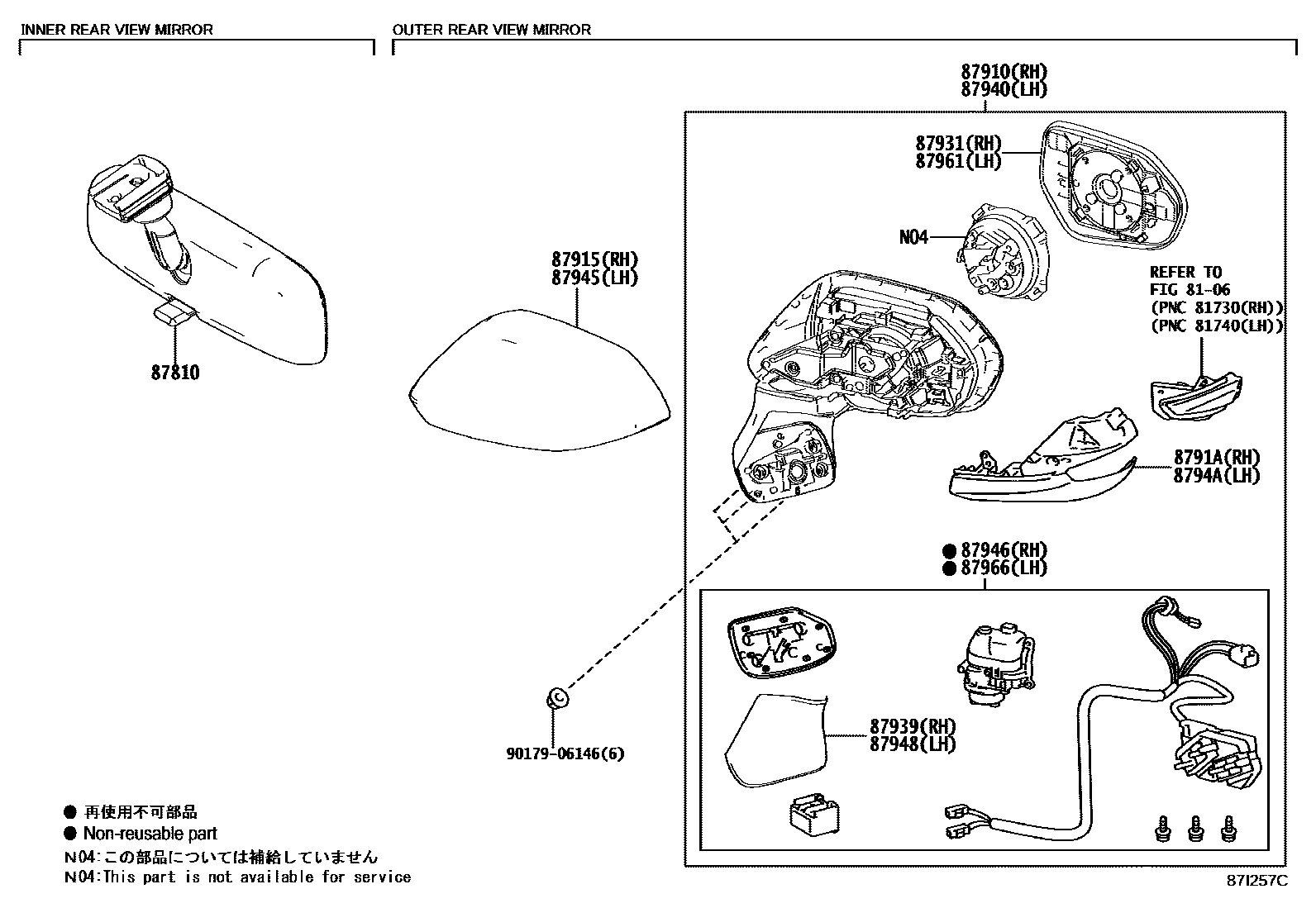

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-28140 |
| 87910 | Right exterior rearview mirror assembly | 87910-12K80 · 87910-12K90 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791A-52F30 |
| 87931 | Right exterior rearview mirror | 87931-10850 · 87931-52F30 |
| 87939 | Right exterior rearview mirror hole cover | 87939-12K80 |
| 87940 | Left exterior rearview mirror assembly | 87940-12L10 · 87940-12L20 |
| 87946 | Right exterior rearview mirror retractor | 87946-12K80 · 87946-12K90 |
| 87948 | Left exterior rearview mirror hole cover | 87948-12L10 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-52F20 |
| 87961 | Left exterior rearview mirror | 87961-10840 · 87961-52F20 |
| 87966 | Left exterior rearview mirror retractor | 87966-12L10 · 87966-12L20 |
