Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 5 PNC and OE references.

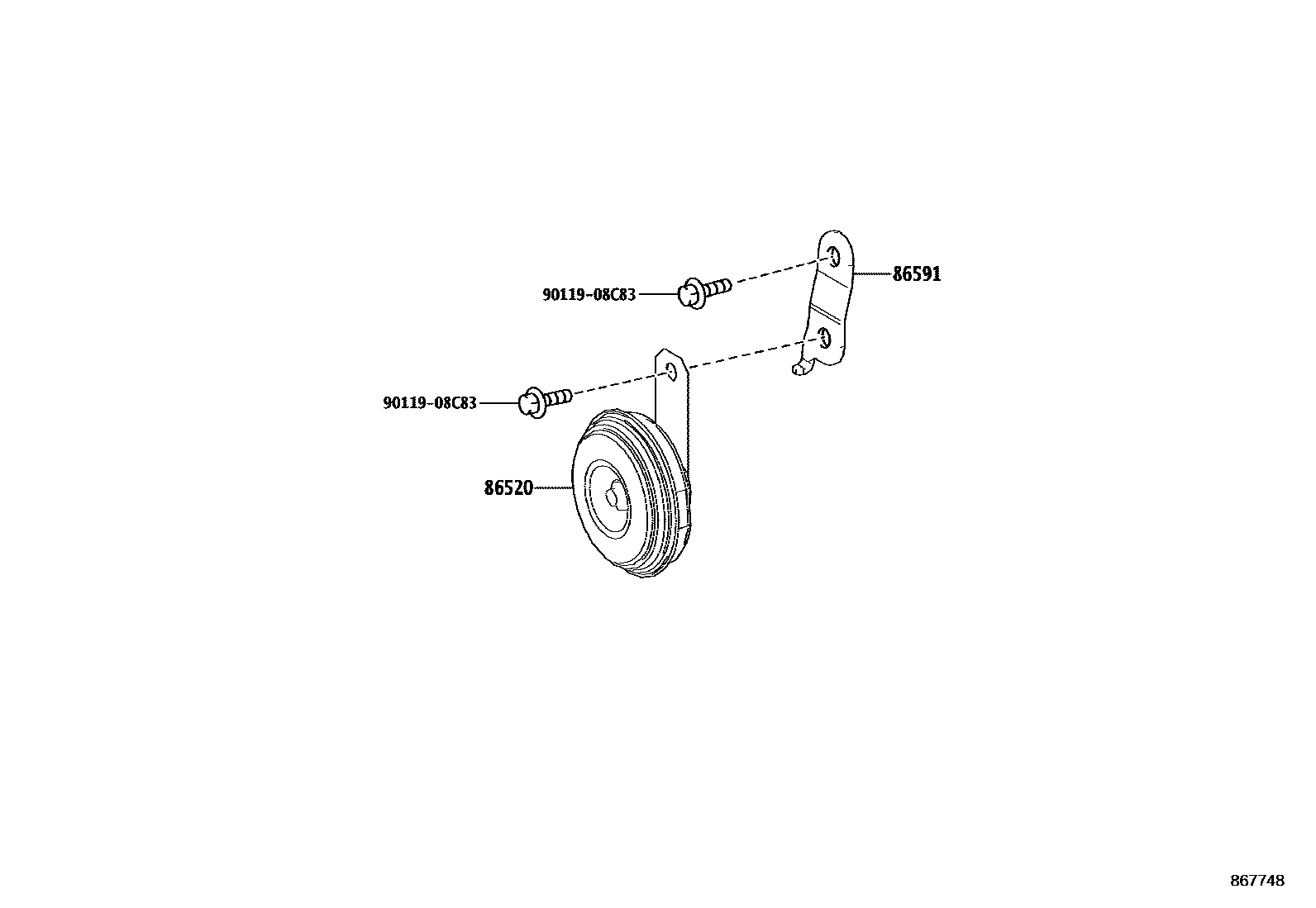

Toyota COROLLA 喇叭 EPC diagram — 867748
喇叭 — 867748 (201909 – 999999)

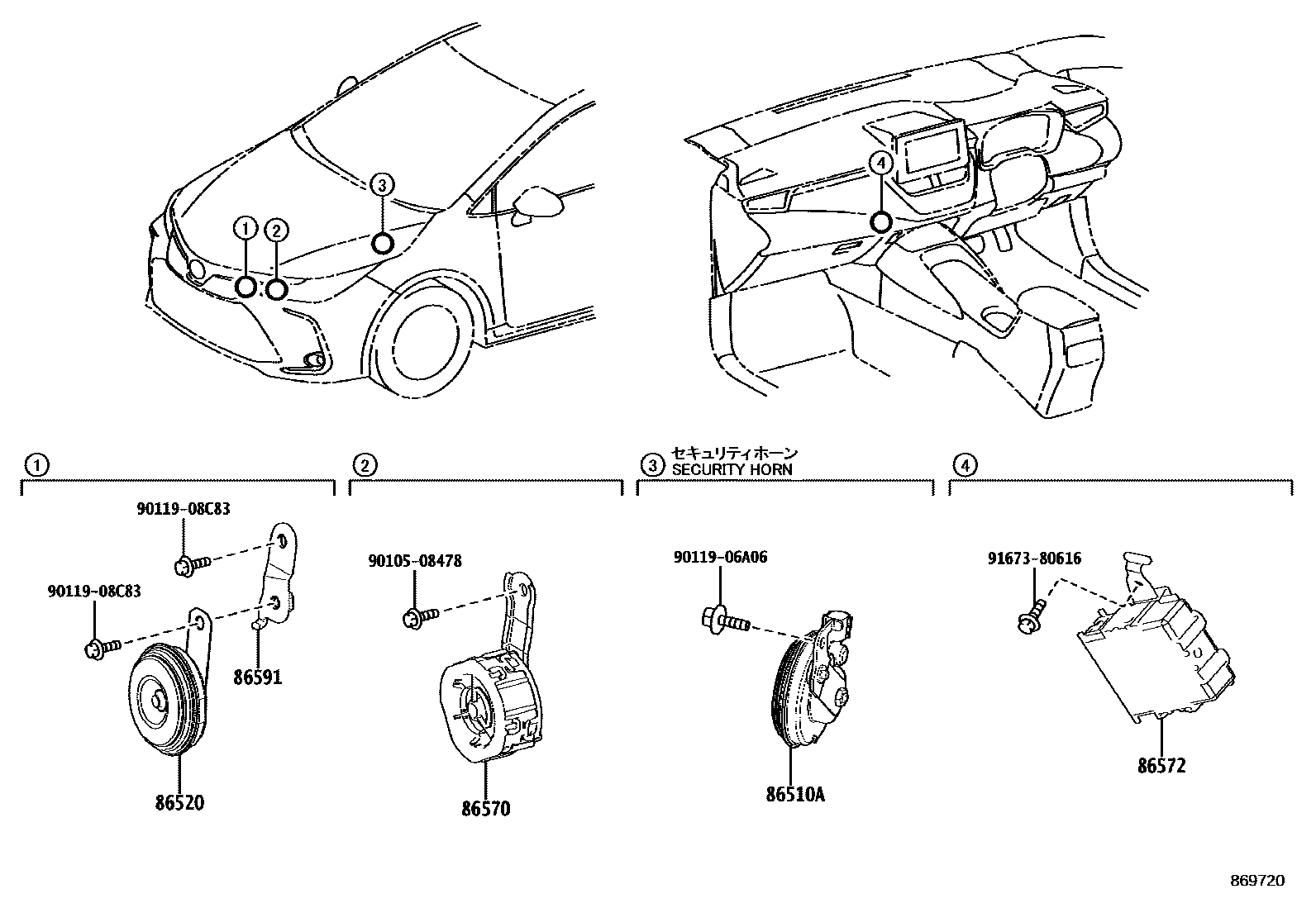

Toyota COROLLA 喇叭 EPC diagram — 869720
喇叭 — 869720 (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510AAlarm horn assembly86560-10020
86520Subwoofer assembly86520-52230 · 86520-68010
86570Vehicle intrusion speaker assembly86570-12110
86572vehicle hacking speaker controller86572-12240
86591speaker bracket86591-12040 · 86591-12100
