Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.

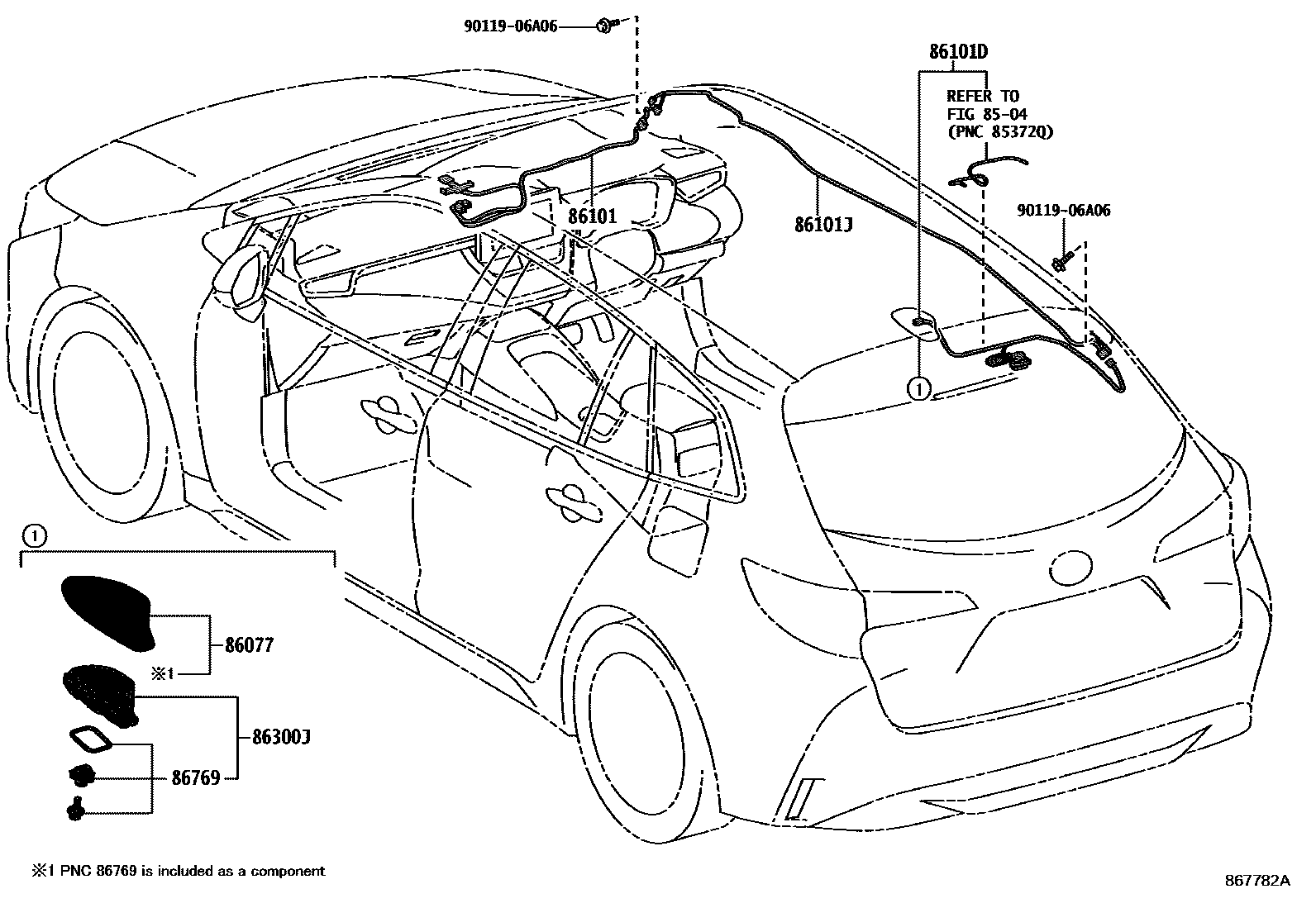

Toyota COROLLA antenna EPC diagram — 867782A
antenna — 867782A (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-12K60 · 86101-12P10
86101DNo. 3 antenna wire sub-assembly86101-12J40 · 86101-12M10 · 86101-12T10
86101JAntenna No. 2 wire sub-assembly86101-12J80 · 86101-12T30 · 86101-12U40
86300JRoof antenna assembly86300-42250 · 86300-47180
86769roof radome86769-12010 · 86769-K0010
