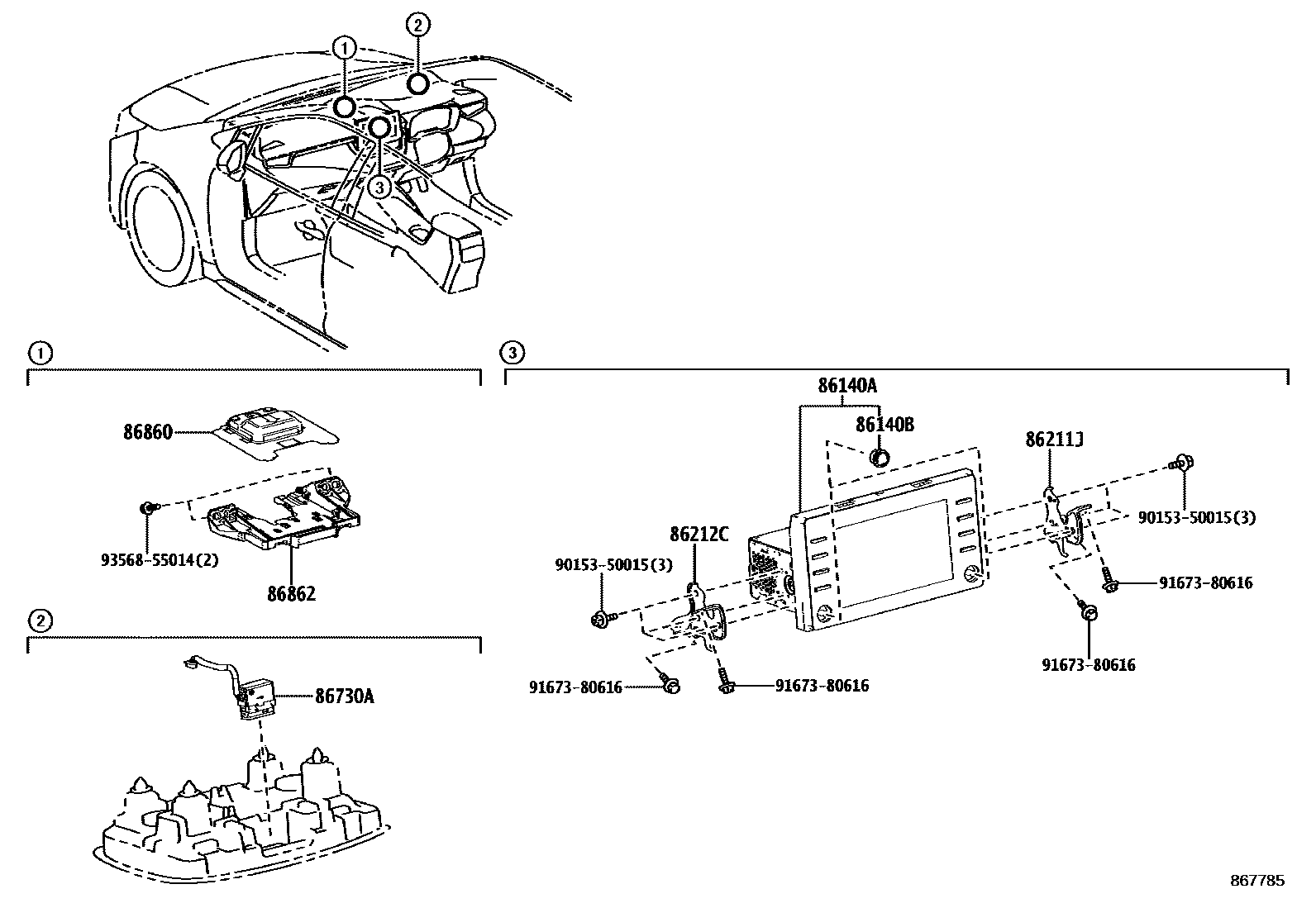

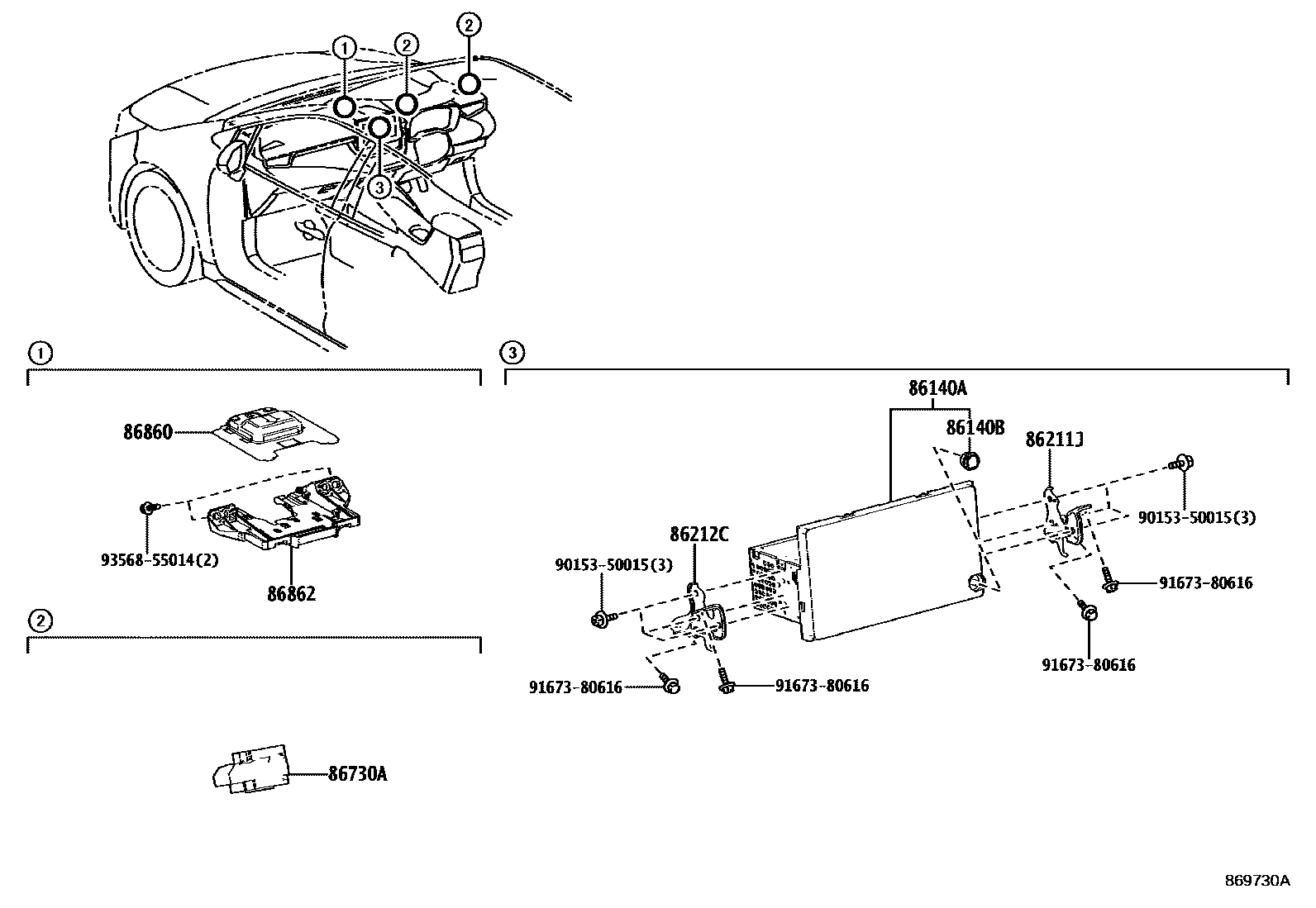

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-12450 · 86140-12451 · 86140-12D90 |
| 86140B | Radio and display receiver switch button | 90010-23060 · 90010-23063 · 90010-23068 |
| 86211J | No. 1 radio bracket | 86211-12470 |
| 86212C | No. 2 radio bracket | 86212-12460 |
| 86730A | Telephone amplifier assembly | 86730-16010 · 86730-47030 |
| 86860 | Navigation antenna assembly | 86860-78010 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-58020 |
