Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601

Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 3 PNC and OE references.

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 867766C
收音机、放大器和冷凝器 — 867766C (201909 – 999999)

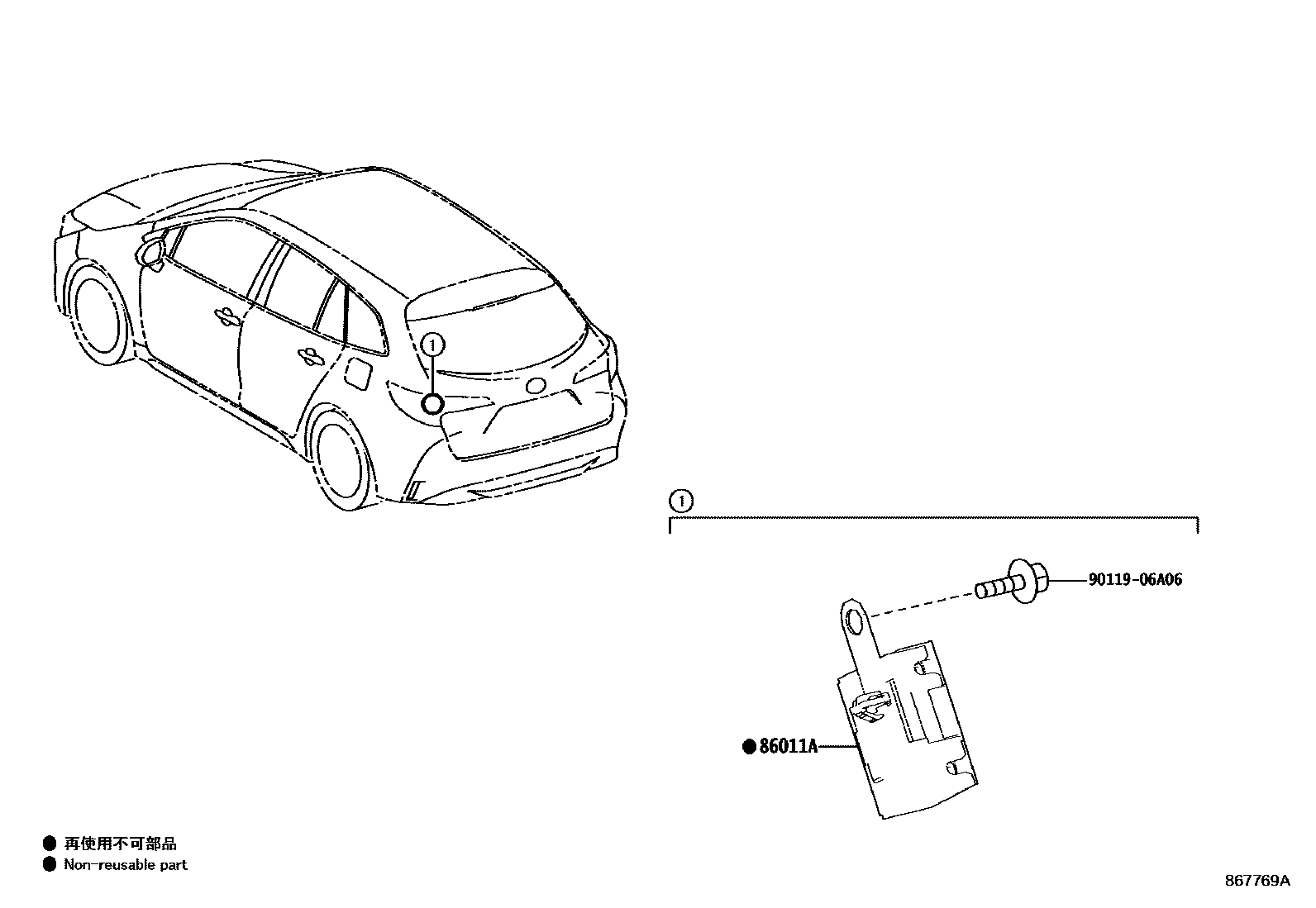

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 867769A
收音机、放大器和冷凝器 — 867769A (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04204
86190CStereo socket connector assembly No. 186190-12070 · 86190-12080
86203radio wiring harness86203-12650
