Toyota COROLLA 仪表 — Figure 8301

Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 2 PNC and OE references.

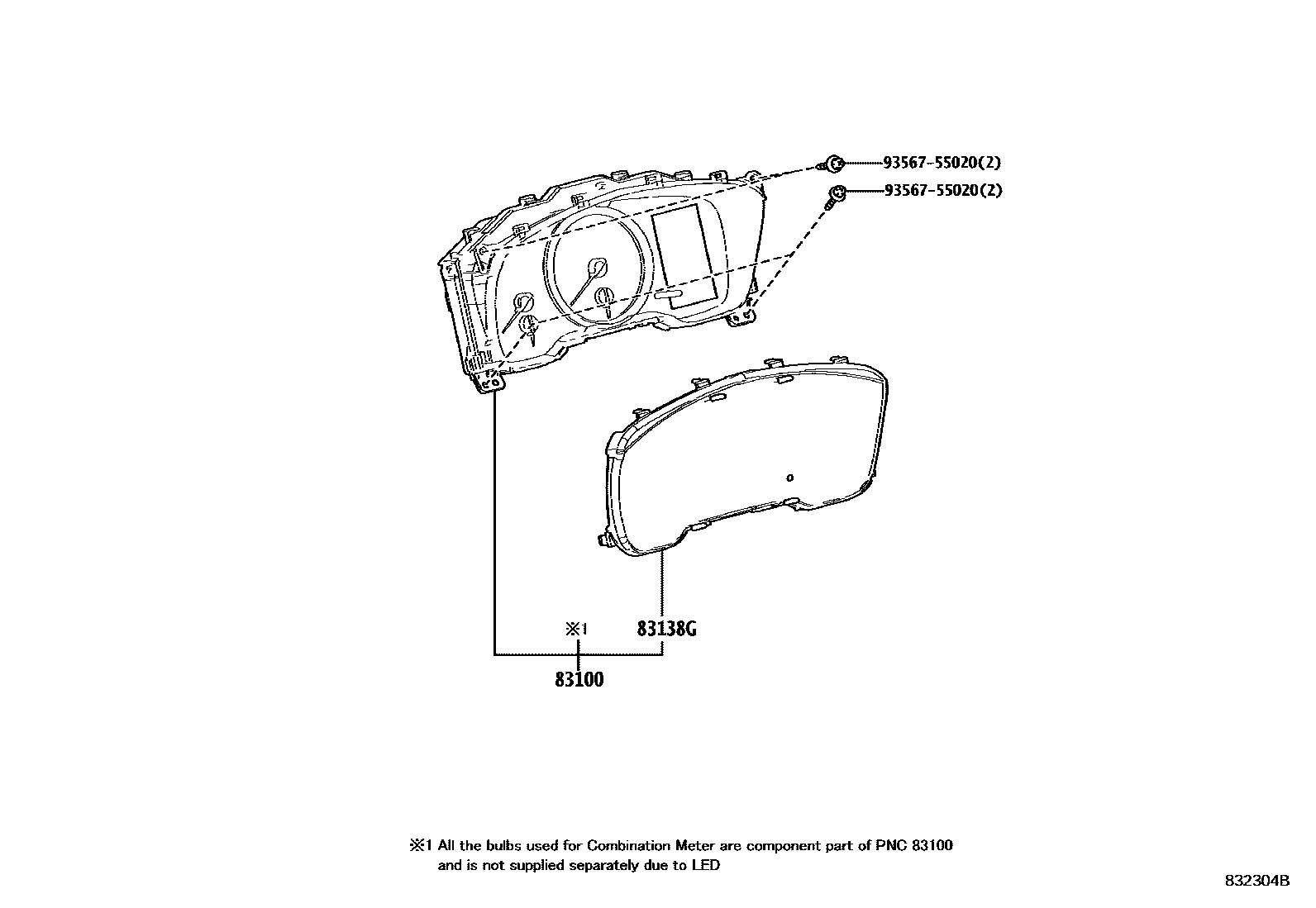

Toyota COROLLA 仪表 EPC diagram — 832304B
仪表 — 832304B (201909 – 999999)

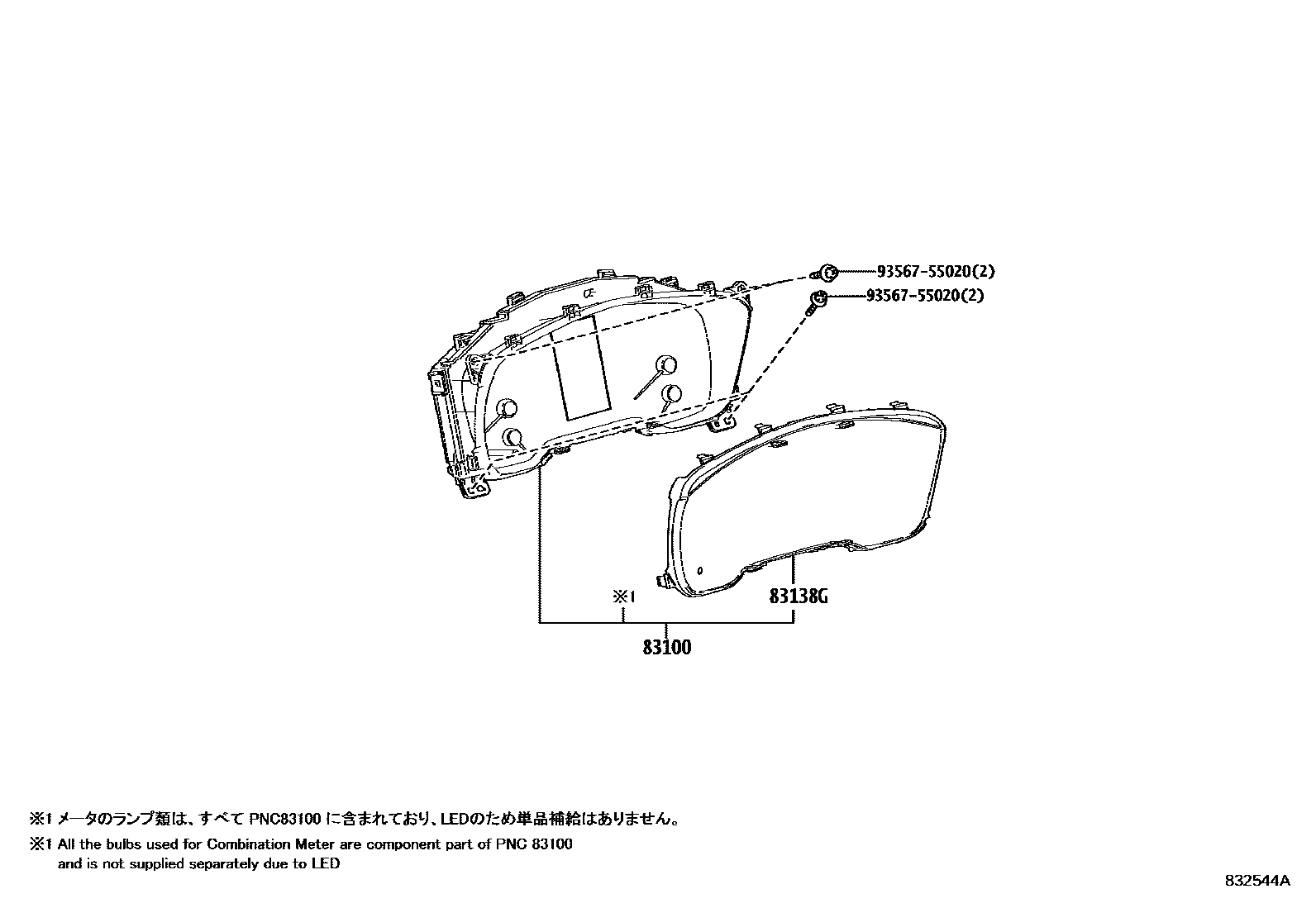

Toyota COROLLA 仪表 EPC diagram — 832544A
仪表 — 832544A (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-1AU30 · 83800-1AU31 · 83800-1AU32 · 83800-1EJ10 · 83800-1EJ11 · 83800-1EQ90
83138GInstrument cluster glass83852-12G10 · 83852-1EF00
