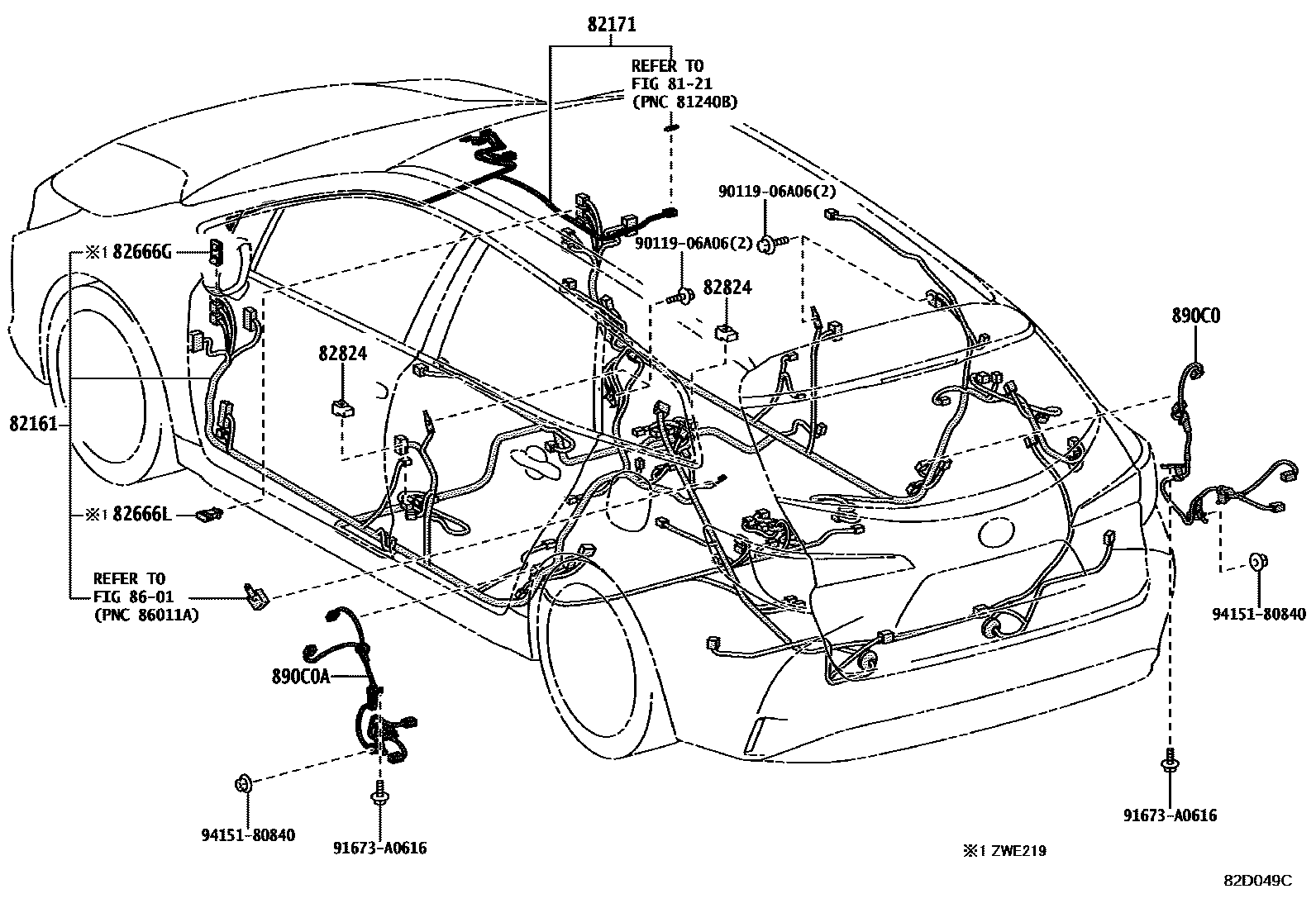

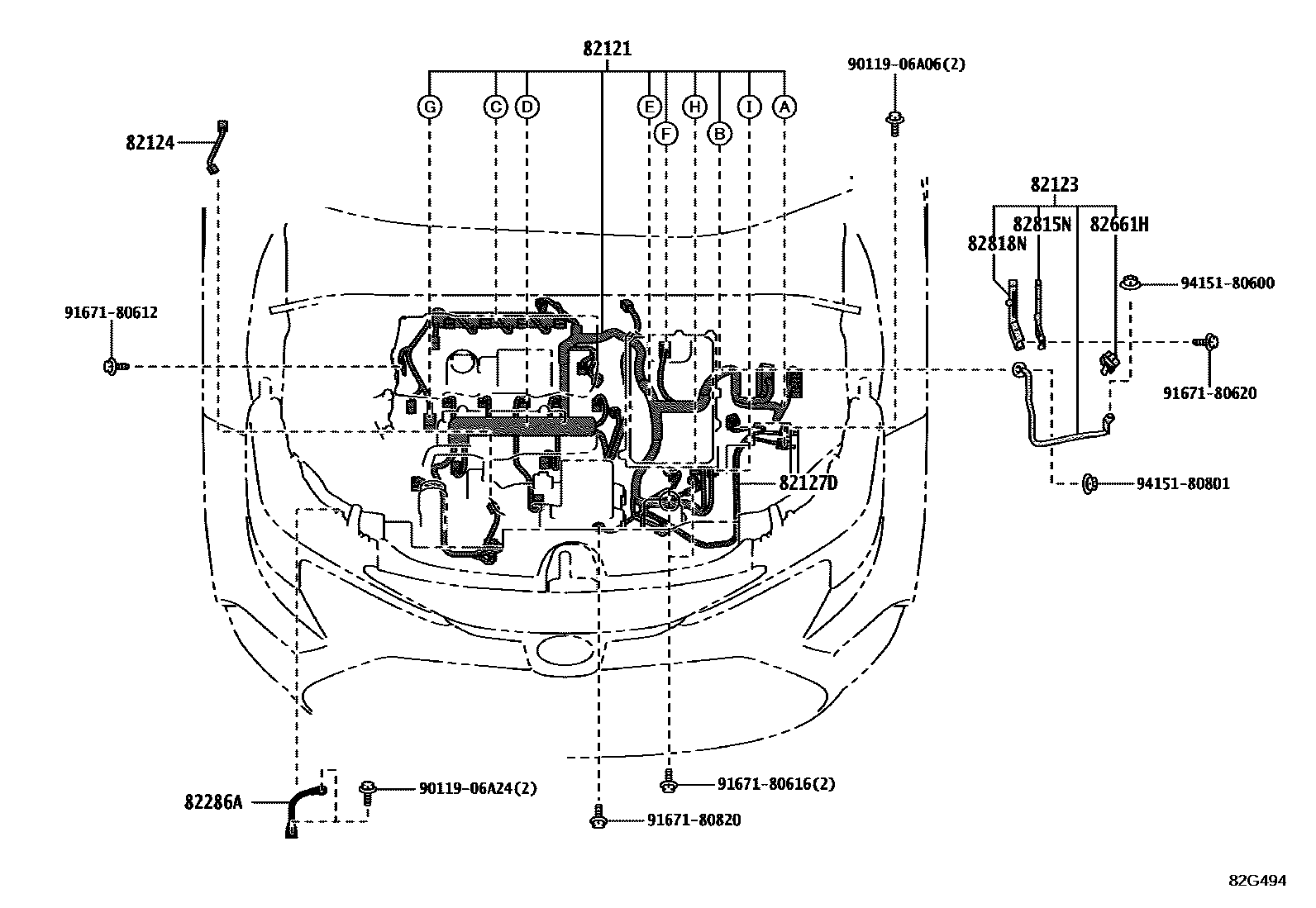

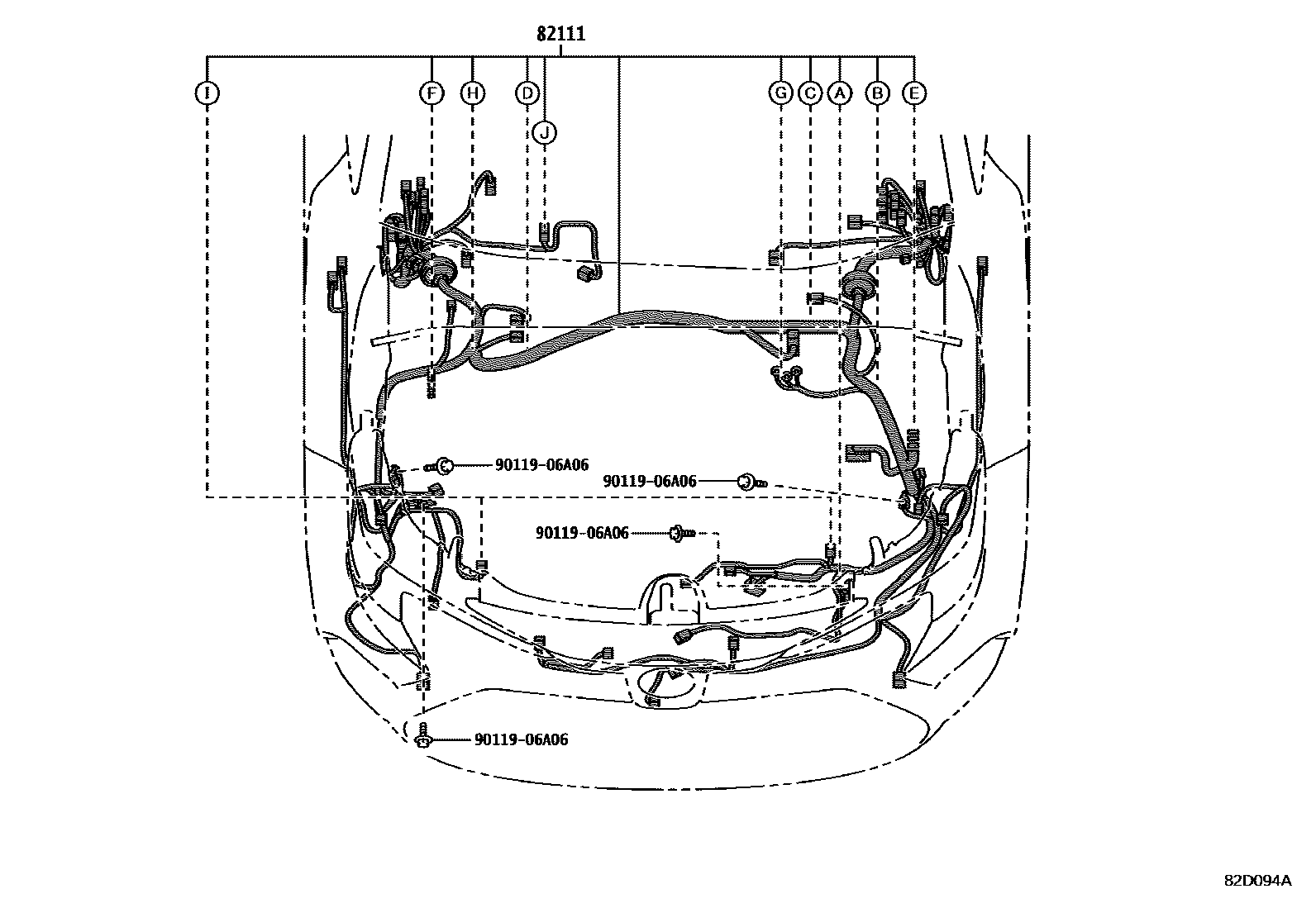

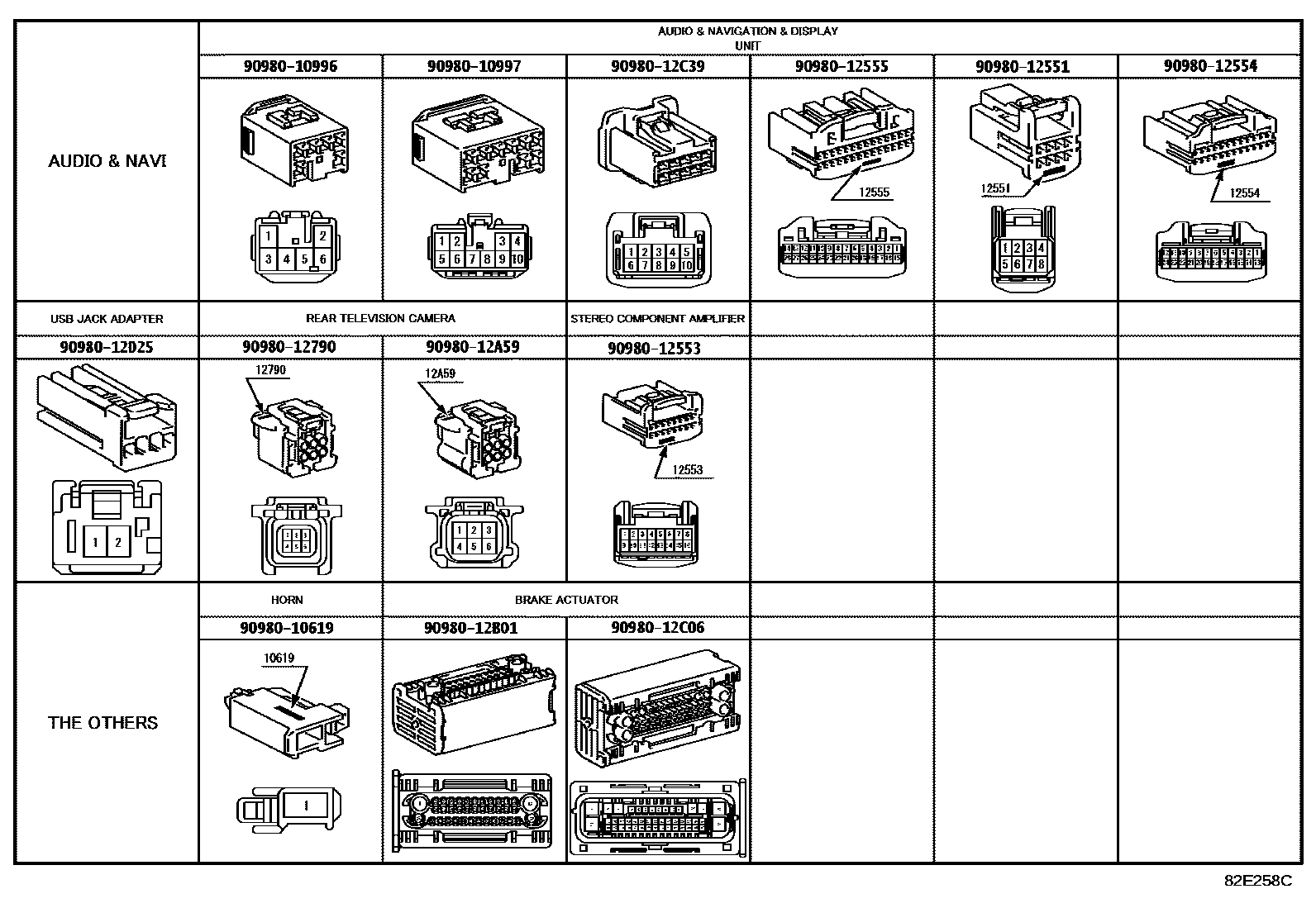

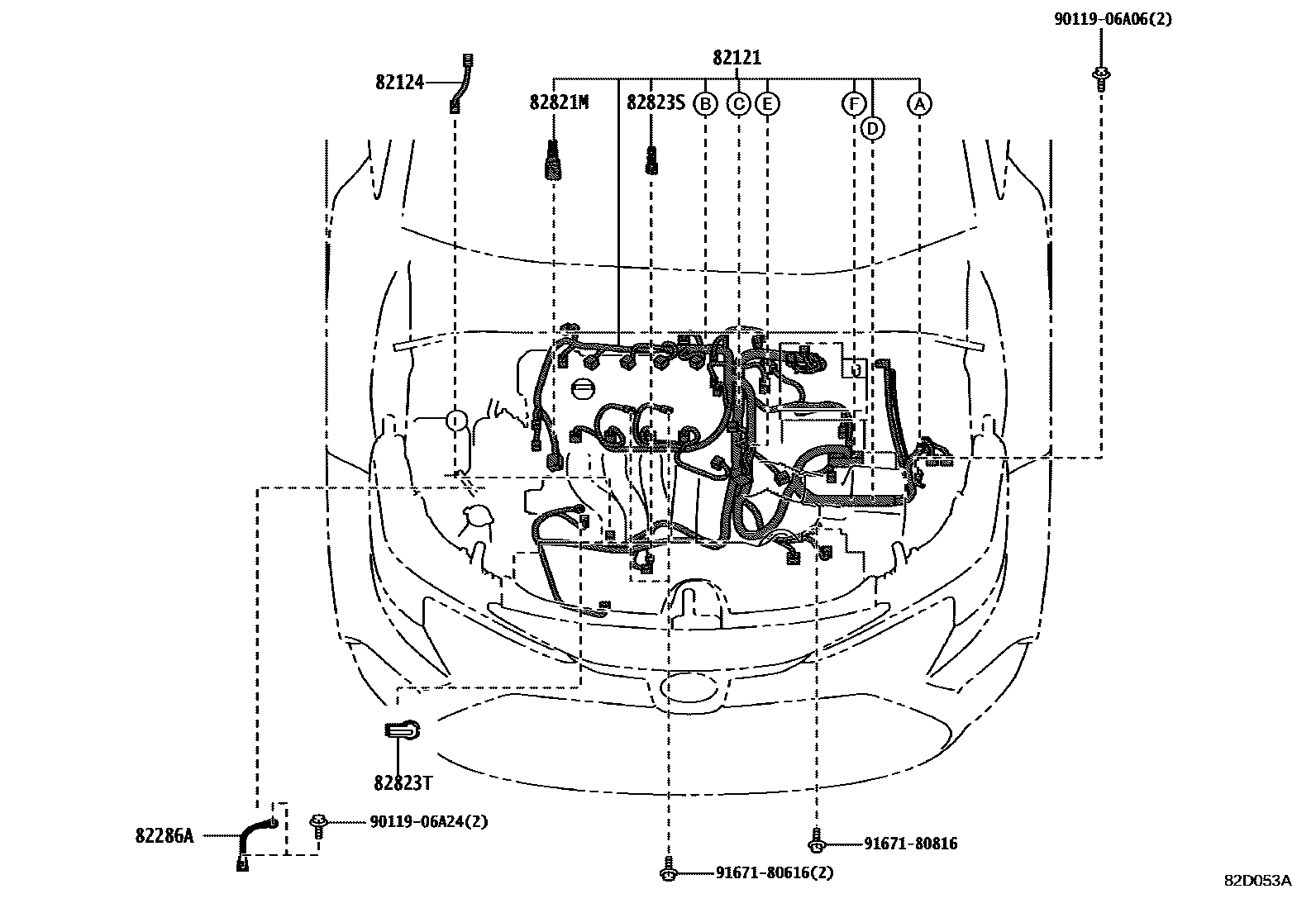

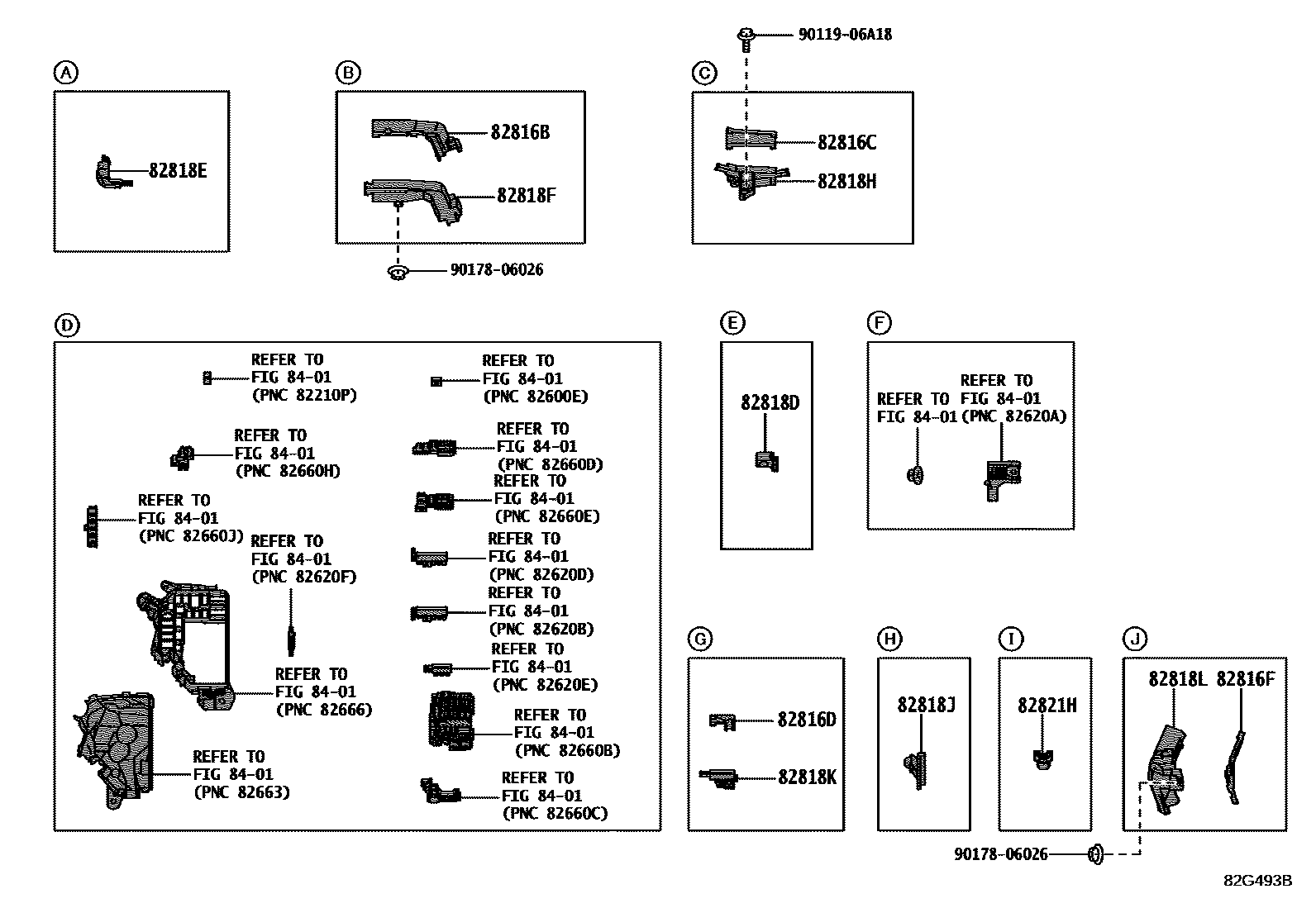

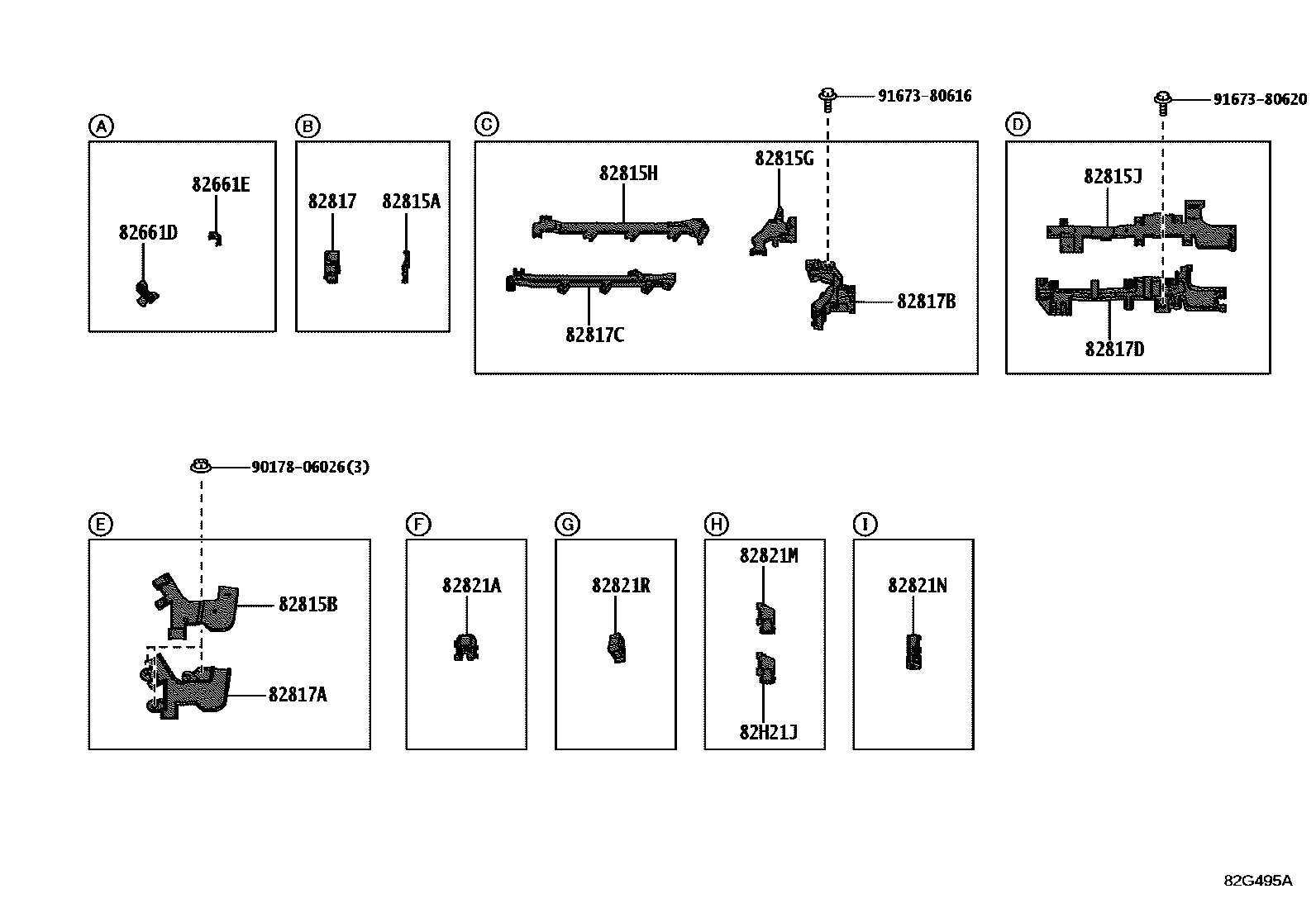

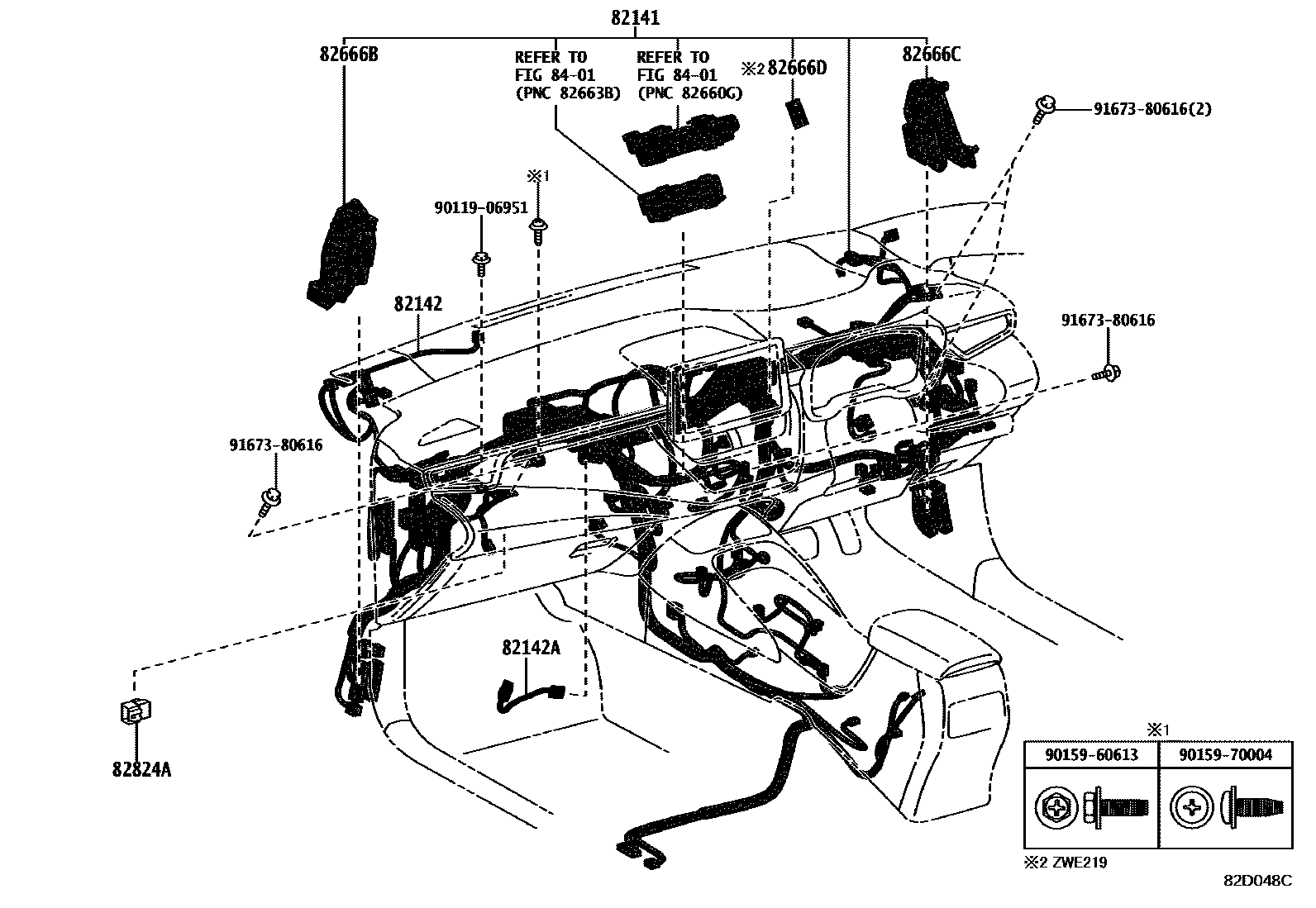

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 16 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

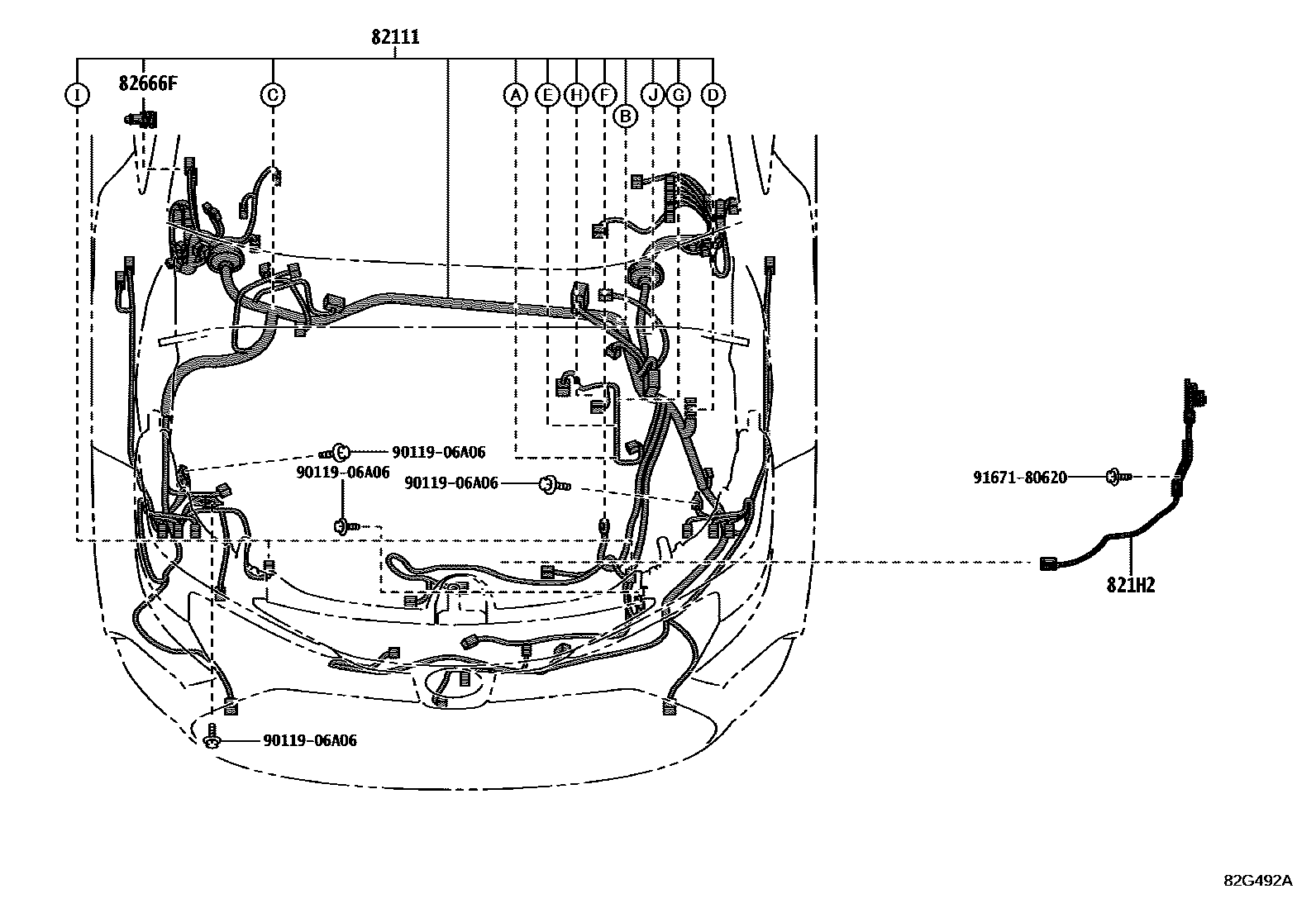

| 82111 | Engine room main wiring harness | 82111-1KL40 · 82111-1L800 · 82111-1L801 · 82111-1L802 |
| 82121 | Engine wiring harness | 82121-12T40 · 82121-12V60 · 82121-12V61 |
| 82123 | Engine No. 3 wiring harness | 82123-16210 |
| 82124 | Engine No. 4 wiring harness | 82124-12160 |
| 82127D | Engine No. 7 wiring harness | 82127-16010 |
| 82141 | Dashboard wiring harness | 82141-1XK20 · 82141-1XW70 · 82145-12N20 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12670 · 82142-12680 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-12B80 |

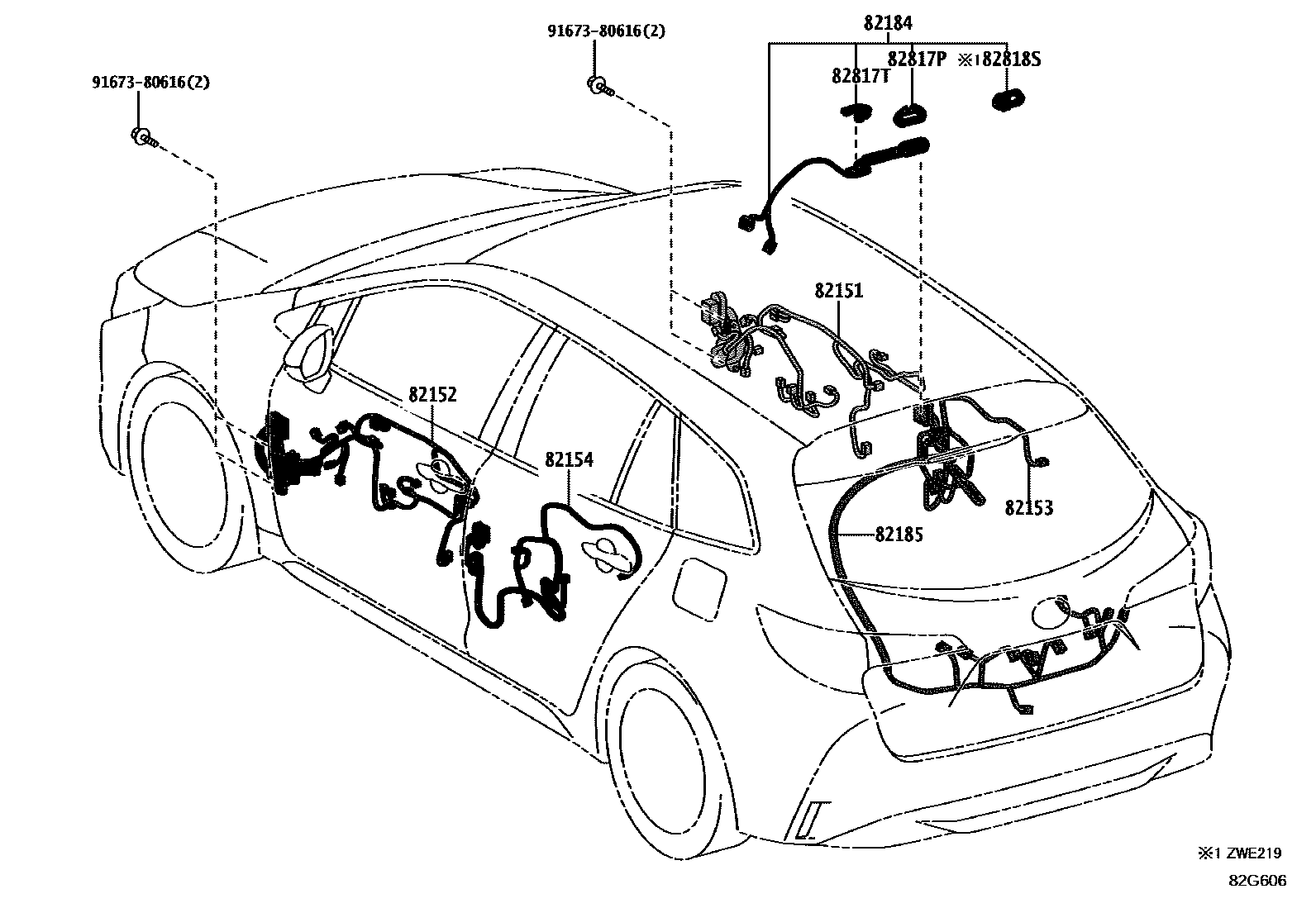

| 82151 | Right front door wiring harness | 82151-1AC70 · 82151-1AD50 · 82151-1AF20 |
| 82152 | Left front door wiring harness | 82152-1AB70 · 82152-1AC00 · 82152-1AD70 |
| 82153 | Rear door wiring harness No. 1 | 82153-12C30 · 82153-12D10 |
| 82154 | Rear door wiring harness No. 2 | 82154-12B90 · 82154-12C60 |
| 82161 | floor wiring harness | 82161-1ED20 · 82161-1ER40 · 82161-1HE20 |
| 82171 | Roof No. 1 wiring harness | 82171-12V90 · 82171-12Y80 |
| 82184 | Rear door No. 1 wiring harness | 82184-12B20 · 82184-12B60 |
| 82185 | Rear door wiring harness No. 2 | 82185-12880 · 82185-12A30 |

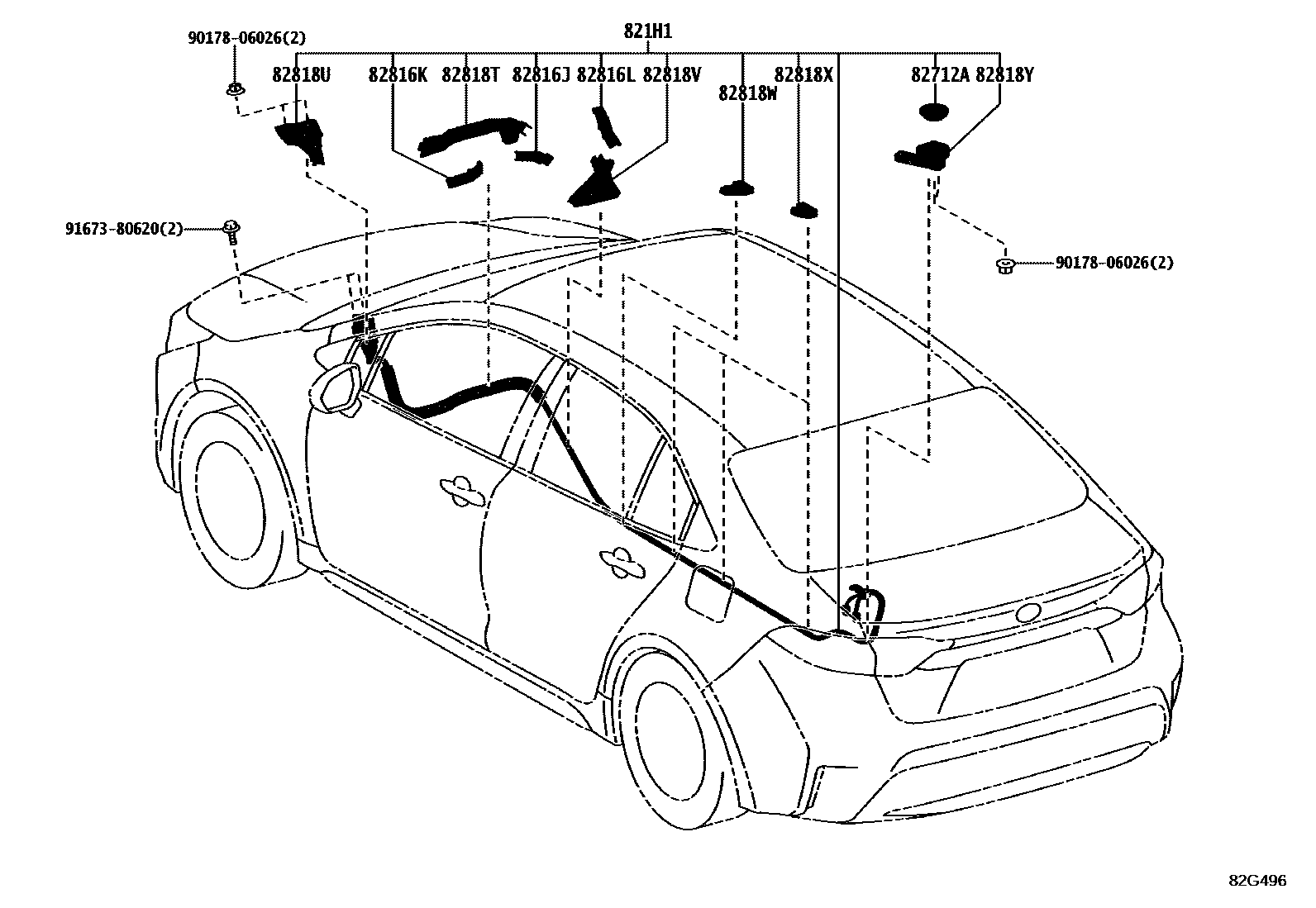

| 821H1 | Underfloor wiring harness | 821H1-12190 |
| 821H2 | HV air conditioner wiring harness | 821H2-V1010 |
| 82286A | Line 2 | 82286-47010 |

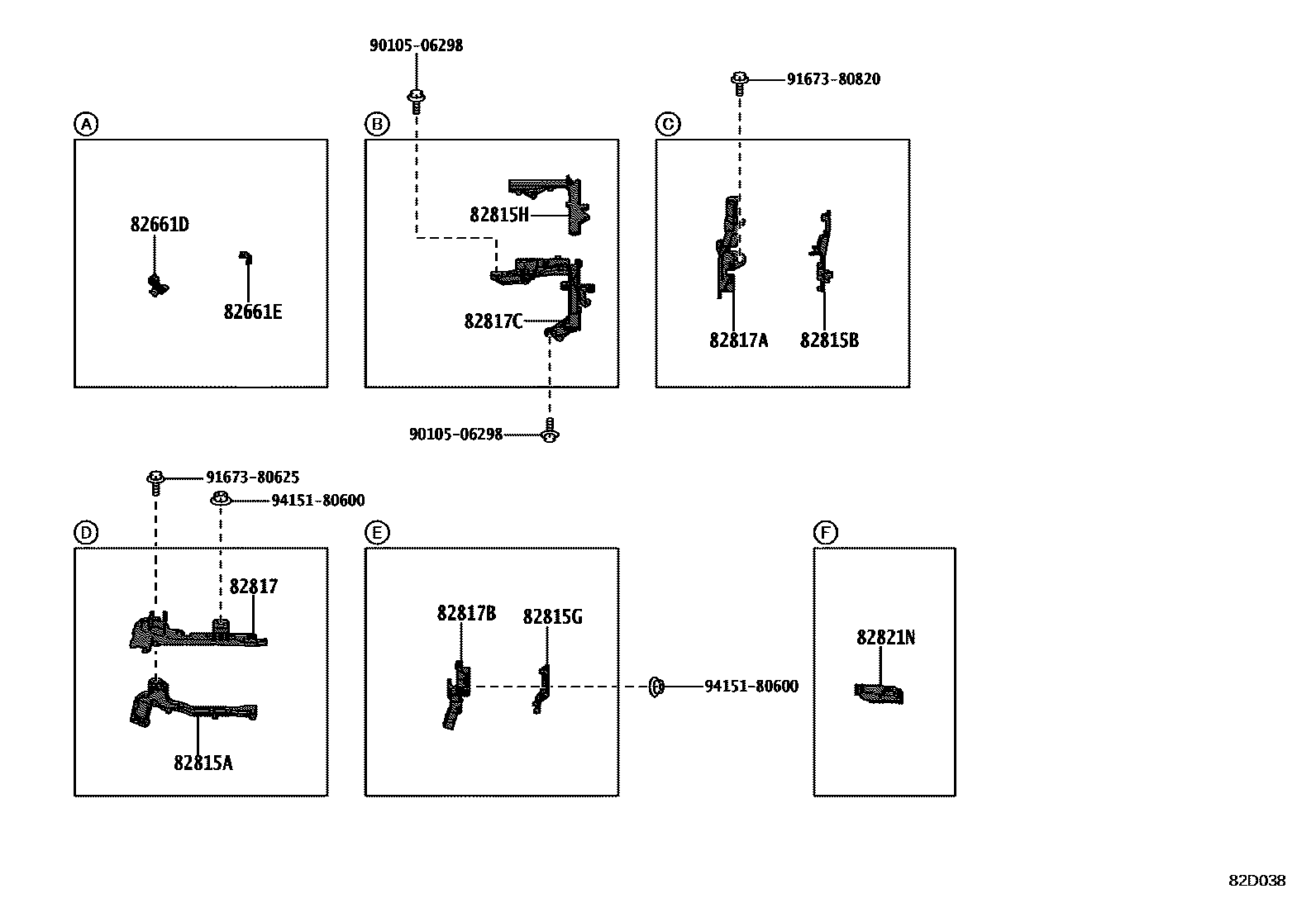

| 82661D | No. 1 relay box side cover | 82661-12340 · 82661-76020 |
| 82661E | No. 2 relay box side cover | 82661-12350 · 82661-76030 |
| 82661H | Relay box cover | 82661-16250 |
| 82666B | No. 3 connector holder | 82666-12670 |
| 82666C | No. 4 connector holder | 82666-12680 |
| 82666D | No. 5 connector holder | 82666-60220 |
| 82666F | No. 7 connector holder | 82666-26180 |
| 82666G | No. 8 connector holder | 82666-22070 |
| 82666L | No. 9 connector holder | 82666-26180 |

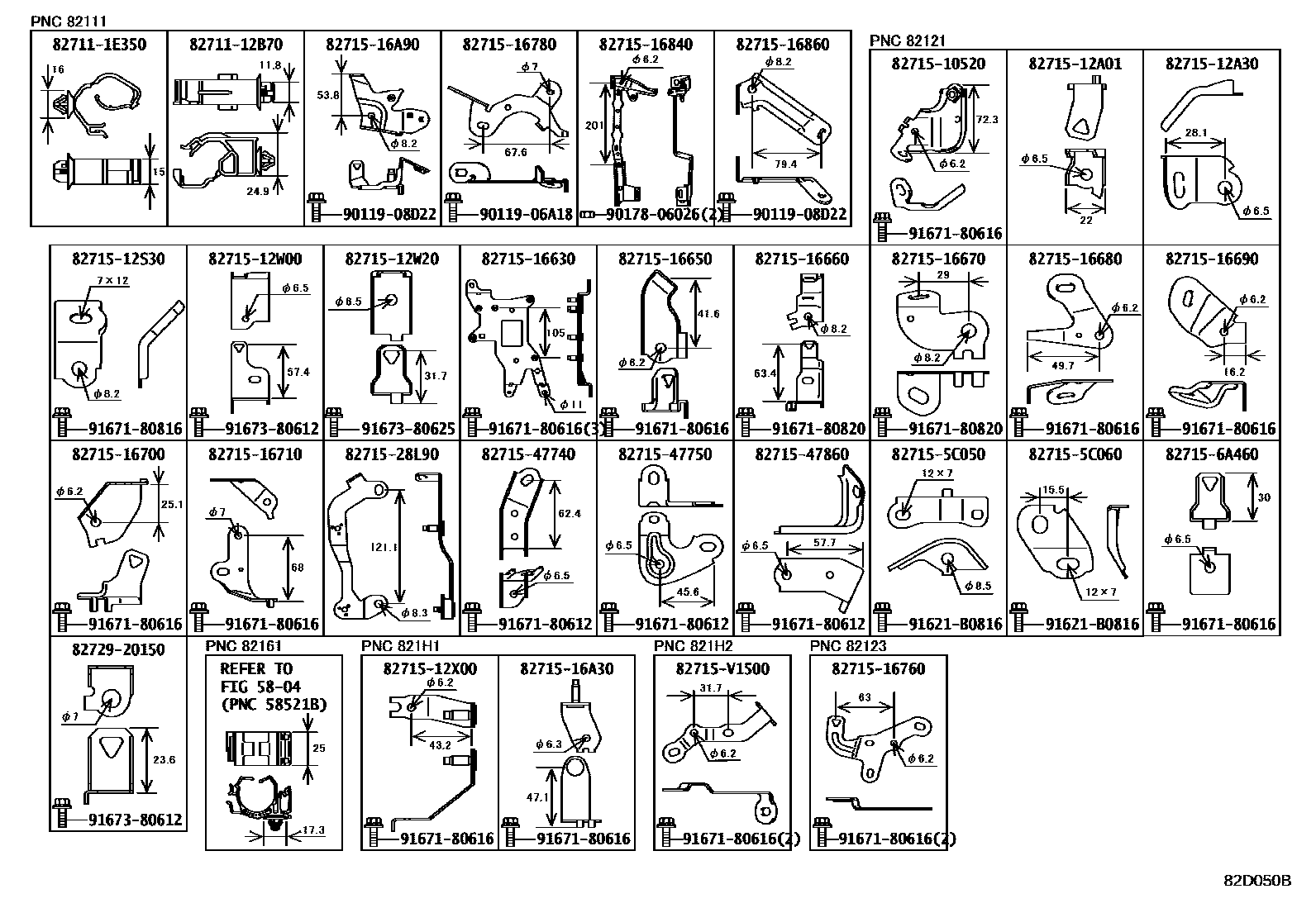

| 82712A | Wire harness bracket | 82712-16040 |
| 82815A | Wiring harness protector cover | 82815-12K60 · 82815-16090 |
| 82815B | Wiring harness protector cover | 82815-12K50 · 82815-16100 |
| 82815G | No. 5 wire harness protector cover | 82815-12K70 · 82815-V1430 |
| 82815H | No. 6 wire harness protector cover | 82815-12K40 · 82815-V1600 |
| 82815J | No. 7 wire harness protector cover | 82815-V1610 |
| 82815N | No. 11 wire harness protector cover | 82815-V1340 |

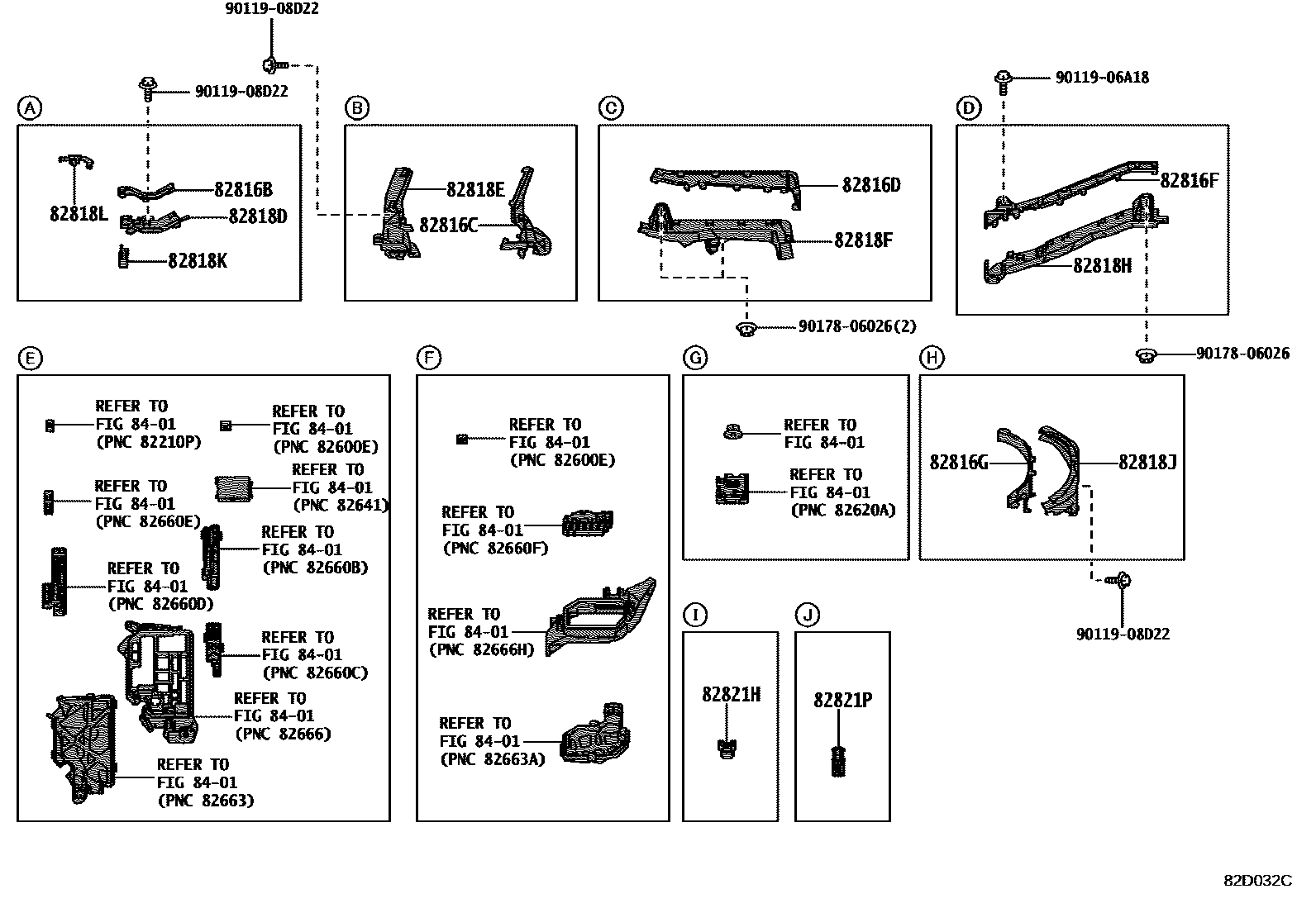

| 82816B | No. 1 wire harness protector cover | 82815-12L40 · 82815-16200 |
| 82816C | No. 2 wire harness protector cover | 82815-12L70 · 82815-16230 |
| 82816D | No. 3 wire harness protector cover | 82815-12L80 · 82815-16300 |
| 82816F | No. 4 wire harness protector cover | 82815-12L90 · 82815-16320 |
| 82816G | No. 5 wire harness protector cover | 82815-12J00 |
| 82816J | No. 7 wire harness protector cover | 82815-12690 |
| 82816K | No. 8 wire harness protector cover | 82815-16140 |
| 82816L | No. 9 wire harness protector cover | 82815-16150 |
| 82817 | No. 1 wire harness protection device | 82817-12V80 · 82817-16830 |
| 82817A | No. 2 wire harness protection device | 82817-12V70 · 82817-16840 |
| 82817B | No. 3 wire harness protection device | 82817-12V90 · 82817-V1600 |
| 82817C | No. 4 wire harness protection device | 82817-12V60 · 82817-V1820 |
| 82817D | No. 5 wire harness protection device | 82817-V1840 |
| 82817P | No. 14 wire harness protection device | 82817-1AA90 |
| 82817T | No. 15 wire harness protection device | 82817-47L50 |
| 82818D | No. 5 wire harness protection device | 82817-12Z20 · 82817-16770 |
| 82818E | No. 6 wire harness protection device | 82817-12Z60 · 82817-16780 |
| 82818F | No. 7 wire harness protection device | 82817-12Z70 · 82817-16790 |
| 82818H | No. 9 wire harness protection device | 82817-12Z80 · 82817-16820 |
| 82818J | No. 10 wire harness protection device | 82817-12W50 · 82817-16A10 |
| 82818K | No. 11 wire harness protection device | 82817-12Z50 · 82817-16A20 |
| 82818L | No. 12 wire harness protection device | 82817-12Z10 · 82817-16A40 |
| 82818N | No. 14 wire harness protection device | 82817-V1510 |
| 82818S | No. 15 wire harness protection device | 82817-12Q00 |
| 82818T | No. 16 wire harness protection device | 82817-12P10 |
| 82818U | No. 17 wire harness protection device | 82817-16700 |
| 82818V | No. 18 wire harness protection device | 82817-16720 |
| 82818W | No. 19 wire harness protection device | 82817-16730 |
| 82818X | No. 20 wire harness protection device | 82817-16740 |
| 82818Y | No. 21 wire harness protection device | 82817-16750 |
| 82821A | Connector cover | 82821-28420 |
| 82821H | Connector cover | 82821-30650 |
| 82821M | Connector cover | 82821-12B60 · 82821-33690 |
| 82821N | Connector cover | 82821-33310 · 82821-V1030 |
| 82821P | Connector cover | 82821-50500 |
| 82821R | Connector cover | 82821-30600 |
| 82823S | starter terminal cover | 82823-12120 |
| 82823T | Generator terminal cover | 82823-22050 |

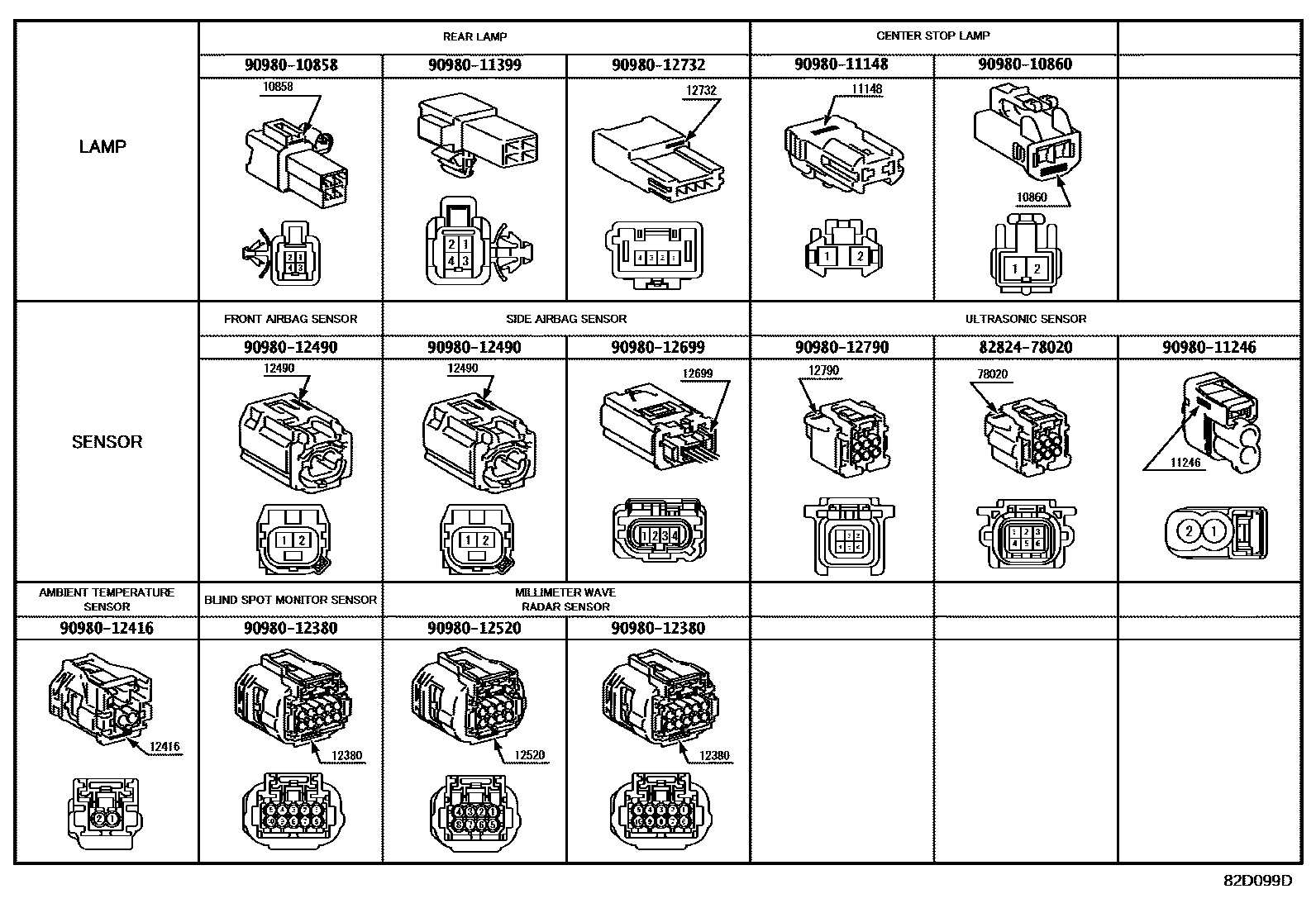

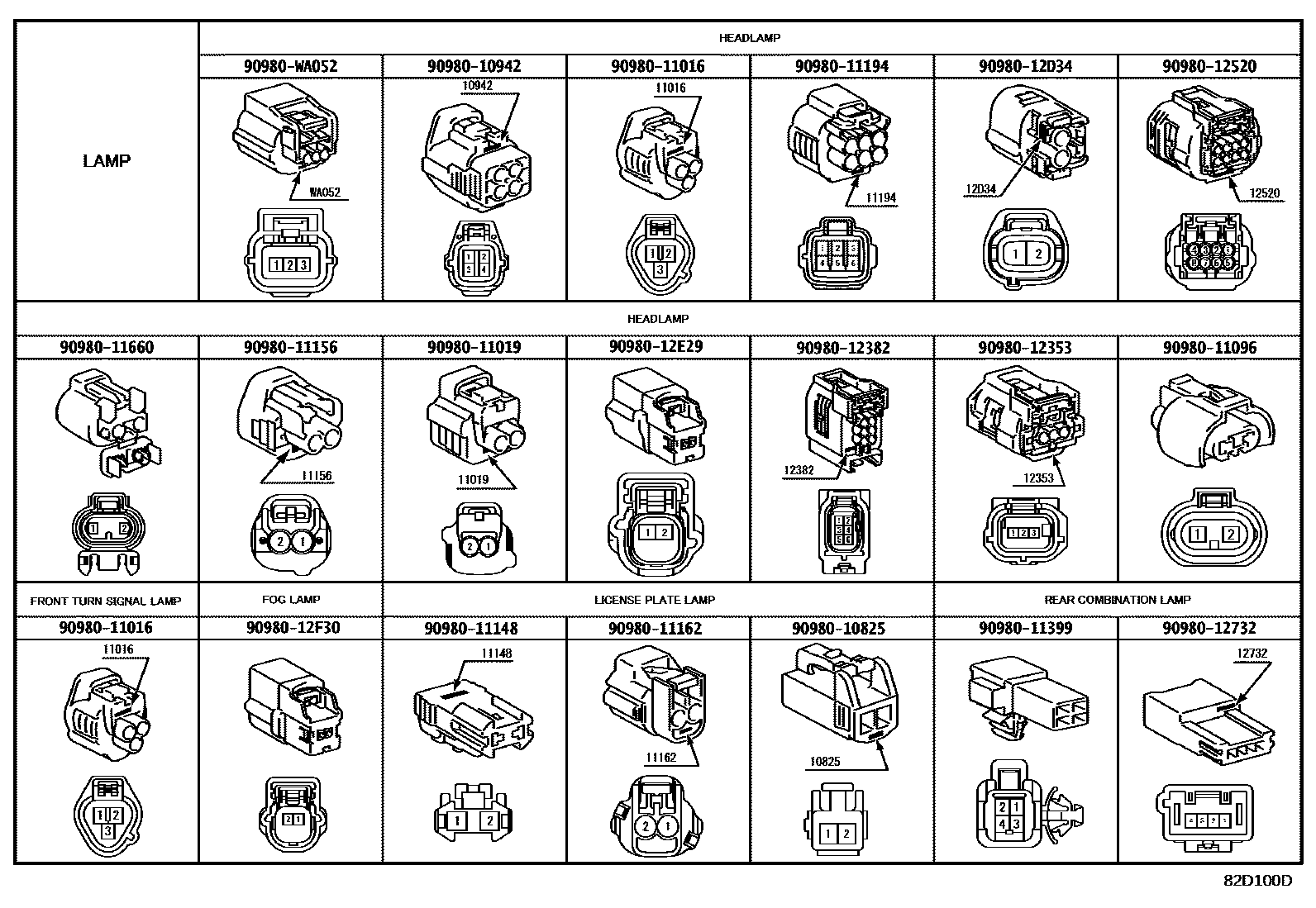

| 82824 | Harness connector | 90980-12373 |
| 82824A | Harness connector | 82824-12530 |
| 82H21J | Connector cover | 82821-33C70 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-12010 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-12020 |
