Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

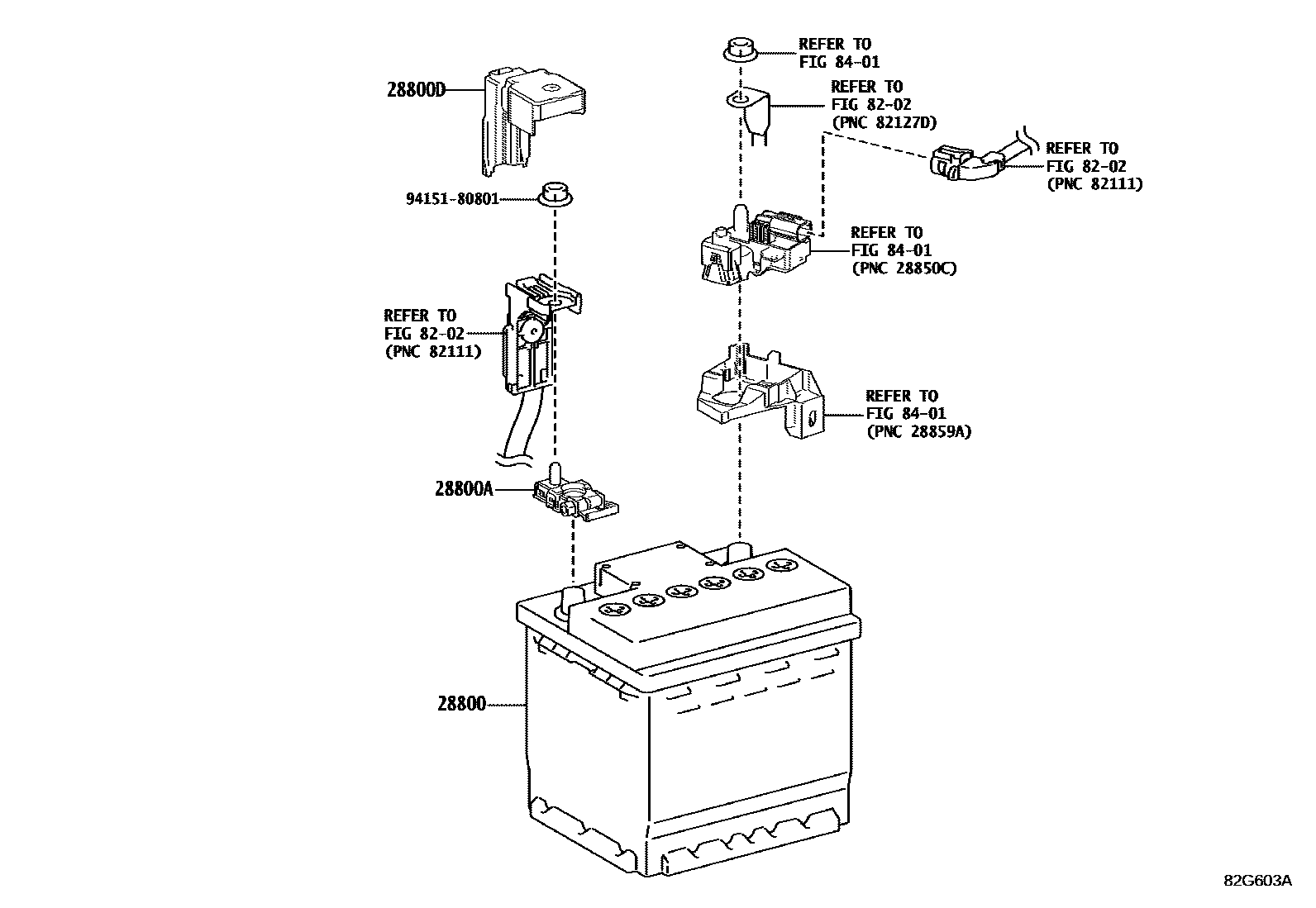

| 28800 | battery | 28800-37130 · 28800-37131 |
| 28800A | battery positive terminal | 82675-78030 |
| 28800D | Connector cover (for battery terminals) | 82821-78140 |
| 28800J | battery negative terminal | 90982-06070 |

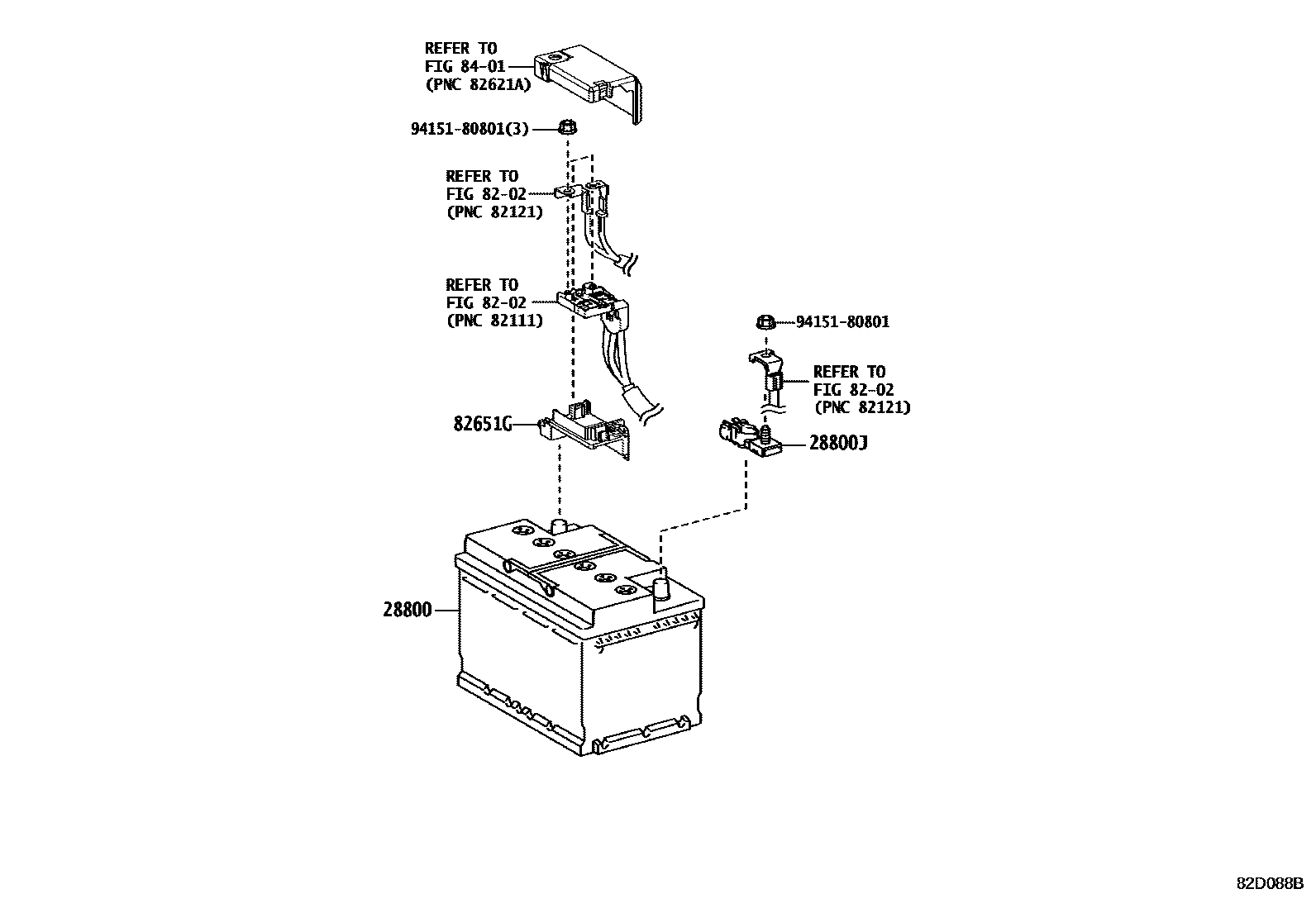

| 82651G | BORNE, POSITIF DE BATTERIE | 82651-10010 |
| 82685E | Maintenance plug warning nameplate | 82685-47111 |
| 89890A | Battery ECU assembly | 89890-28041 · 89890-28042 |
| G3830A | Electric vehicle battery plug assembly | G3830-12020 |
| G3834 | Service plug handle | G3834-47050 |
| G384B | Power battery device box No. 1 | G384B-28010 |
| G920B | HV battery bracket No. 1 bracket sub-assembly | G920B-16010 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-12010 |

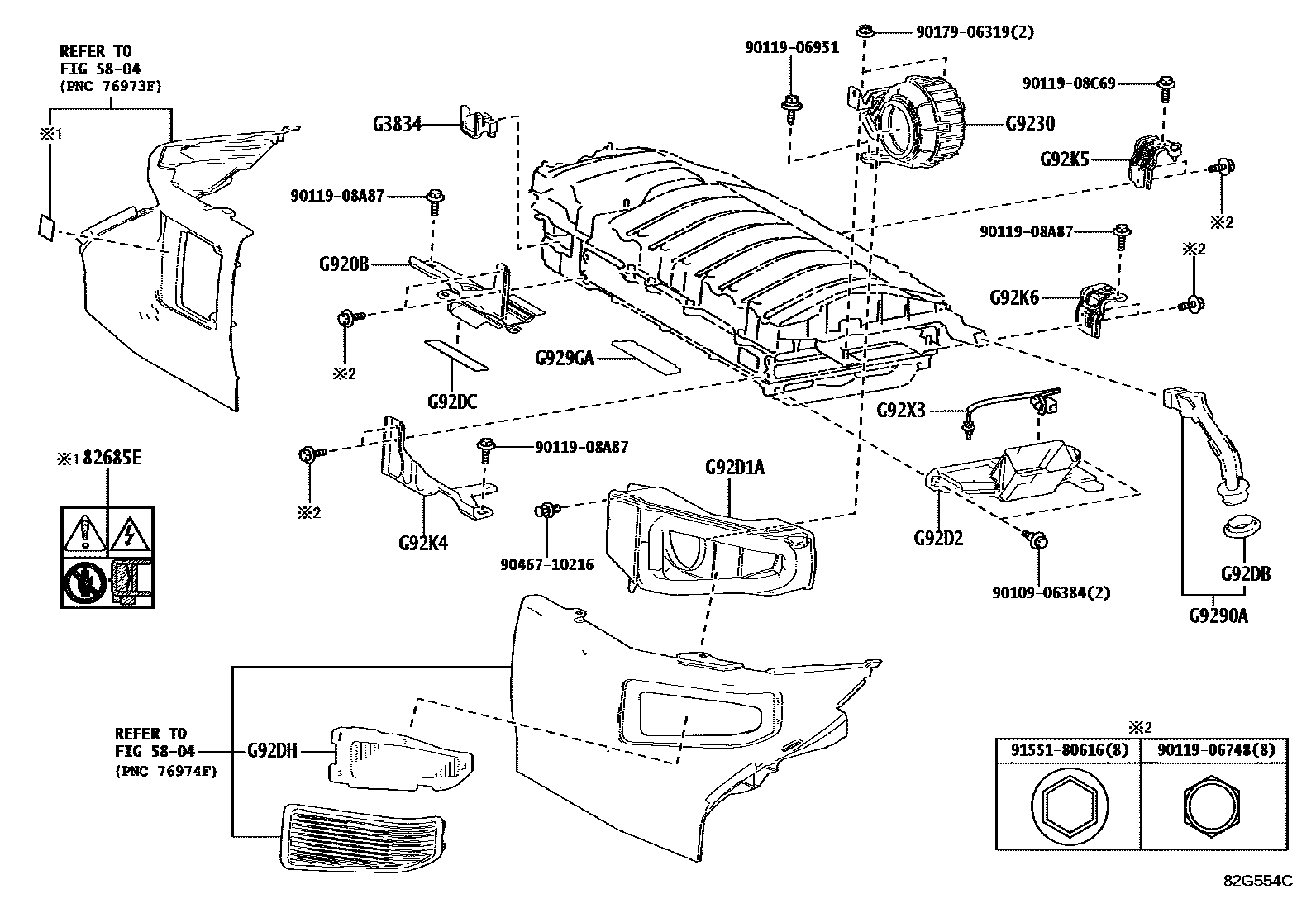

| G9230 | Battery cooling blower assembly | G9230-12020 |
| G923B | Battery cooling blower bracket | G923B-12010 |
| G9290A | HV battery hose assembly | G9290-12020 |
| G9295B | Battery cover lock | G9295-30020 |
| G929A | HV battery hose No. 1 | G929A-12010 |
| G929GA | No. 1 HV battery silencer | G929G-16010 |
| G92D1A | No. 1 EV battery air inlet | G92D1-12040 |
| G92D2 | No. 2 HV battery air inlet | G92D2-12020 |
| G92DB | No. 1 HV battery seal | G92DB-47030 |
| G92DC | HV Battery No. 2 Seal | G92DE-16010 |
| G92DH | No. 1 HV battery air intake filter | G92DH-12060 |
| G92K4 | HV Battery Bracket No. 2 Bracket | G92K4-12020 |
| G92K5 | HV battery bracket No. 3 bracket | G92K5-12020 |
| G92K6 | HV Battery Bracket No. 4 Bracket | G92K6-12020 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-12020 |
| G92X3 | No. 3 HV battery pack wiring harness | G92X3-12010 |

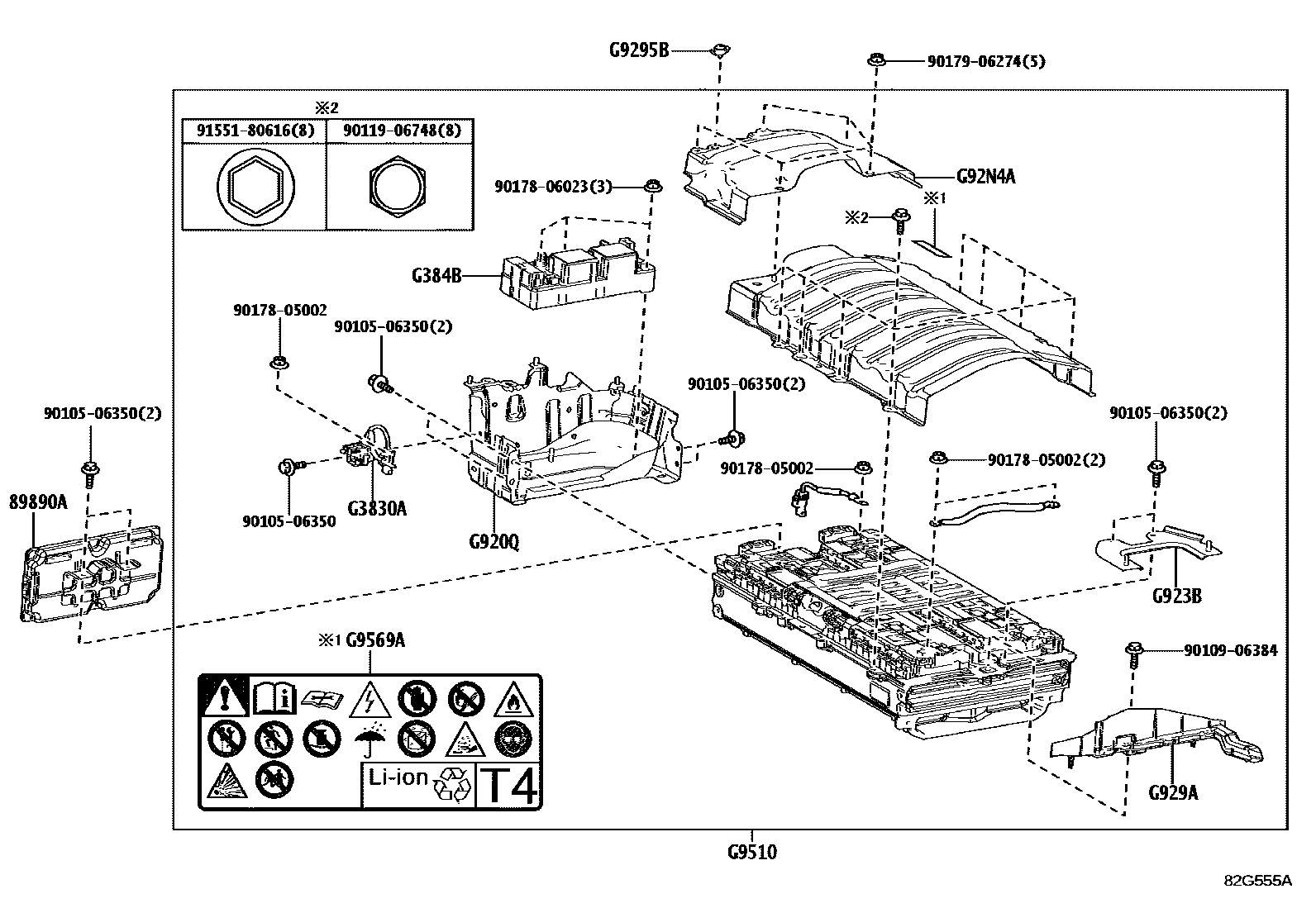

| G9510 | HV power supply battery assembly | G9510-16020 · G9510-16021 · G9510-16022 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-48020 |
