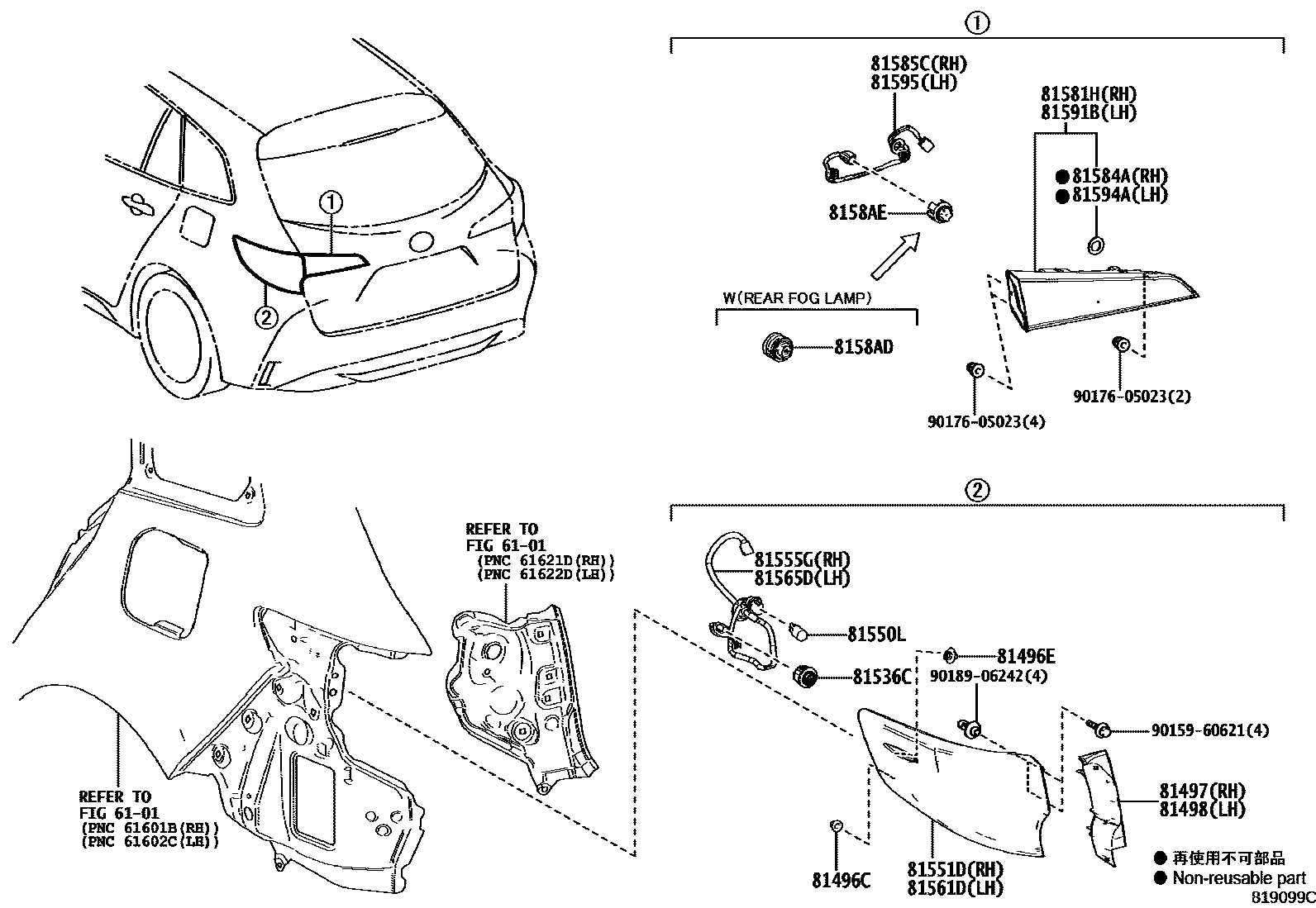

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81496E | No. 3 rear combination light guide block | 81496-12070 |
| 81497 | Right rear combination lamp cover | 81497-12050 |
| 81498 | Left rear combination lamp cover | 81498-12050 |
| 81536C | LED tail lights and brake lights | 81536-15120 · 81965-70010 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12E20 |
| 81555G | Right rear combination lamp wire | 81555-12E20 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12D70 |
| 81565D | Left rear combination lamp wire | 81565-12D70 |
| 81581H | Tail light shade and body | 81581-12380 · 81581-12390 |
| 81584A | Right rear light gasket | 81584-12380 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-12380 · 81585-12390 |
| 8158AD | Rear LED fog lights | 8158A-0D610 |
| 8158AE | LED reversing light | 8158A-12260 |
| 81591B | Left rear light shade and body | 81591-12380 |
| 81594A | Left rear light gasket | 81584-12380 |
| 81595 | Left rear light lamp holder and wiring harness | 81595-12380 |
