Toyota COROLLA Headlamp — Figure 8101

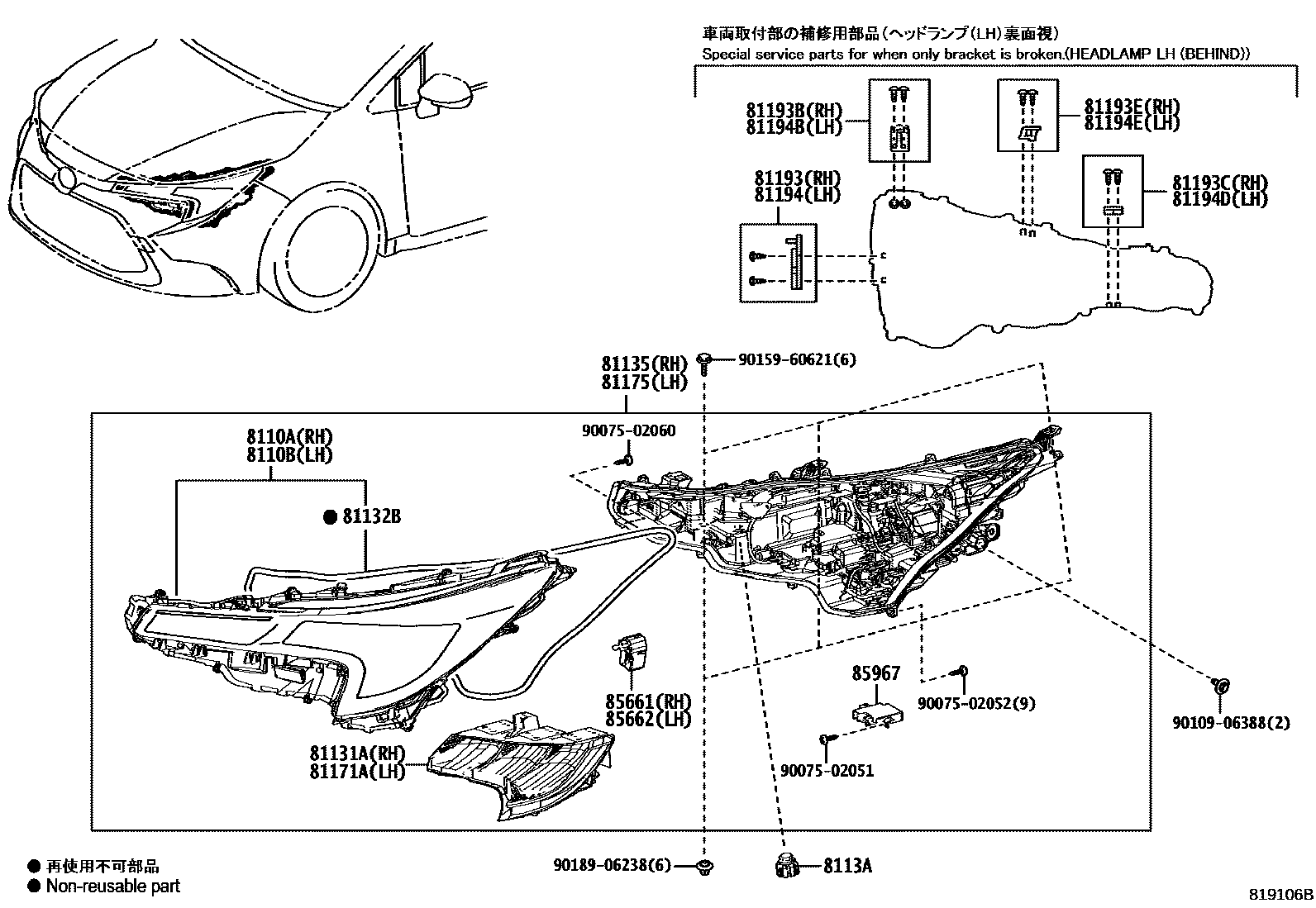

Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-12M40 |
| 8110B | Left headlight cover sub-assembly | 8110B-12G90 |
| 81131A | Right headlight assembly | 81130-12M10 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81135 | Right headlight assembly assembly | 81105-12M40 |
| 8113A | Headlight turn signal LED | 81536-12D30 |
| 81171A | Left headlight assembly | 81170-12M10 |
| 81175 | Left headlight assembly assembly | 81106-12G90 |
| 81193 | Right headlight upper protective ring | 81193-12250 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-12260 |
| 81193C | Right headlight upper right protection ring | 81193-12270 |
| 81193E | Protective ring on the right No. 3 headlight | 81193-12280 |
| 81194 | Left headlight upper protective ring | 81194-12250 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-12260 |
| 81194D | Left headlight upper left protective ring | 81194-12270 |
| 81194E | Protective ring on the left No. 3 headlight | 81194-12280 |
| 85661 | Right headlight beam height adjustment motor | 85661-48050 |
| 85662 | Left headlight beam height adjustment motor | 85661-48050 |
| 85967 | Light control ECU | 85967-12020 |
