Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

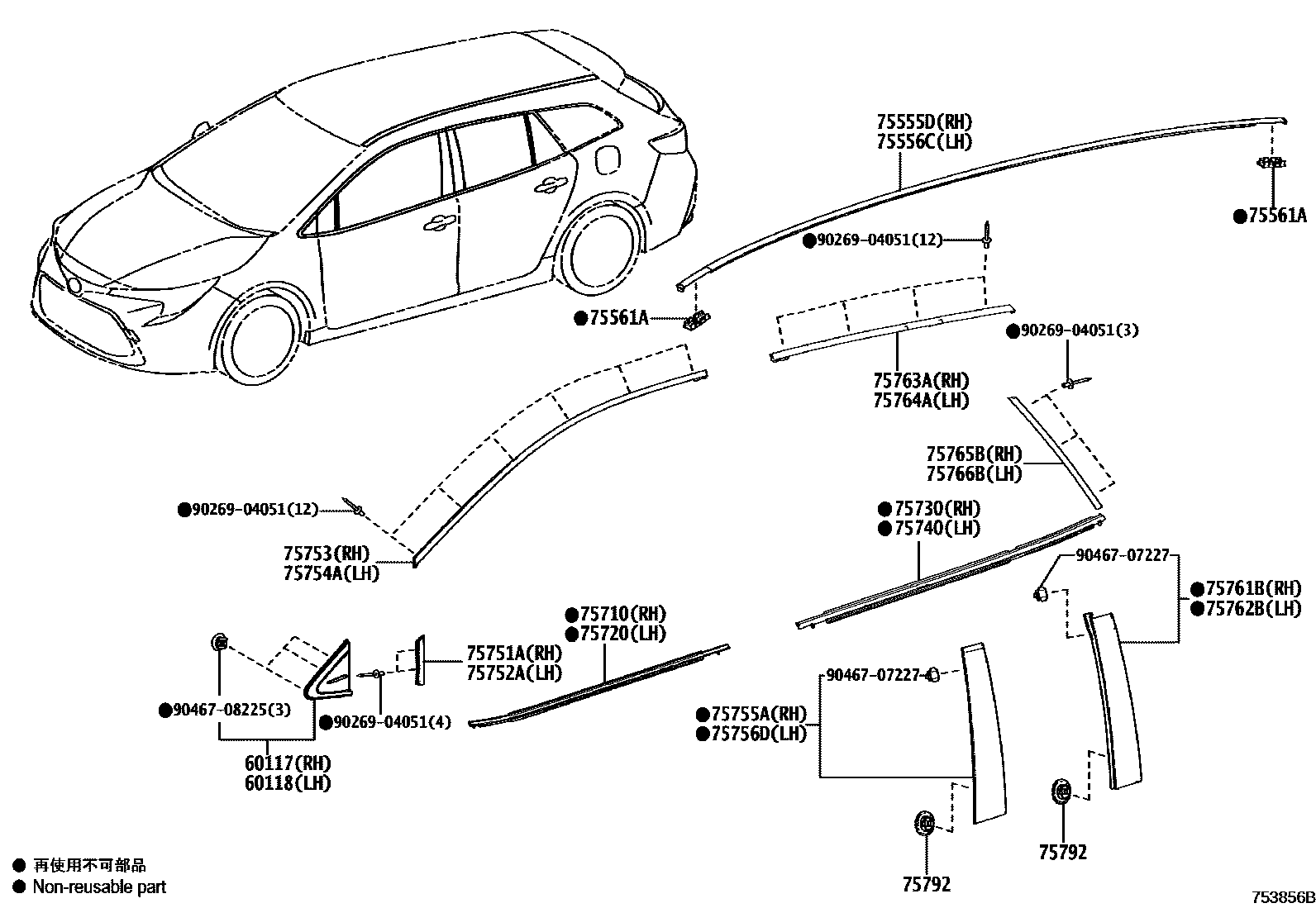

| 60117 | Right front pillar upper cover sub-assembly | 60117-12070 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-12070 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12230 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12240 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-12890 |
| 75720 | Left front door waistline protection strip assembly | 75720-12A30 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12470 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12560 |
| 75751A | Front door window frame protection strip (right front pillar) | 75751-12250 |
| 75752A | Front door window frame protection strip (left front pillar) | 75752-12250 |
| 75753 | Protective strip on right front door window frame | 75753-12100 |
| 75754A | Protective strip on left front door window frame | 75754-12080 |
| 75755A | Front door window frame protection strip (right center pillar) | 75755-12140 |
| 75756D | Front door window frame protection strip (left center pillar) | 75756-12160 |
| 75761B | Rear door window frame protection strip (right center pillar) | 75761-12090 |
| 75762B | Rear door window frame protection strip (left center pillar) | 75762-12090 |
| 75763A | Protective strip on right rear door window frame | 75763-12140 |
| 75764A | Protective strip on left rear door window frame | 75764-12150 |
| 75765B | Rear door window frame protection strip (right rear pillar) | 75765-12160 |
| 75766B | Rear door window frame protection strip (left rear pillar) | 75766-12160 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |

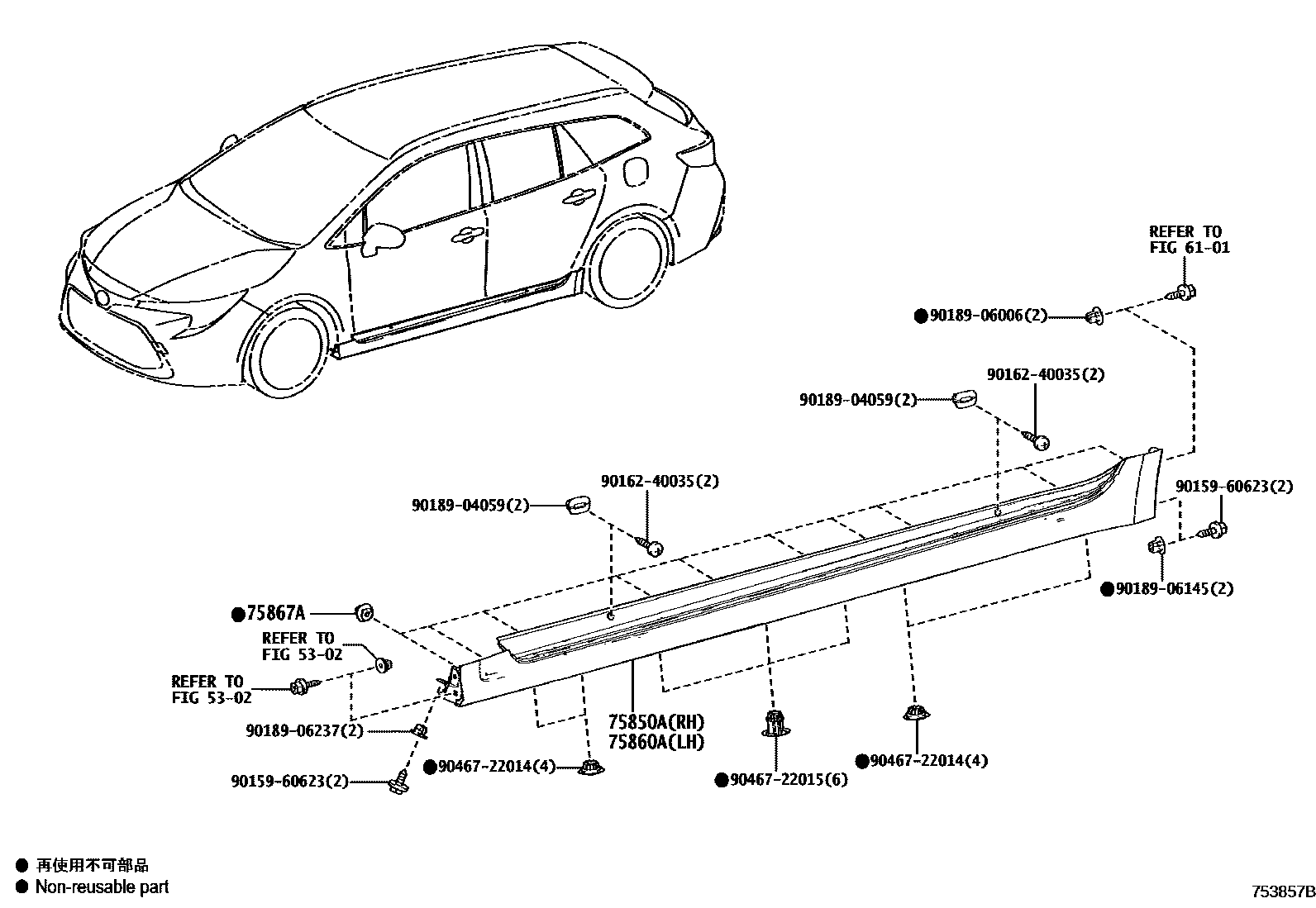

| 75850A | Right body door sill panel protective strip assembly | 75851-12906 |
| 75860A | Left body door sill panel protective strip assembly | 75852-12906 |
| 75867A | Door sill panel protective strip clip | 75867-52020 |
