Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

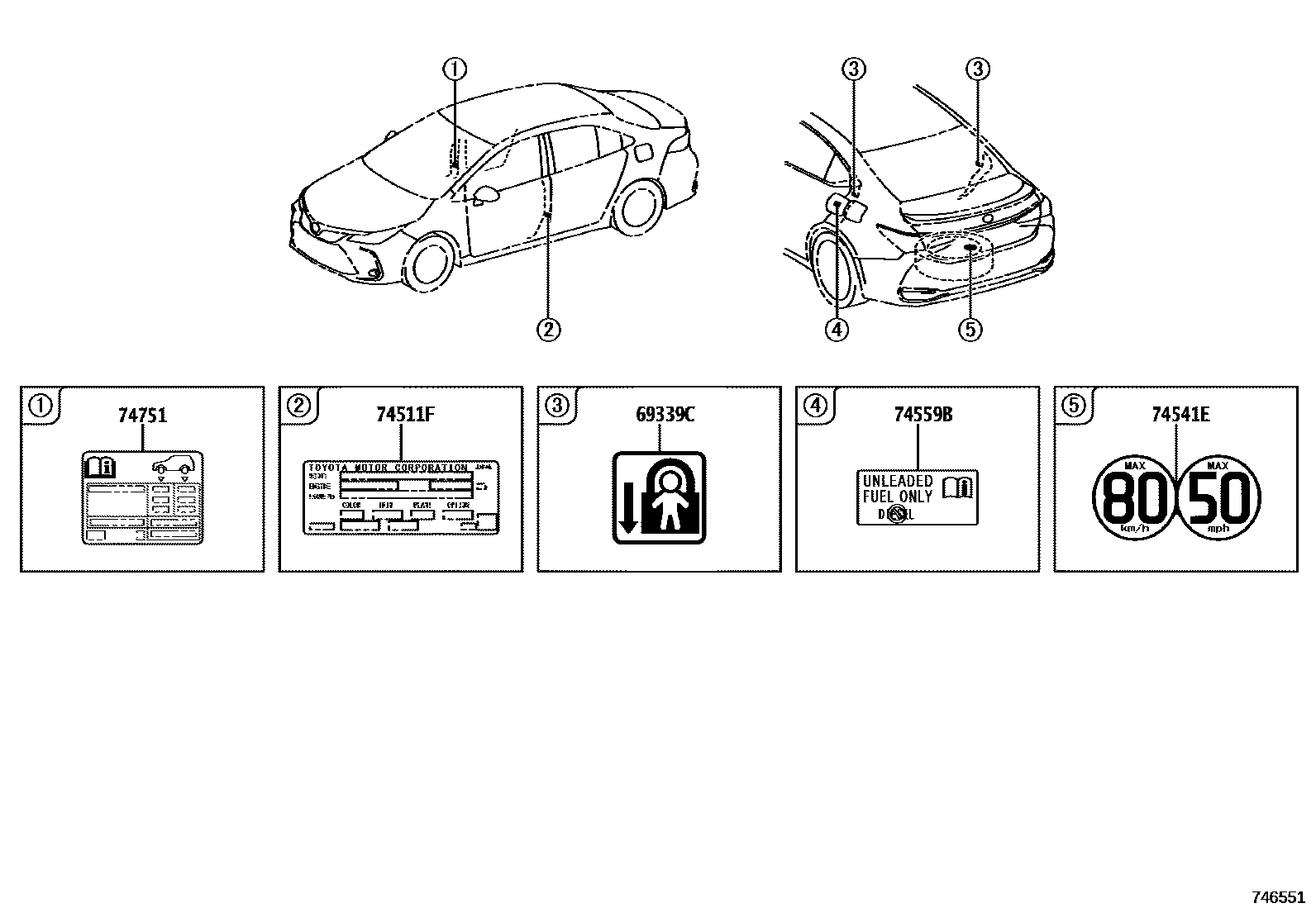

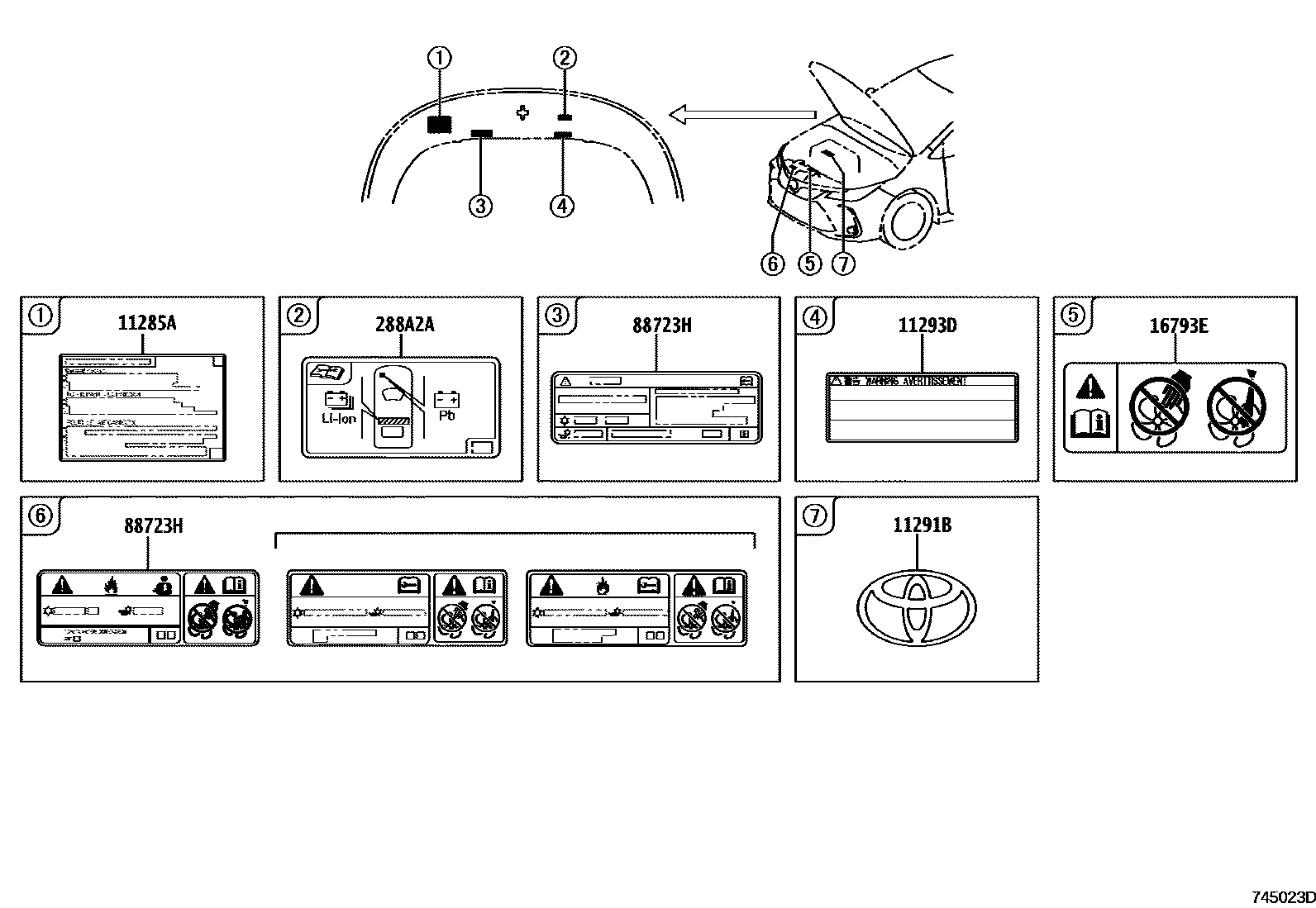

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33040 |
| 11291B | Engine name plate | 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-37070 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 288A2A | No. 2 battery location label | 288A2-37020 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-30A80 |
| 74541E | Small spare tire warning plate | 42668-42010 |
| 74559B | fuel information label | 74559-20140 |
| 74751 | tire pressure information label | 42661-12M60 · 42661-12T30 |
| 88723H | Cooler maintenance warning label | 88723-10050 · 88723-16150 · 88723-16180 |
