Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 3 PNC and OE references.

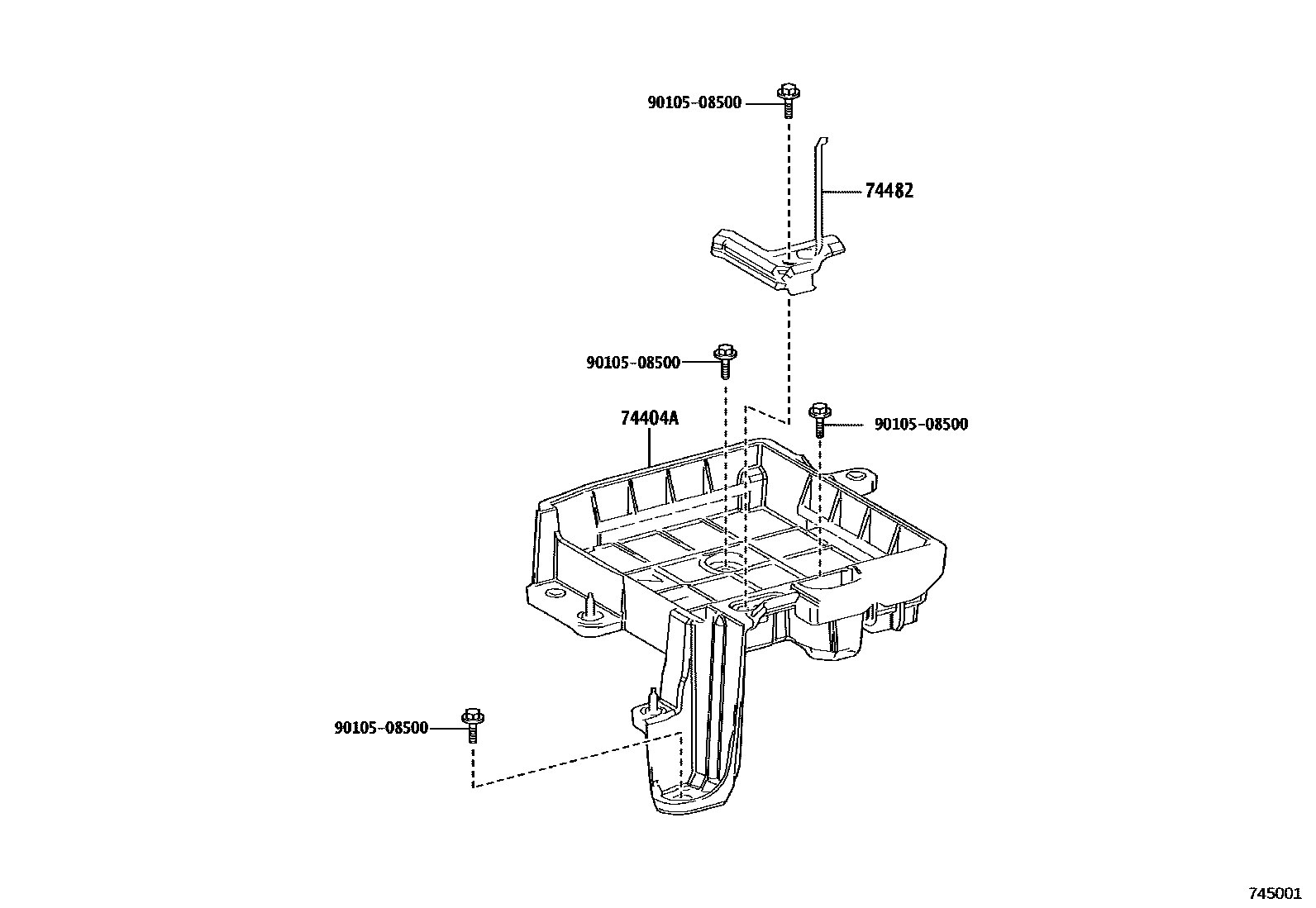

Toyota COROLLA battery holder EPC diagram — 745001
battery holder — 745001 (201908 – 999999)

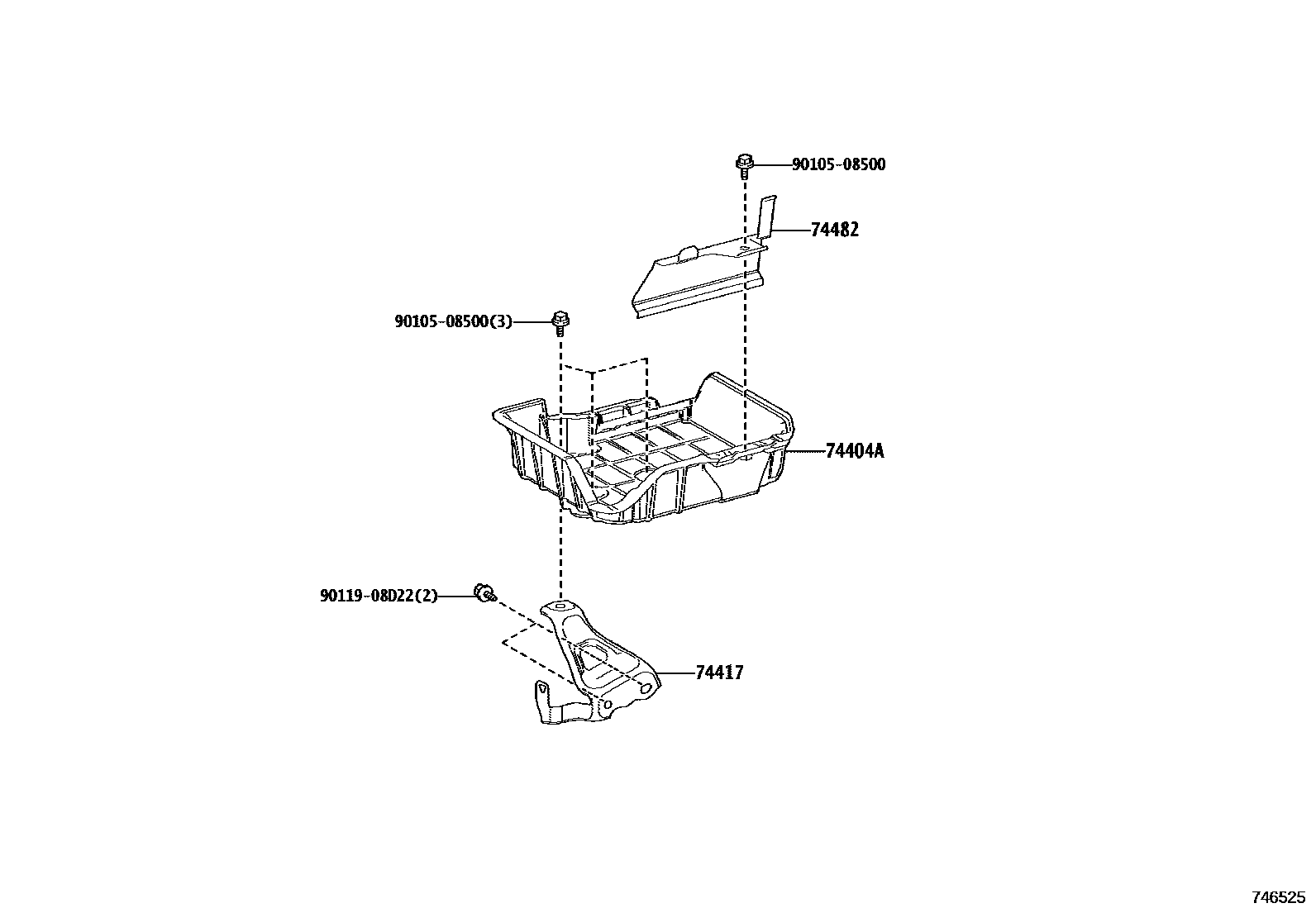

Toyota COROLLA battery holder EPC diagram — 746525
battery holder — 746525 (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-12540 · 74404-12610
74417battery holder bracket74417-12060
74482No. 2 battery clip74405-76021 · 74482-47010
