Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

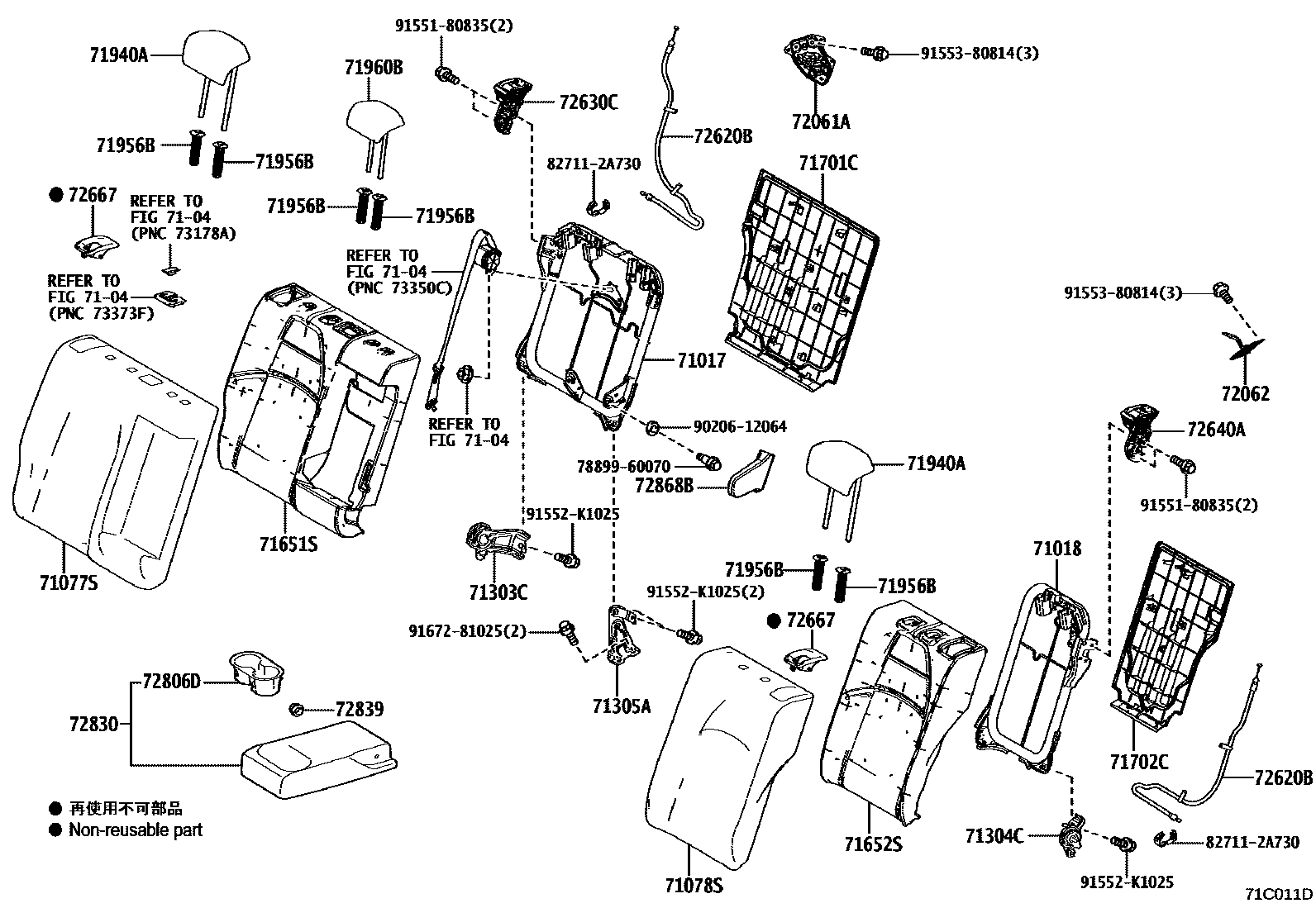

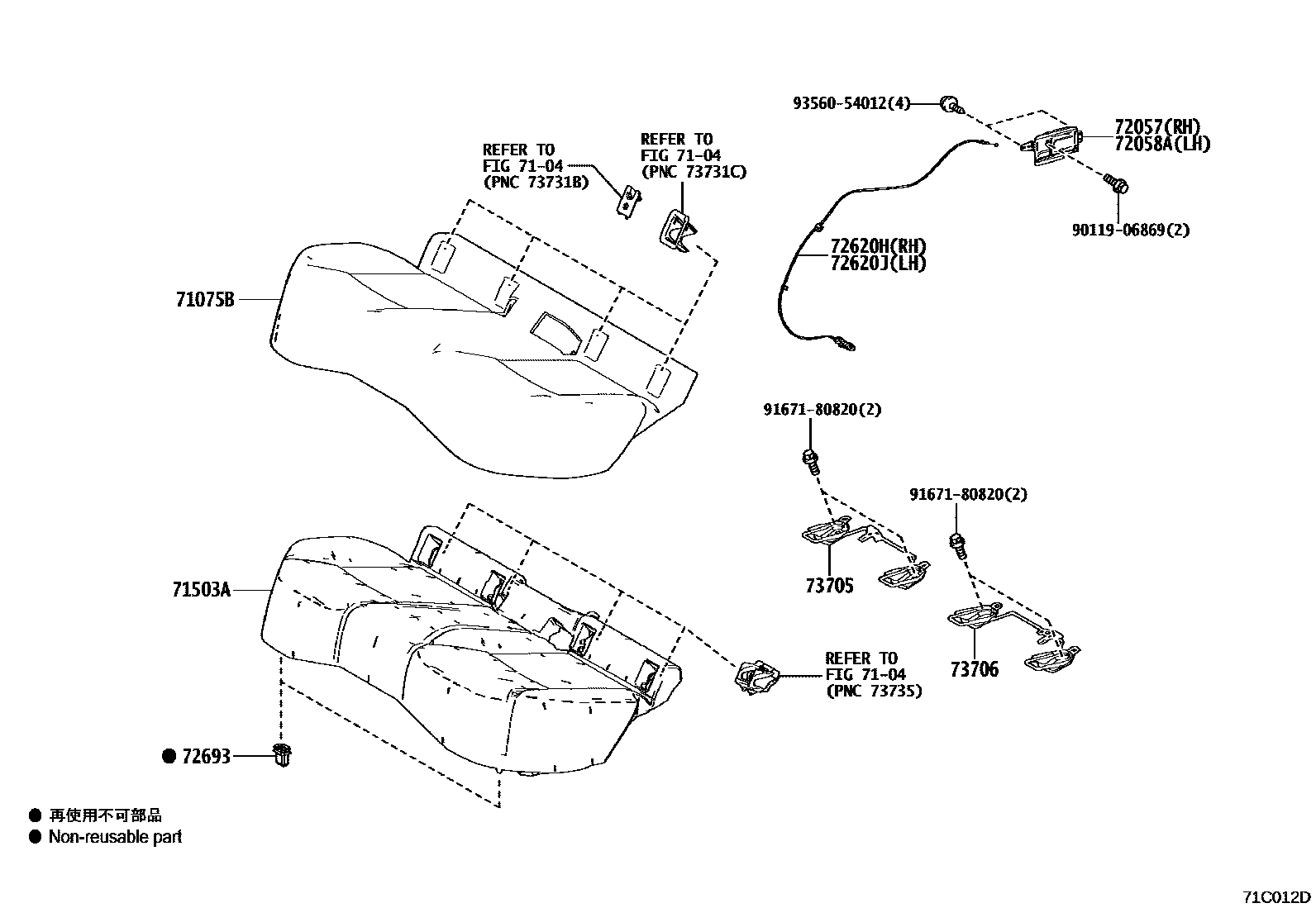

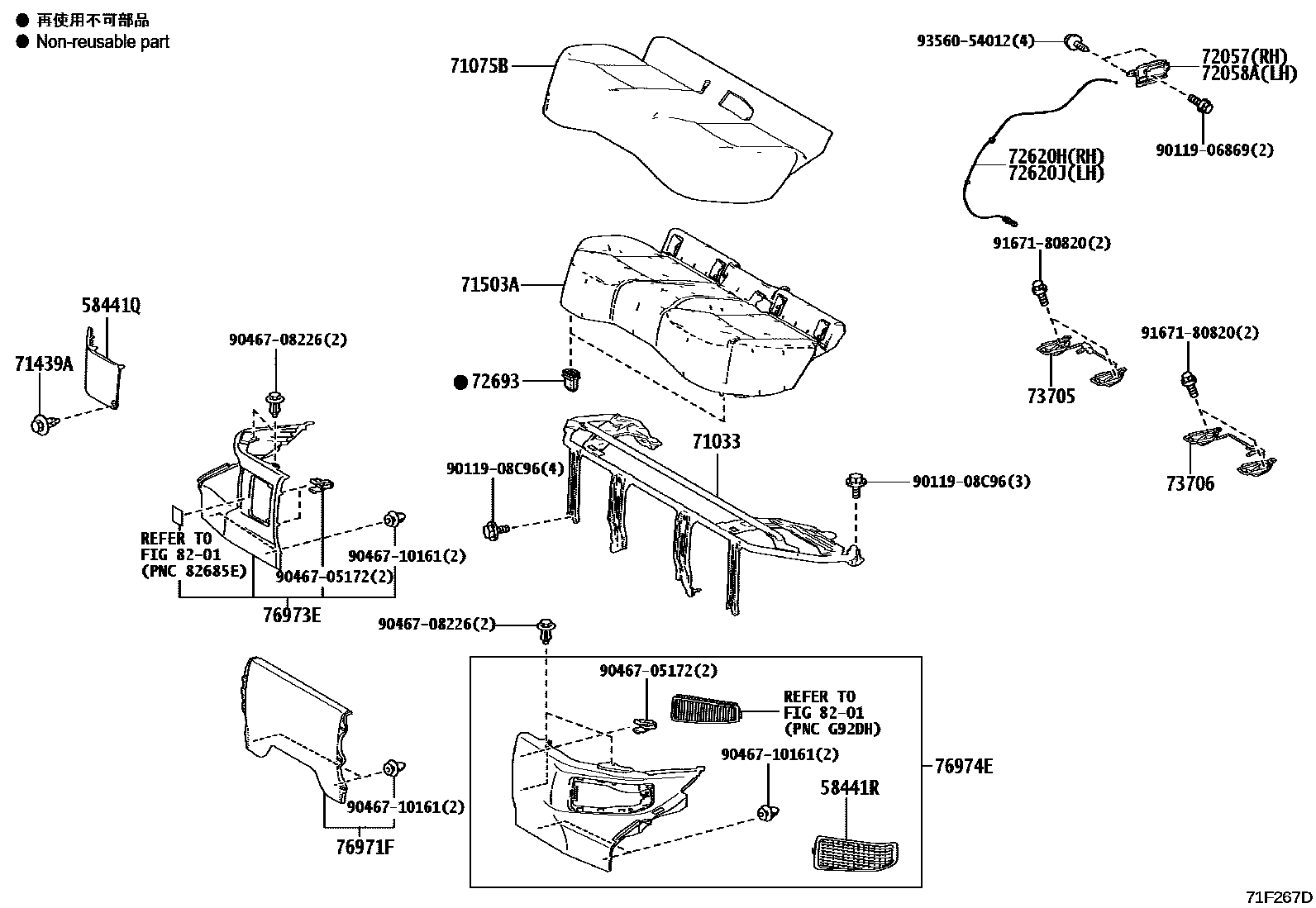

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12C20 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12540 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-12050 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-13040 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-13040 · 71304-13041 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-47040 |
| 71503A | Rear seat cushion sub-assembly | 71503-12310 · 71503-12570 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-13390 · 71651-13391 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-13230 |
| 71701C | Rear right seat back panel sub-assembly | 71701-12010 |
| 71702C | Rear left seat back panel sub-assembly | 71702-12010 |
| 72061A | Rear right seat back lock base sub-assembly | 72061-12020 |
| 72062 | Rear left seat back lock base sub-assembly | 72062-12020 |
| 72620B | Rear No. 1 seat lock cable assembly | 72620-13020 |
| 72620H | Rear right seat remote control folding cable assembly | 72620-13010 |
| 72620J | Rear left seat remote control folding cable assembly | 72620-13010 |
| 72630C | Rear right seat back lock assembly | 72630-13160 |
| 72640A | Rear left seat back lock assembly | 72640-13150 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72839 | Rear seat armrest hinge gasket | 72839-12010 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-12210 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73705-12220 |
