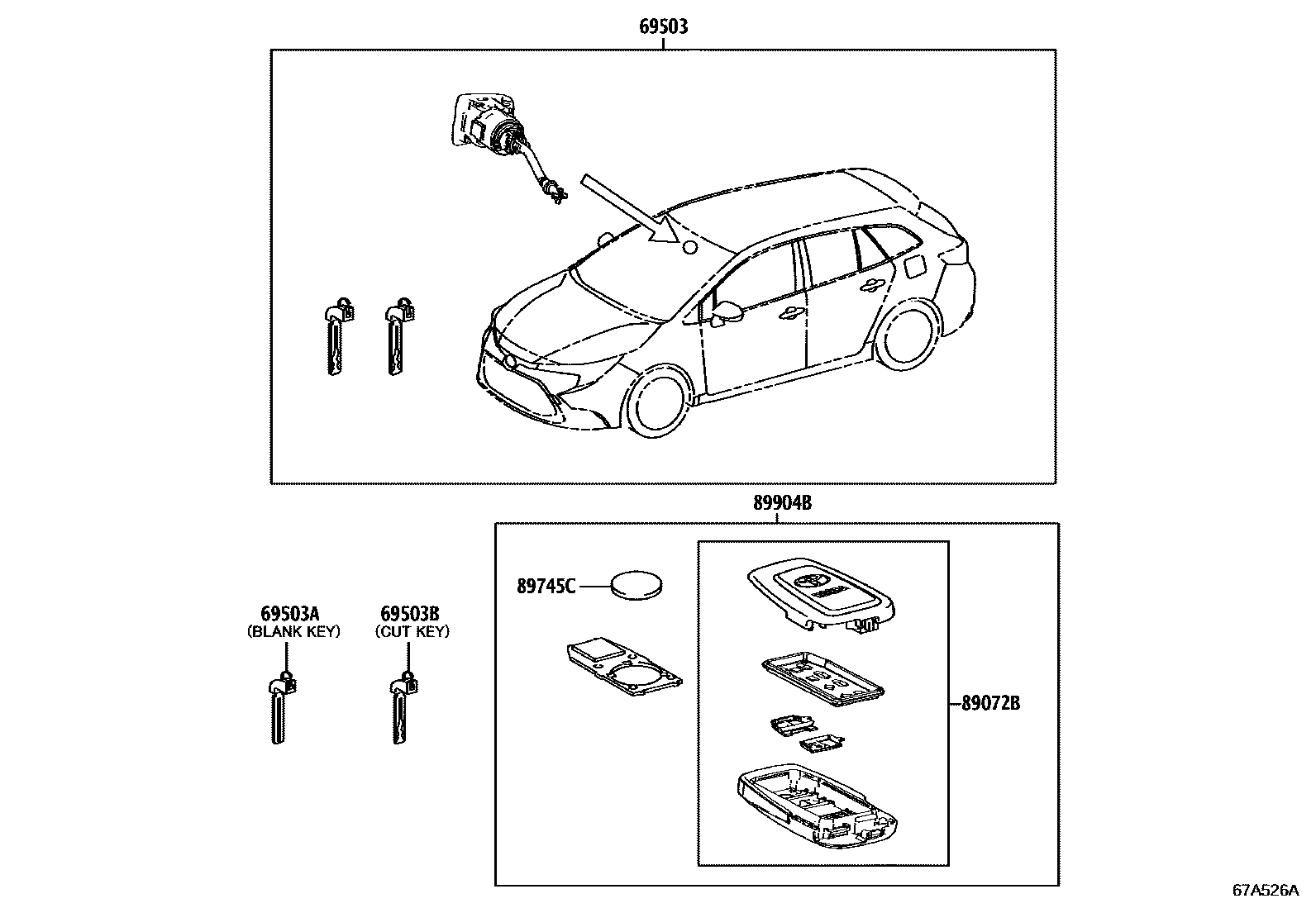

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-12K60 · 69005-12K61 |
| 69503A | external tooth key | 69515-16110 · 69515-47030 · 69515-K0020 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 · 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12500 · 89072-K0010 |
| 89745C | Transmitter battery | 89745-50020 · 89745-K0010 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-12130 · 8990H-52390 · 8990H-52391 |
