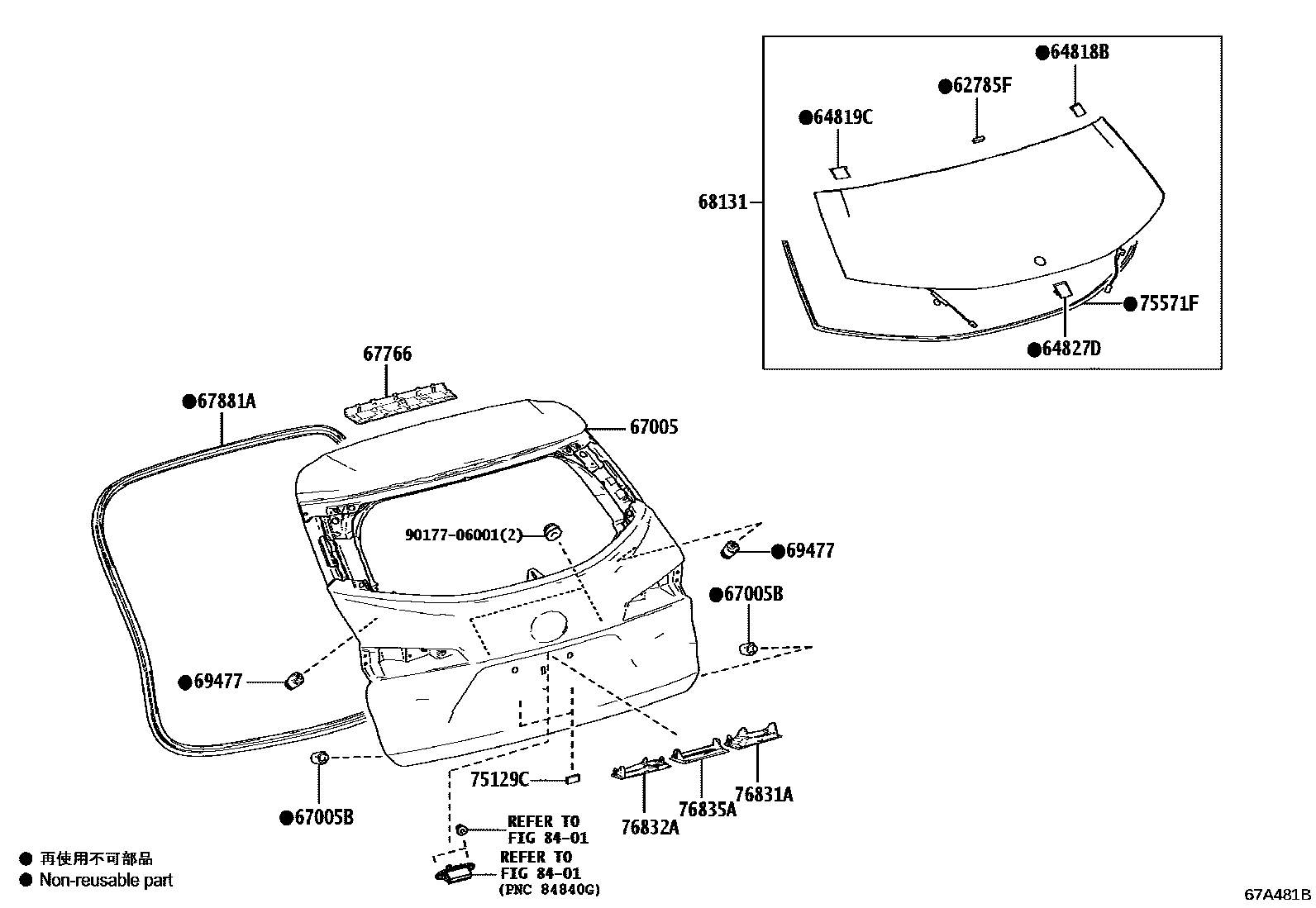

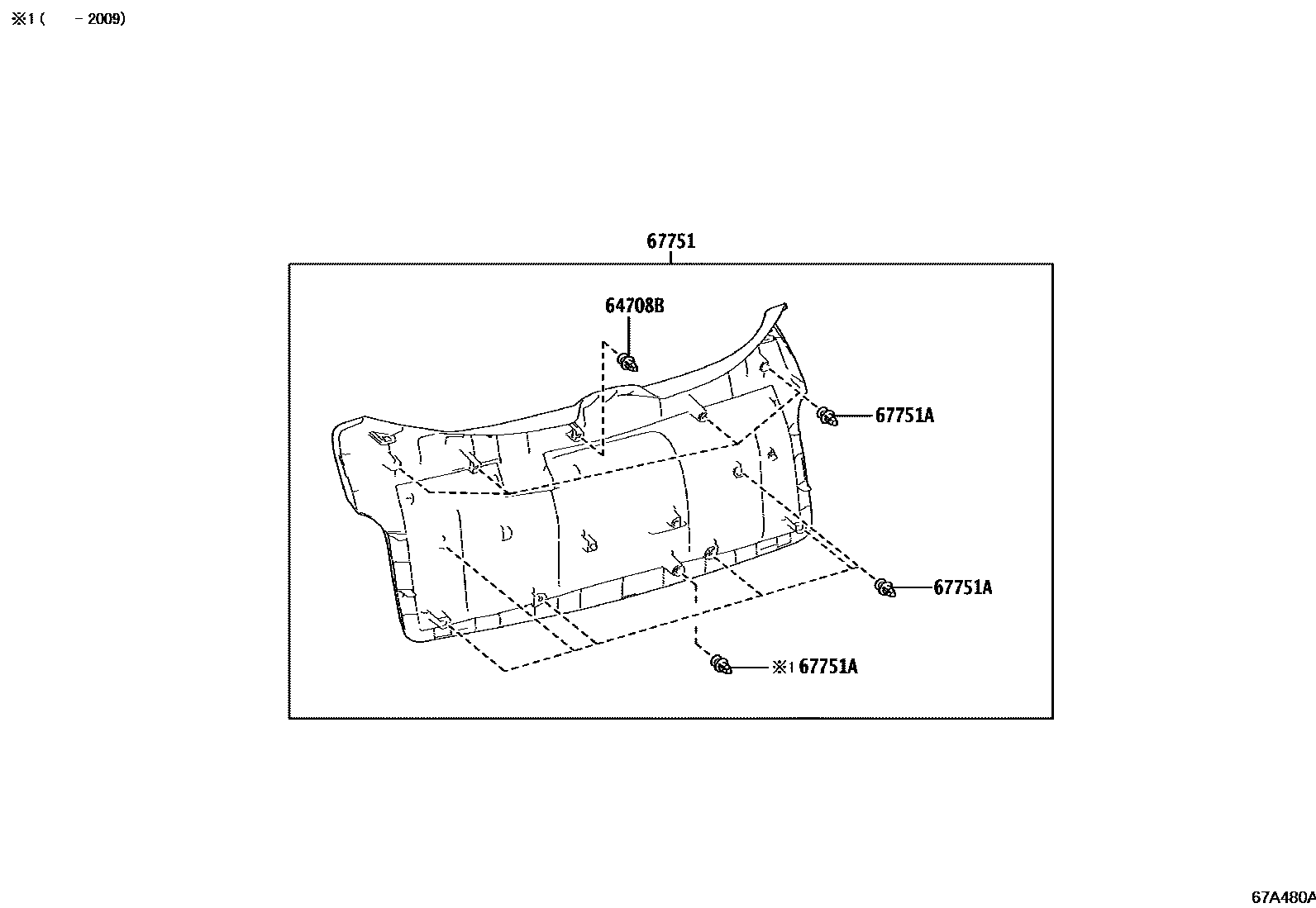

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-60030 |
| 64708B | Rear door decorative panel clip | 90467-10161 |
| 64818B | No. 1 back door glass spacer | 64818-12090 |
| 64819C | No. 2 rear door glass spacer | 64819-12070 |
| 64827D | Back window glass clip | 64827-12030 |
| 67005 | Rear door panel sub-assembly | 67005-12F90 |
| 67005B | Cushion pad (for back door panel) | 90541-09147 |
| 67751A | Clip (for rear door trim panel) | 90467-08232 · 90467-09232 |
| 67881A | Back door seal | 67881-12330 |
| 68131 | back door glass | 68105-12500 · 68105-12501 |
| 69477 | Back door upper stop buffer pad | 69477-12020 |
| 75129C | rear license plate cushion | 75129-30010 |
| 75571F | Back door and window protection strip | 75571-12B10 |
| 76831A | Decorative panel cover on the right side of the rear door | 76831-12010 |
| 76832A | Rear door left decorative panel cover | 76832-12010 |
| 76835A | No. 1 rear door decorative panel protective cover | 76835-12040 |
