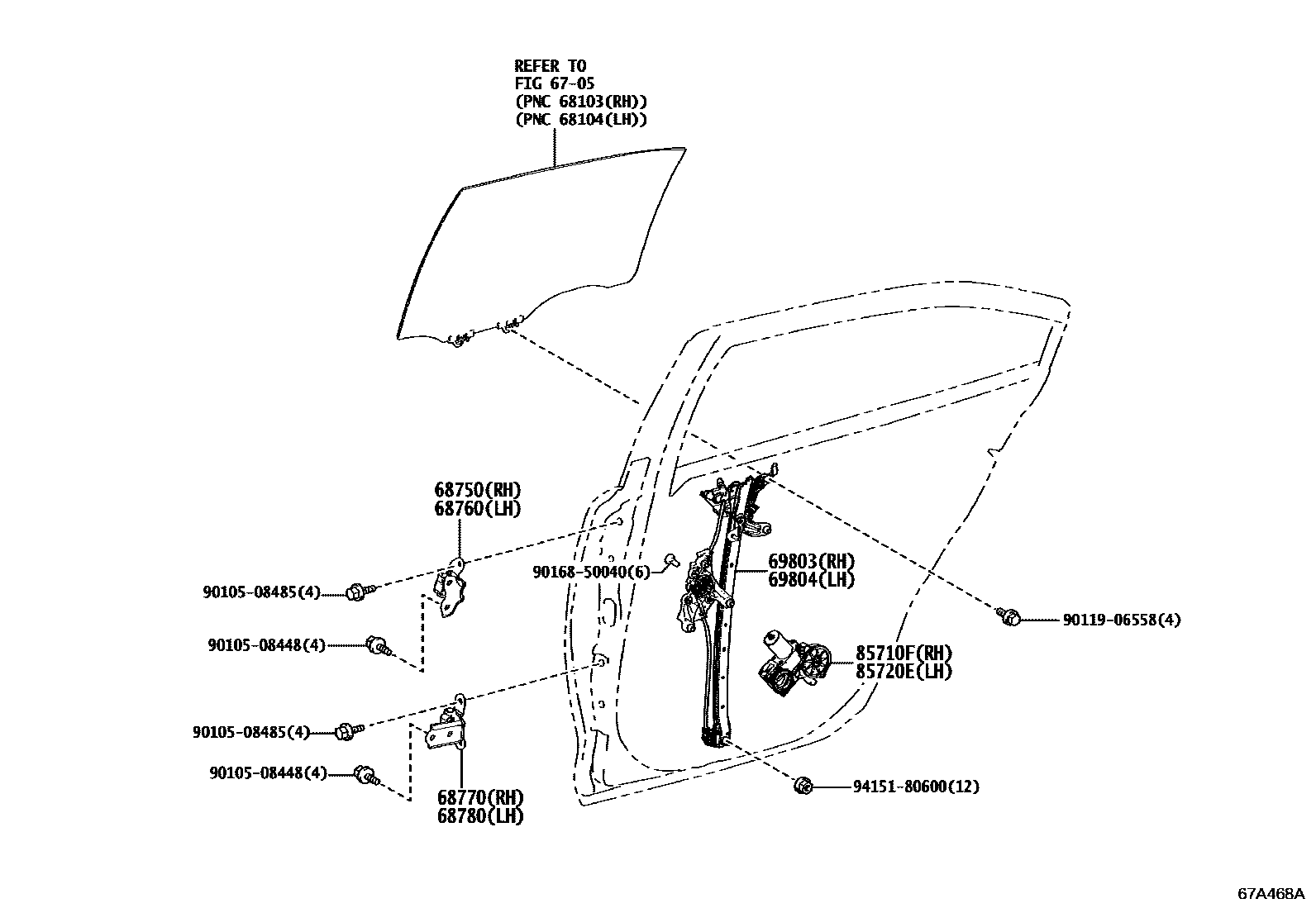

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-20122 |
| 68760 | Left rear door upper hinge assembly | 68760-20122 |
| 68770 | Right rear door lower hinge assembly | 68770-33050 |
| 68780 | Left rear door lower hinge assembly | 68780-33050 |
| 69803 | Right rear door window lifter sub-assembly | 69803-12211 · 69803-12212 · 69803-12213 |
| 69804 | Left rear door window lifter sub-assembly | 69804-12211 · 69804-12212 · 69804-12213 |
| 85710F | Right power window lift motor assembly | 85710-12540 · 85710-12541 · 85710-12570 |
| 85720E | Left electric window lift motor assembly | 85720-12530 · 85720-12531 · 85720-12580 |
